LA38-11 PN GREEN
- Category: LA38 PUSH BUTTON
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 200

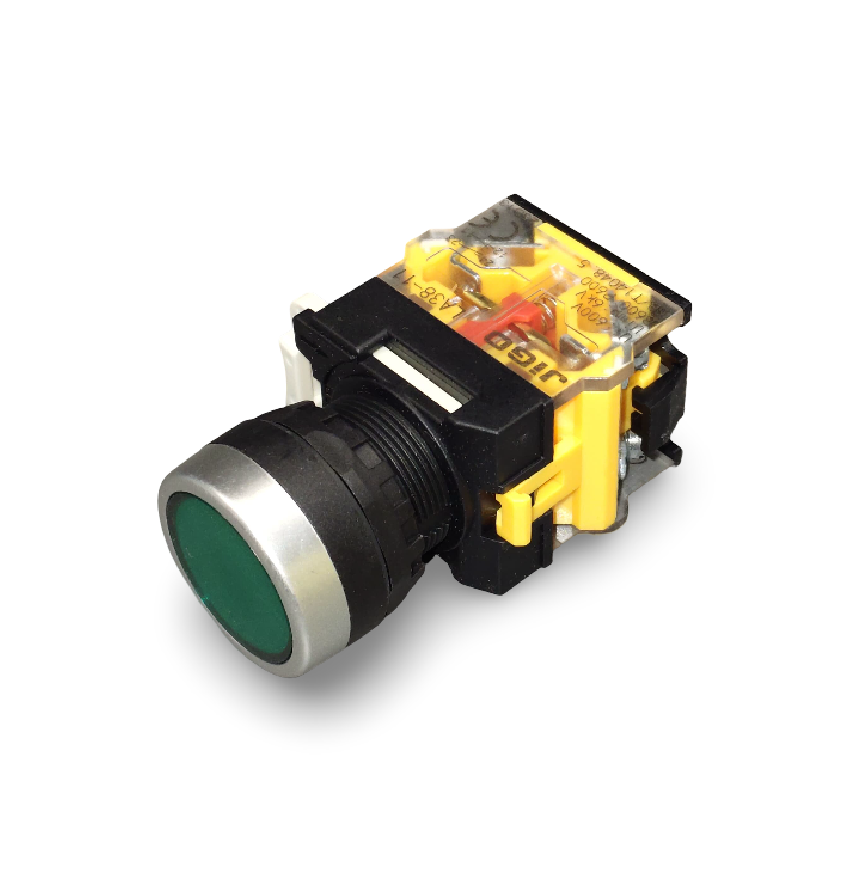

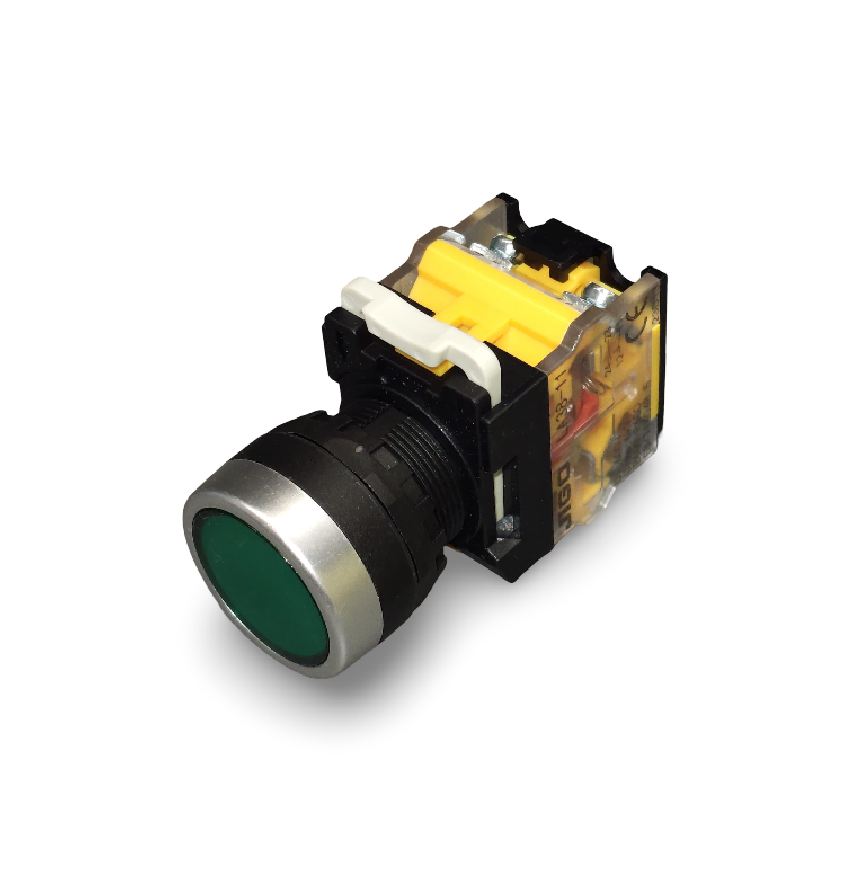

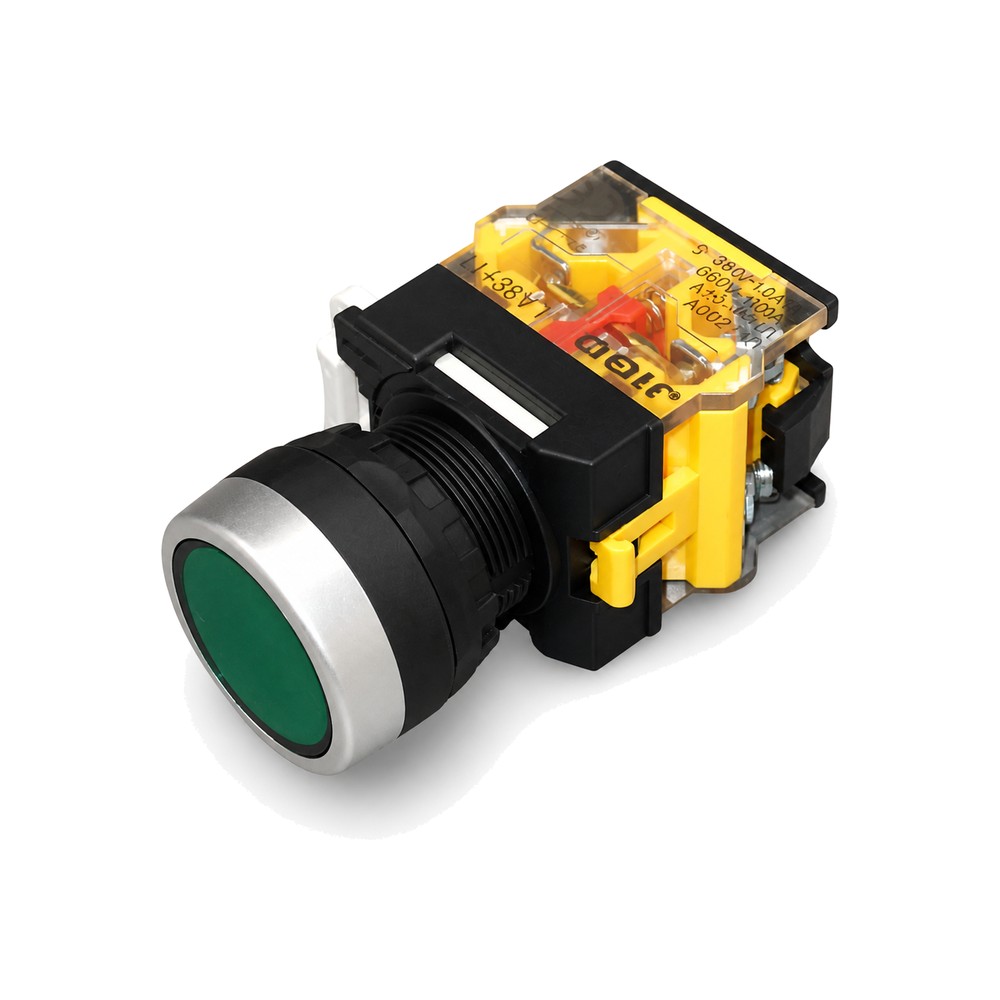

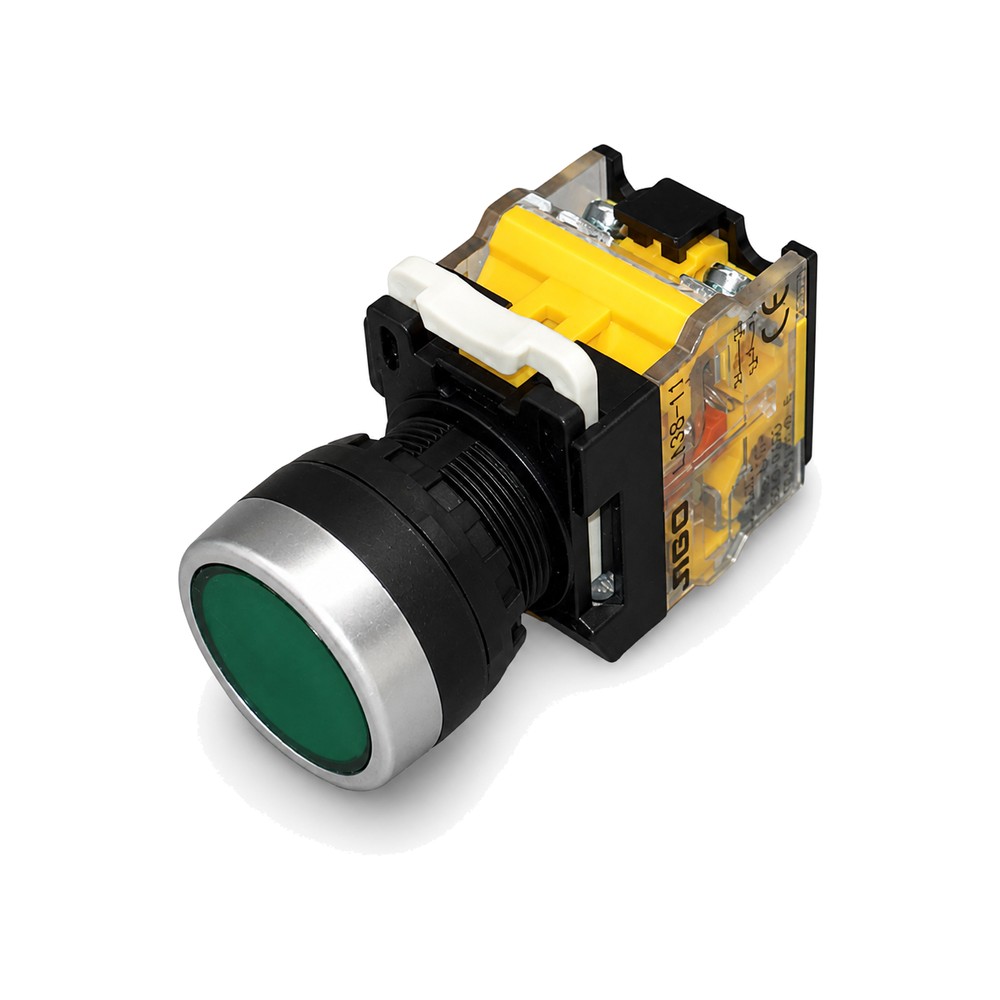

The LA38-11 PN GREEN Push Button is a momentary switch used for control circuits, ideal for start/stop functions in industrial automation systems.
Product Details:
Model: LA38-11 PN
Button Type: Momentary Push Button
Color: Green
Mounting Hole: 22mm
Contact Configuration: 1NO + 1NC (1 Normally Open, 1 Normally Closed)
Rated Voltage: Up to 660V AC
Rated Current: 10A
Material: Flame-retardant plastic body, silver alloy contacts
Action Type: Spring return (non-latching)

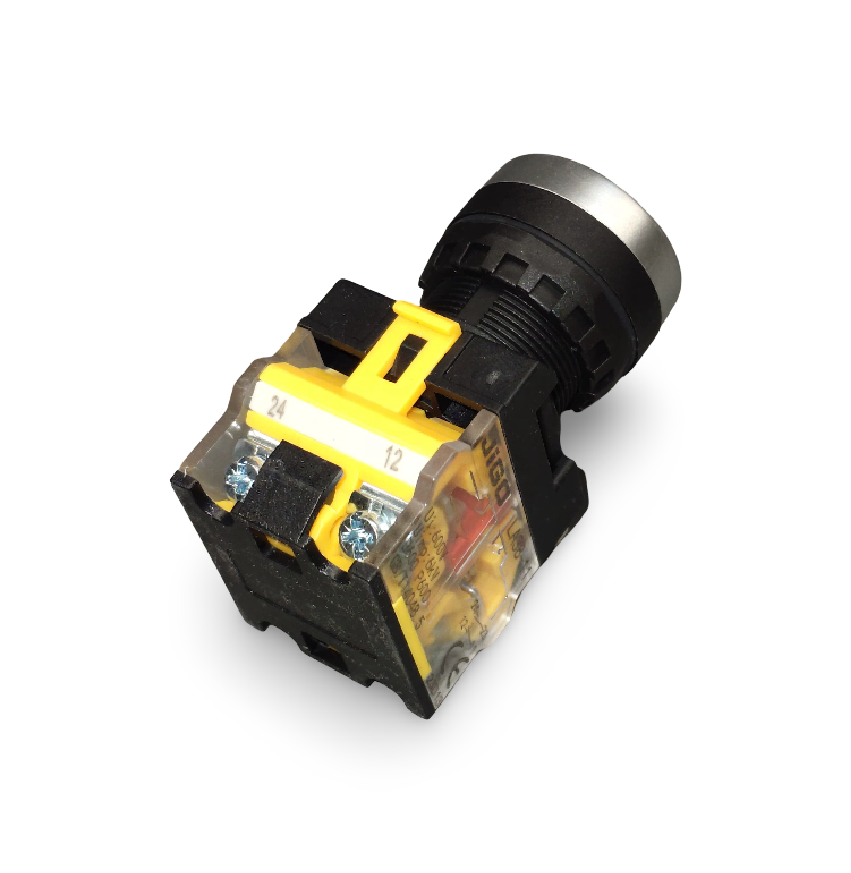

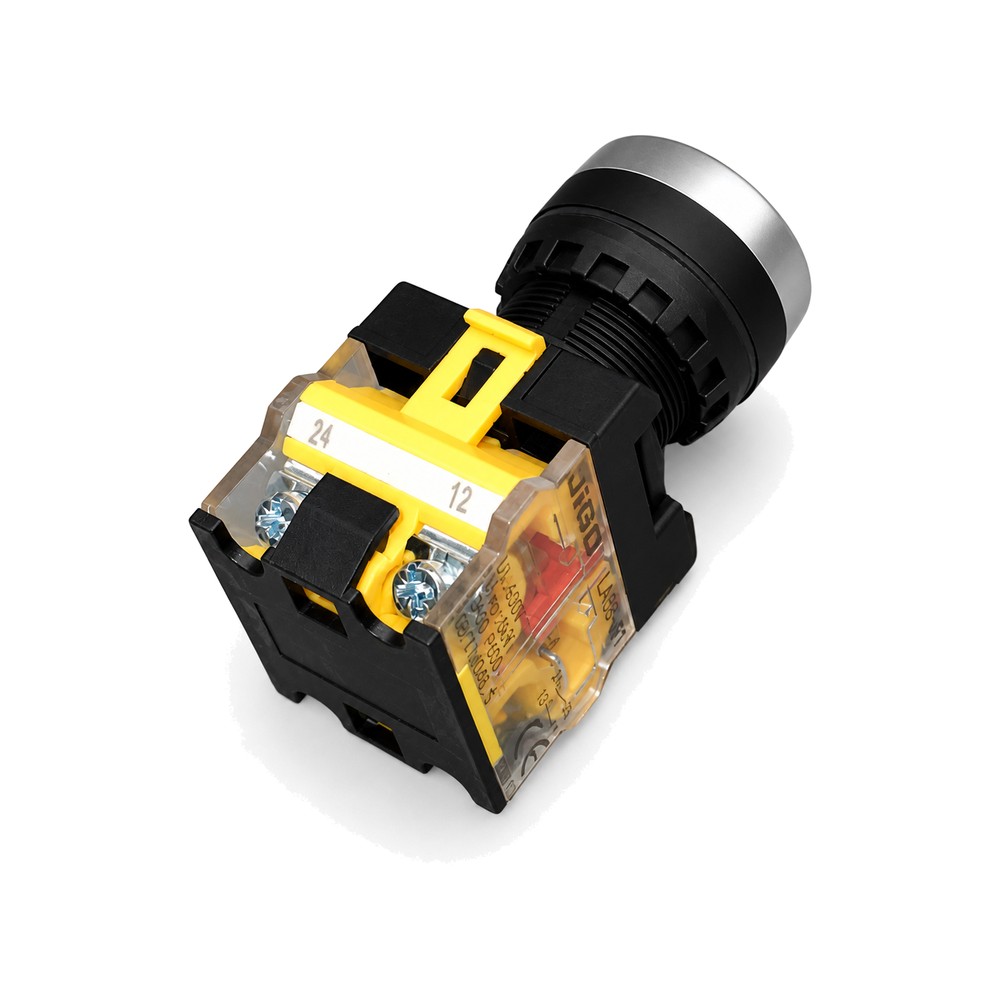

Connection Type: Screw terminals
Ingress Protection: IP40 (standard), can be upgraded to IP65 with protective cap
Key Features:
Clearly marked and color-coded for easy identification
Robust design for frequent operation in industrial settings
Long mechanical and electrical life
Fits standard 22mm panel openings
Simple and secure wiring with screw terminals
Applications:
Industrial machinery control panels
Start/Stop operations
Motor and automation control systems
Operator interfaces in electrical enclosures
Signal and control command systems
