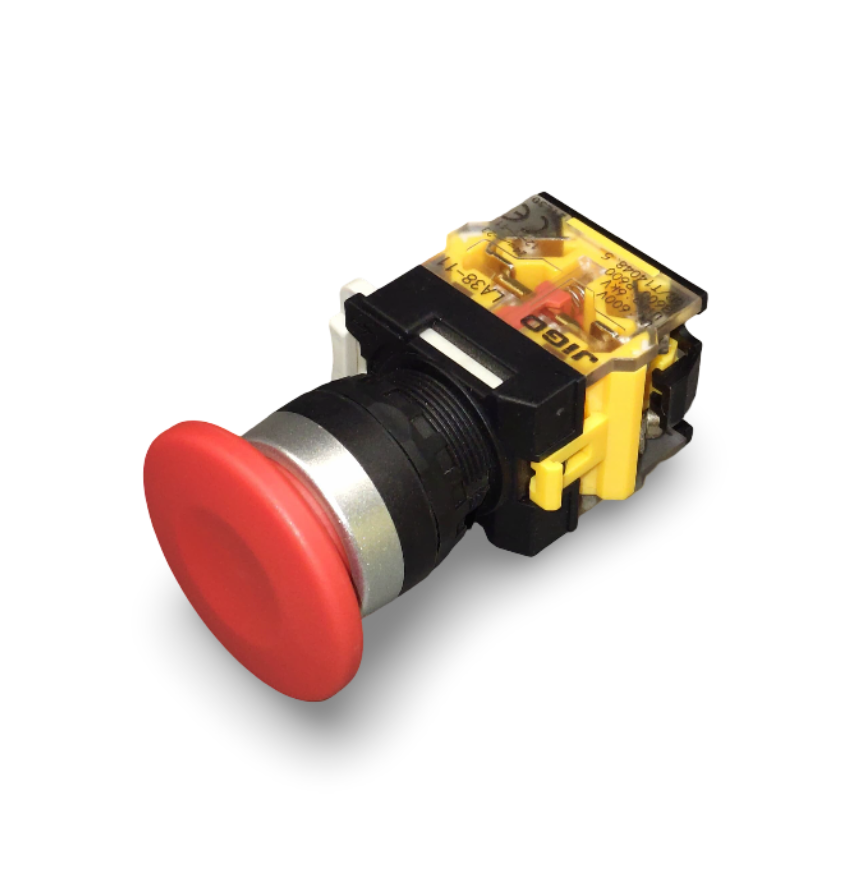

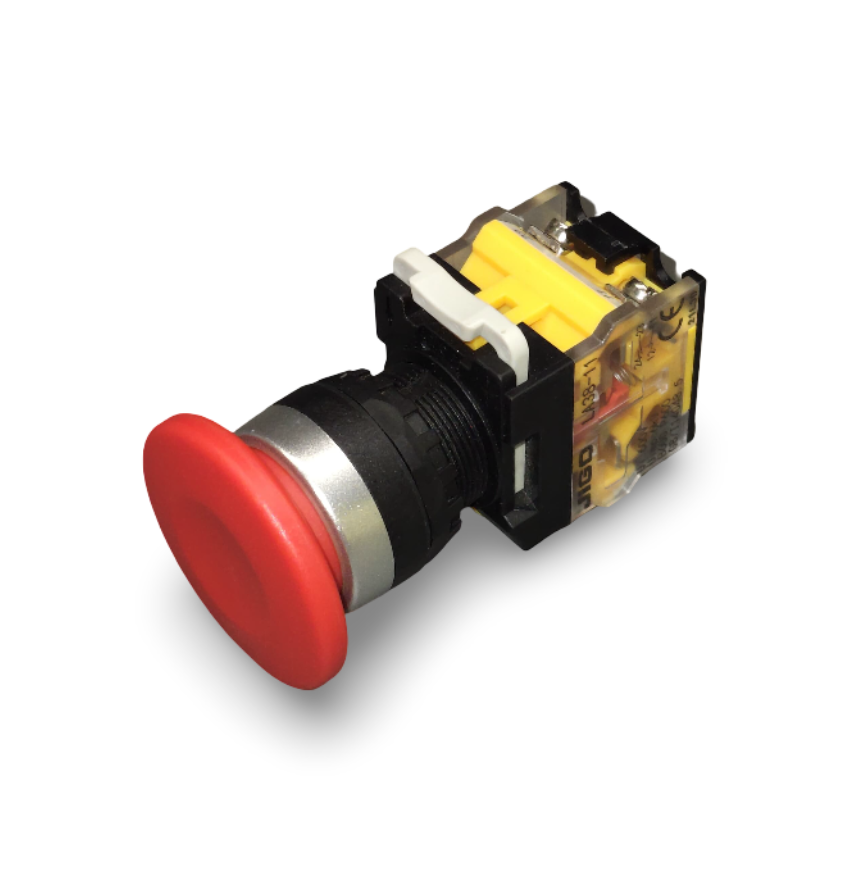

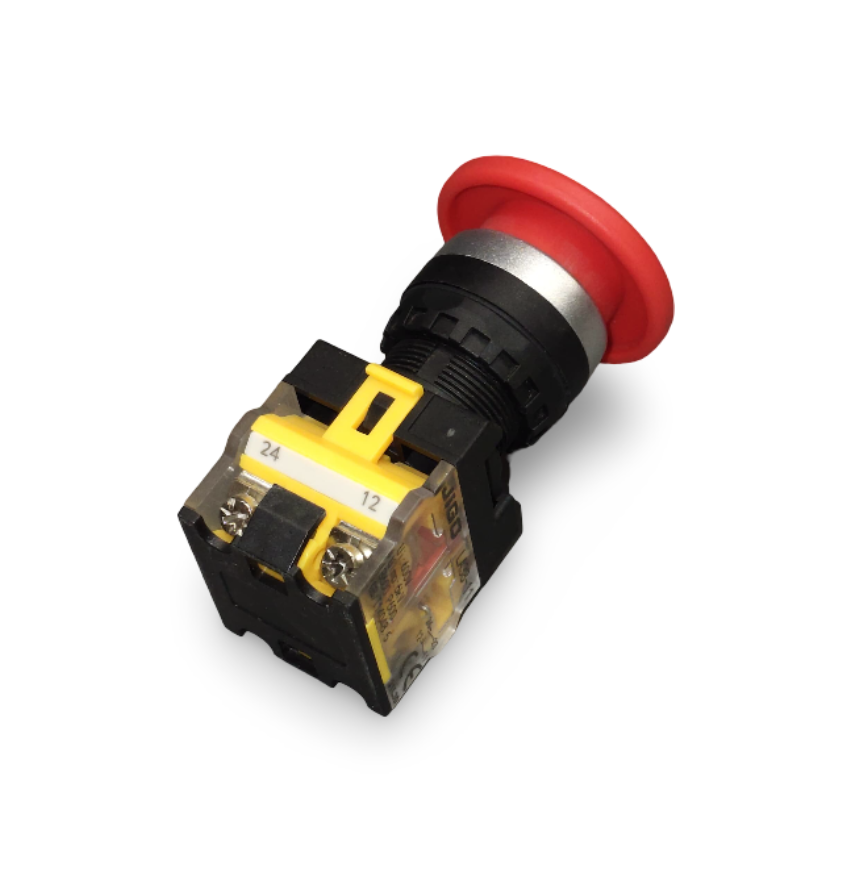

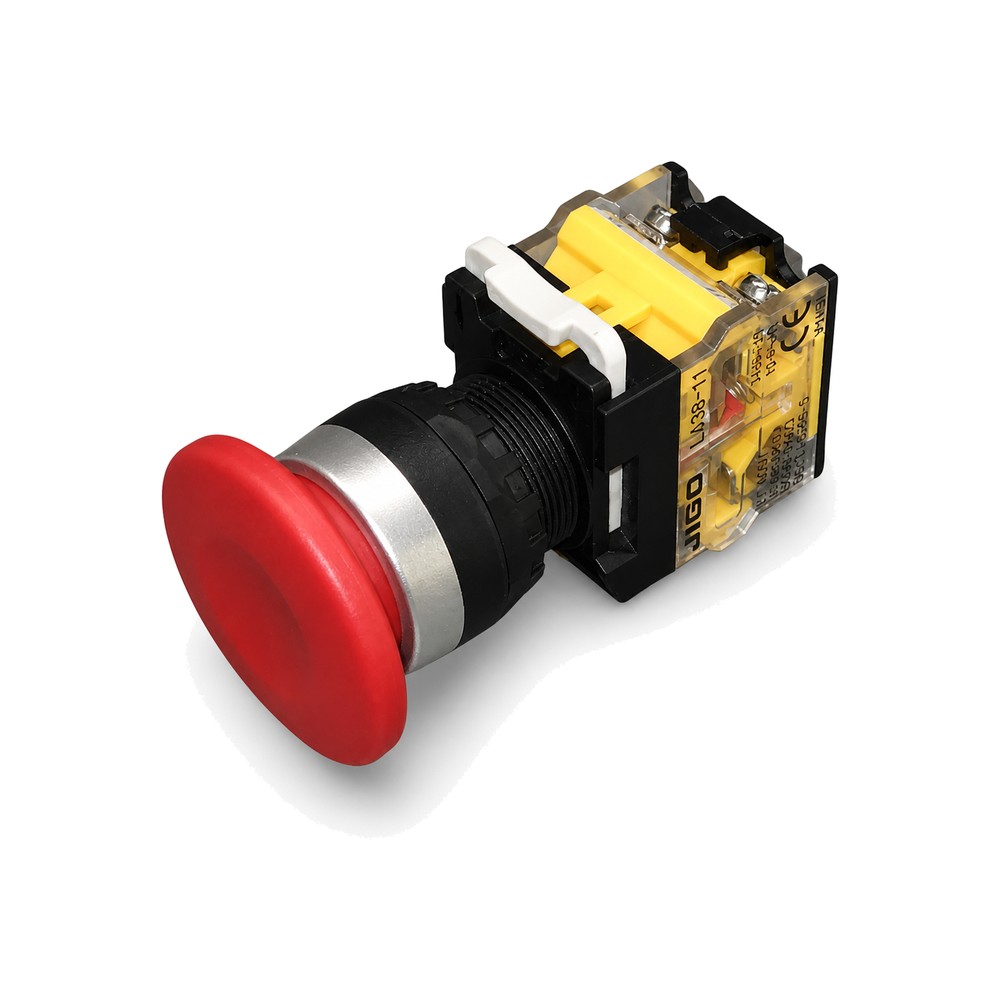

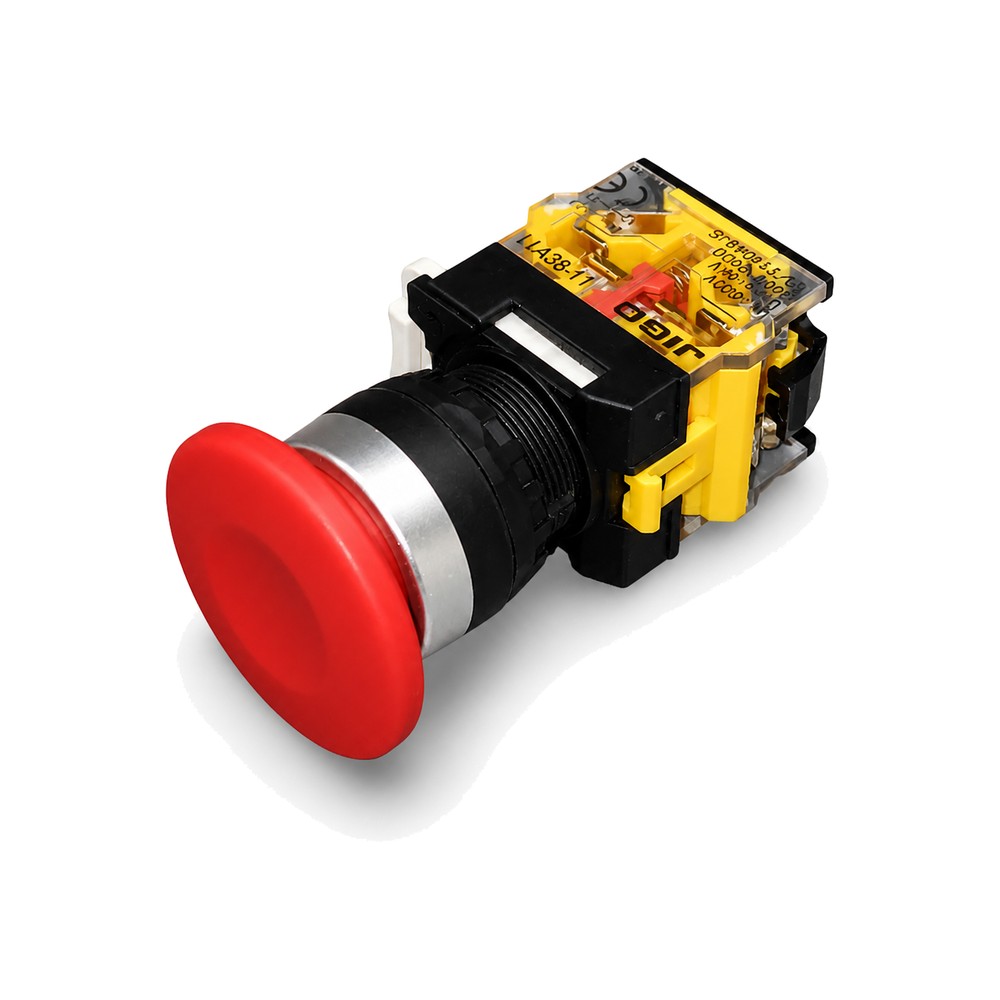

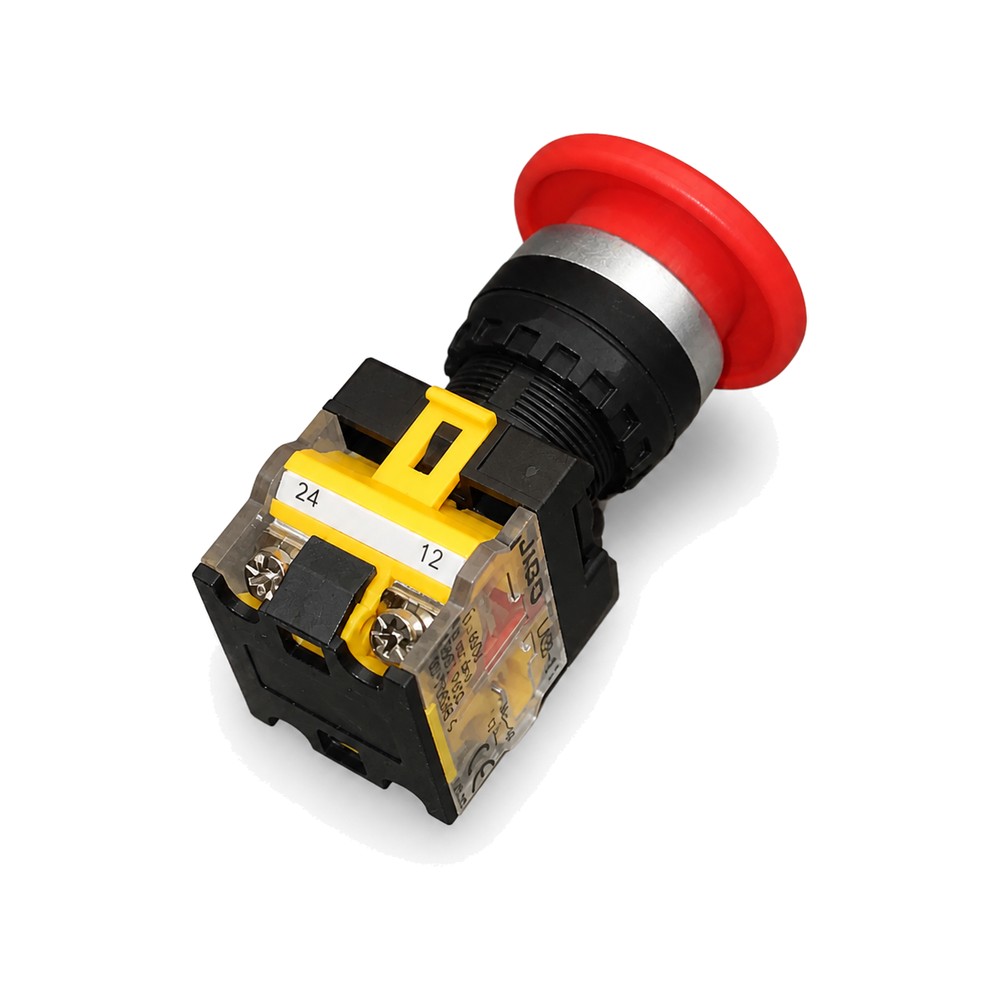

LA38-11 M40 RED Push Button Switch
The LA38-11 M40 RED Mushroom Button is a large-head, momentary push button designed for emergency stop or priority control functions in industrial systems. Rate shown is per piece and includes 18% GST. Minimum order 10 pieces.
Product Details:
Model: LA38-11 M40 RED
Type: Momentary Mushroom Head Push Button
Head Size: 40mm (M40)
Color: Red
Mounting Diameter: 22mm
Contact Configuration: 1NO + 1NC (1 Normally Open + 1 Normally Closed)
Material: Durable ABS housing with silver alloy contacts
Operation Type: Momentary (returns to original position when released)
Voltage Rating: Up to 660V AC
Current Rating: 10A
Terminal Type: Screw terminals
Ingress Protection: IP40 (standard), IP65 (optional)
Key Features:
Prominent red mushroom head for high visibility
Momentary action for quick-release functions
Durable industrial-grade design
Easy installation with standard 22mm panel hole
Dual contact block allows flexible control wiring
Reliable tactile feedback
Applications:
Emergency stop controls in machinery
Safety interlock buttons on control panels
Industrial automation systems
Equipment start/stop/reset operations
Operator consoles and monitoring stations
Power and motor control stations
Genuine stock from our Ludhiana counter (trading since 1993). GST invoice on every order, courier anywhere in India.
