LA38-11 PN RED
- Category: LA38 PUSH BUTTON
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 200

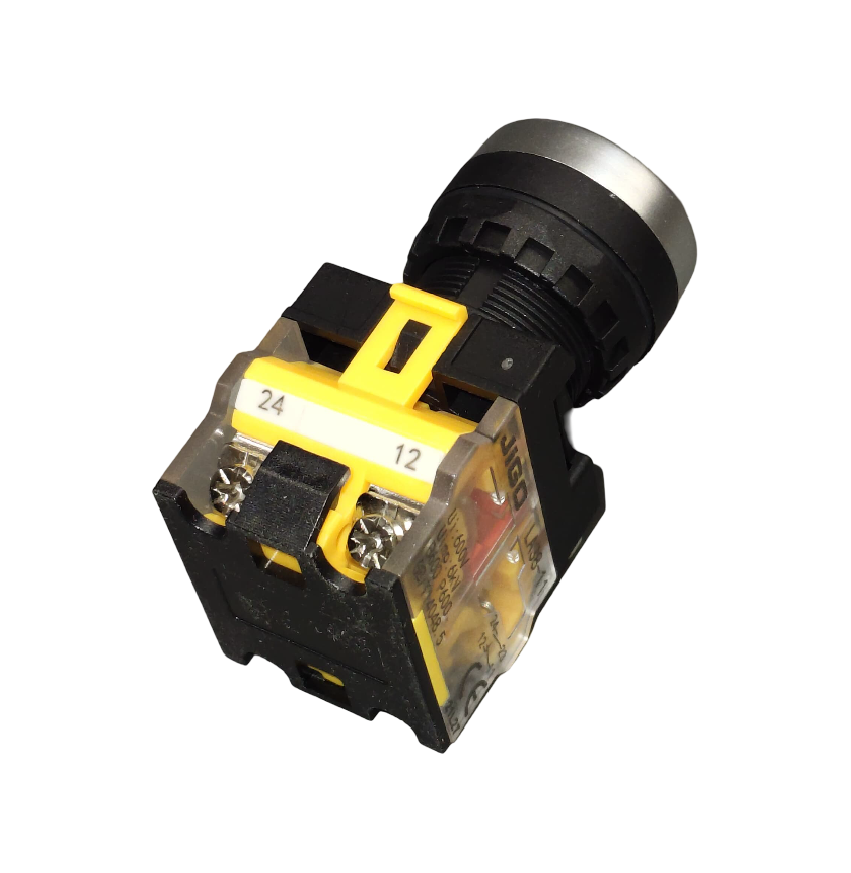

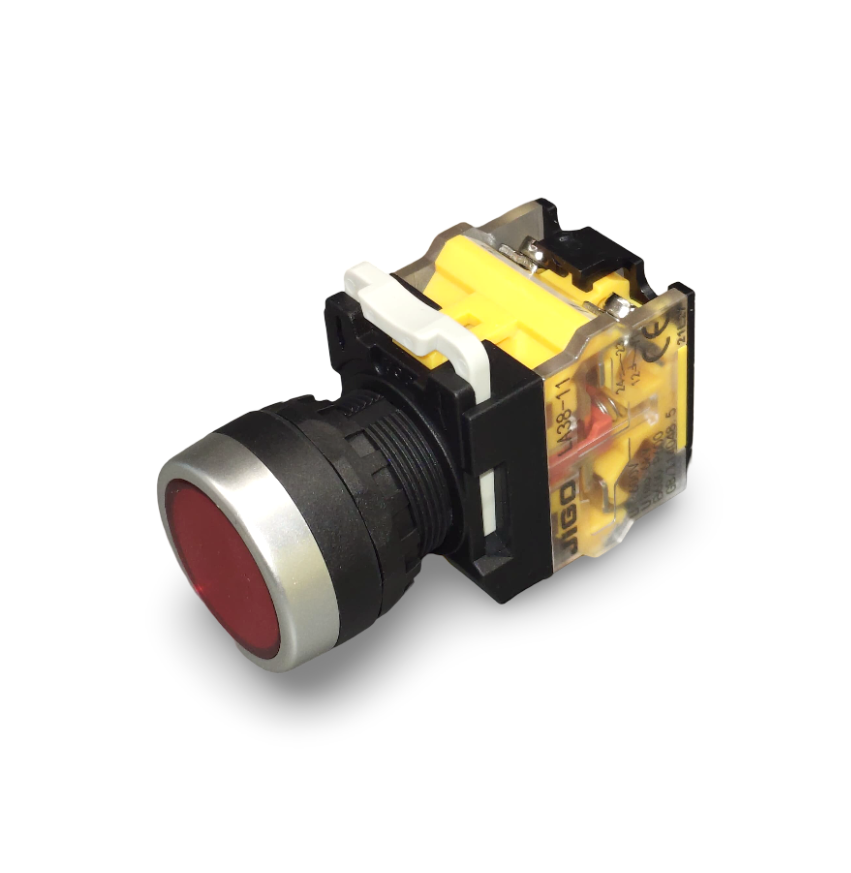

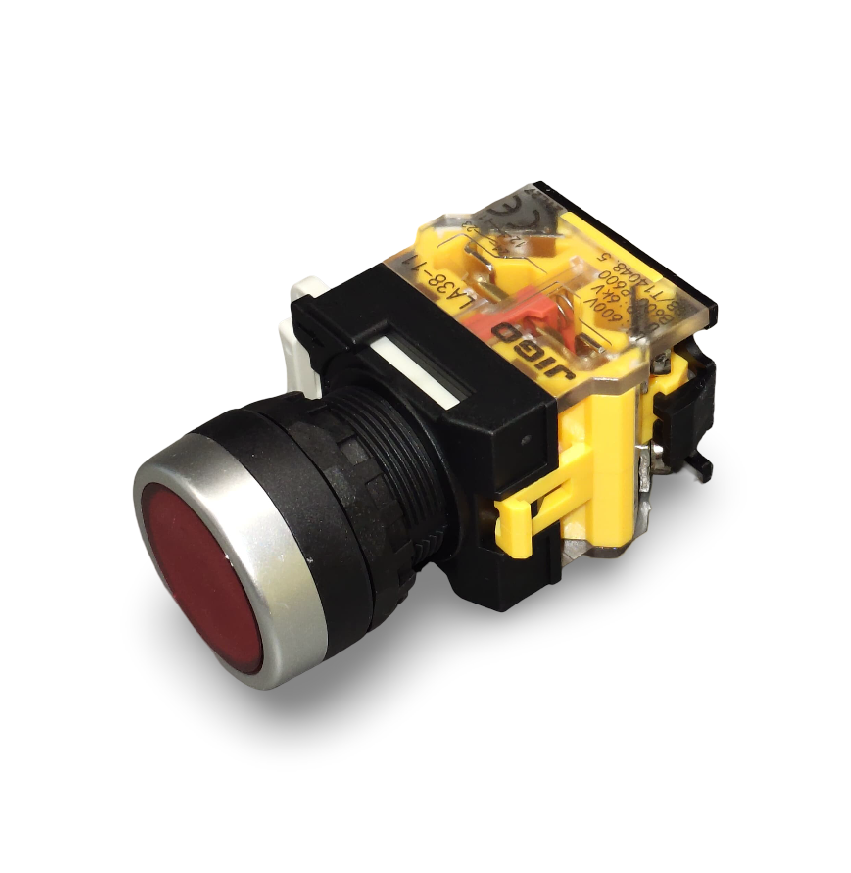

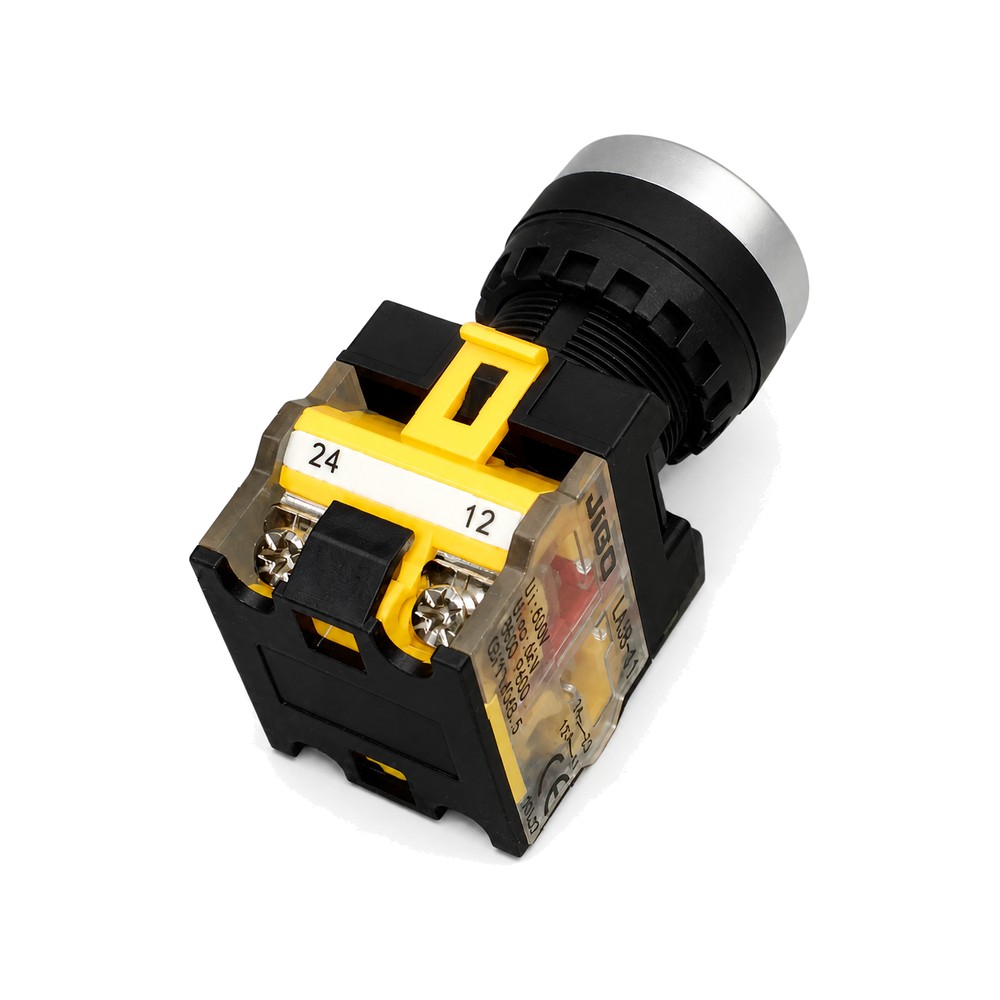

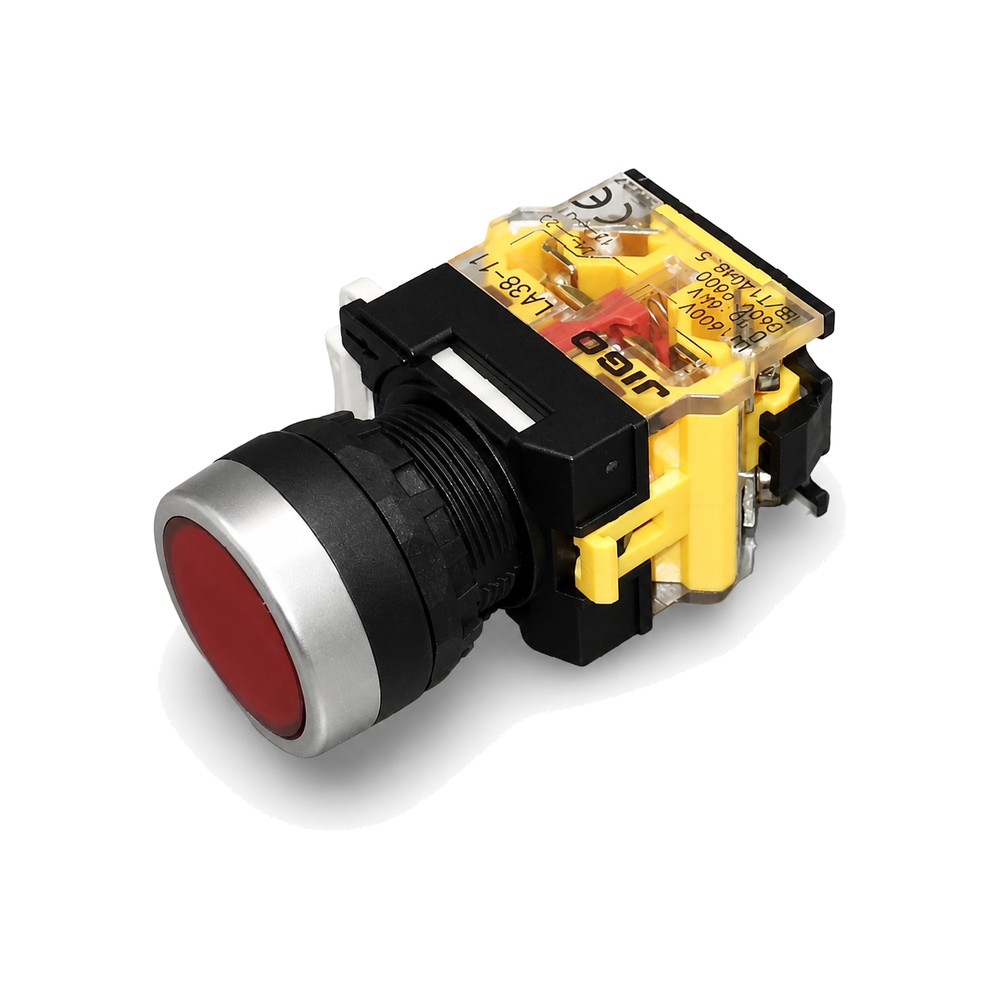

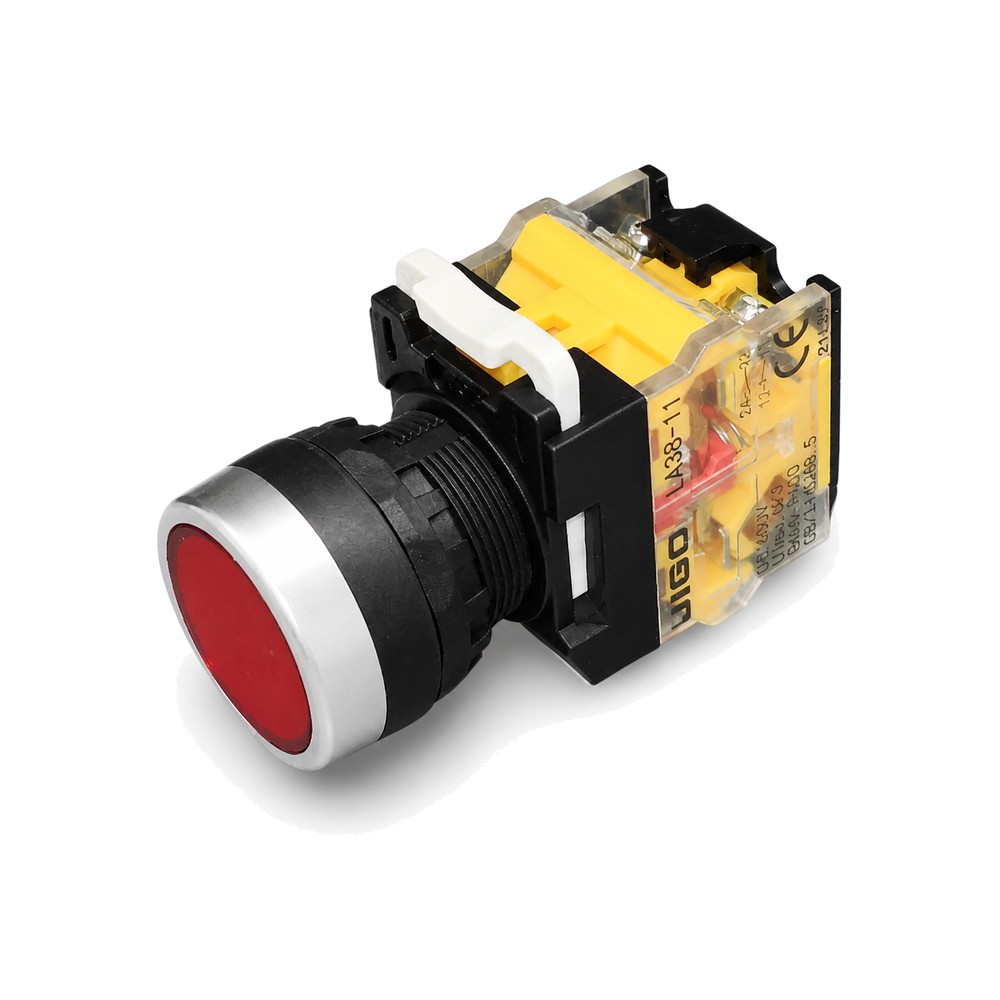

The LA38-11 PN RED Push Button is a momentary-type control switch designed for quick and reliable operation in automation panels and industrial control systems.
Product Details:
Model: LA38-11 PN
Button Color: Red
Button Type: Non-illuminated, Momentary (spring return)
Mounting Hole Diameter: 22mm
Contact Block: 1NO + 1NC (1 Normally Open + 1 Normally Closed)
Rated Voltage: Up to 660V AC
Rated Current: 10A
Material: Durable flame-retardant plastic body
Terminal Type: Screw type connection
Ingress Protection: IP40 (standard), can be upgraded to IP65 with accessories
Key Features:
Easy to install on standard 22mm panels
Ergonomic, robust push button for frequent operation
Color-coded for emergency or stop functions
High mechanical and electrical durability
Compact design for space-saving control panel layouts
Applications:
Emergency Stop or Stop command in machinery
Industrial automation systems
Control circuits in panels and enclosures
Operator control stations
Power control and distribution equipment
