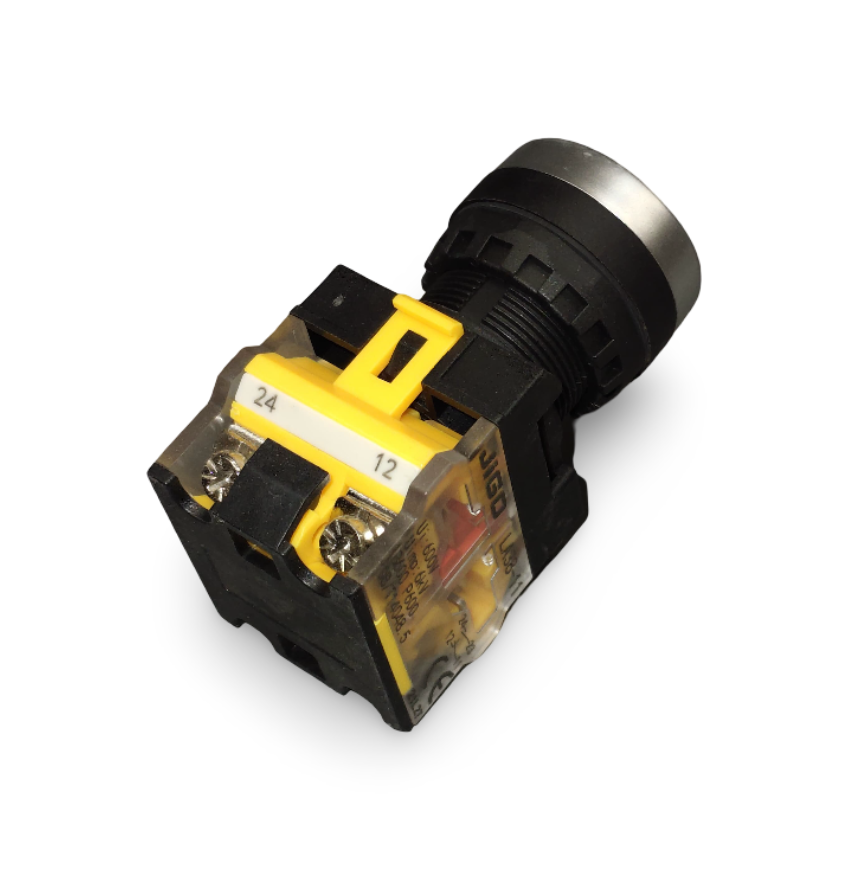

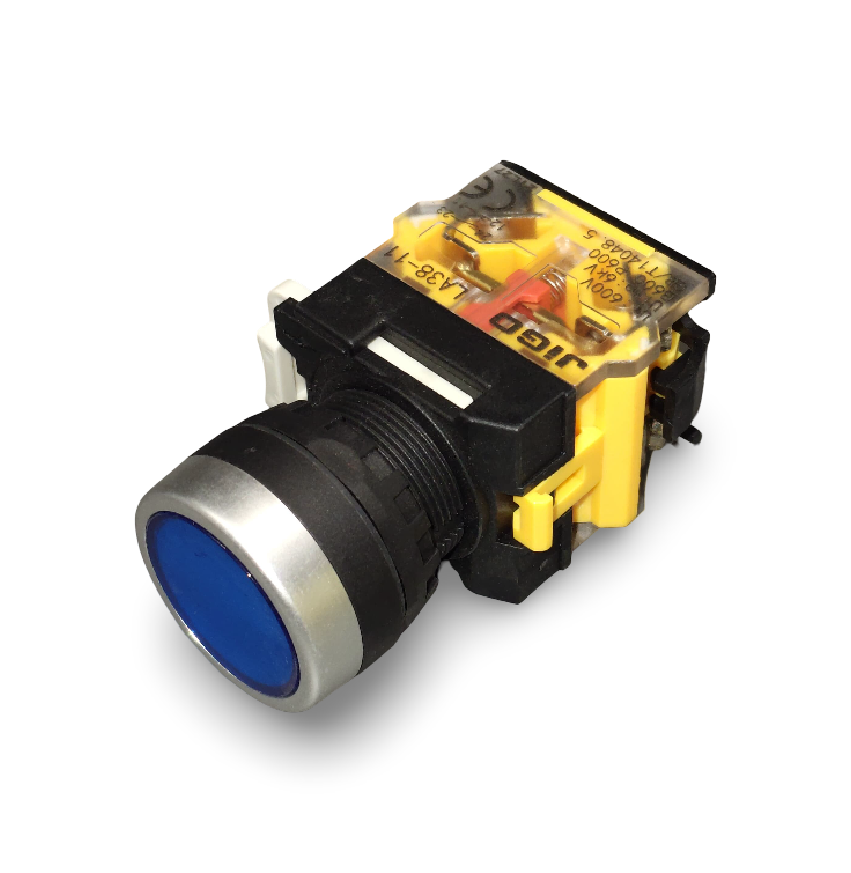

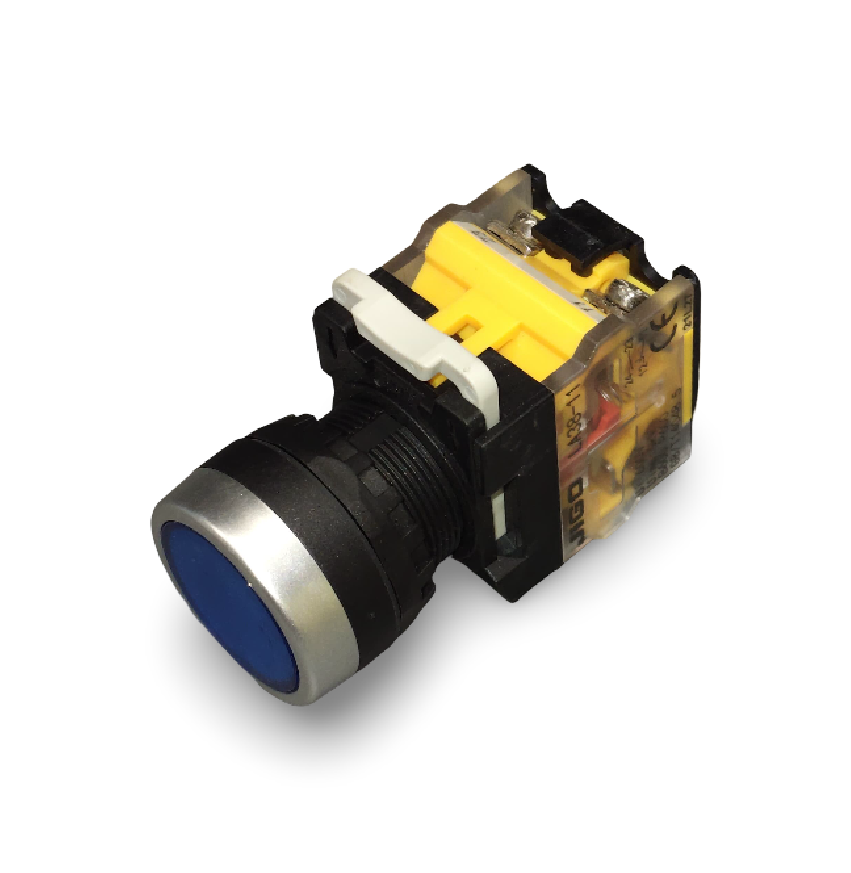

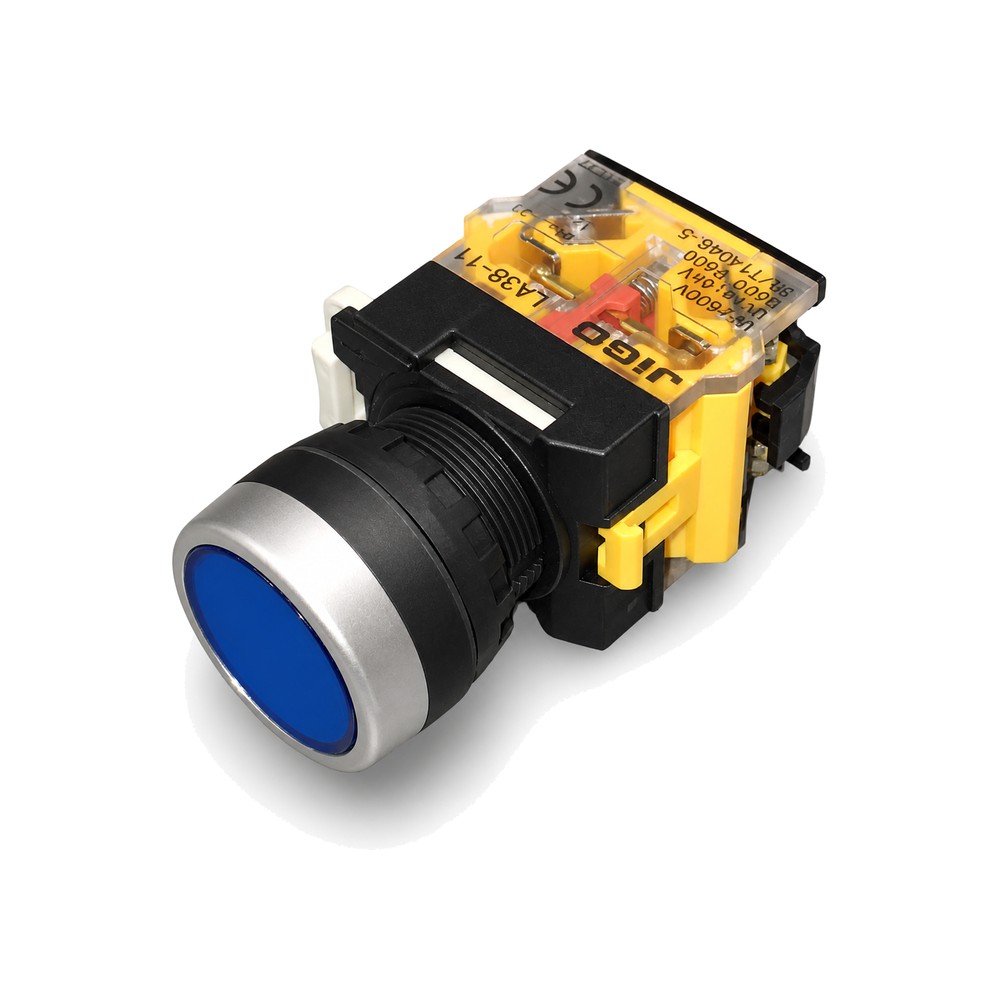

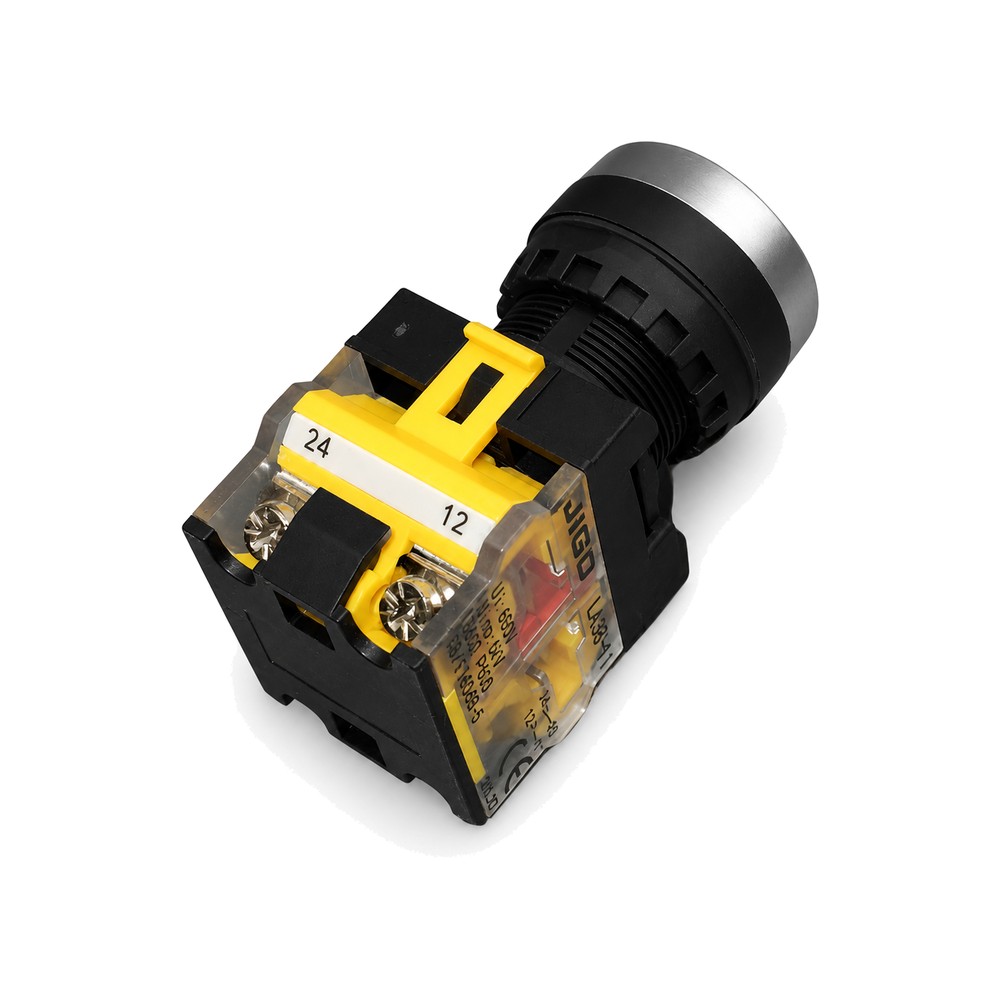

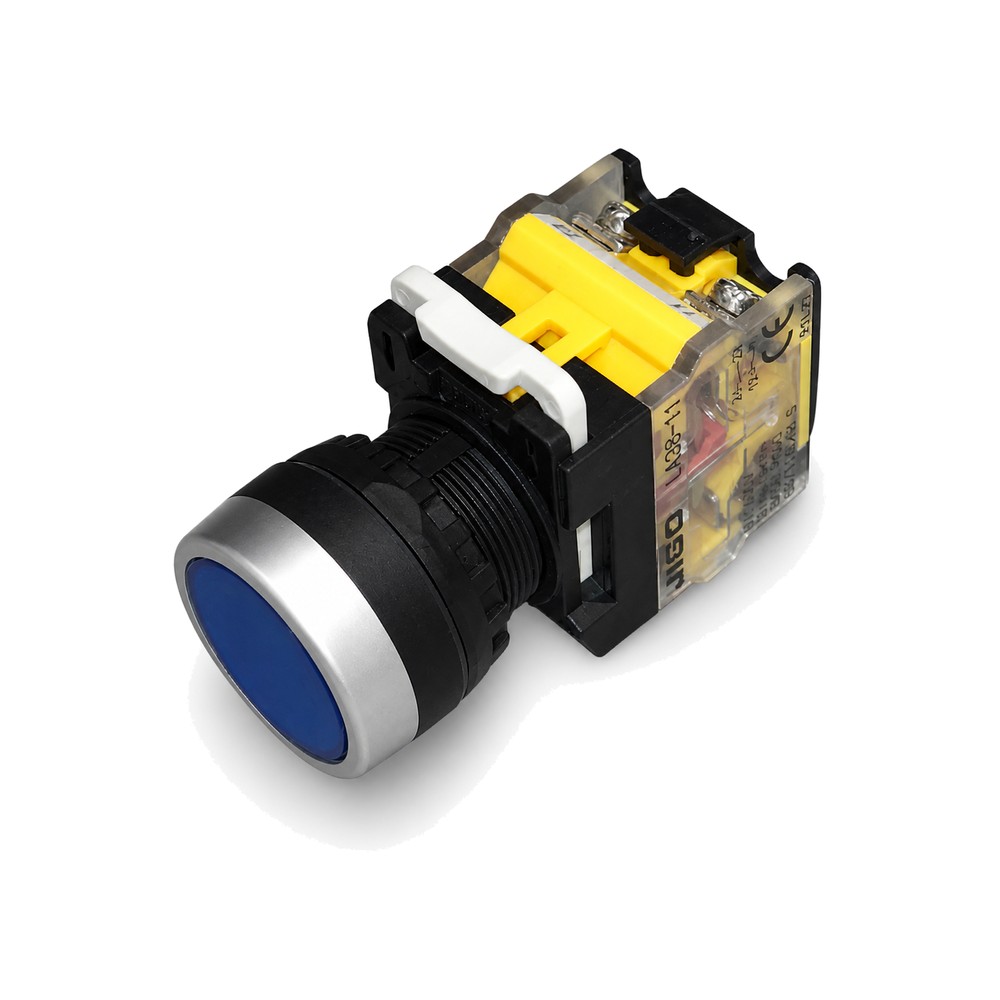

LA38-11 PN BLUE Push Button Switch
The LA38-11 PN BLUE Push Button is a momentary-action industrial switch designed for machine control, signaling, and automation applications. Rate shown is per piece and includes 18% GST. Minimum order 10 pieces.
Product Details:
Model: LA38-11 PN
Button Type: Momentary Push Button
Color: Blue
Mounting Size: 22mm diameter
Contact Configuration: 1NO + 1NC (1 Normally Open + 1 Normally Closed)
Material: Durable thermoplastic body with silver alloy contacts
Action Type: Spring return (non-latching)
Voltage Rating: Up to 660V AC
Current Rating: 10A
Connection Type: Screw terminal
Ingress Protection: IP40 (standard), upgradeable to IP65 with cover
Key Features:
Industrial-grade build with long life operation
Easy installation in standard 22mm panel cut-outs
Clearly color-coded for function identification
High contact reliability under frequent use
Optional LED illumination available
Applications:
Machine start or stop operations
Industrial control panels
Operator control stations
Electrical equipment and automation systems
General purpose on/off control functions
