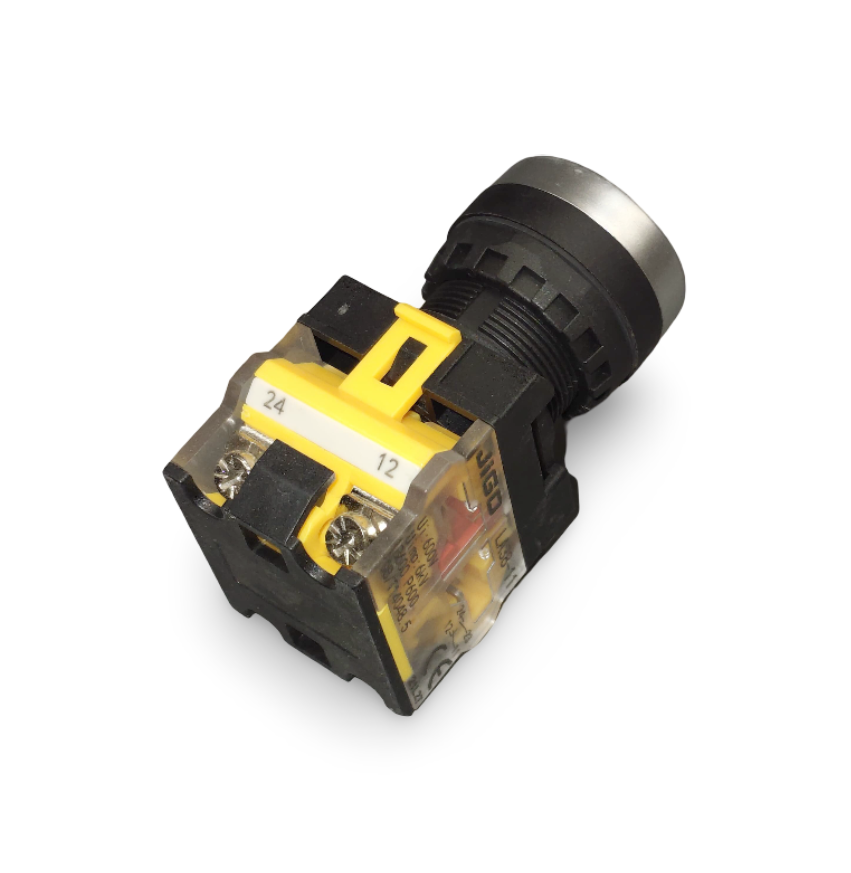

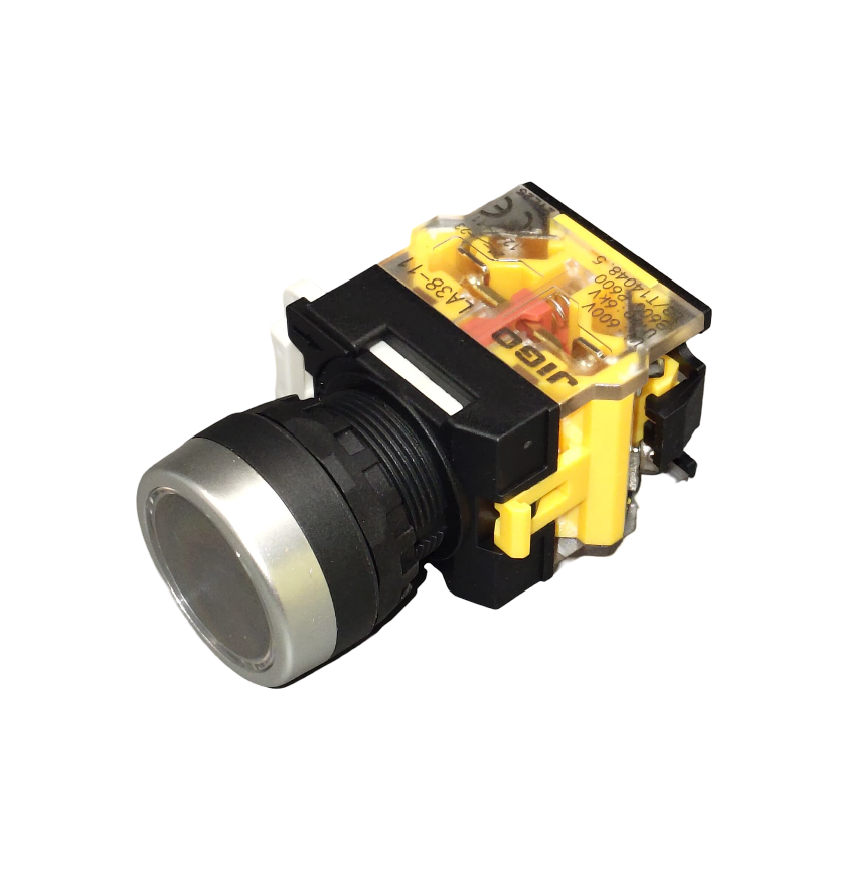

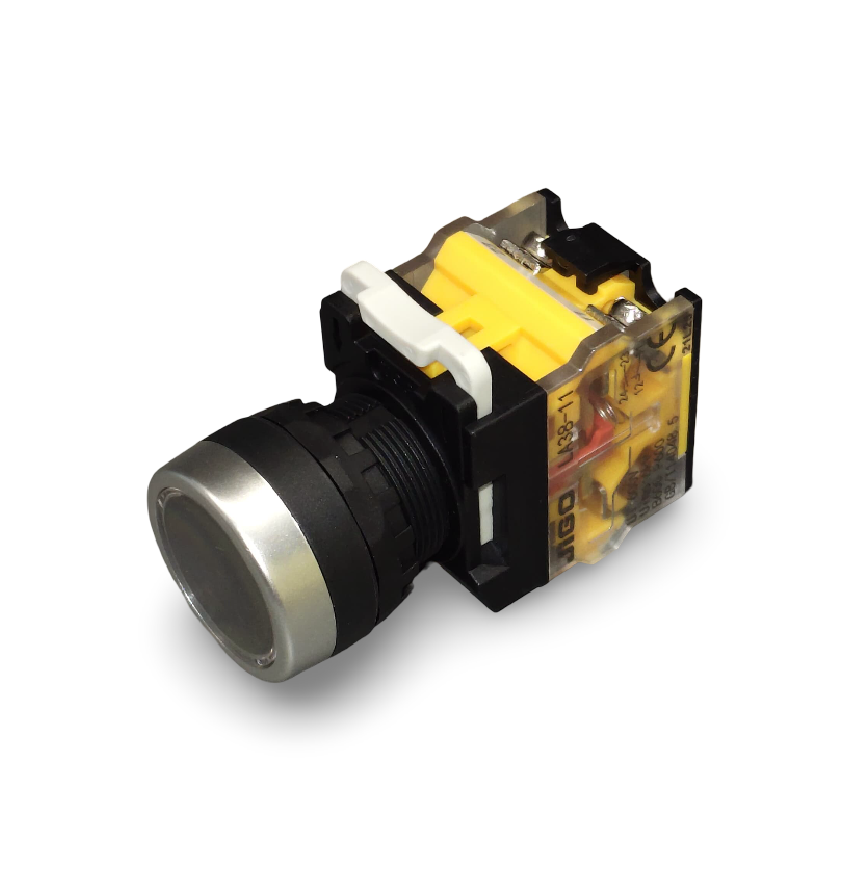

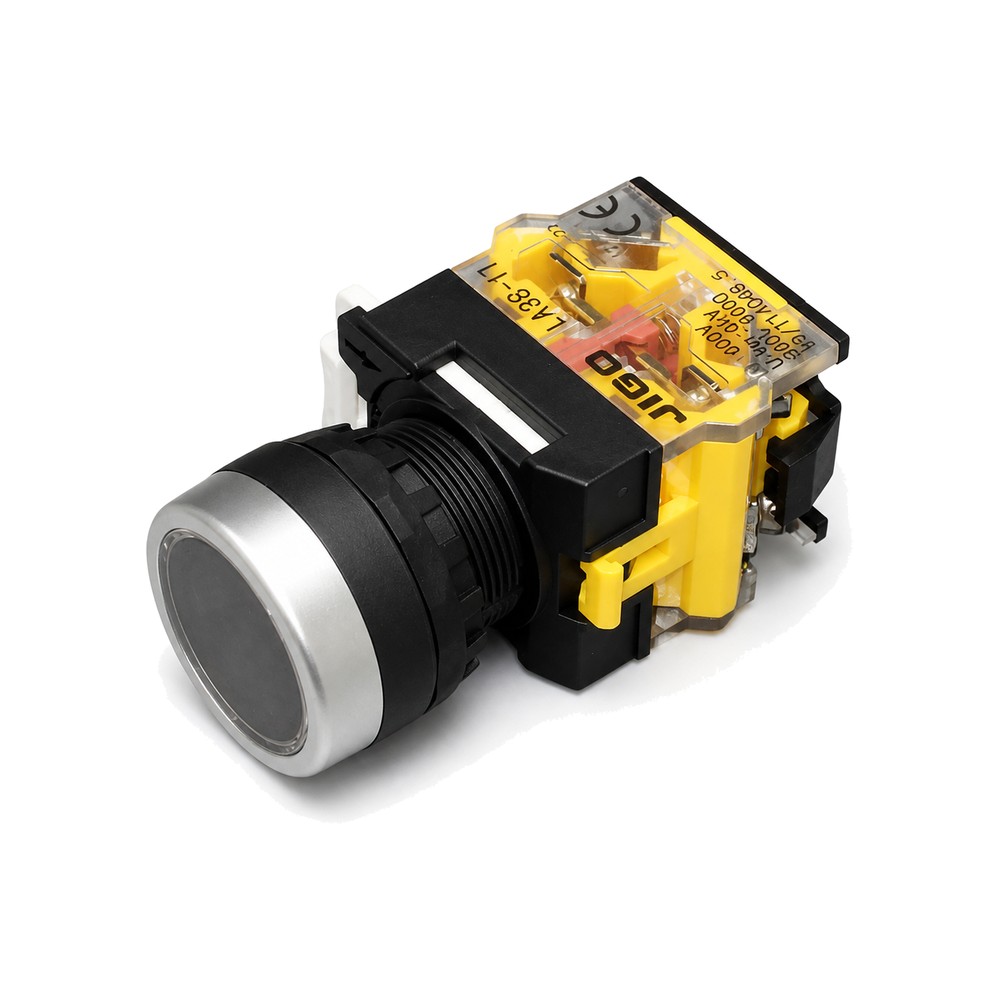

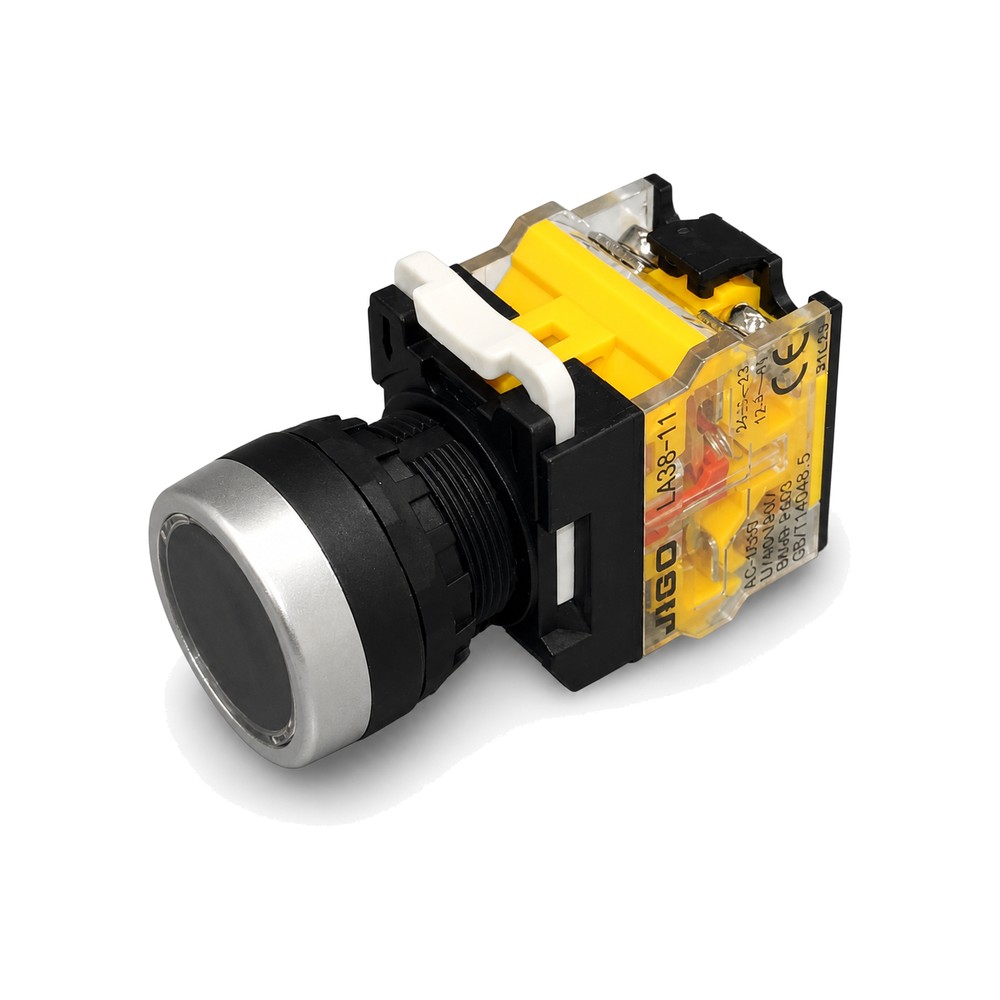

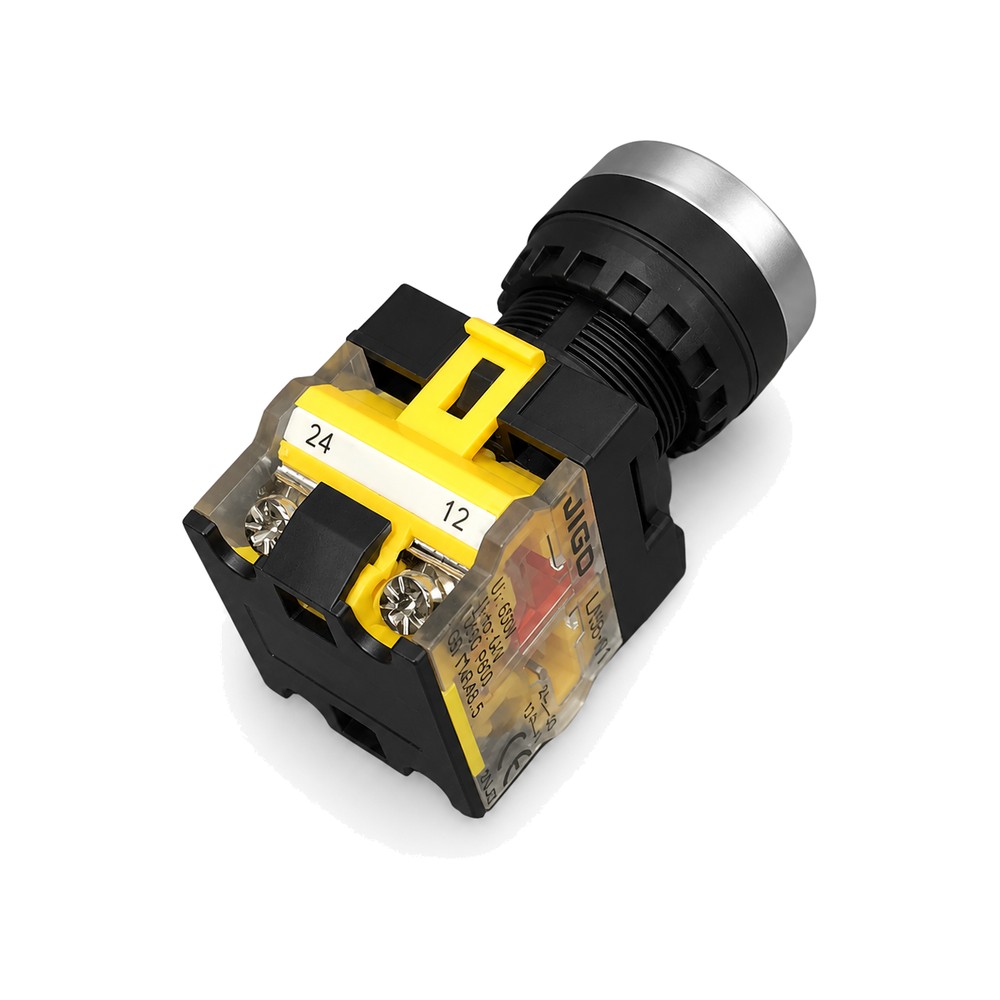

LA38-11 PN BLACK Push Button Switch
The LA38-11 PN BLACK Push Button is a momentary, flush-type industrial switch, ideal for start/stop or control functions in panels and machines. Rate shown is per piece and includes 18% GST. Minimum order 10 pieces.
Product Details:
Model: LA38-11 PN
Button Type: Momentary Push Button
Color: Black
Mounting Hole Diameter: 22mm
Contact Configuration: 1NO + 1NC (1 Normally Open + 1 Normally Closed)
Material: Flame-retardant plastic housing, silver alloy contacts
Operation Mode: Spring return (non-latching)
Rated Voltage: Up to 660V AC
Rated Current: 10A
Terminal Type: Screw clamp
Ingress Protection: IP40 (standard), IP65 (with optional cover)
Key Features:
Momentary action with tactile feedback
High-durability build for industrial use
Standard 22mm mounting fits most control panels
Clearly marked contact terminals
Available in multiple contact options (on request)
Applications:
Start/Stop push button stations
Machine control panels
Electrical distribution boards
Automation systems
Operator interface panels
Safety and reset functions
