LA38-11-NOXNC

    Category: LA38 PUSH BUTTON
  • Brand: Jigo
  • Minimum quantity: 1
  • Price: ₹ 100

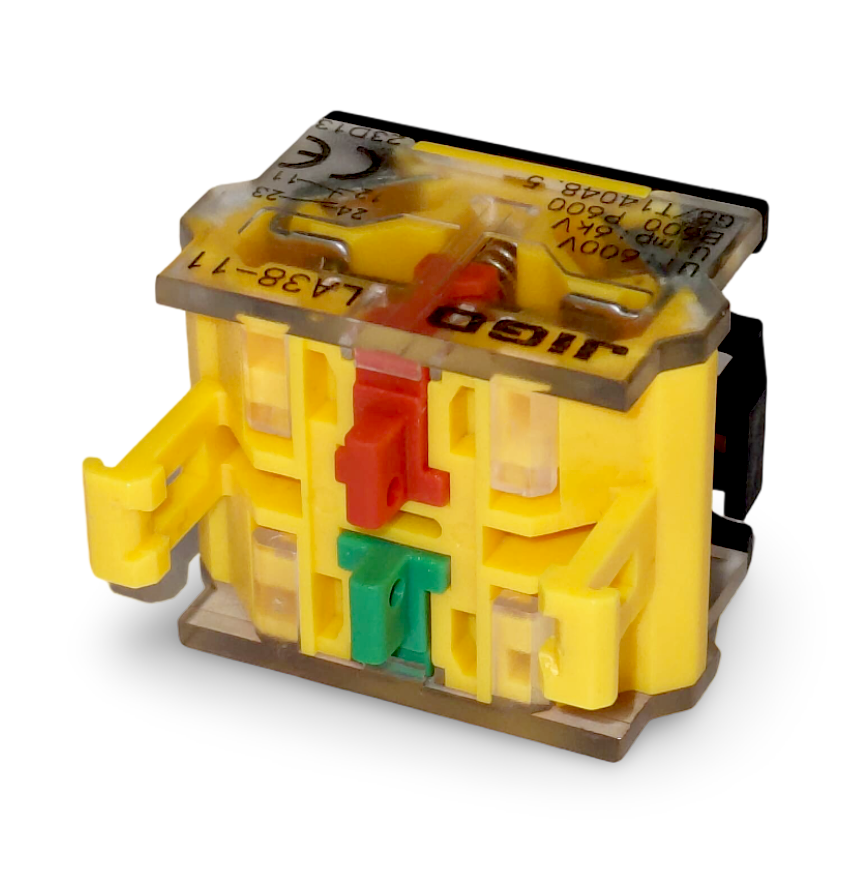

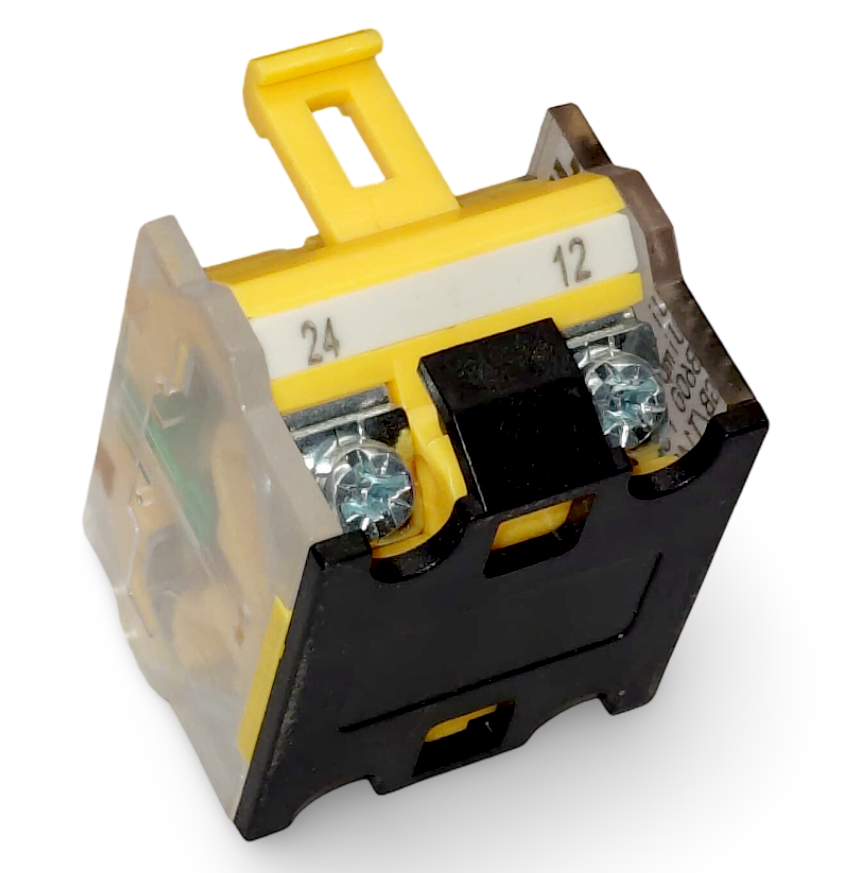

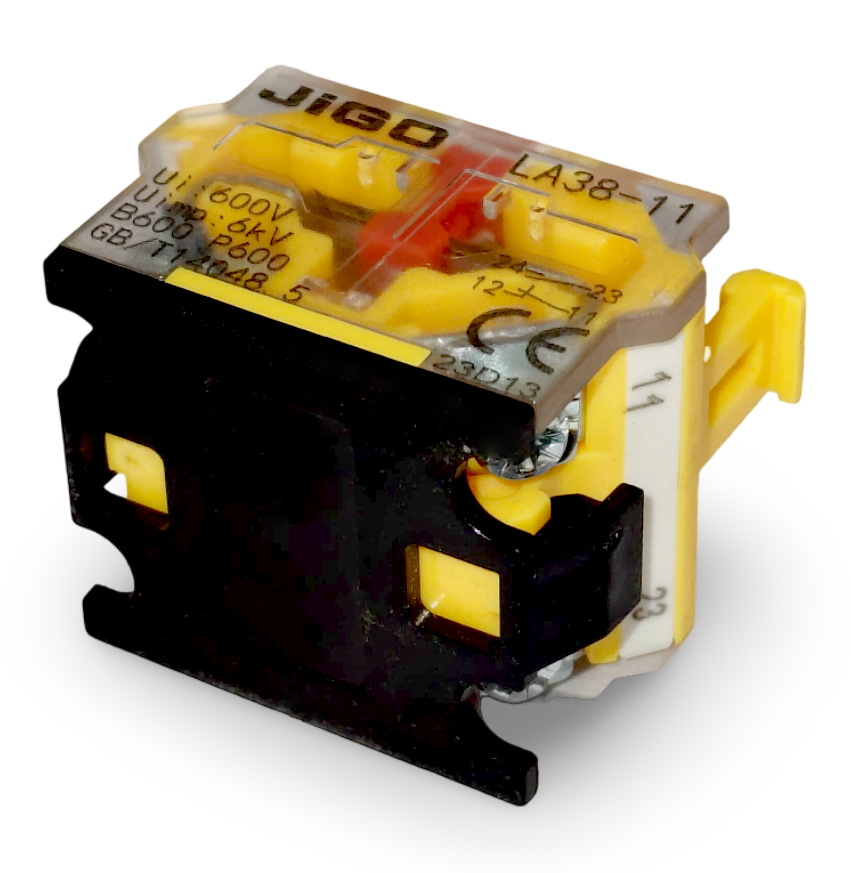

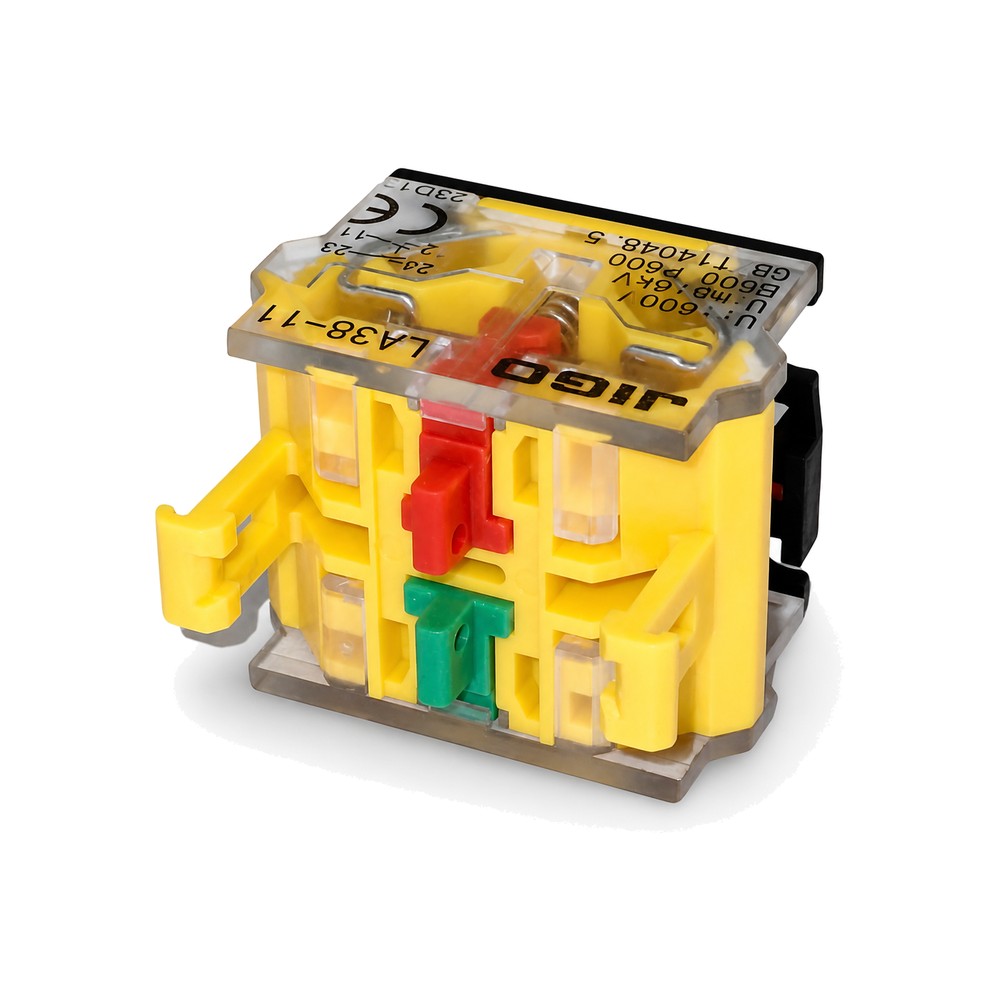

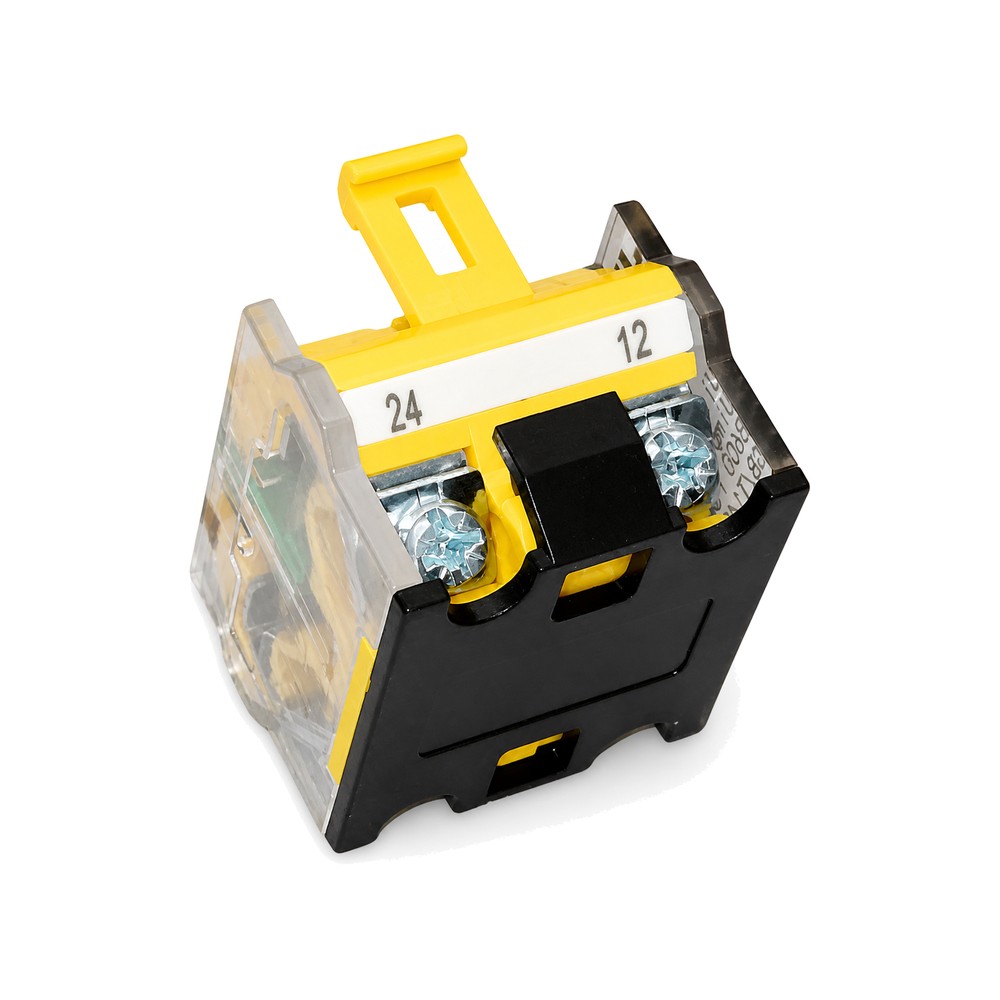

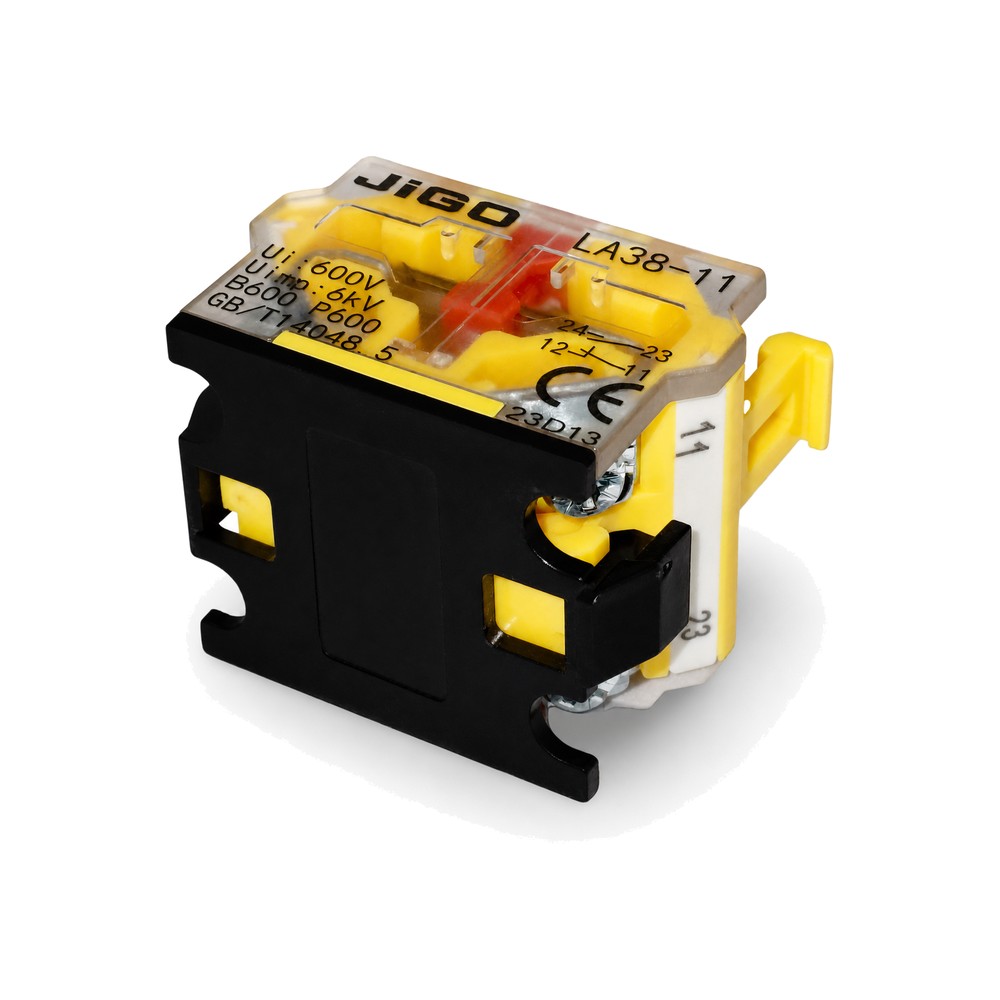

LA38-11-NO+NC is a 22mm modular push button switch equipped with 1 Normally Open (NO) and 1 Normally Closed (NC) contact. It is widely used in control systems requiring both start (NO) and stop (NC) functions in one compact unit.



Product Details

Model: LA38-11-NO+NC

Type: Momentary Push Button Switch

Contact Configuration: 1 × NO + 1 × NC

Mounting Hole: 22mm standard panel cutout

Rated Voltage: Up to 660V AC / 440V DC

Rated Current: 10A

Material: Flame-retardant plastic housing / metal head (optional)

Terminal Type: Screw terminals for secure wiring

Operation Type: Momentary (returns to normal after release)

Button Color Options: Red, Green, Black, Yellow, etc.

Key Features

Dual-contact system: activates one circuit and breaks another simultaneously

Compact design for easy panel integration

Clear tactile feedback

Long mechanical and electrical lifespan

Modular build allows easy customization or stacking with other contacts

Meets IEC/EN industrial safety standards

Applications

Start/Stop circuits for motors and machines

Industrial control panels

Automation systems

Elevator or lift systems

Power and safety control applications

Reset and emergency circuits
