LA38-11 PND 220V GREEN
- Category: LA38 PUSH BUTTON
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 200

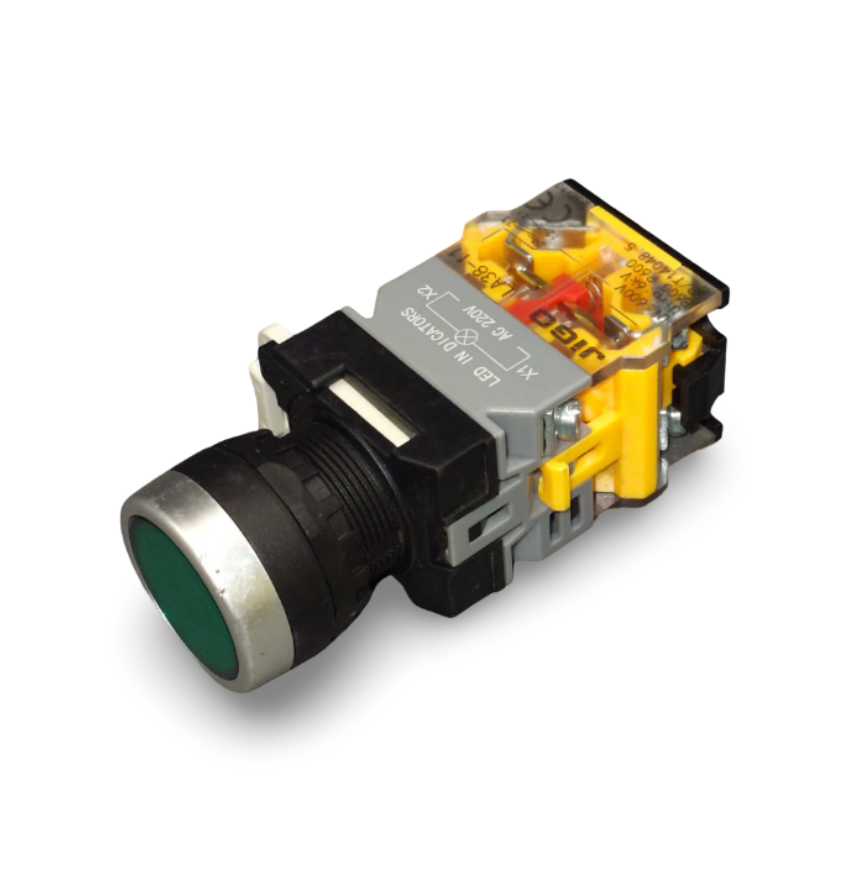

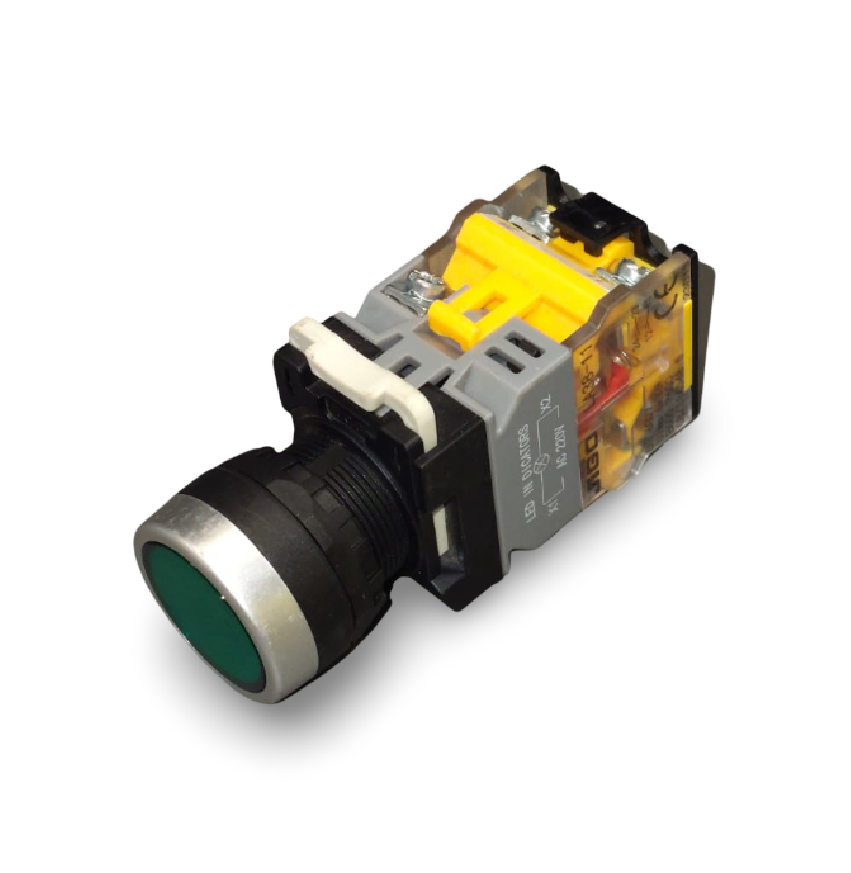

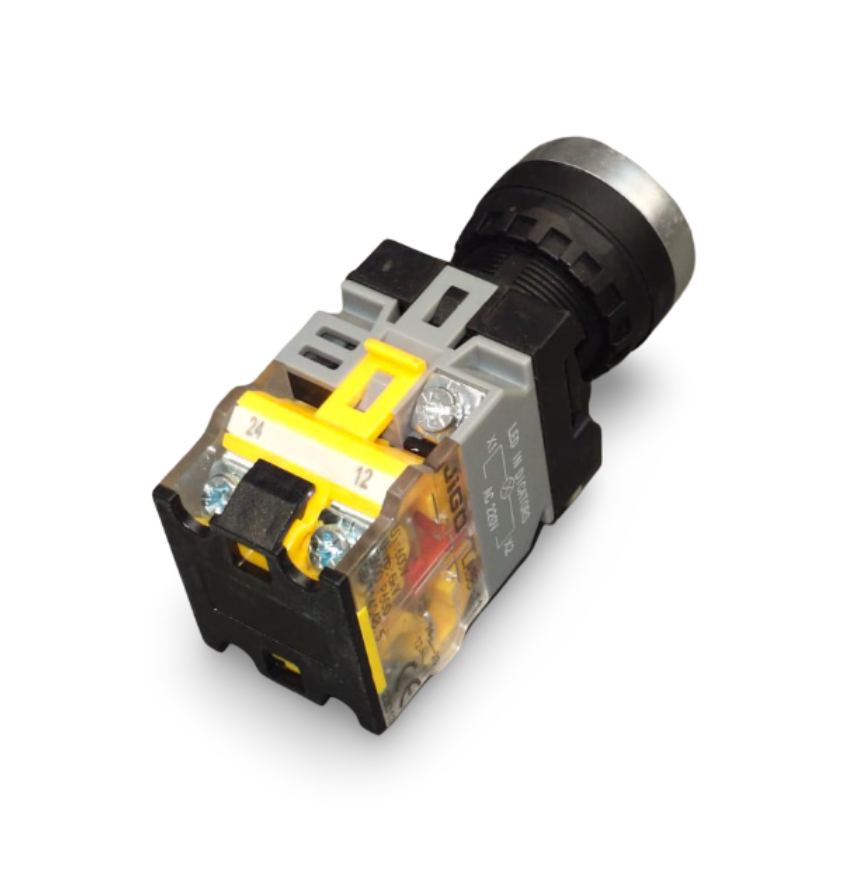

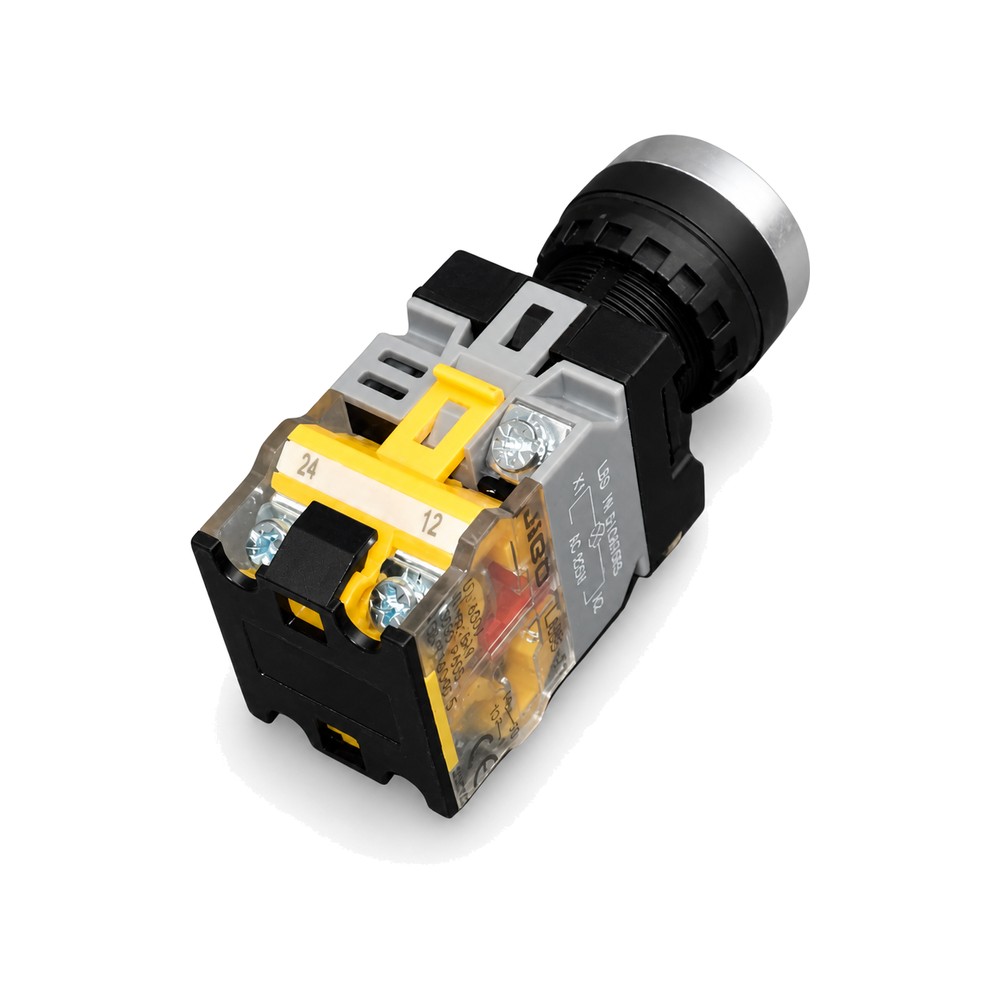

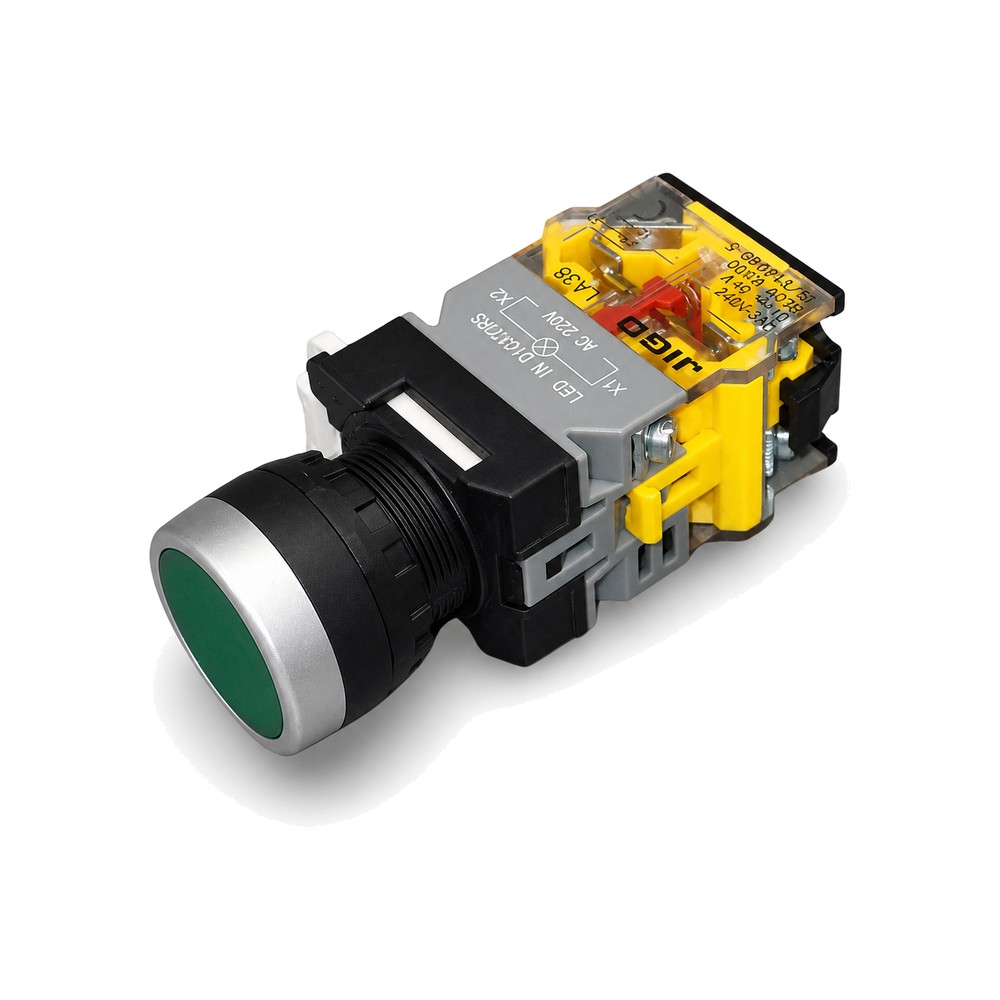

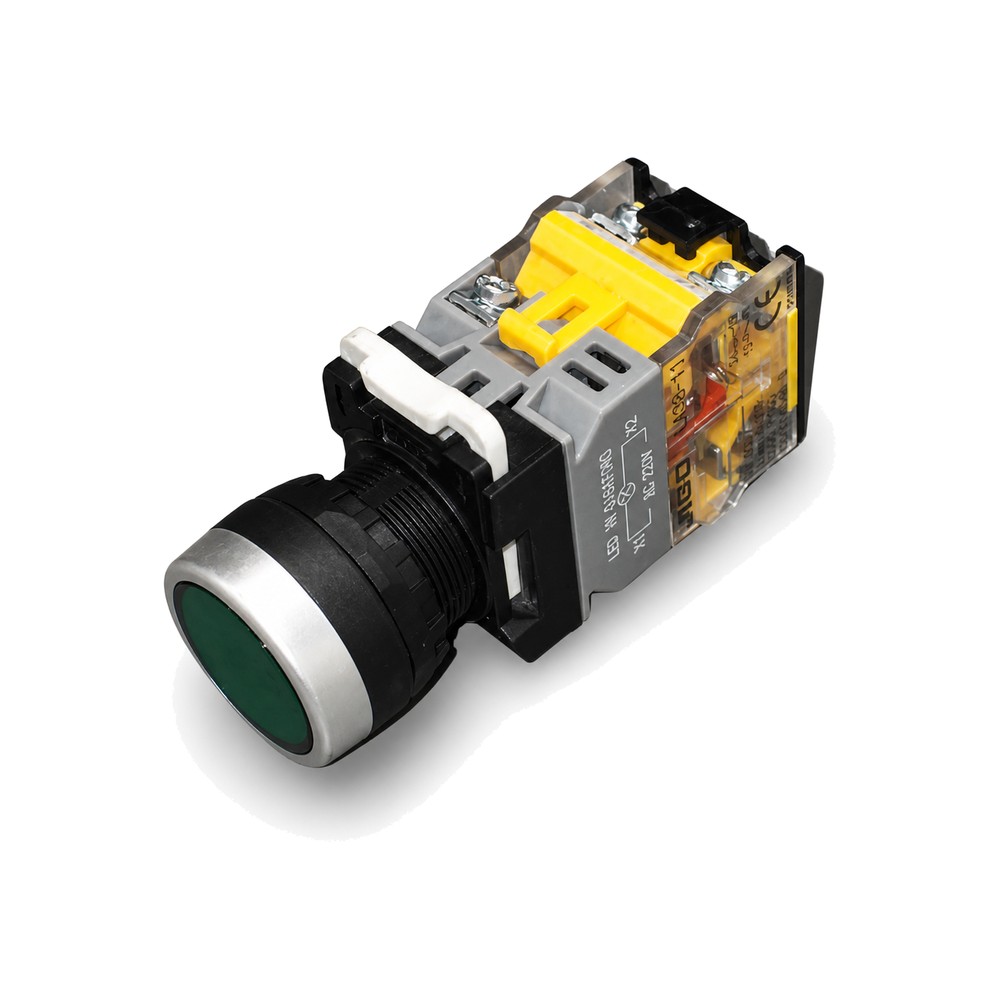

The LA38-11 PND 220V GREEN is an illuminated momentary push button designed for high-visibility signaling and control in industrial environments.
Product Details:
Model: LA38-11 PND
Color: Green
Voltage: 220V AC (for illumination)
Operation Mode: Momentary (returns to original position after press)
Mounting Hole Diameter: 22mm
Contact Configuration: 1NO + 1NC
Material: Flame-retardant plastic housing with strong actuator
Switch Type: Illuminated Push Button
Terminal Type: Screw terminals
IP Rating: IP40 / IP65 with optional waterproof cover
Key Features:
Built-in 220V green LED for status indication
Compact, durable, and resistant to wear
Quick and secure terminal connections
Reliable switching performance
Suitable for panel-mount applications
Applications:
Start/Go command in machines and control panels
Power ON indication in electrical cabinets
Factory automation systems
Safety and reset functions
Operator panels and production line consoles
