LA38-11 PNSW 220V Push Button Switch

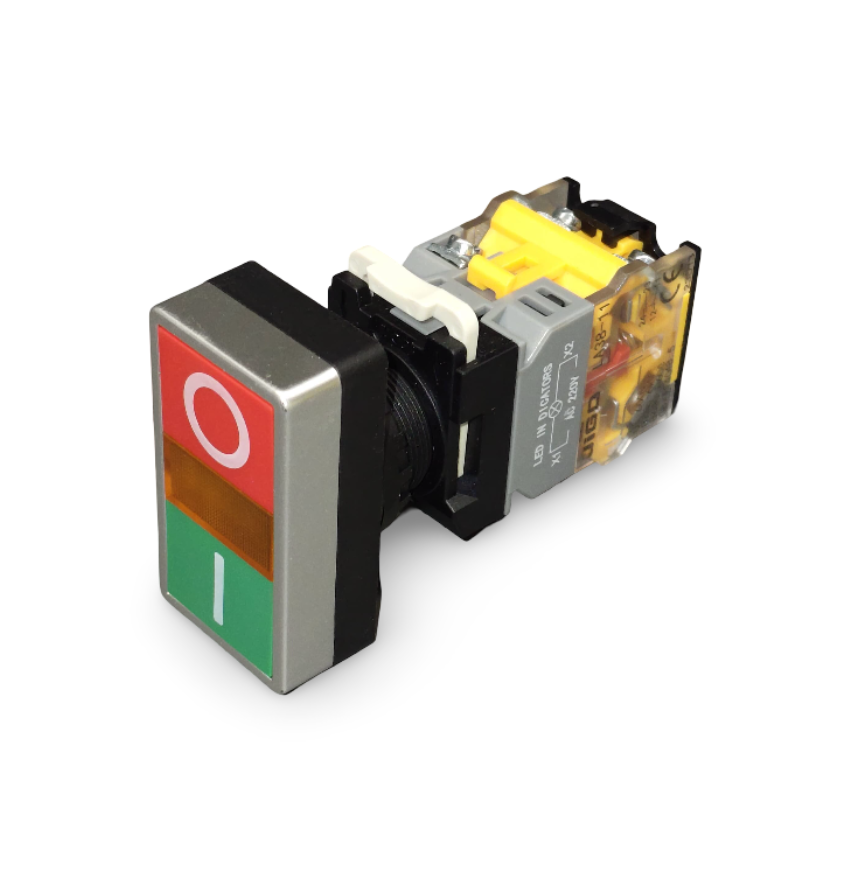

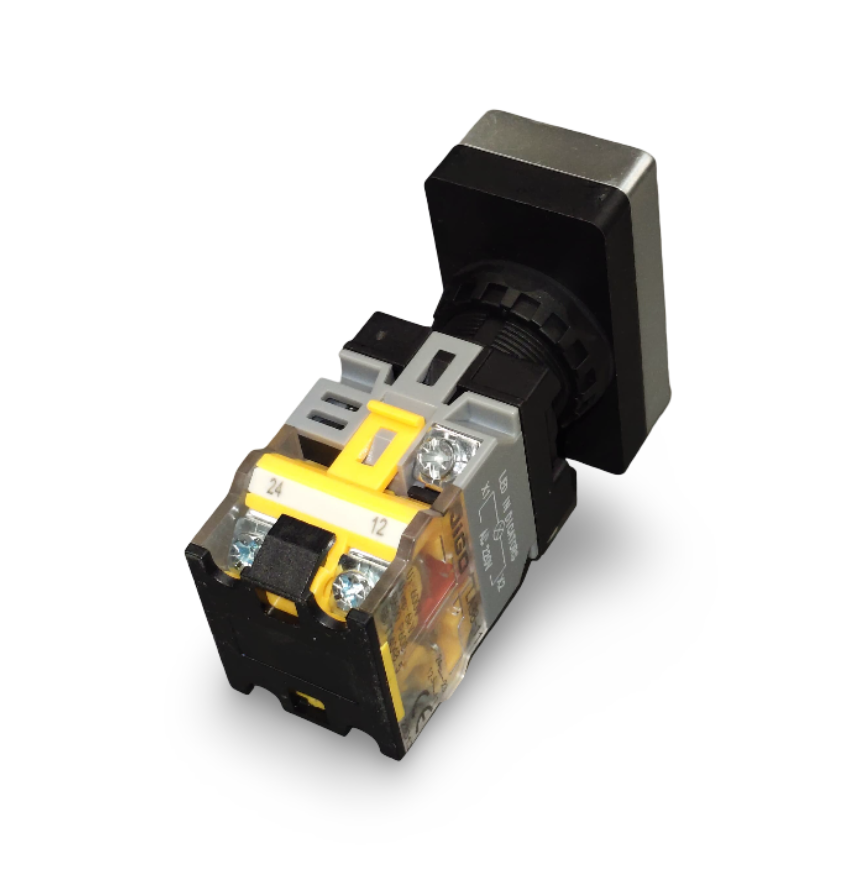

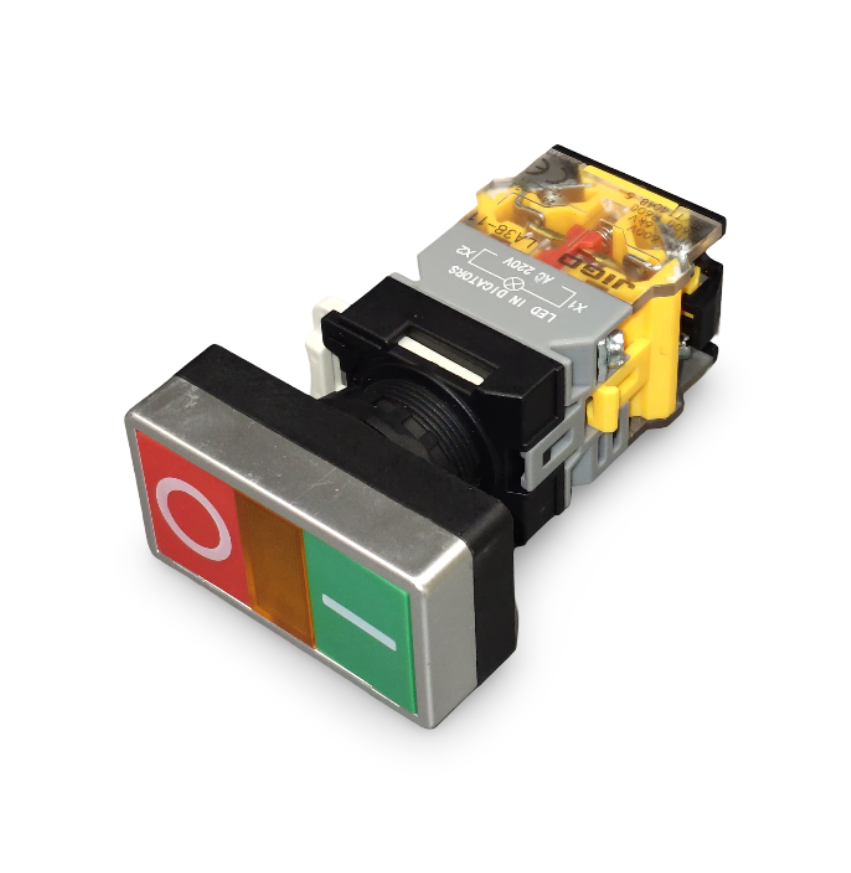

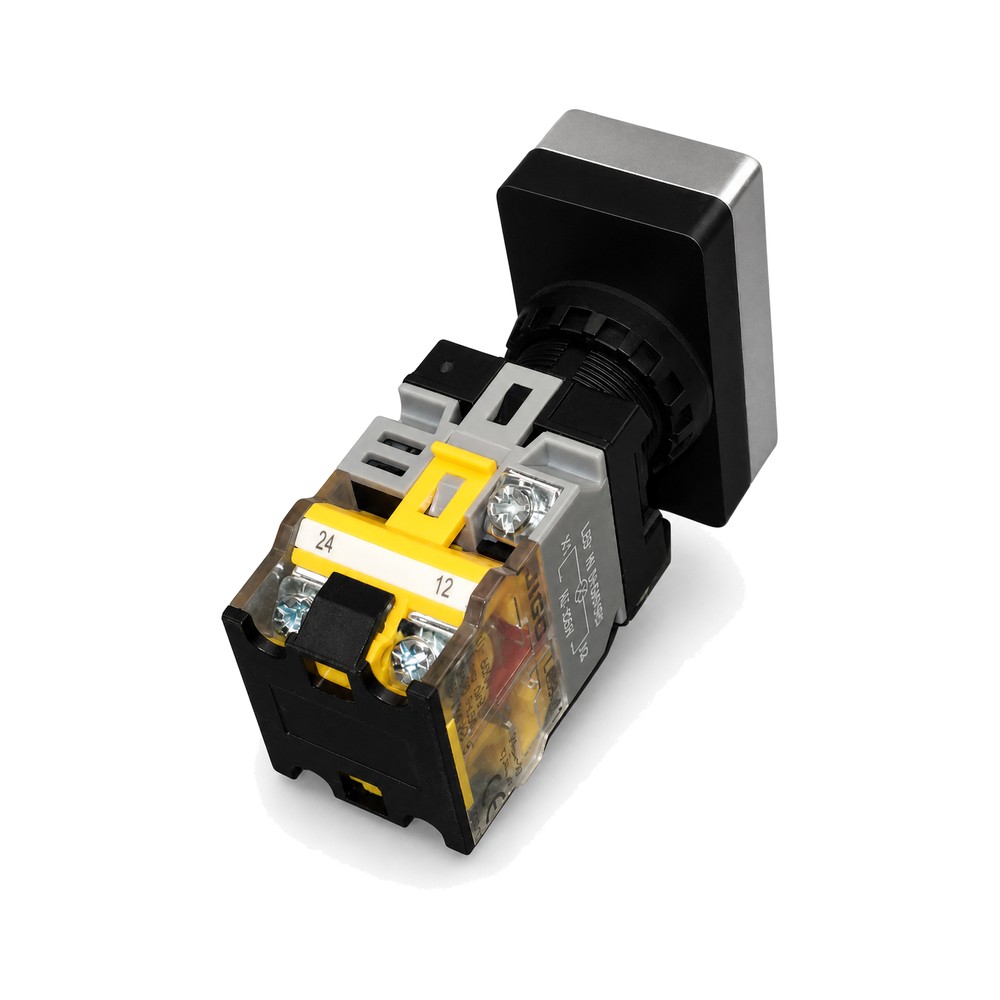

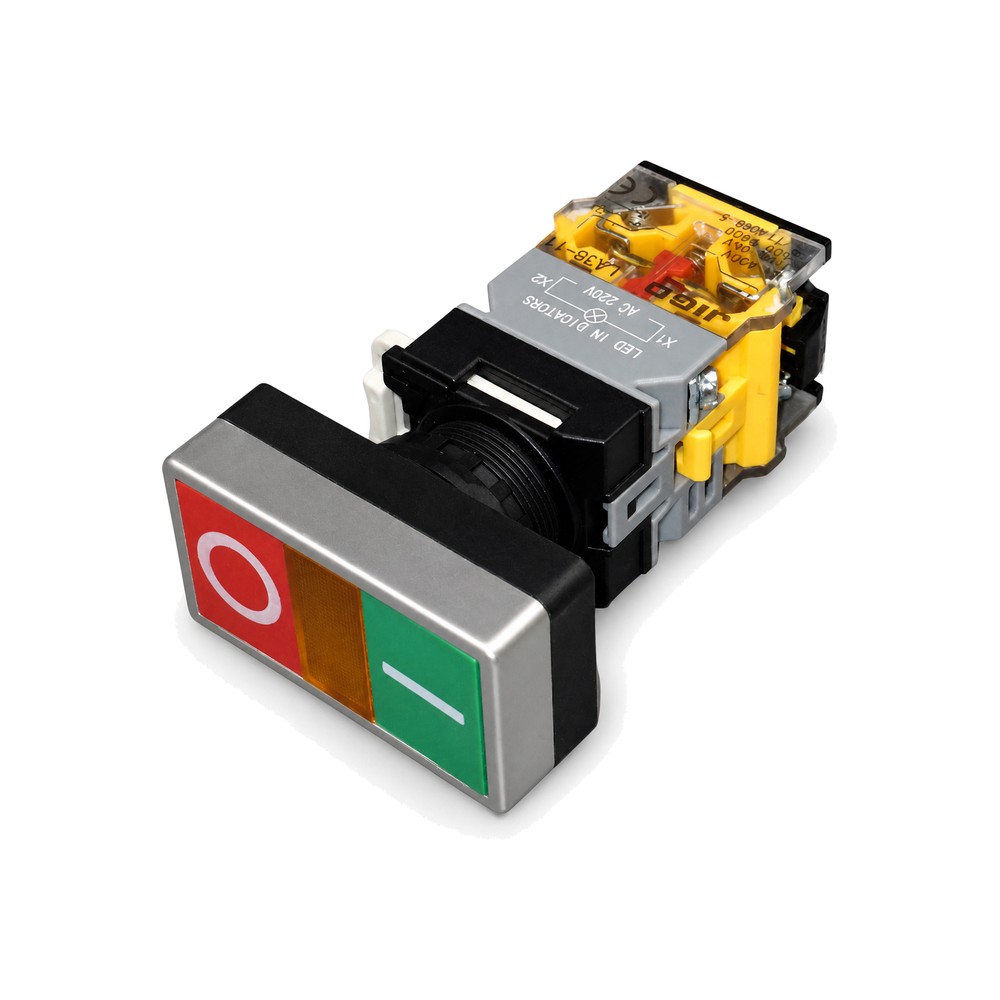

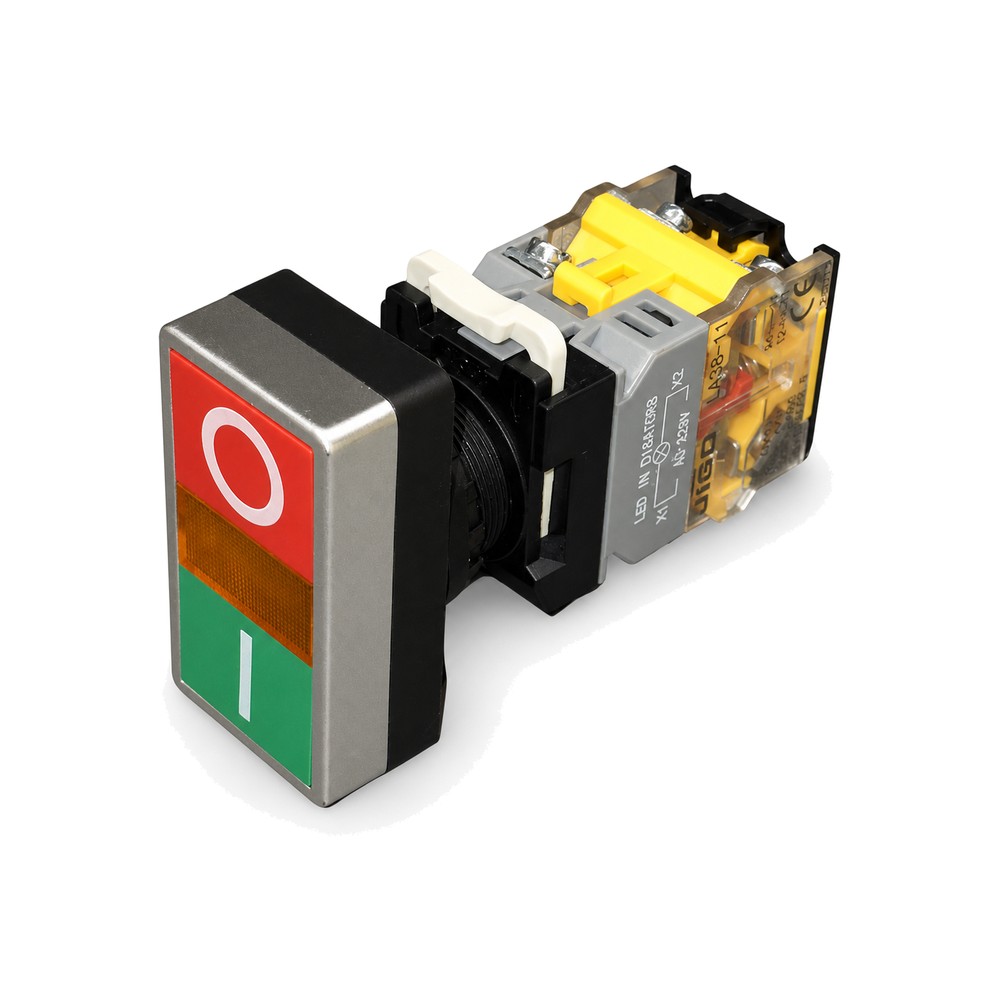

The LA38-11 PNDSW 220V is a twin push button — one green ON and one red OFF in a single 22 mm mounting hole — with a built-in 220 V AC LED indicator. Rate shown is per piece and includes 18% GST. Minimum order 10 pieces.
Product Details:
Model: LA38-11 PNSW (with 220V LED)
Function: 2-position selector switch with indicator
Mounting Diameter: 22mm
Contact Block: 1NO + 1NC
Voltage Rating: 220V AC (LED indicator)
Current Rating: 10A
Action Type: Rotary selector – maintained or spring return
Material: Flame-retardant thermoplastic housing
LED Indicator Color: Varies (usually matches function or customer preference)
Wiring Type: Screw terminals
Protection Class: IP40 (IP65 with enclosure)
Key Features:
Integrated 220V LED for visual status feedback
Compact and durable industrial design
Reliable mechanical performance and electrical life
Easy to install with secure panel mounting
Replaceable contact and LED modules
Applications:
Electrical control cabinets
Automation machinery
Selector control for ON/OFF, FORWARD/REVERSE, etc.
Power distribution systems
Industrial process control
Genuine stock from our Ludhiana counter (trading since 1993). GST invoice on every order, courier anywhere in India.
