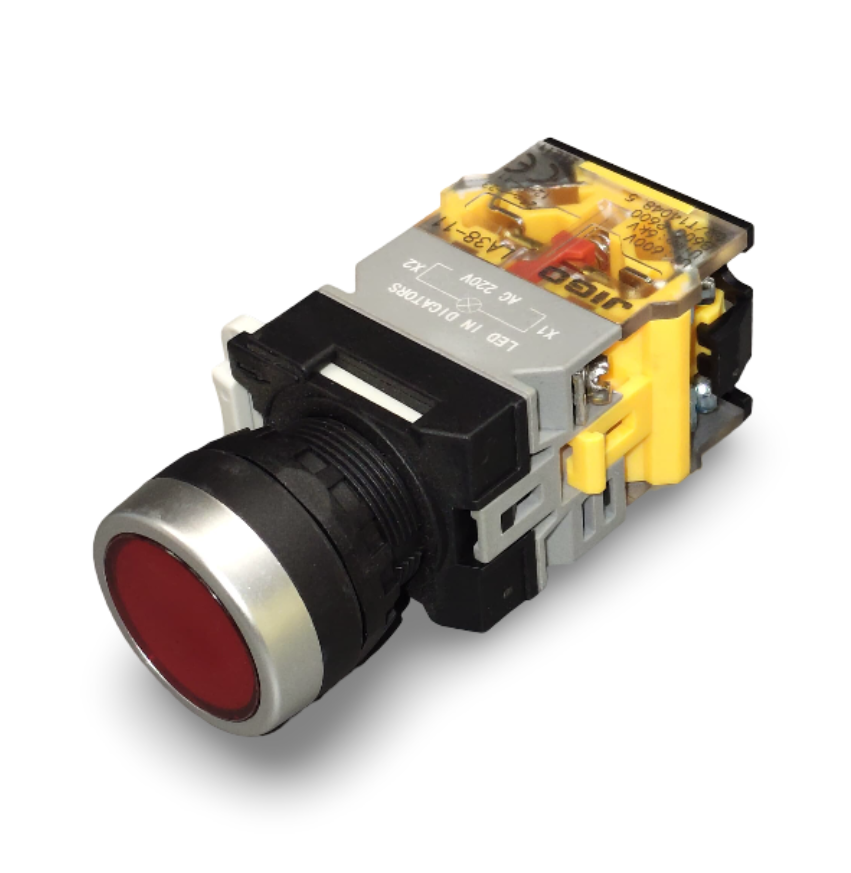

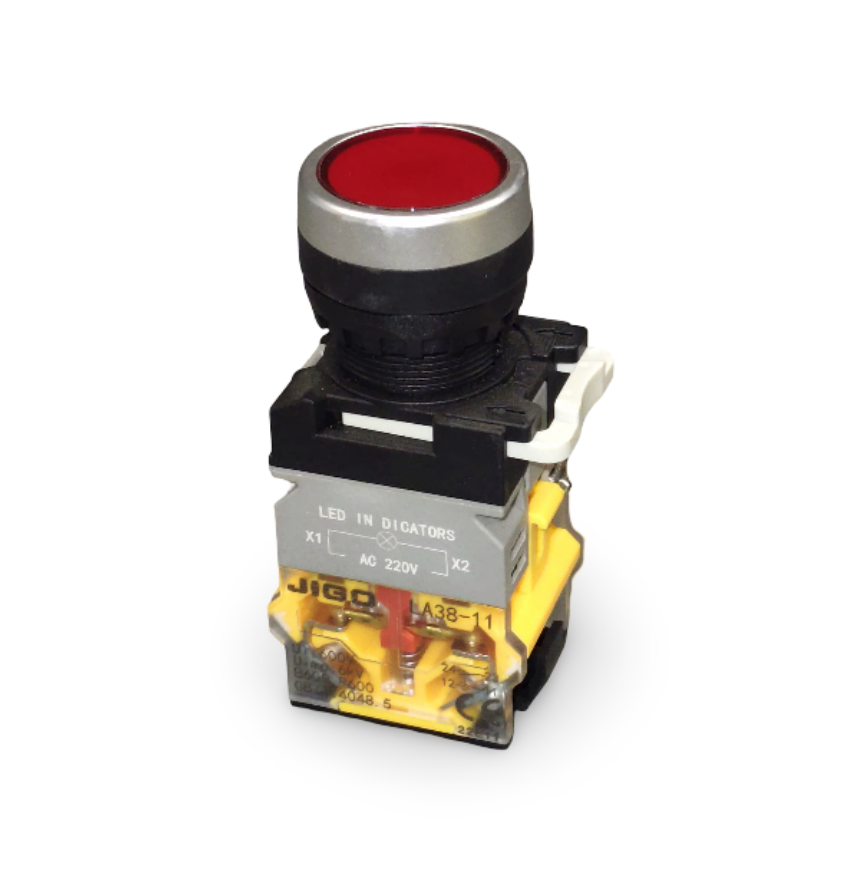

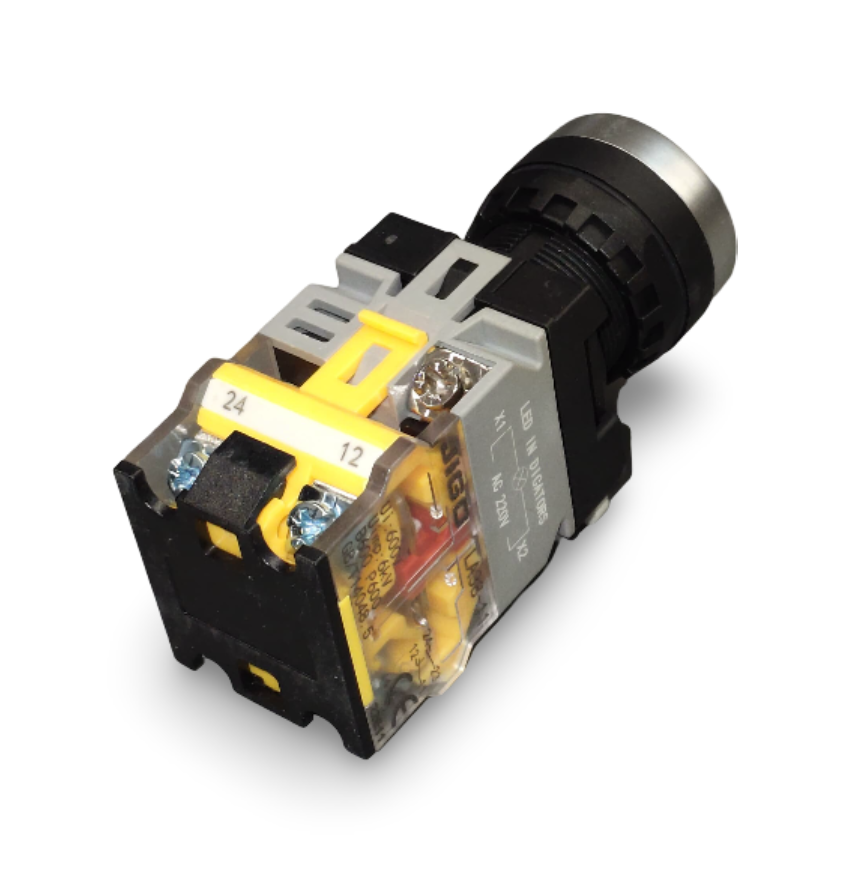

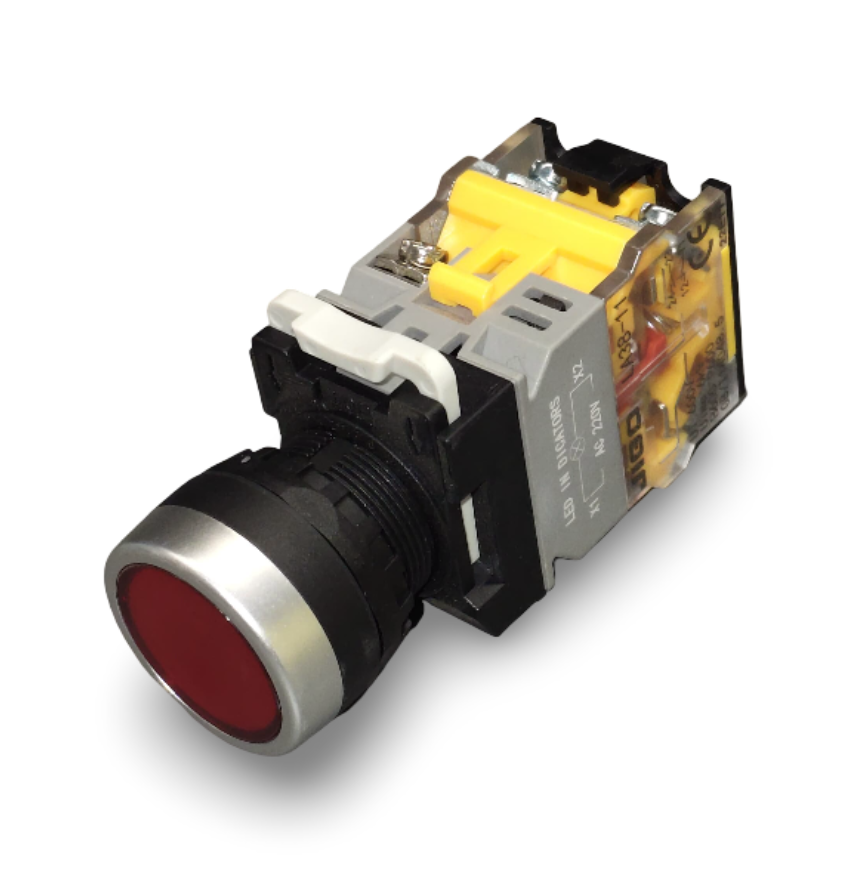

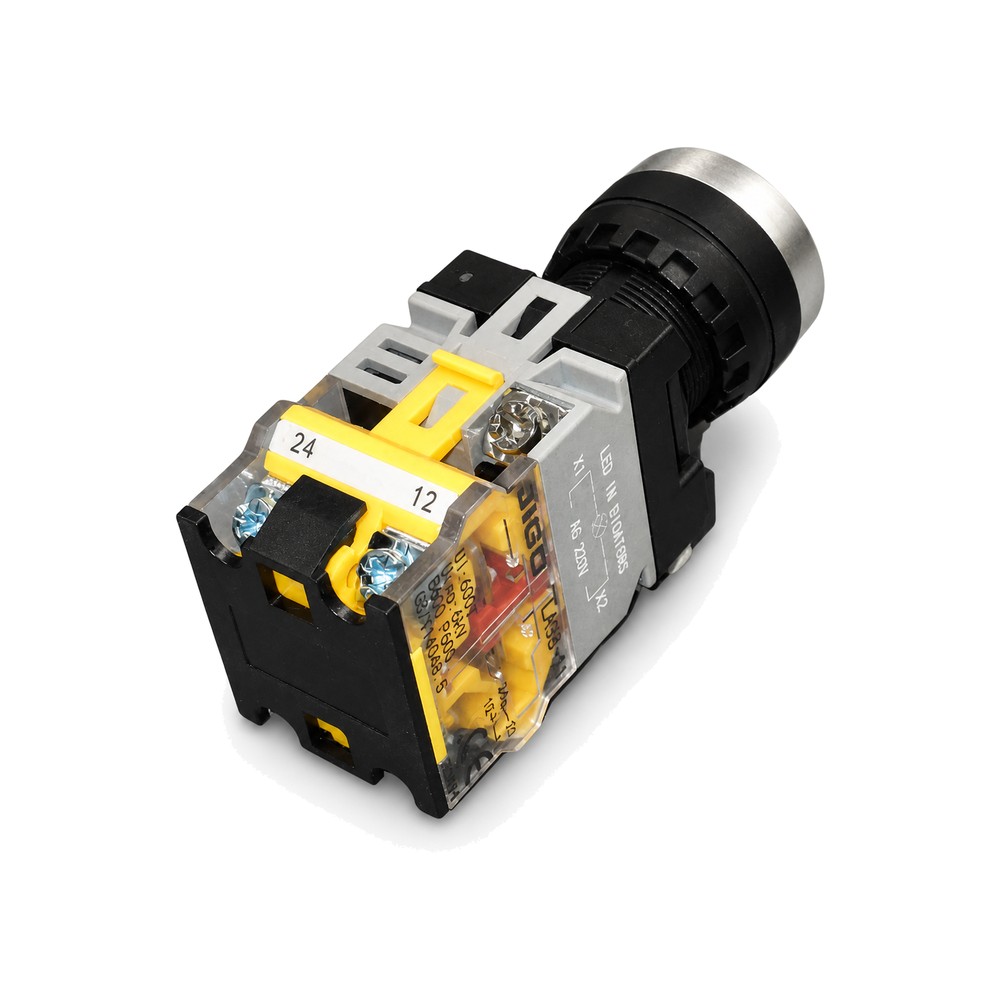

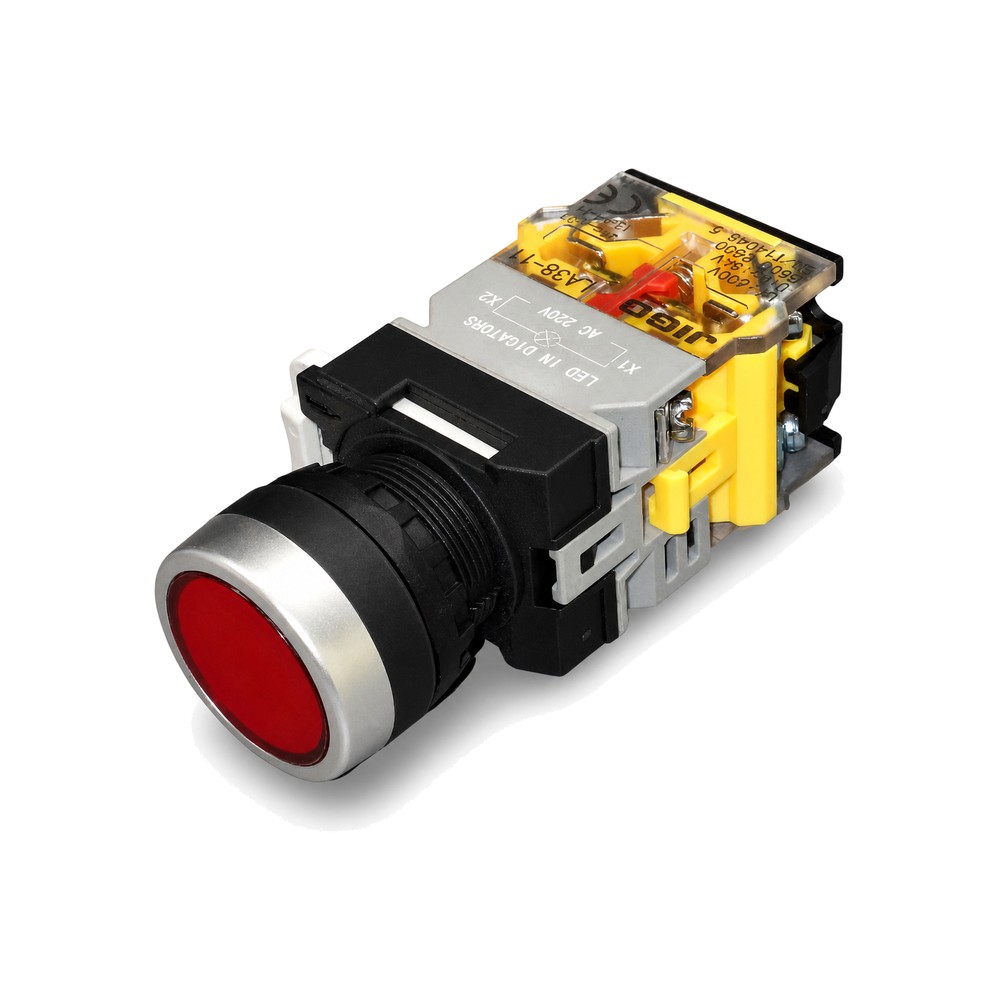

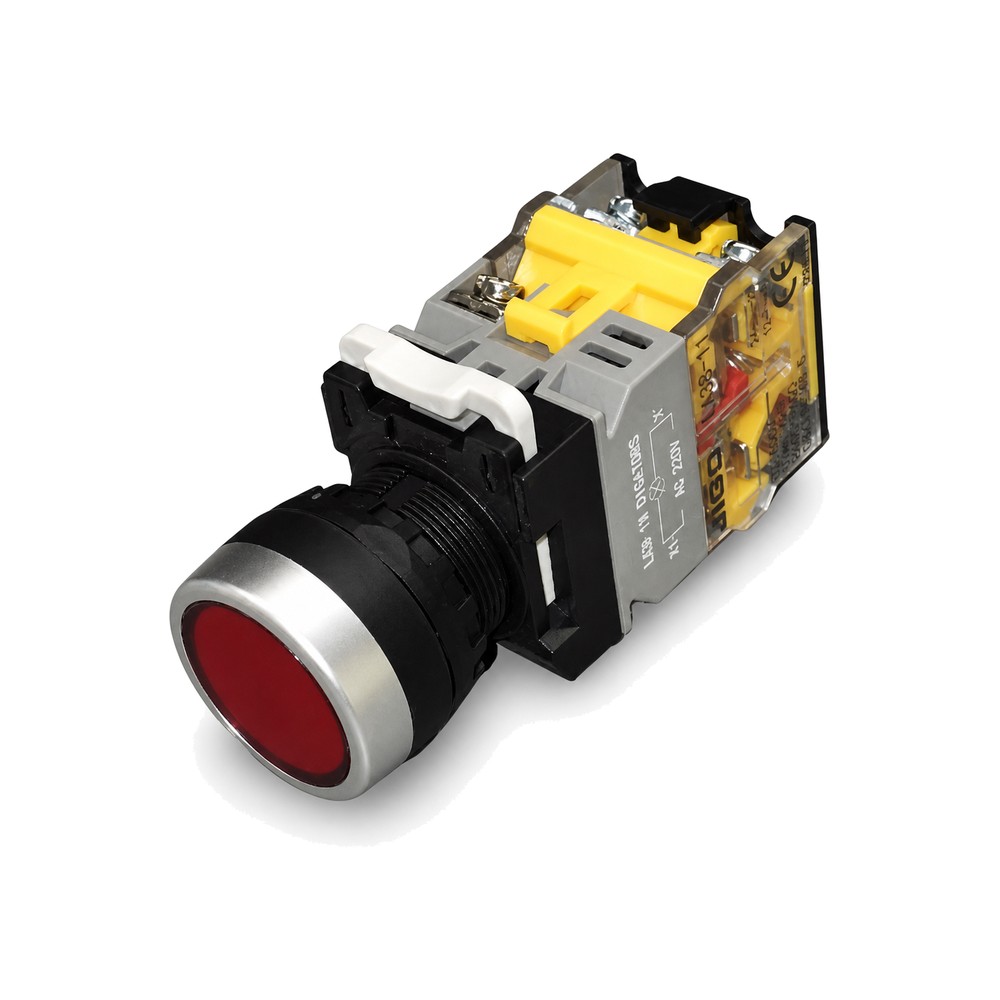

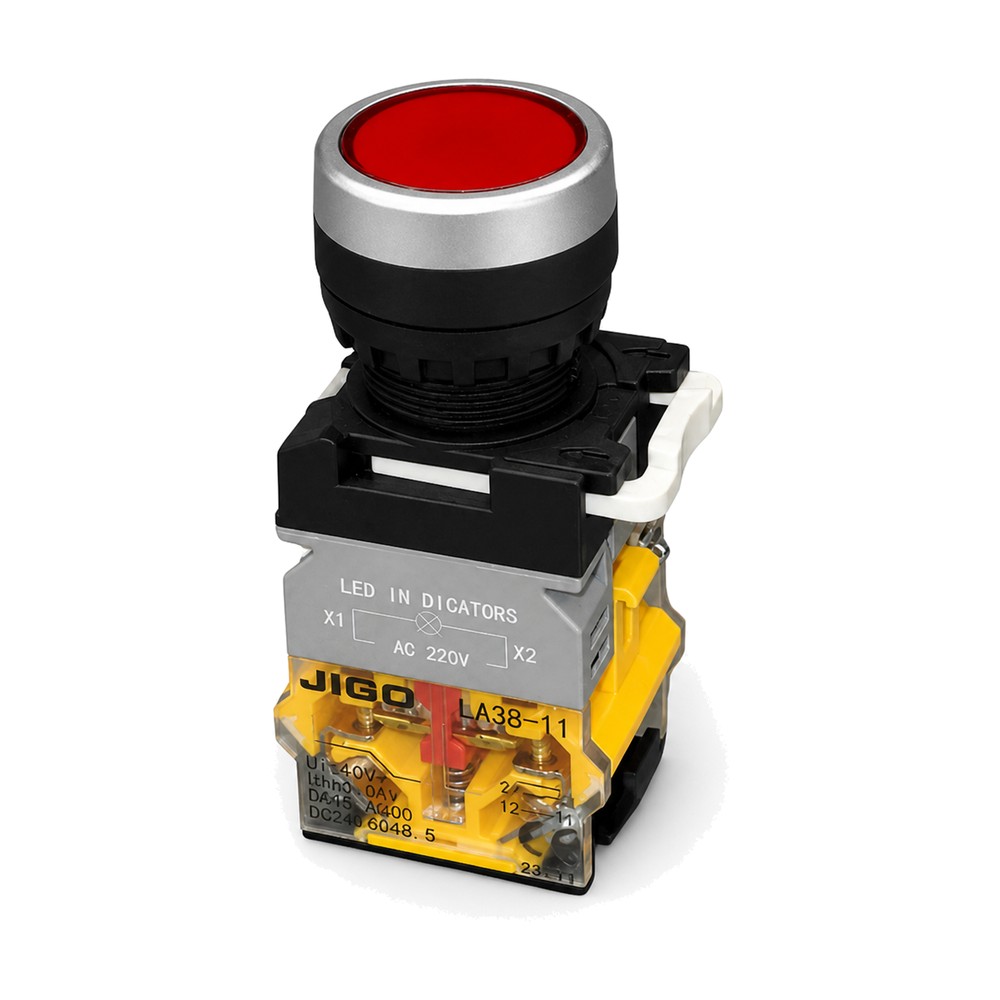

LA38-11 PNZS 220V RED LATCHING Push Button Switch
The LA38-11 PNZS 220V RED is a latching push button switch with an integrated 220V AC red LED indicator, designed for control panels requiring a maintained ON/OFF operation. Rate shown is per piece and includes 18% GST. Minimum order 10 pieces.
Product Details:
Model: LA38-11 PNZS
Function Type: Latching (Maintained contact)
Color: Red
Illumination: Built-in Red LED
Operating Voltage: 220V AC
Mounting Hole Size: 22mm
Contact Type: 1NO + 1NC (Normally Open + Normally Closed)
Terminal Type: Screw connection
Body Material: Durable thermoplastic housing
Panel Protection: Up to IP65 with proper sealing
Key Features:
Latching operation: Press once to switch ON, press again to switch OFF
Bright red LED indication for clear ON-state visibility
Long mechanical and electrical life
Modular contact blocks – easy to install and replace
Reliable performance in industrial environments
Compatible with most standard control panels (22mm cutout)
Applications:
Start/Stop control of machines
Motor and pump operations
Power circuit switching
Automation and control systems
Emergency stop reset (non-momentary type)
Genuine stock from our Ludhiana counter (trading since 1993). GST invoice on every order, courier anywhere in India.
