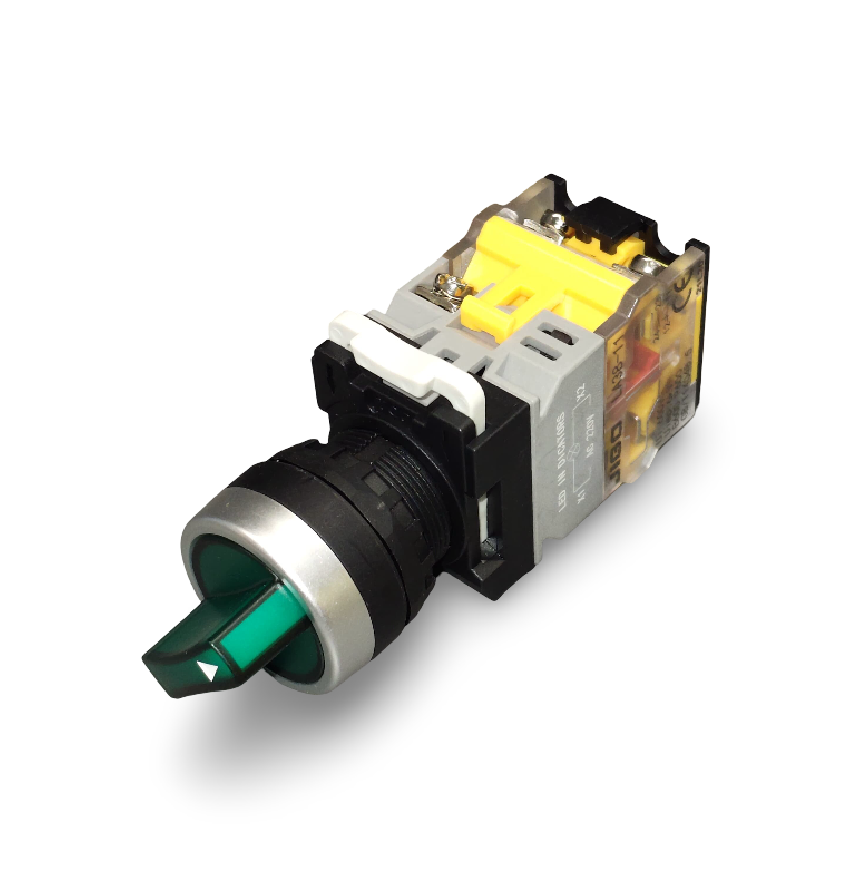

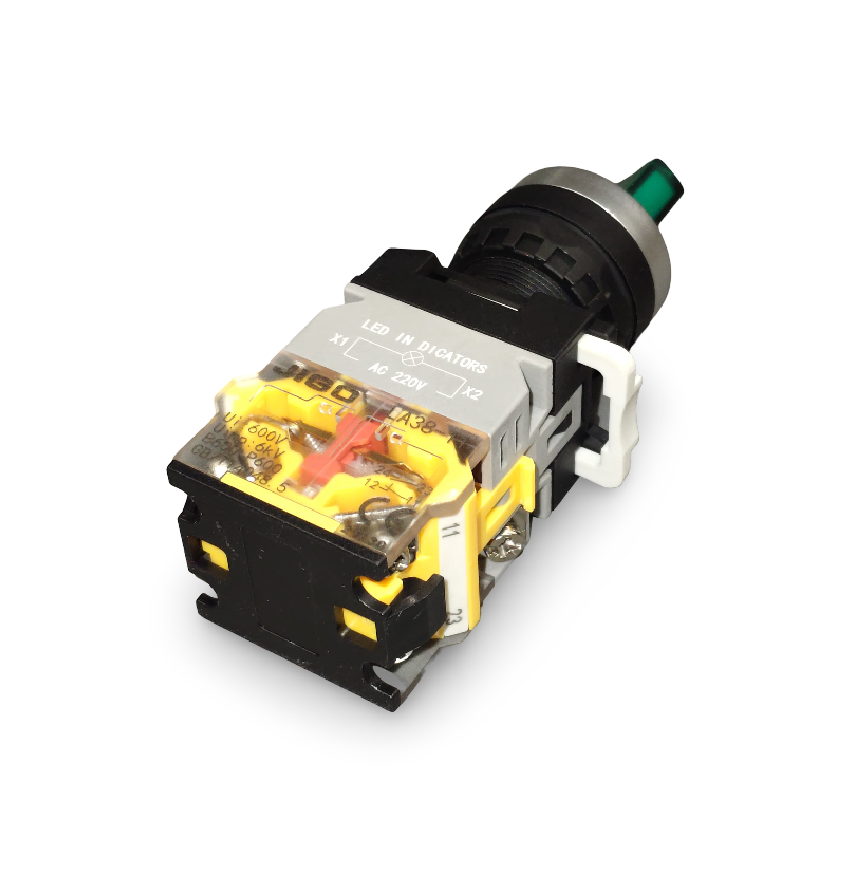

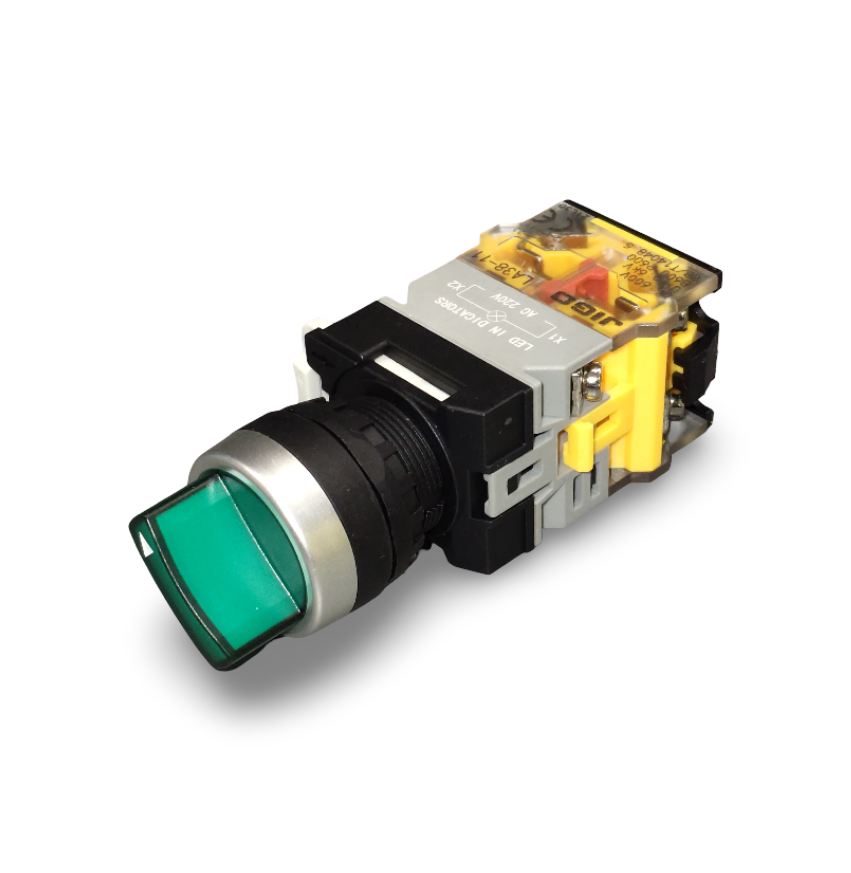

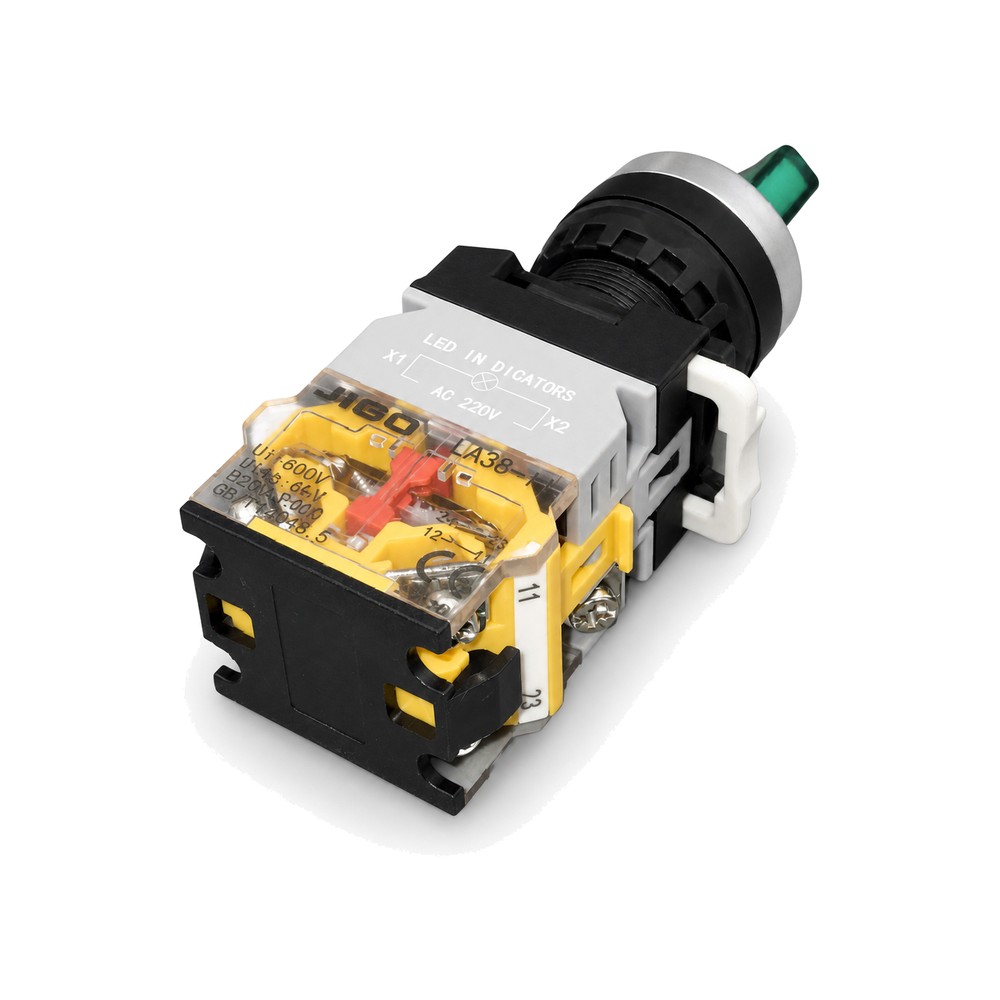

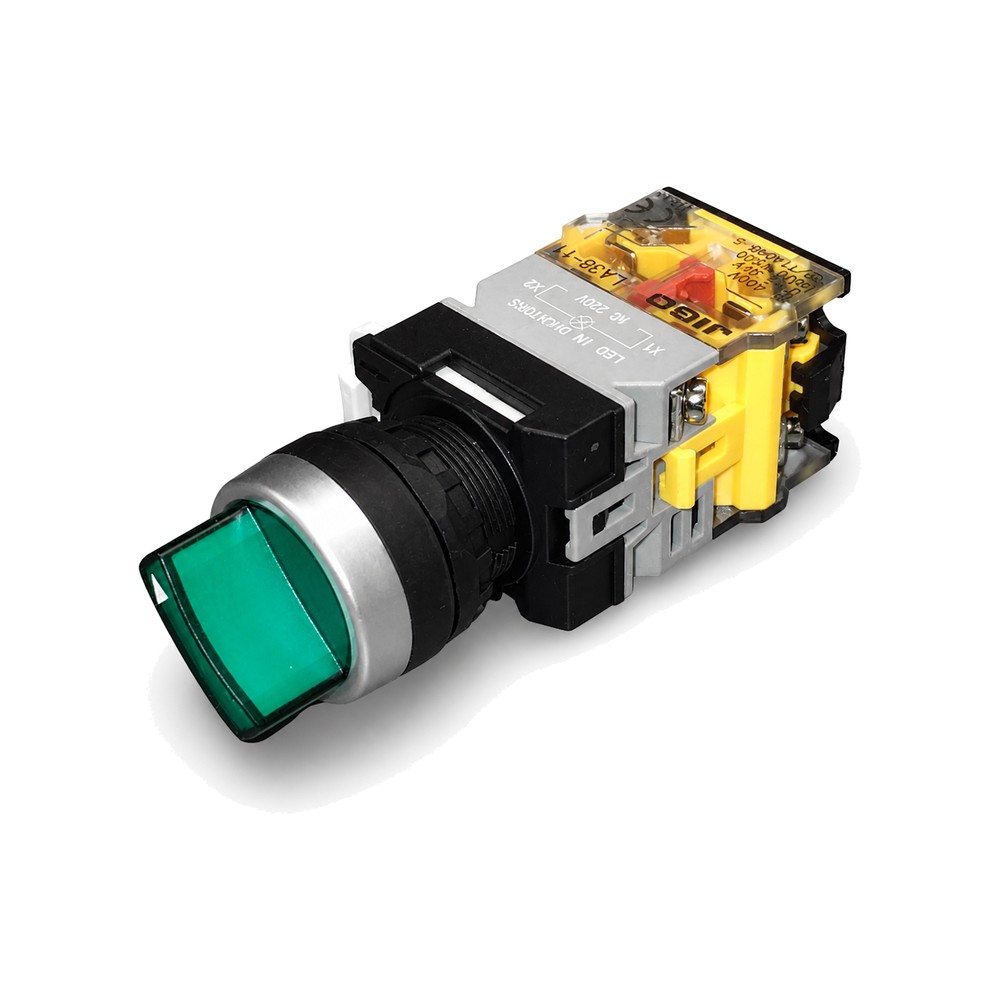

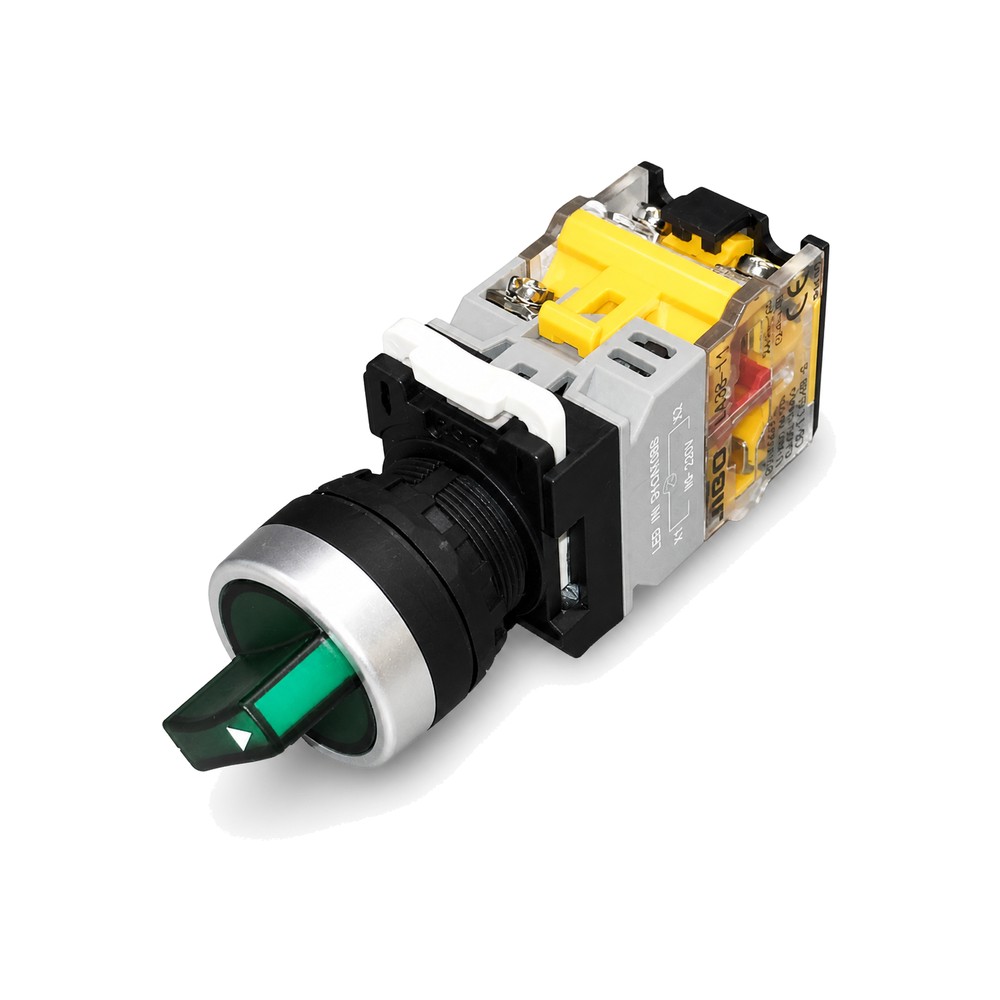

LA38-11-XD21 GREEN 220V 2P SELECTOR SWITCH WITH LED
LA38-11-XD21 GREEN 220V Selector Switch with LED is an illuminated rotary selector switch with a green LED indicator, designed for industrial control applications. It allows 2-position or 3-position function selection while providing clear visual feedback through its built-in 220V LED. Rate shown is per piece and includes 18% GST. Minimum order 10 pieces.
Product Details
Model: LA38-11-XD21
Color: Green
Type: Illuminated Selector Switch
Contact Configuration: 1NO + 1NC
Rated Voltage (Switch & LED): 220V AC
Mounting Hole Diameter: 22mm
Material: Flame-retardant plastic body, metal components, clear illuminated cap
Terminal Type: Screw terminals
Operation Type: Rotary, maintained (2-position or 3-position depending on variant)
LED Type: Integrated, low-power green LED
Key Features
Built-in green LED for clear operational indication
Rotary selector action with firm detents for precise control
Maintained positions—stays in selected mode until changed manually
Durable and reliable for industrial use
Compatible with standard 22mm panel holes
Dual contact block (1NO + 1NC) for flexible circuit control
Long LED lifespan with low power consumption
Applications
Control panels for motors, pumps, and automation systems
Selector switches with visual ON indication
Mode selection (Auto/Manual, Forward/Reverse, etc.)
Electrical switchboards and distribution units
Industrial machines and processing equipment
Elevators, HVAC systems, and generator controls
Any system needing combined selector switch + LED feedback
Genuine stock from our Ludhiana counter (trading since 1993). GST invoice on every order, courier anywhere in India.
