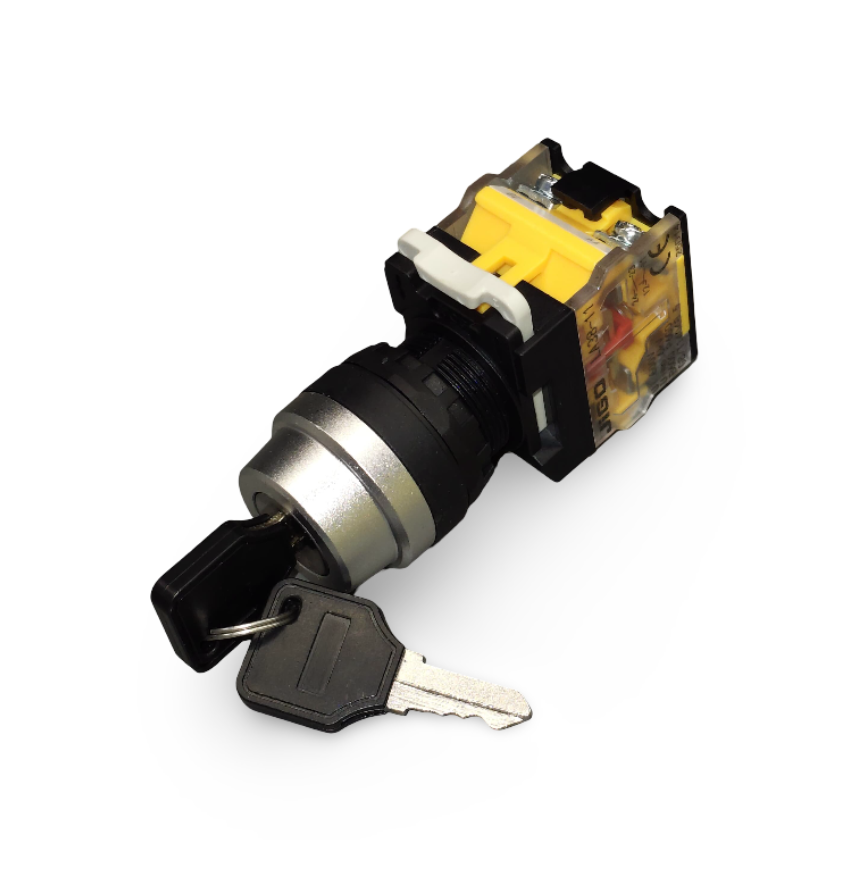

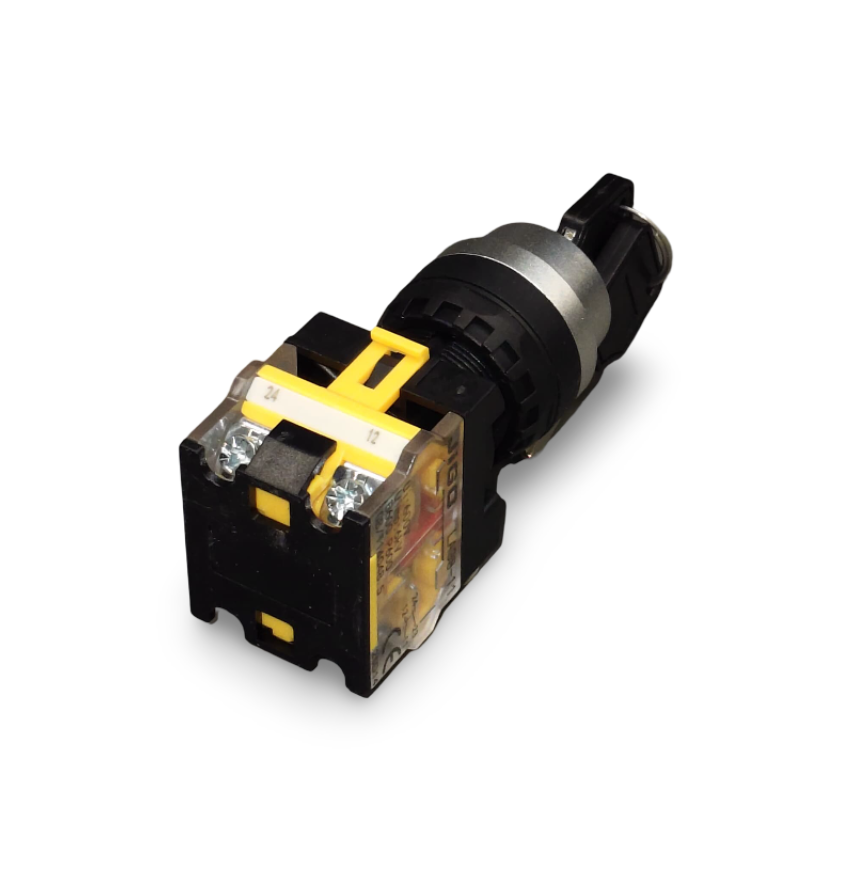

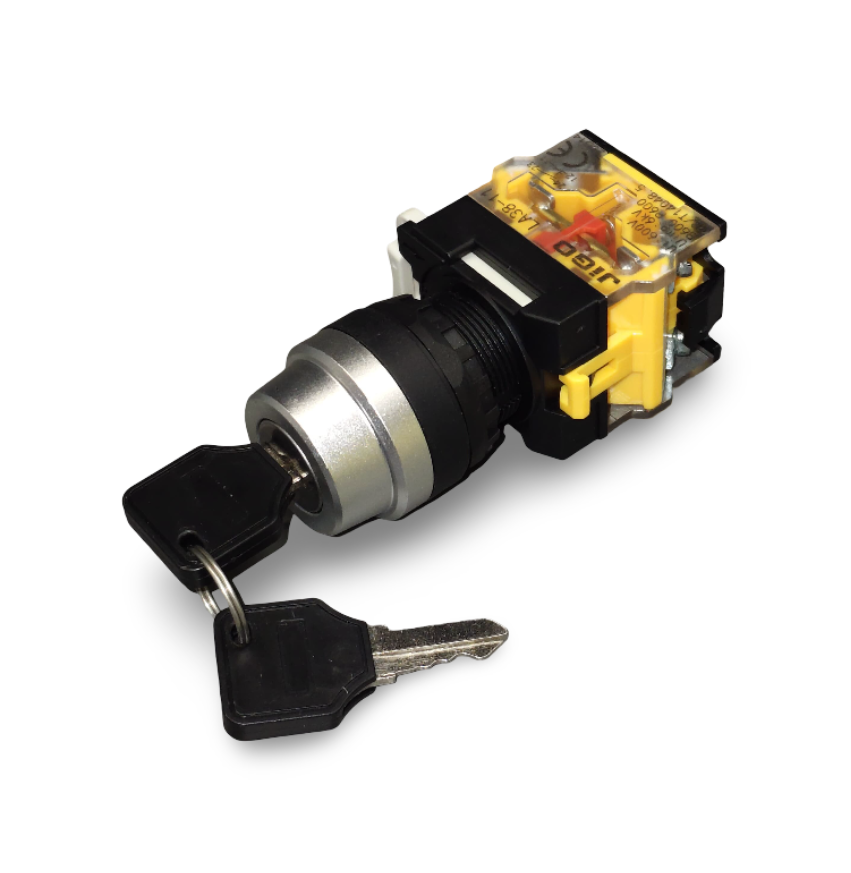

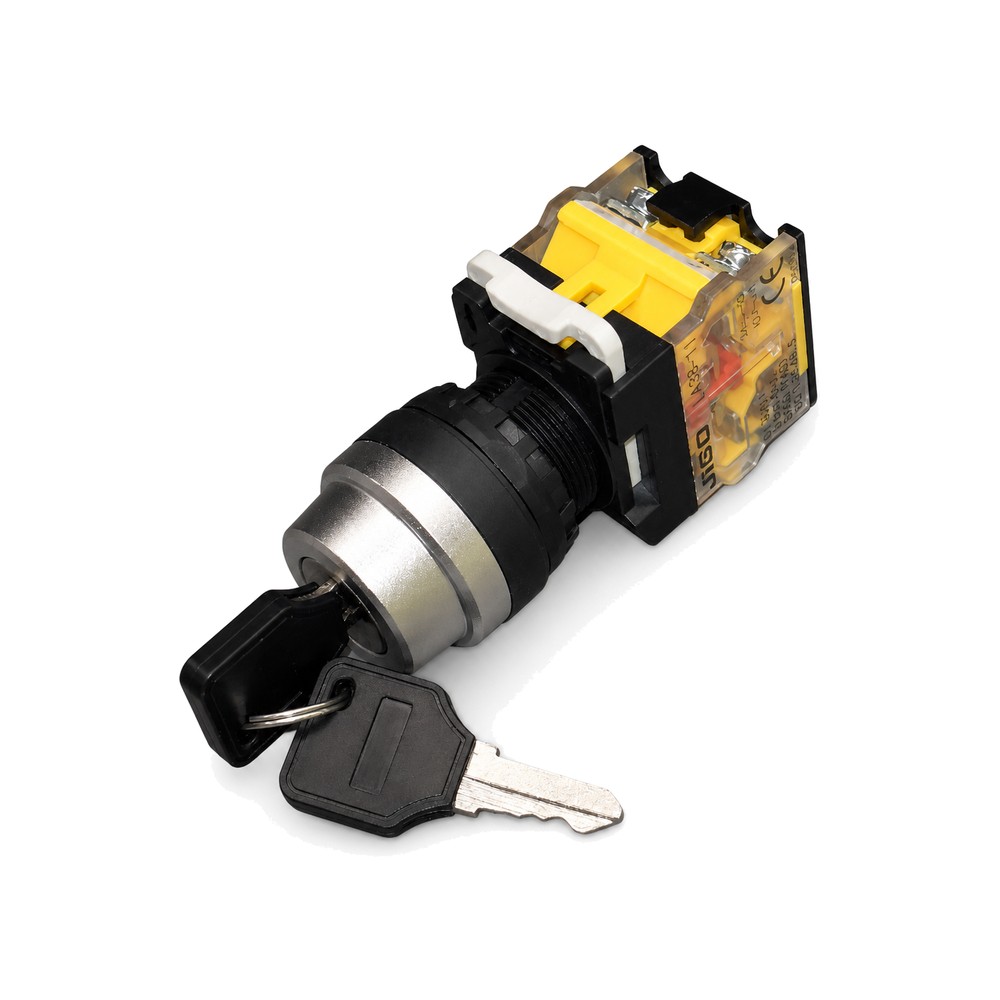

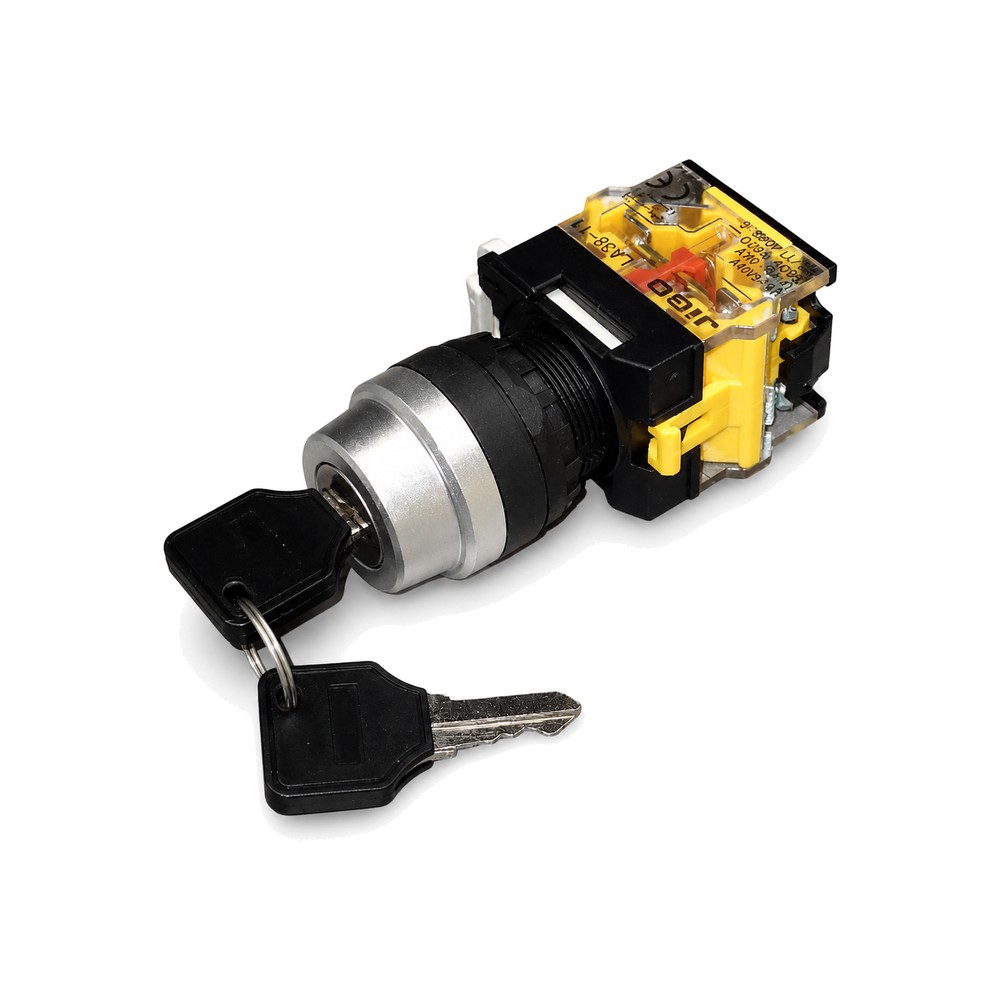

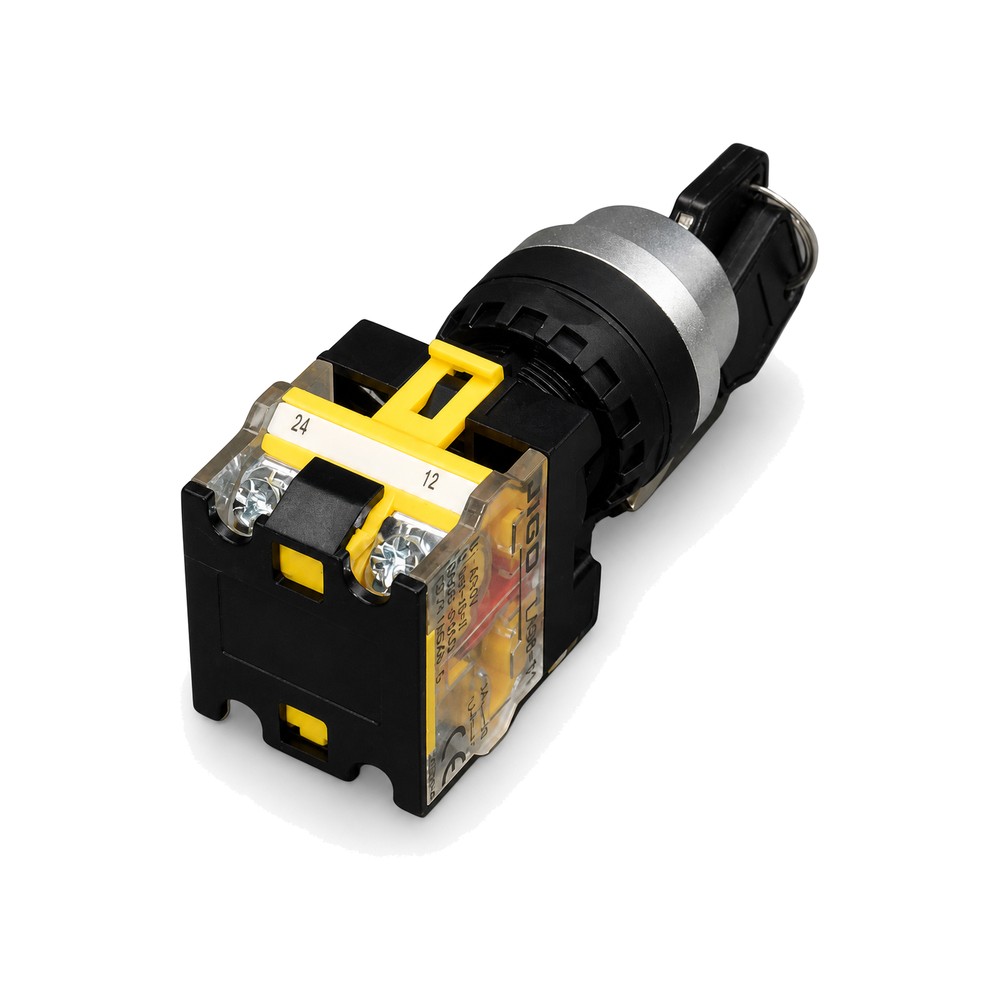

LA38-11 Y22 -2P LOCK KEY SWITCH
LA38-11 Y22 -2P LOCK KEY SWITCH is a secure, 2-position rotary key switch designed for industrial and electrical control systems. It allows control access only to authorized users with a key, ensuring safety and operational security in sensitive applications. Rate shown is per piece and includes 18% GST. Minimum order 10 pieces.
Product Details
Model: LA38-11 Y22
Type: Lock Key Rotary Switch – 2 Position (2P)
Actuator: Key-operated rotary selector
Contact Configuration: 1NO + 1NC
Rated Voltage: 220V AC
Mounting Hole Diameter: 22mm
Key Positioning: Maintained (stays in position after turn)
Material: High-quality plastic housing with metallic key lock
Terminal Type: Screw terminals
Key Removal: Key removable in one or both positions (model-specific)
Key Features
Provides restricted control access through key lock
2-position rotary operation for ON/OFF or Mode 1/Mode 2 selection
Strong and tamper-proof design for industrial use
Long electrical and mechanical life
Compatible with standard 22mm mounting cutouts
Clear operation feedback with secure key locking
Resistant to dust and moderate environmental conditions
Applications
Secure ON/OFF switching in control panels
Machine access control and safety interlocking
Generator or backup system control
Power distribution units
Elevator and lift control panels
Industrial automation and PLC-controlled systems
Any system requiring restricted or authorized control access
Genuine stock from our Ludhiana counter (trading since 1993). GST invoice on every order, courier anywhere in India.
