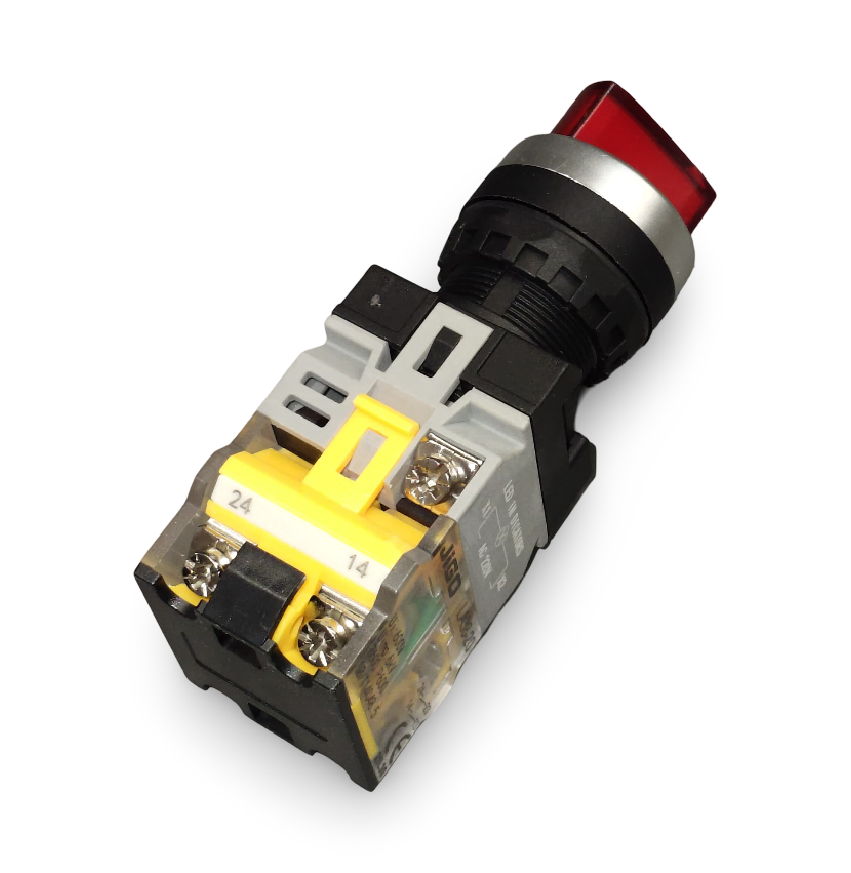

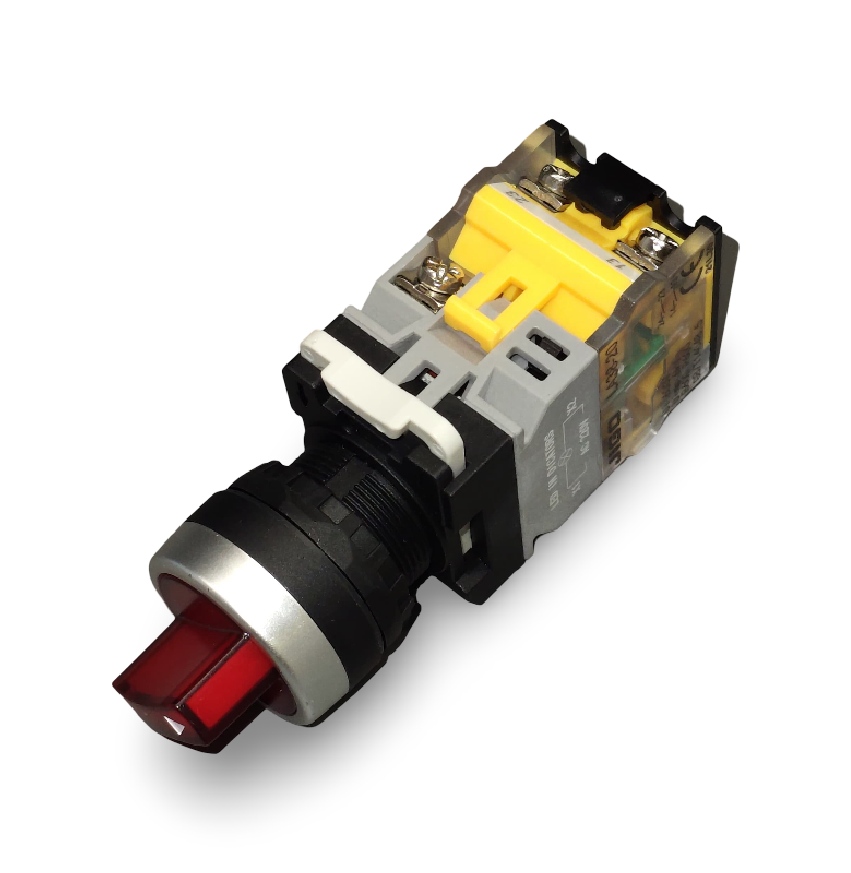

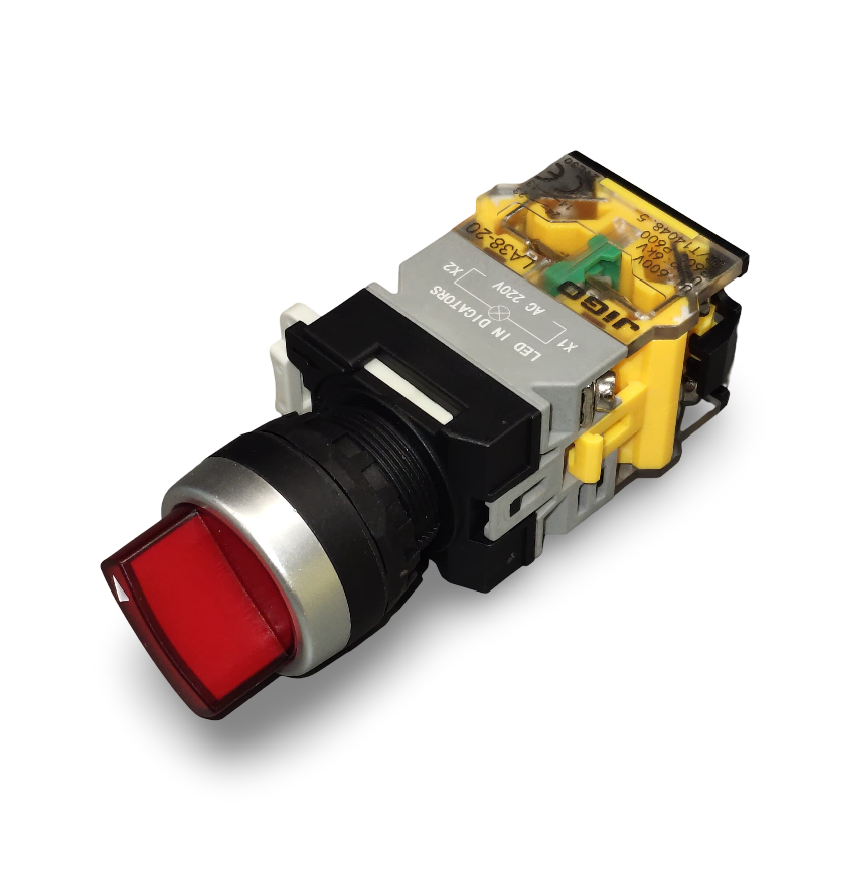

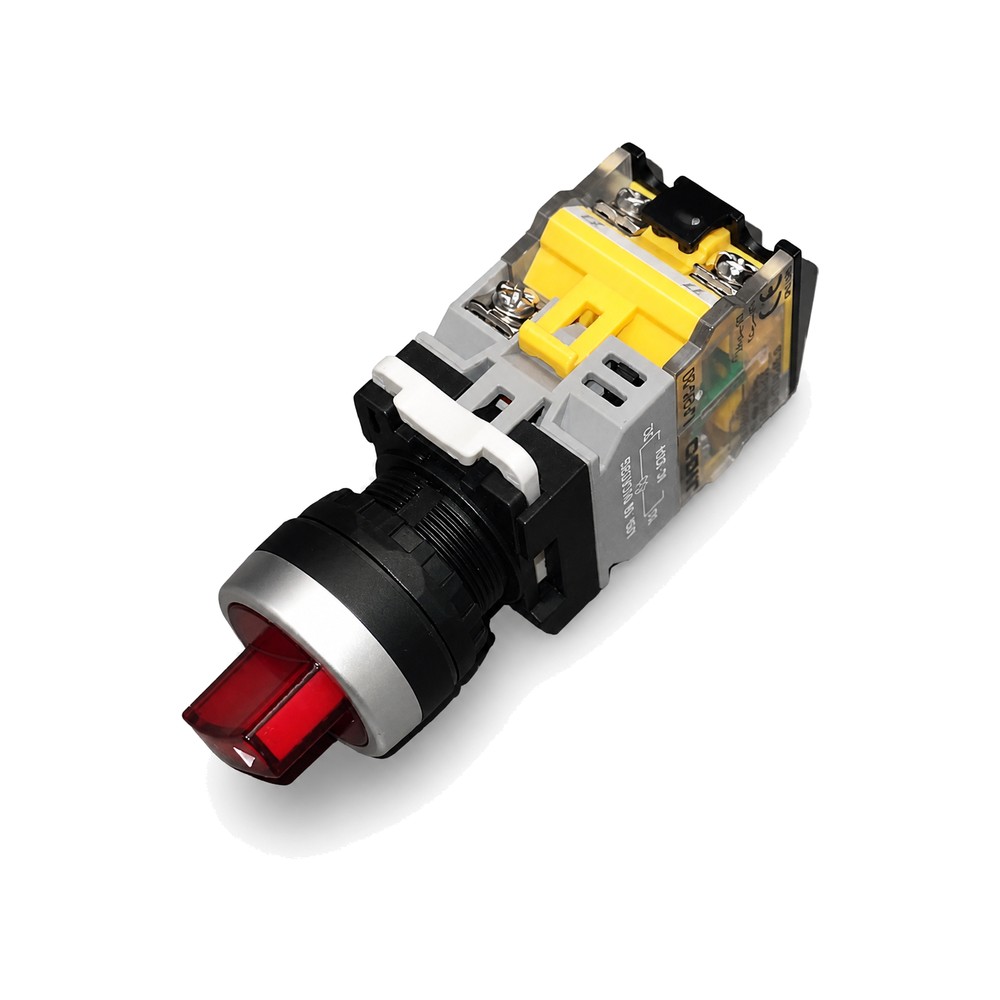

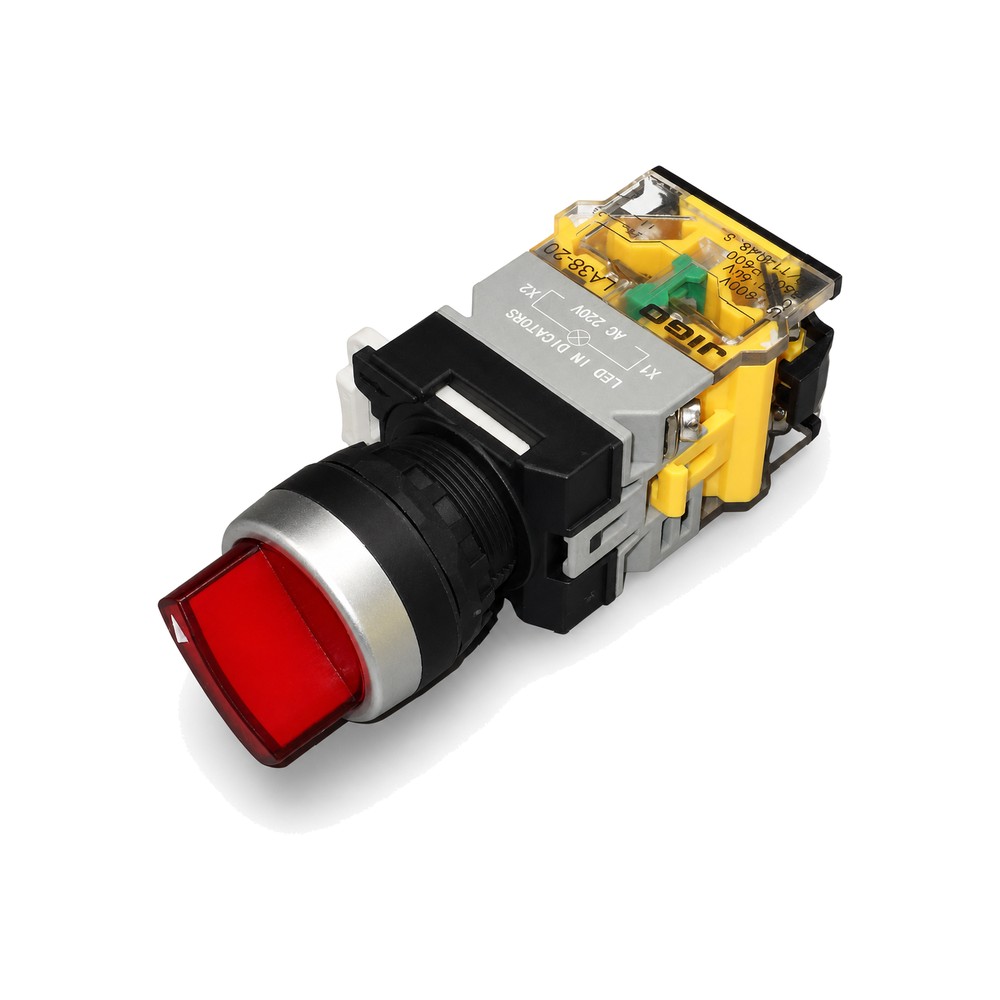

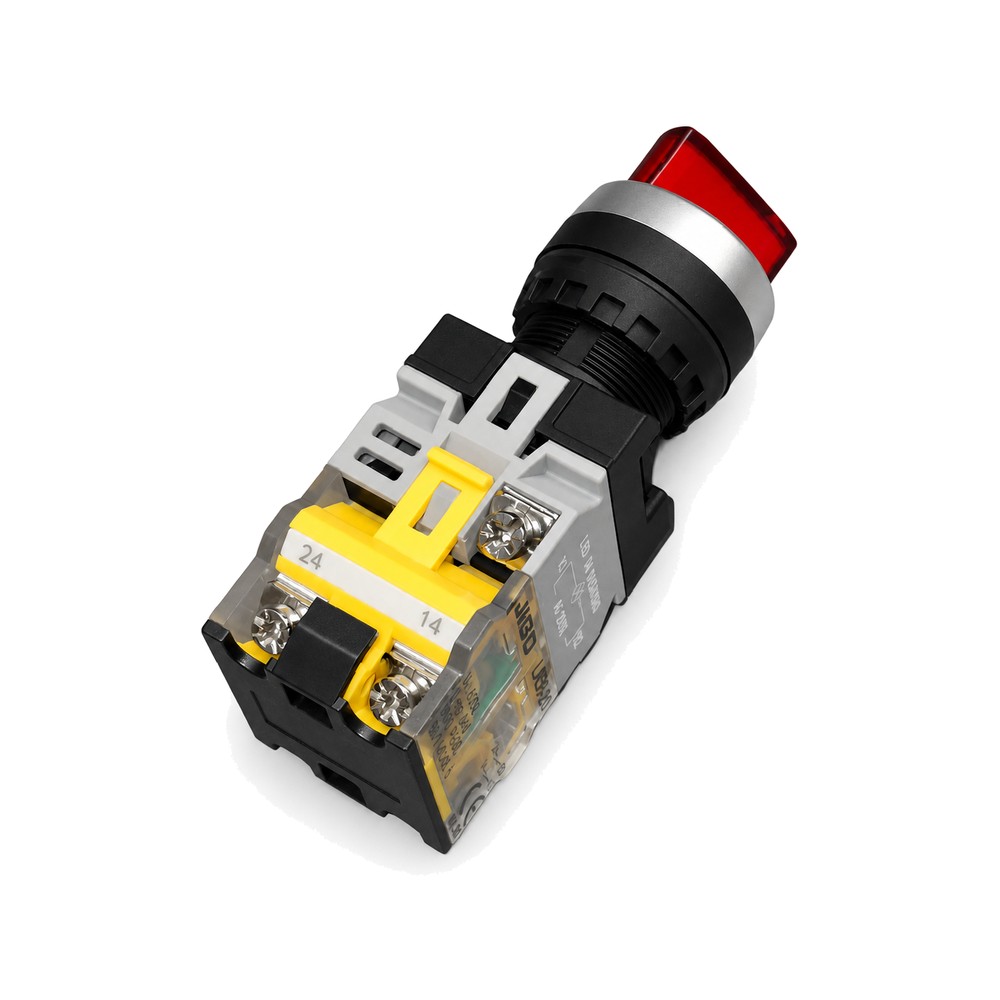

LA38-20 XD31 RED 220V-3P SELECTOR SWITCH WITH LED
LA38-20 XD31 RED 220V – 3P Selector Switch with LED is a 3-position rotary selector switch featuring a built-in red LED for status indication. Designed for 22mm panel mounting, it is ideal for industrial control systems requiring clear multi-position switching and visual feedback. Rate shown is per piece and includes 18% GST. Minimum order 10 pieces.
Product Details
Model: LA38-20 XD31
Color: Red
Type: Illuminated Rotary Selector Switch (3-Position)
Operation Positions: Left – Center – Right (maintained)
Contact Configuration: 2NO + 2NC (flexible wiring)
Rated Voltage: 220V AC (for both switch and LED)
Mounting Hole Diameter: 22mm
LED Type: Built-in red LED for visual indication
Material: Flame-retardant plastic body with transparent illuminated head
Terminal Type: Screw terminal
Operation Type: Rotary, maintained in each position
Key Features
3-position maintained rotary switch for multi-mode control
Integrated red LED for operational status feedback
High visibility even in low-light conditions
Robust and compact design for industrial use
Easy installation in standard 22mm panel cutouts
Long-lasting LED with low power consumption
Dual contact setup (2NO + 2NC) for versatile electrical connections
Clear detents for precise position control
Applications
Forward/Neutral/Reverse or Auto/Off/Manual control
Industrial machinery and motor control panels
Electrical switchboards and automation systems
Generator and power source selector switches
HVAC units, elevators, and production lines
PLC and SCADA-based control systems
Any setup requiring reliable 3-position switching with visual indication
