LA38-20 XD31 YELLOW 220V-3P SELECTOR SWITCH WITH LED

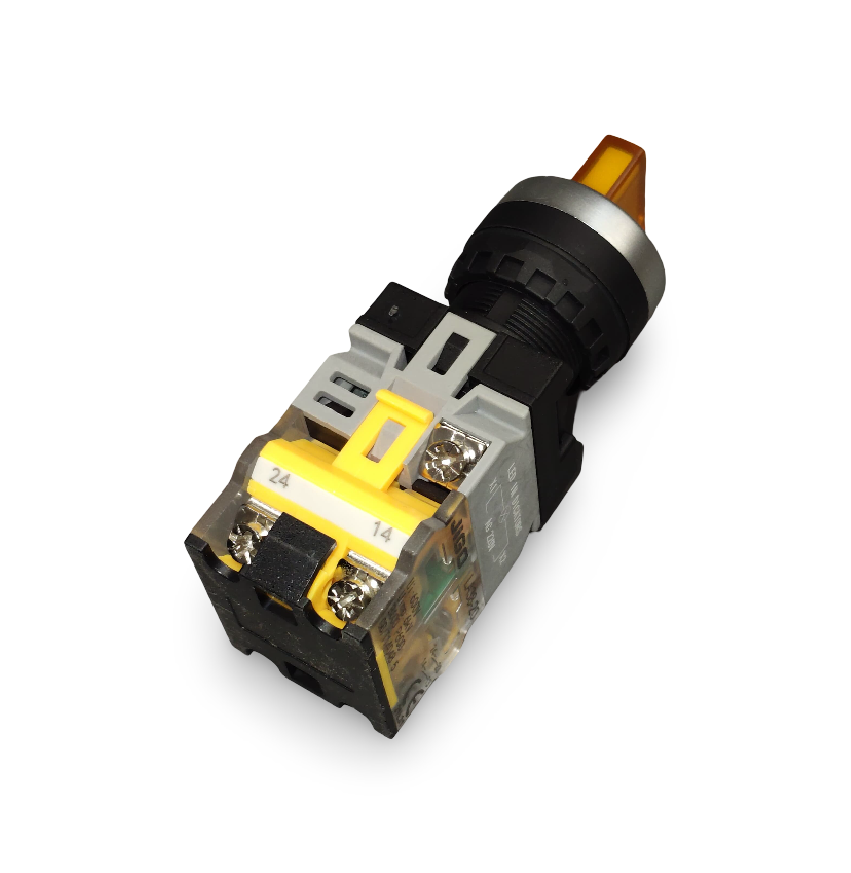

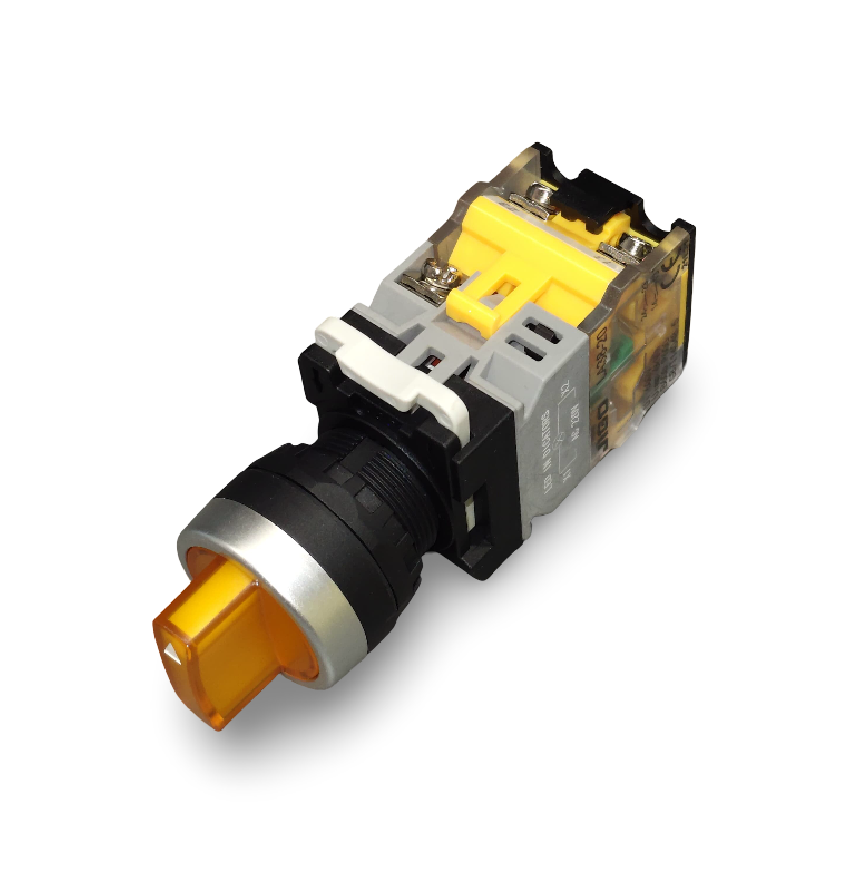

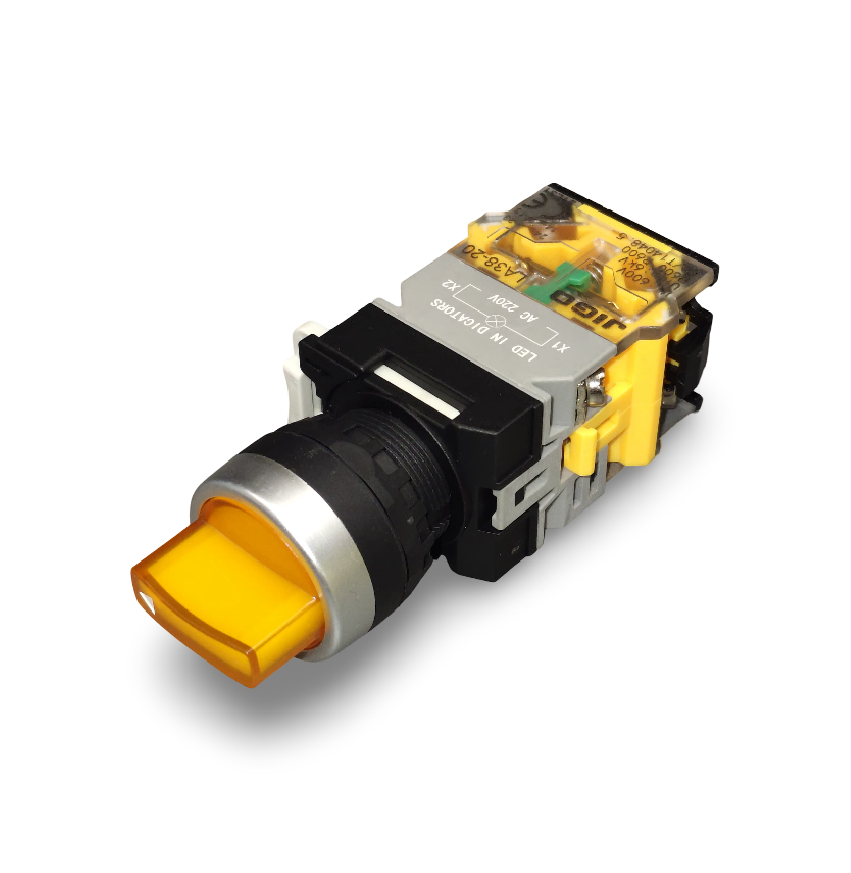

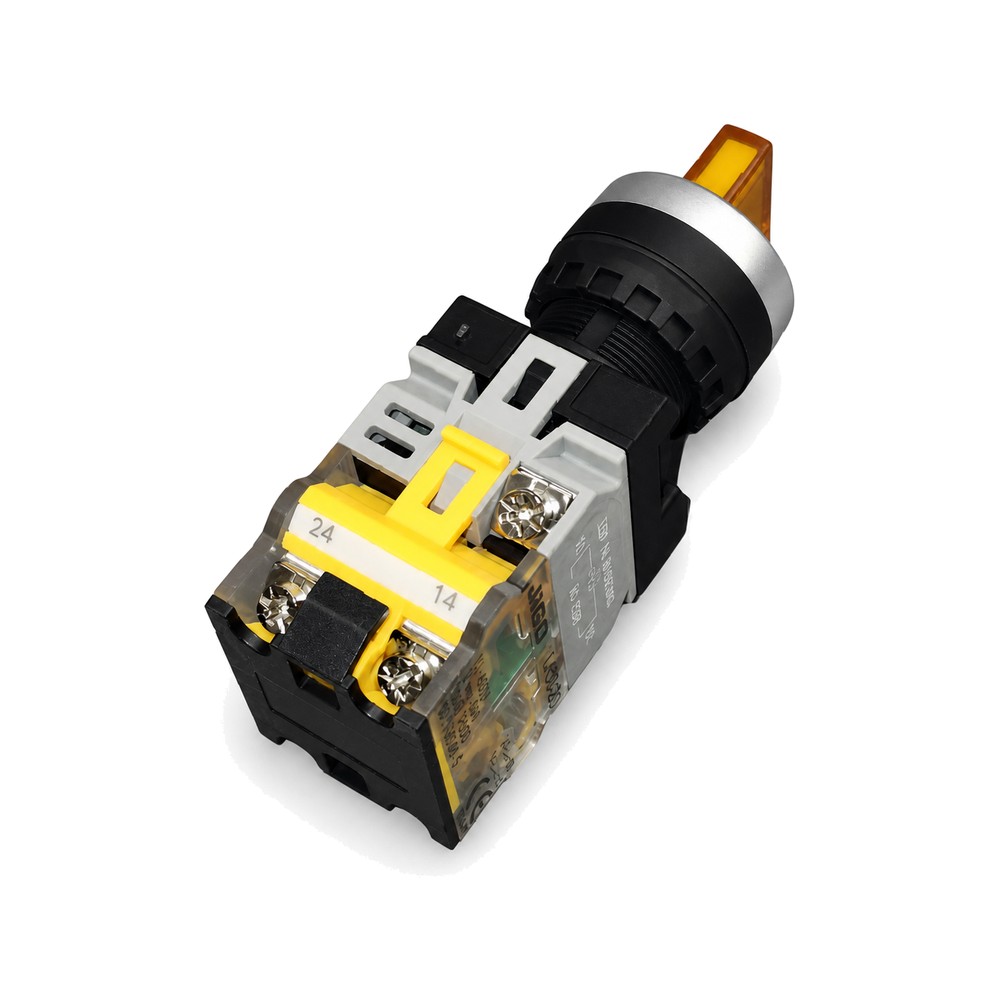

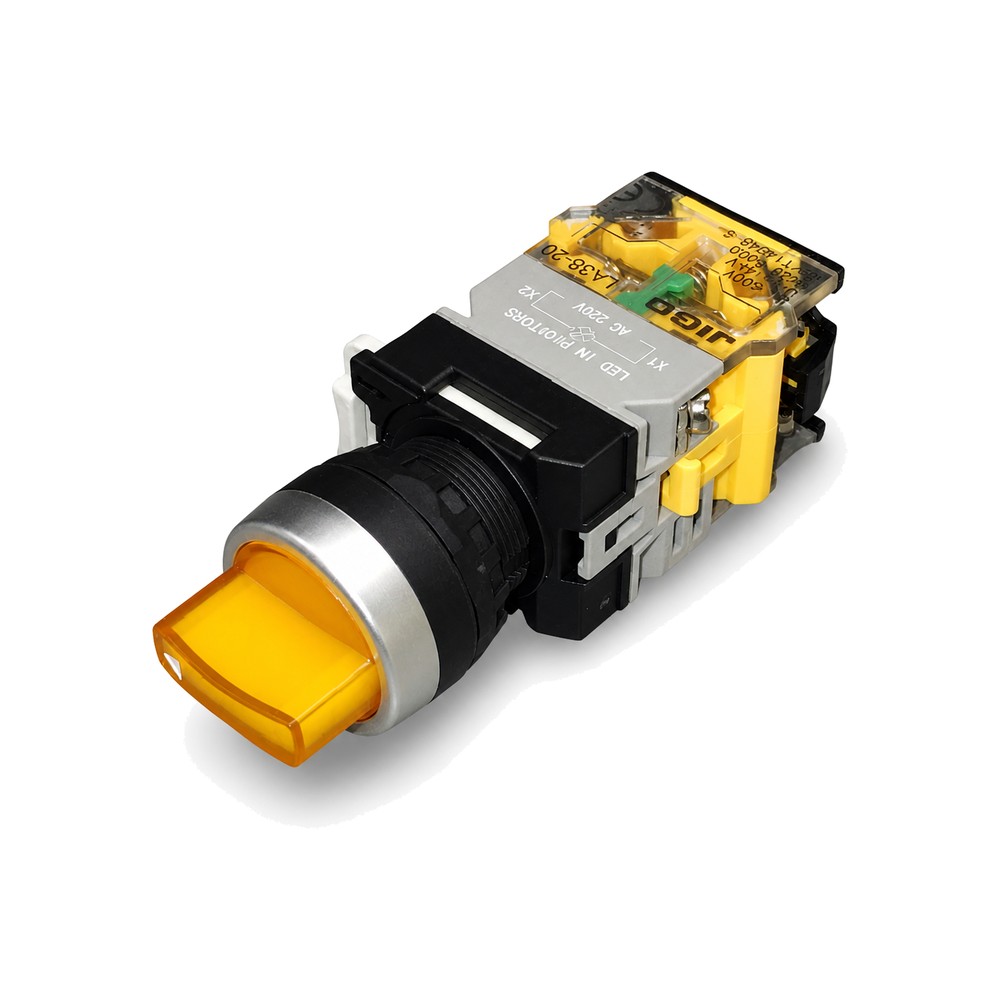

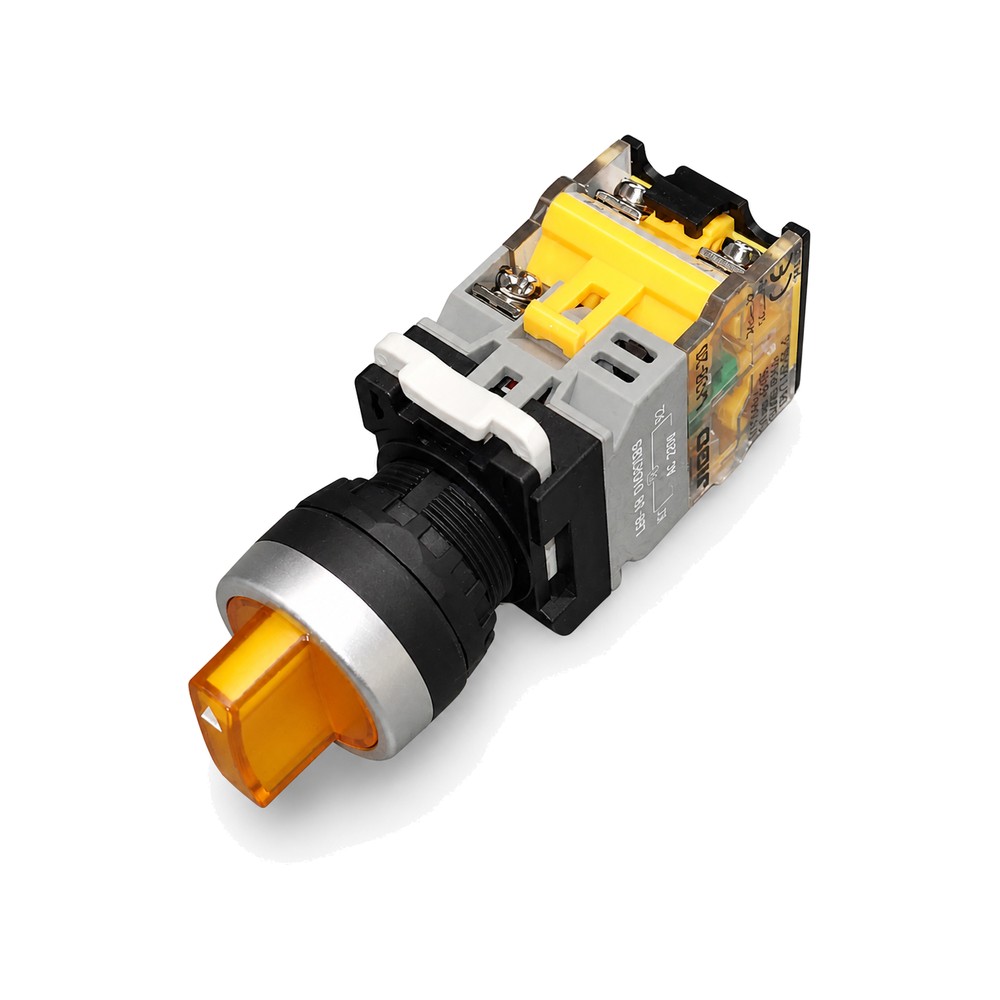

LA38-20 XD31 YELLOW 220V–3P Selector Switch with LED is a 3-position rotary selector switch with integrated yellow LED illumination. Designed for industrial control panels, it enables multi-mode selection with real-time visual indication, improving operational clarity and safety. Rate shown is per piece and includes 18% GST. Minimum order 10 pieces.
Product Details
Model: LA38-20 XD31
Color: Yellow
Type: Illuminated Rotary Selector Switch (3-Position)
Operation Positions: Left – Center – Right (maintained in all positions)
Contact Configuration: 2NO + 2NC (customizable)
Rated Voltage: 220V AC (for both switch and LED)
Mounting Hole Diameter: 22mm
LED Type: Built-in yellow LED
Material: Flame-retardant plastic housing with transparent LED cap
Terminal Type: Screw terminals
Operation Type: Rotary, maintained
Key Features
3-position maintained rotary selector switch
Integrated yellow LED for clear status indication
High-visibility actuator, suitable for low-light environments
Long mechanical and electrical lifespan
Quick and easy panel installation (22mm mounting)
Dual-contact configuration (2NO + 2NC) for flexible circuit design
Smooth operation with firm detents for each position
Ideal for multi-mode machine and system control
Applications
Multi-mode control (Auto/Manual/Off, Forward/Neutral/Reverse)
Electrical control panels and automation systems
Motor control stations and machinery interfaces
Generator and power supply selectors
HVAC, elevators, and production lines
Any industrial system requiring 3-way switching with LED status indication
