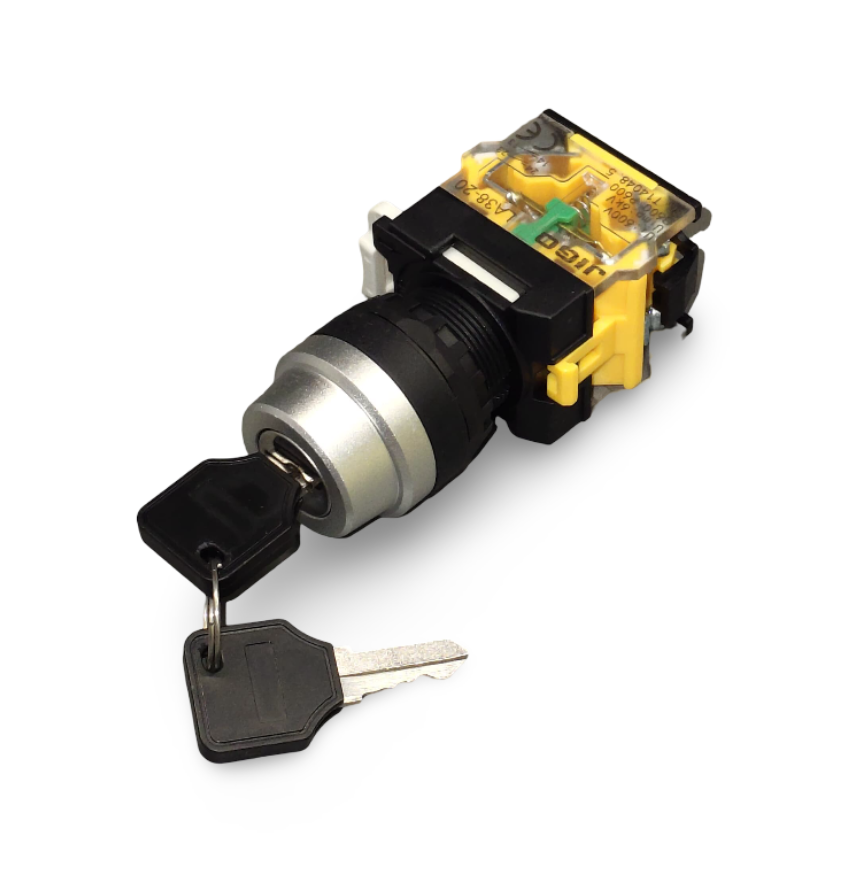

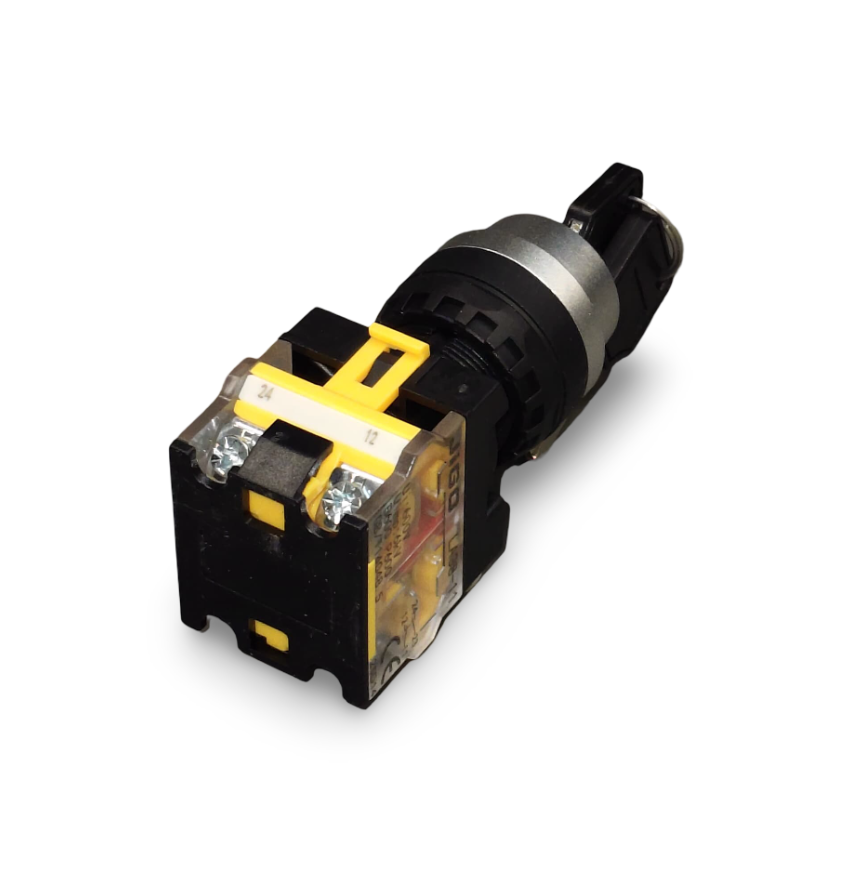

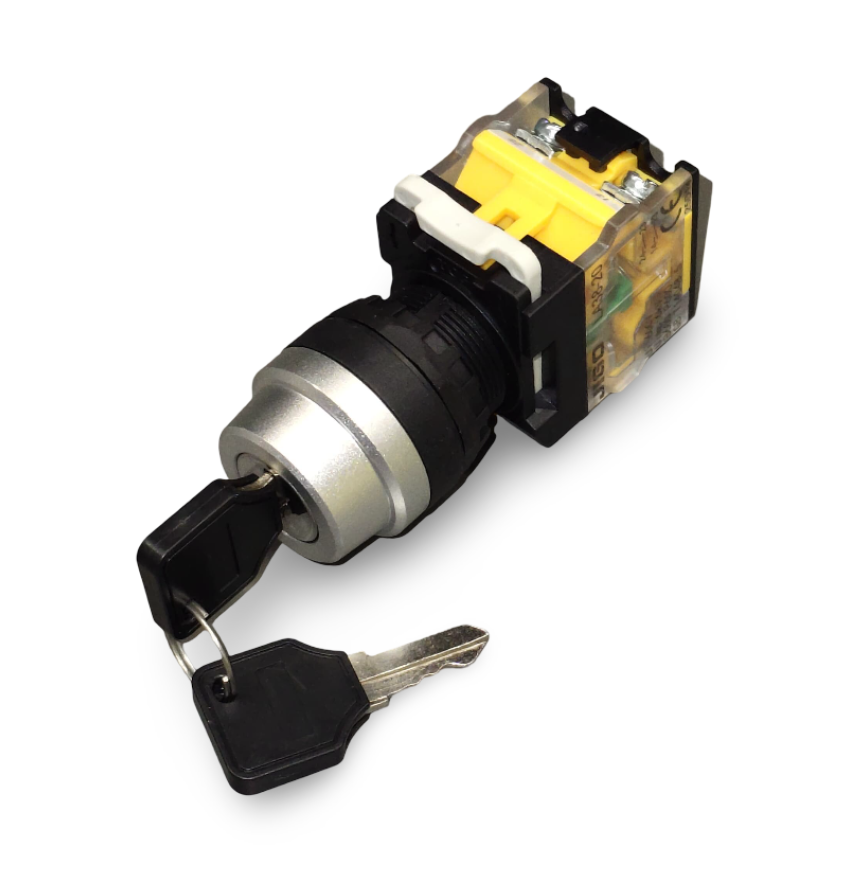

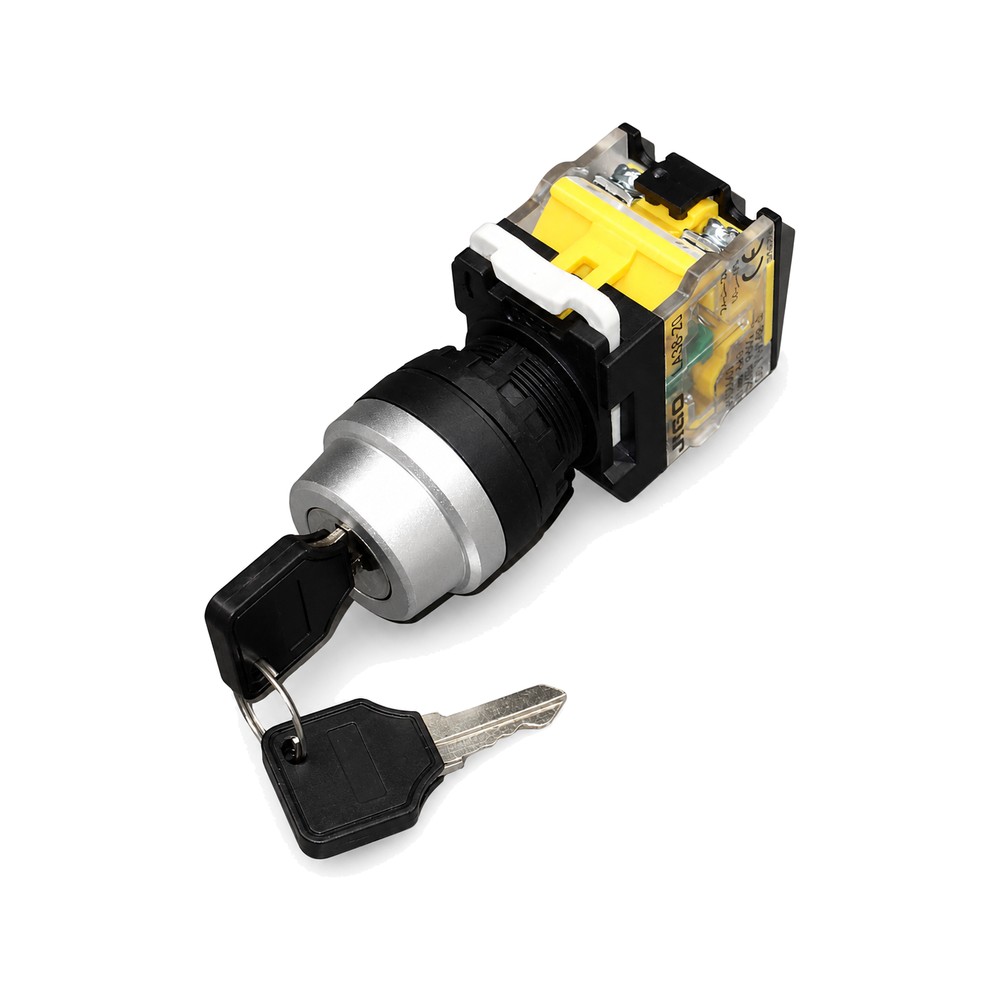

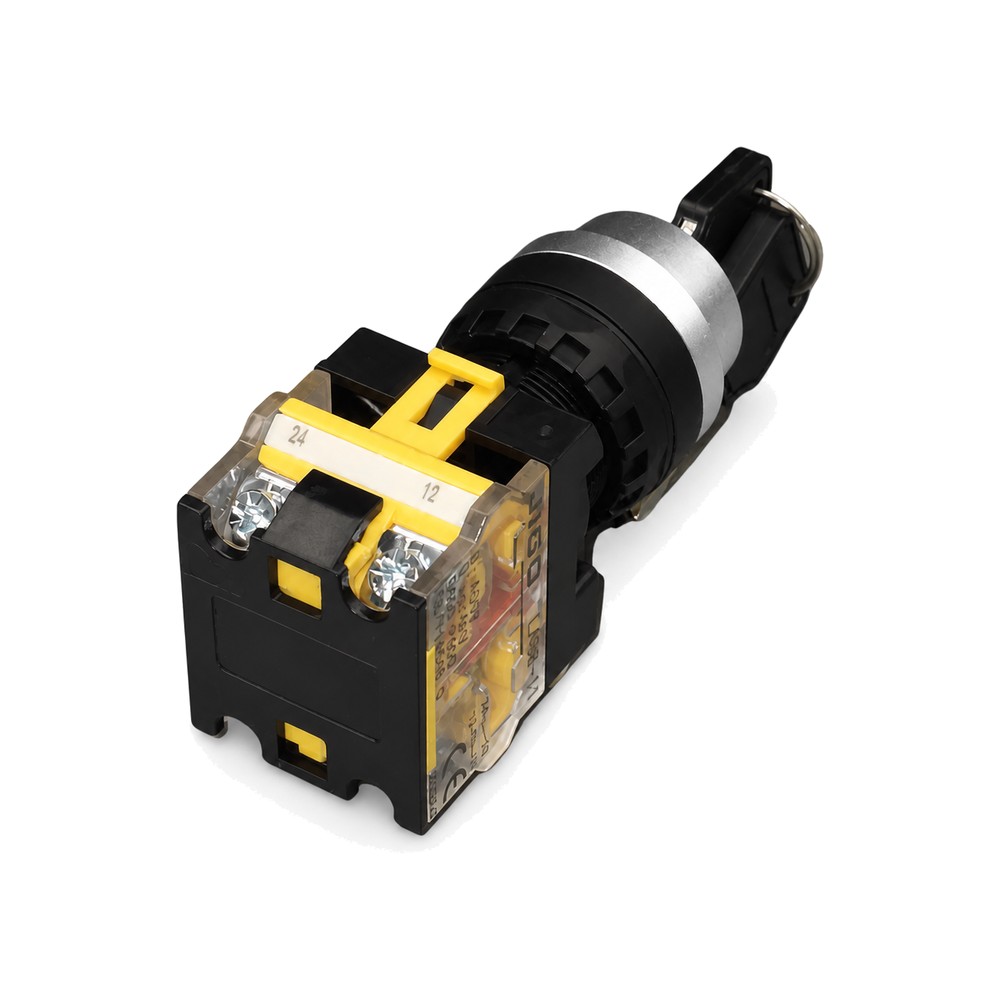

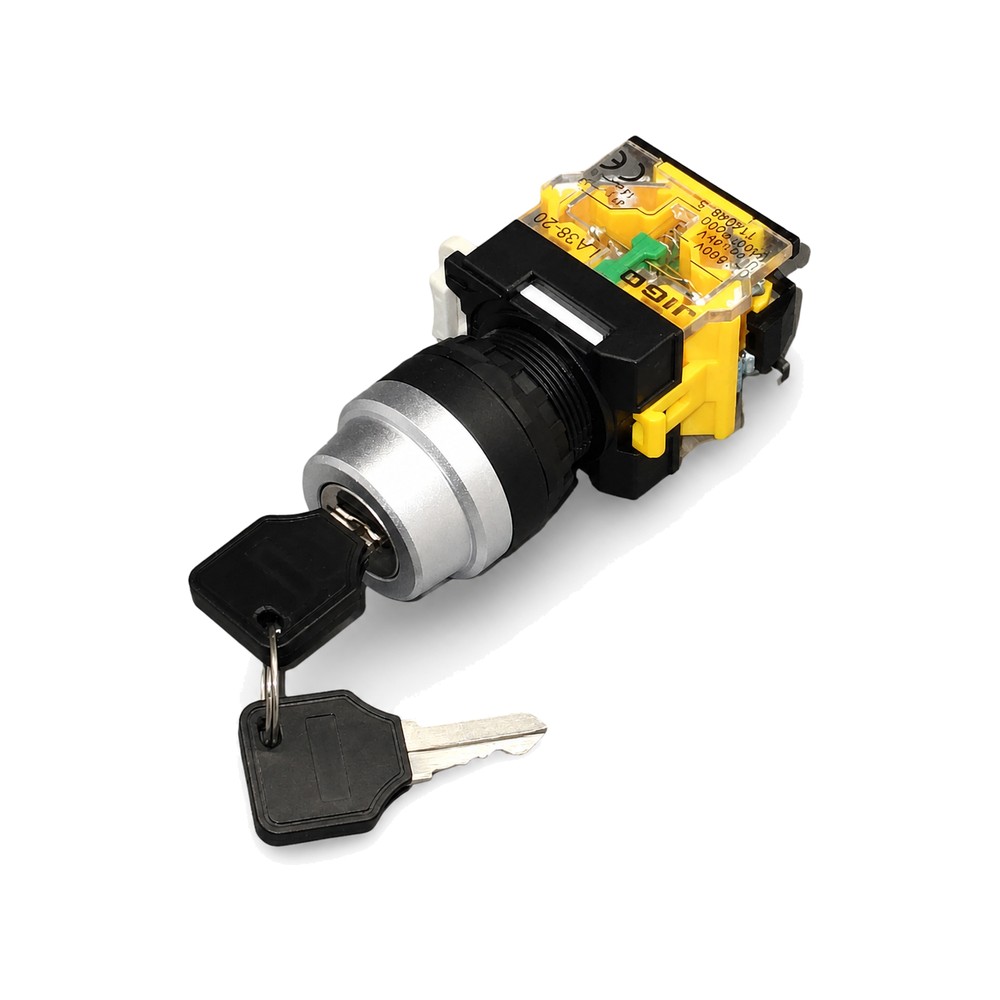

LA38-20 Y31-3P LOCK KEY SWITCH
LA38-20 Y31 LOCK KEY SWITCH – 3P is a 3-position key-operated rotary switch designed for secure control in industrial systems. The switch allows selection between three maintained positions and prevents unauthorized operation through key-based access control. Rate shown is per piece and includes 18% GST. Minimum order 10 pieces.
Product Details
Model: LA38-20 Y31
Type: 3-Position Lock Key Selector Switch (Maintained)
Key Operation: Turn-and-lock mechanism (key removable in specific positions)
Contact Configuration: 2NO + 2NC (depending on model)
Rated Voltage: 220V AC
Positions: Left – Center – Right (maintained in each position)
Mounting Hole Diameter: 22mm
Material: Flame-retardant plastic body with metal key cylinder
Terminal Type: Screw terminals
Key Removal: Available in one or more positions (model specific)
Key Features
Secure key-operated control to prevent unauthorized use
Maintained 3-position rotary function
Durable and tamper-resistant metal key mechanism
High-quality contact blocks for long service life
Quick installation with standard 22mm panel cutout
Suitable for industrial and commercial environments
Clear tactile feedback when switching between positions
Applications
Machine mode selection (e.g., Manual/Stop/Auto, Forward/Neutral/Reverse)
Generator control and power source selection
Access-controlled equipment and operator panels
Electrical distribution boards and automation systems
HVAC systems, elevators, and production lines
Any industrial environment requiring secure, multi-position control
Genuine stock from our Ludhiana counter (trading since 1993). GST invoice on every order, courier anywhere in India.
