LT-22
- Category: Wiring Connectors
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 60

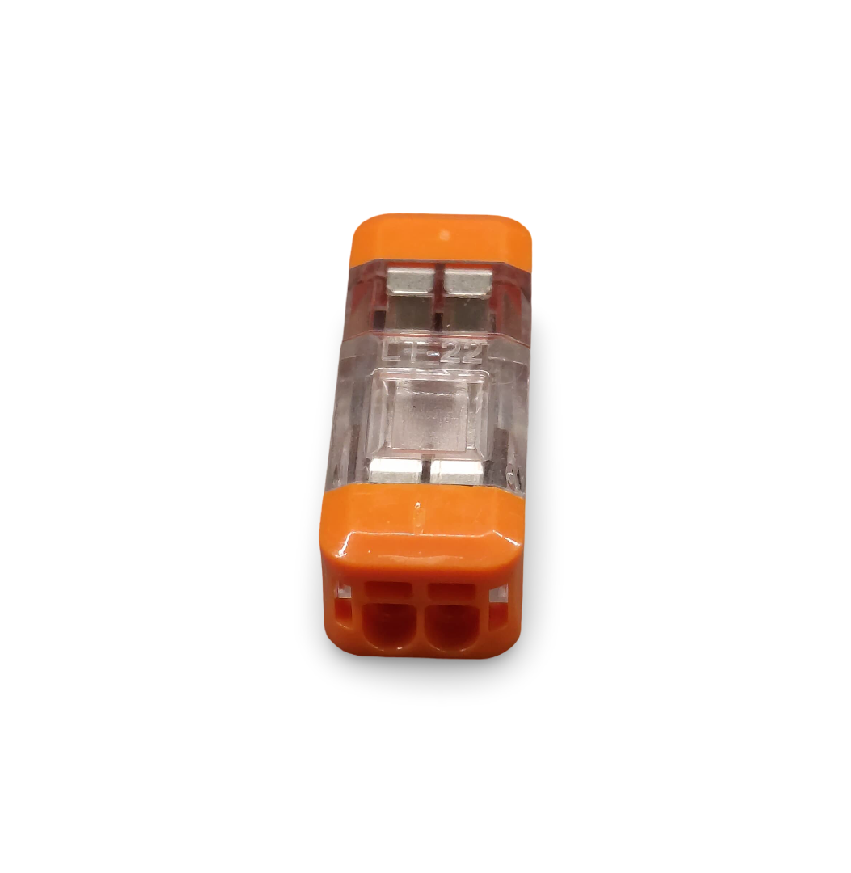

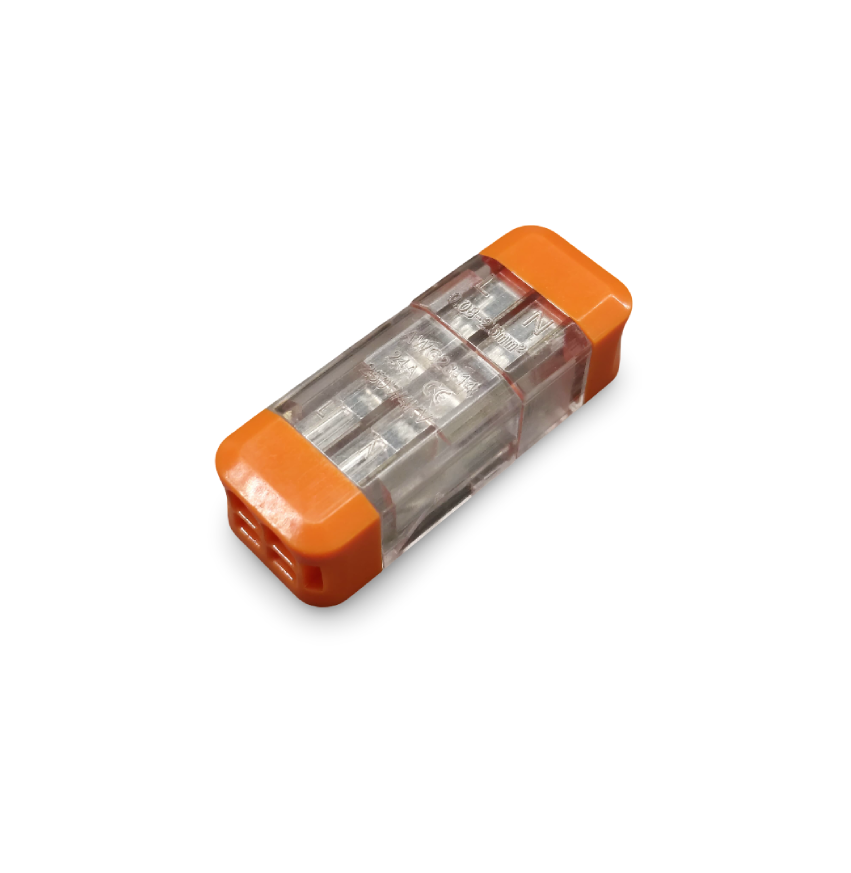

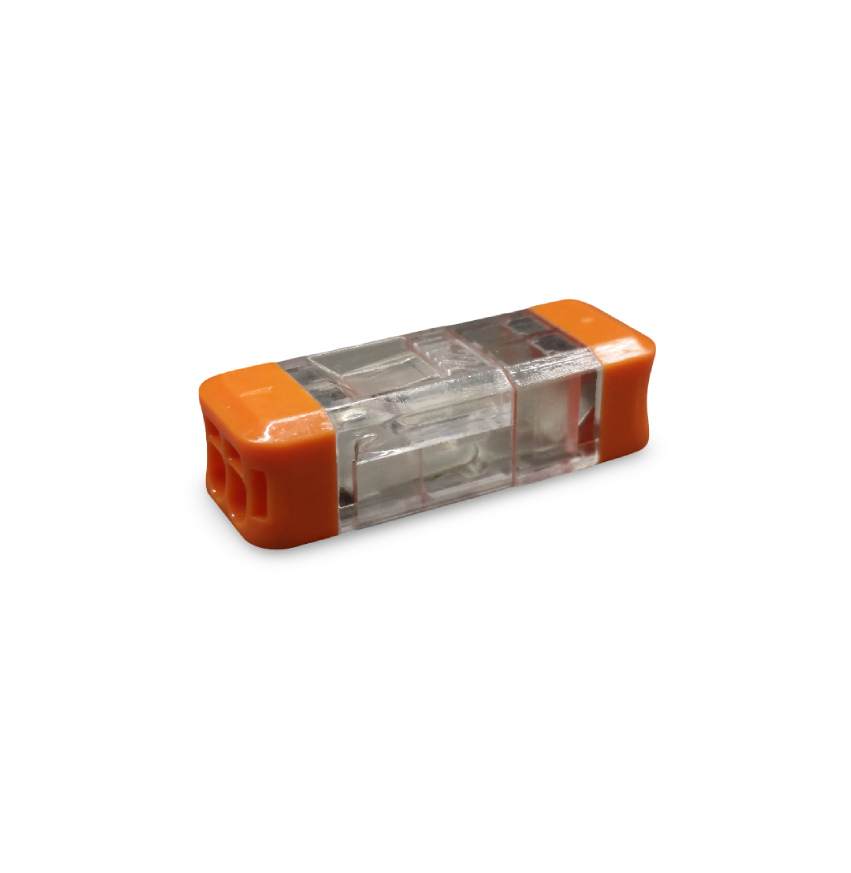

The LT‑22 Quick Connection Terminal by JIGO is a compact, plug‑in, spring‑loaded 2‑in/2‑out connector designed for fast, tool-free, maintenance‑friendly wiring—especially ideal for high-power lighting and large fixtures.
Product Details
Brand: JIGO (also available as generic OEM)
Model: LT‑22 – 2-input, 2-output spring connector
Conductors: Tin-coated T2 copper; spring clamp made of stainless steel S301
Housing: Transparent polycarbonate (UL94 V‑2) for visual inspection
Wire Range: 0.08–2.5 mm² (both solid and stranded)
Electrical Ratings:
Voltage: up to 450 V
Current: 24 A
Pulse withstand: 4 kV
Temperature Range: Operates up to 60 °C continuously (max 105 °C)
Dimensions: ~35 × 13 × 10.5 mm (strip length ~11–13 mm)
Key Features
Transparent housing allows visual confirmation of conductor placement
Snap‑lock bar secures stable contact even in vibration-prone environments
Integrated test hole supports live voltage checks with test pens
Tool-free wire release — easy disconnection when needed
Applications
Lighting systems — large fixtures, luminaire disconnects
Modular lamp assemblies — quick swap-in and out of units
High-vibration environments — guaranteed secure connections
Electrical safety testing — through integrated test access
