LT-4-8 Wire Connector
- Category: Wiring Connectors
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 140

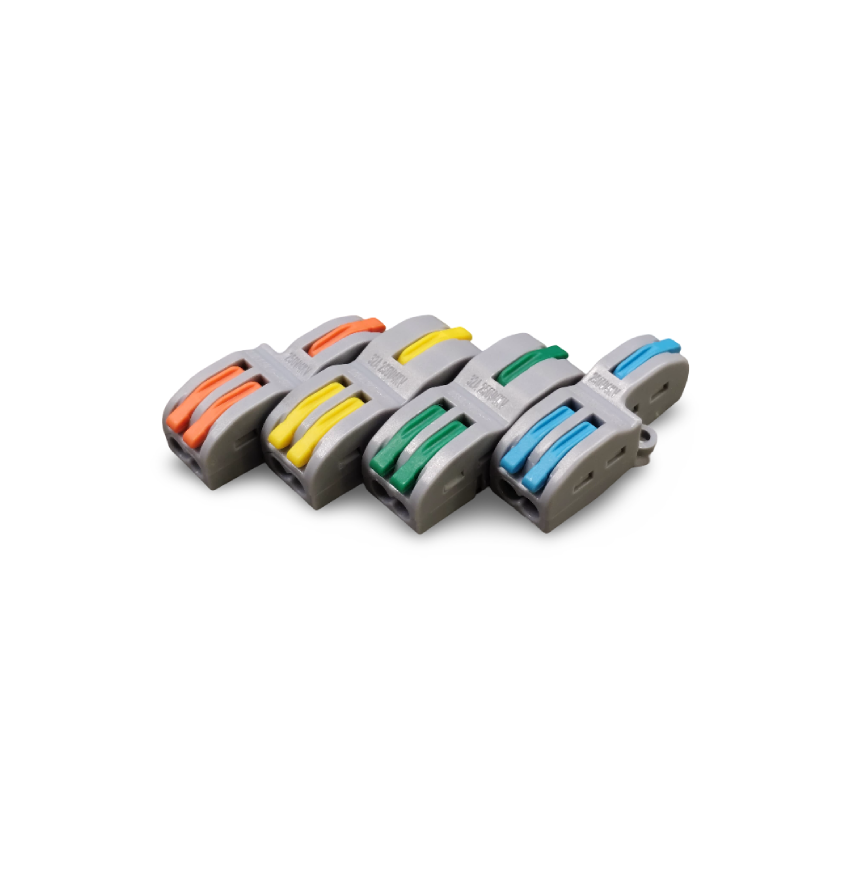

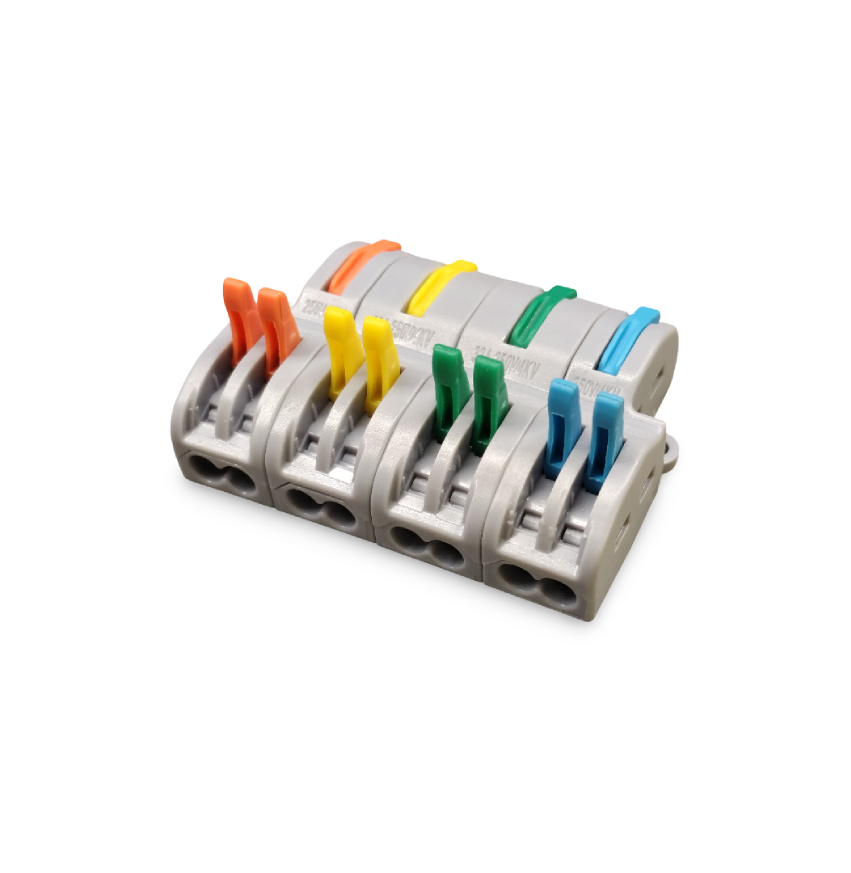

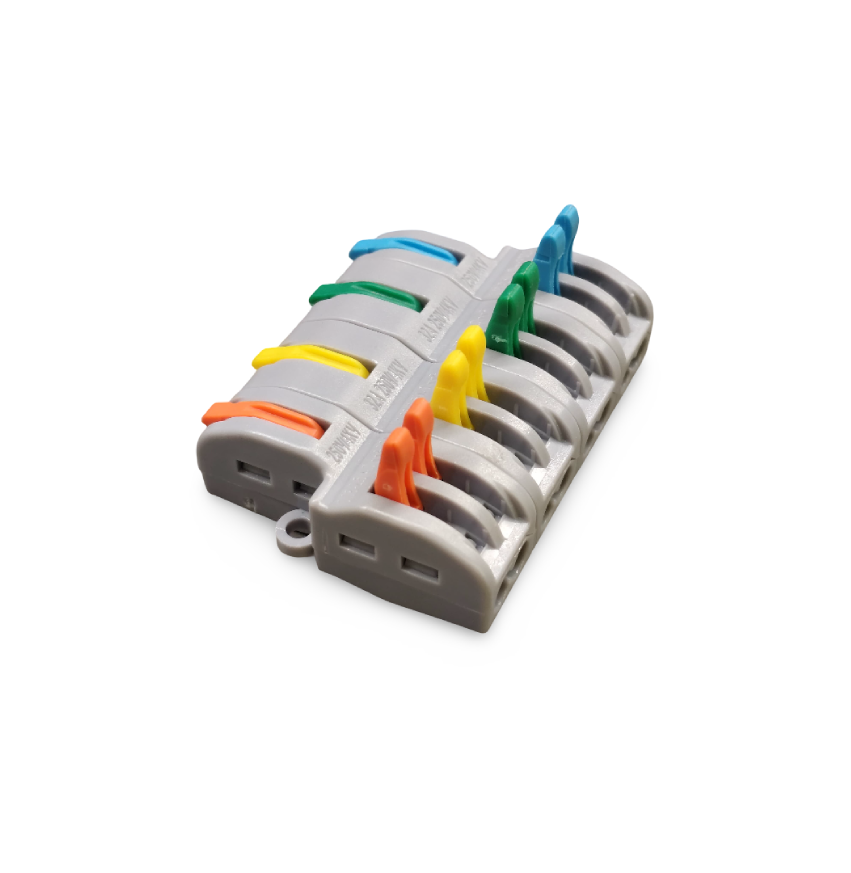

The JIGO LT‑4‑8 is a 4-pole, mini spring-type (quick) wire connector designed for fast, tool-free wiring, supporting higher currents and voltages (up to 32 A and 450 V).
Enquire on WhatsAppAttribute Specification Brand JIGO / REAIPL (Model: HM‑LT‑04‑08) (rajshreeelectronics.com, electronicspices.com) Model LT‑4‑8 (4P) Rated Voltage Up to 450 V Rated Current 32 A Wire Range 0.5–4 mm² (~20–12 AWG) Voltage Resistance 4 kV Ambient Temperature –40 °C to +105 °C Strip Length 11–12 mm Number of Poles 4 (4P) Housing Material Polycarbonate, flame rating UL94 V‑2 Dimensions ~39.3 × 43.3 × 15.4 mm
Key Features
Spring‑loaded quick connector – Provides secure, vibration-resistant contact without screws
High current and voltage capacity – Supports 32 A and up to 4 kV withstand
Tool-free wire insertion – Press, insert stripped wire, release
Universal wire support – Compatible with both solid and stranded conductors (0.5–4 mm²)
Compact and modular design – Easy to mount in terminals or junction boxes
Flame-resistant housing – PC plastic meets UL94 V‑2 for safety
Applications
Industrial and commercial wiring tasks
Power distribution and terminal blocks
Control panels and automation systems
Building and lighting installations
Where reliable, high-current connections are needed quickly
