LT-724

    Category: Wiring Connectors
  • Brand: Jigo
  • Minimum quantity: 1
  • Price: ₹ 90

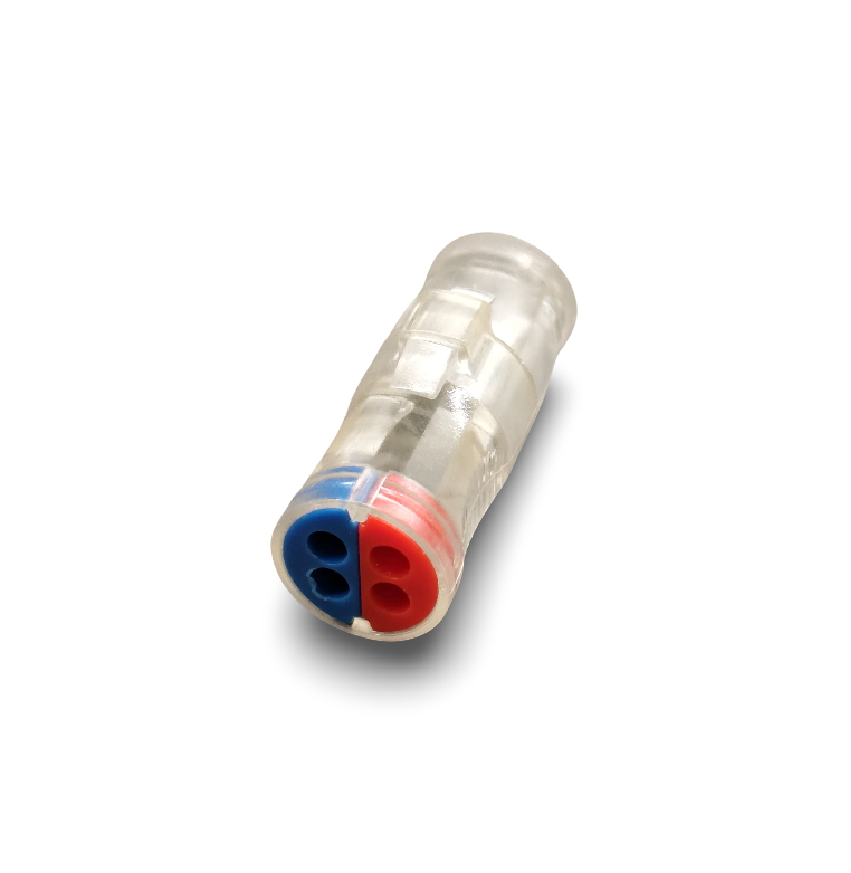

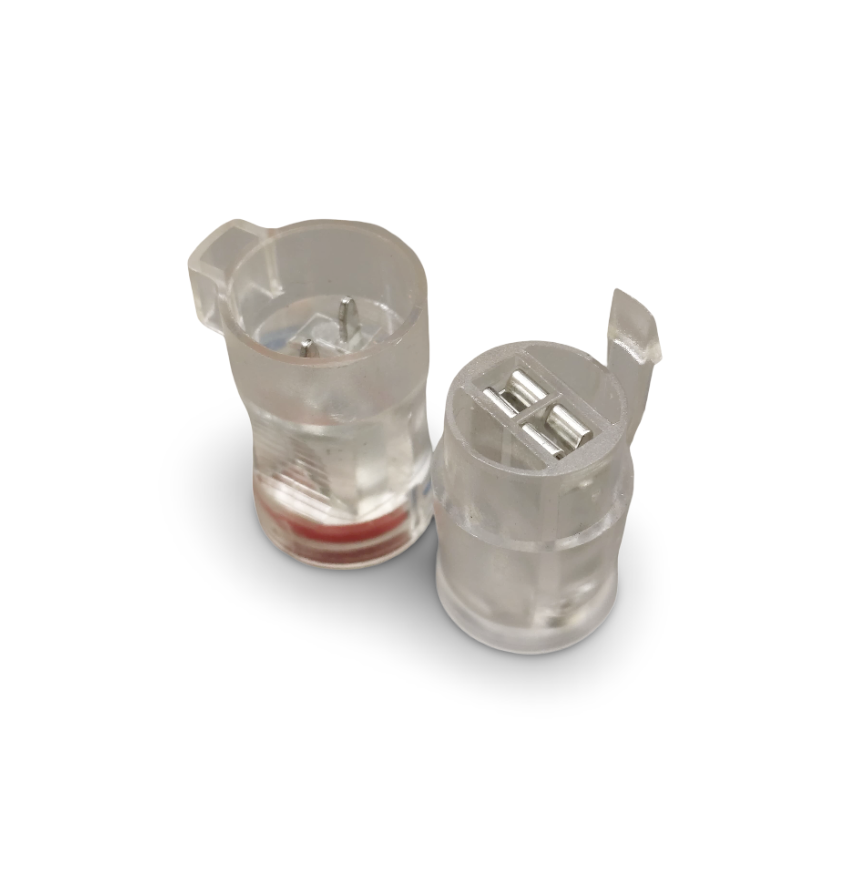

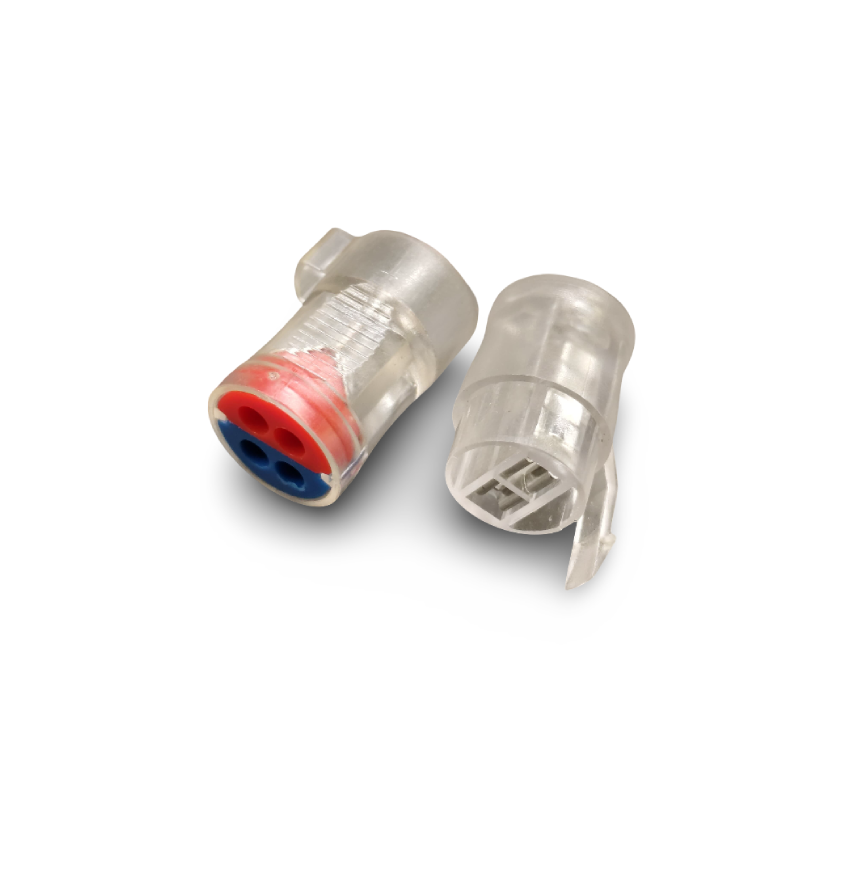

The LT‑724 is a compact, 2‑in / 4‑out spring‑lever wiring connector from JIGO. It offers a quick, tool-free method to branch a single pair of conductors into two, ideal for neat and reliable splicing.



Product Details

Brand: JIGO (also supplied by REAIPL)

Model: LT‑724

Connector Type: Spring-lever, 2 inputs → 4 outputs (2:4)

Material: High-grade insulative nylon housing

Internal Contact: Nickel-plated, stainless steel spring clamp

Wire Size Support:

Solid: 0.75–4 mm²

Stranded: 1.5–2.5 mm²

Rated Voltage: Up to 400 V

Rated Current: 6 A (peak)

Max Power Rating: ~4 kW

Strip Length: 11–13 mm

Operating Temperature: –20 °C to +85 °C

Dimensions: ~38 × 15 × 15 mm

Pole Configuration: 2 conductors in, branching to 4 out

Key Features

Spring‑lever mechanism – visible lever for quick tool-free wire insertion and release

Stable splicing – nickel-plated contact ensures reliable conductivity

Compact form factor – easy to fit into lighting gear, junction boxes, and fixtures

Wide wire compatibility – supports a broad range of wire types and sizes

High voltage tolerance – rated up to 400 V for safety

Decent current load – suitable for ≤ 6 A circuits (up to ~4 kW power systems)

Applications

Branching power in lighting fixtures (LED panels, downlights)

Appliance and control-panel wiring

Building quick-splice installations

DIY and repair projects requiring clean, secure connections
