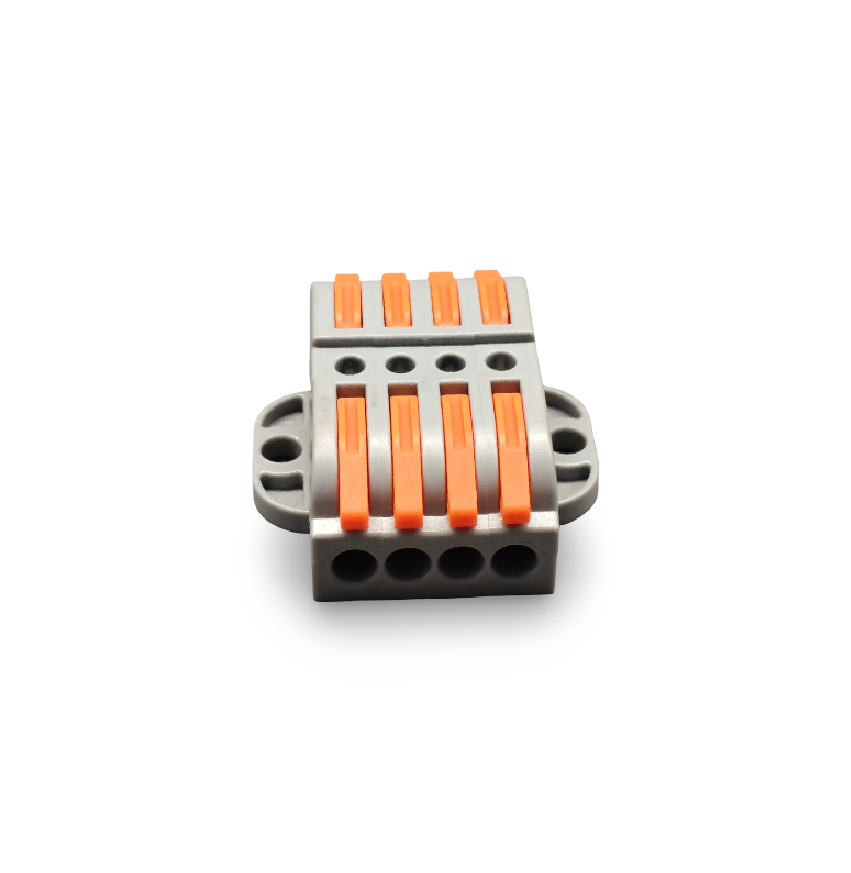

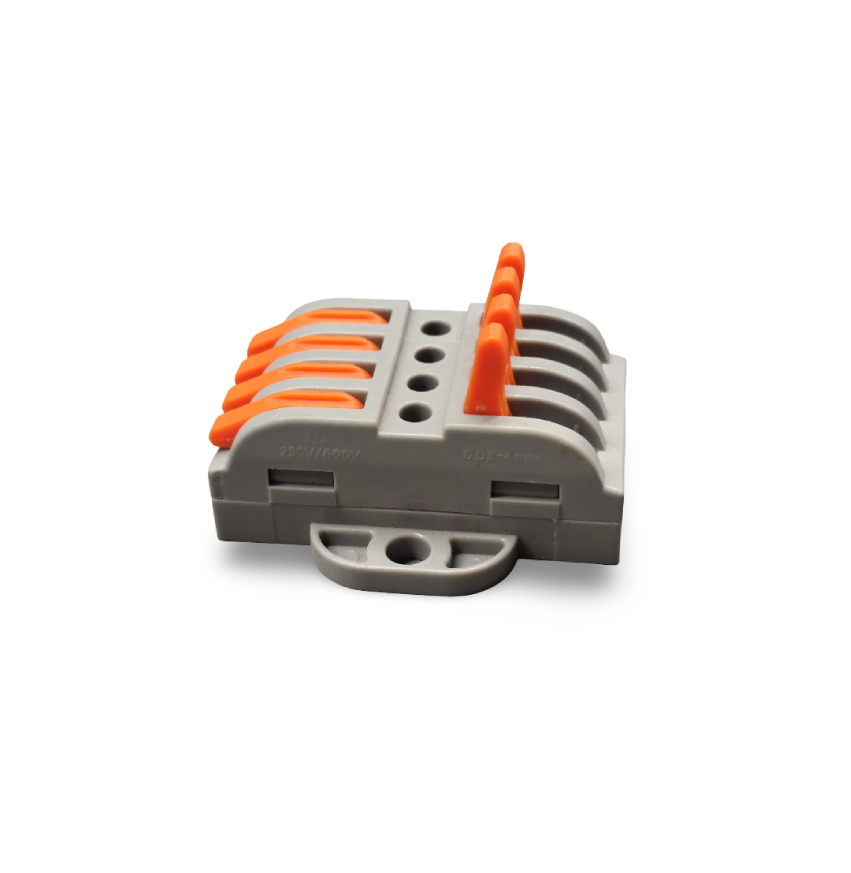

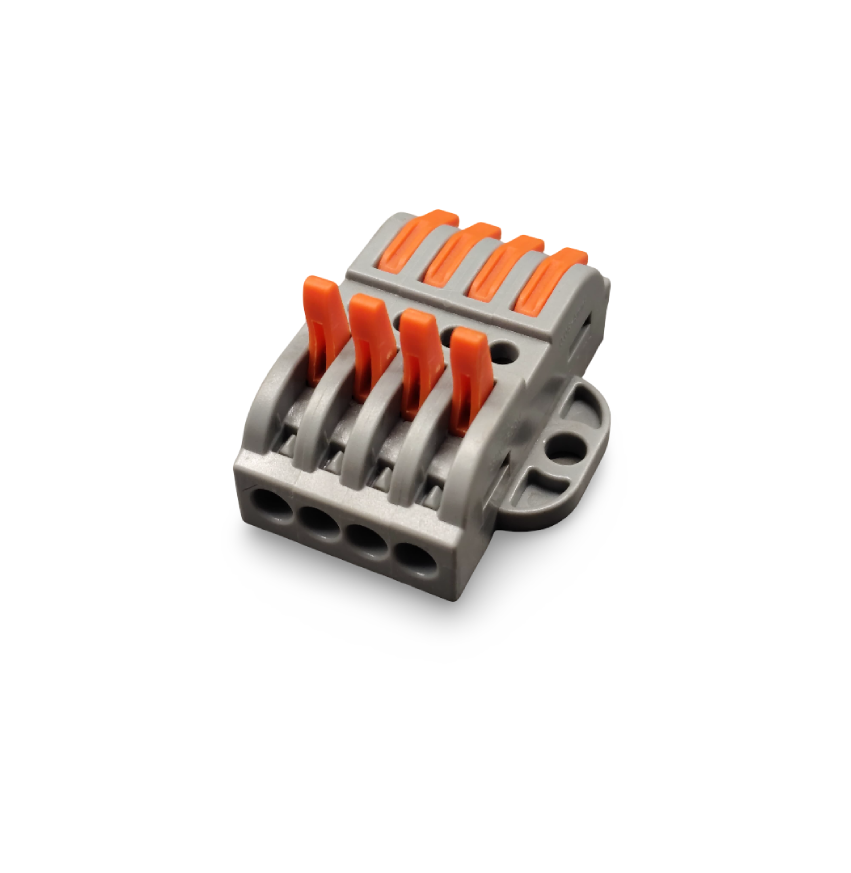

PCT-223-4P Wire Connector
- Category: Wiring Connectors
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 70
The PCT‑223‑4P is a 4‑pole spring‑lever (leverable) quick connector, enabling tool‑free insertion and release of wires. Designed for fast, secure, and reusable connections in a compact form.
Enquire on WhatsAppProduct Details:
Model: PCT‑223‑4P (4‑pole)
Rated Voltage: 600 V AC
Rated Current: 32 A
Wire Size: 0.08–4.0 mm² (28–12 AWG)
Number of Clamps: 8 (2 clamps per pole)
Materials: Flame‑retardant PC housing (UL94 V‑2), copper alloy conductors, steel spring levers
Operating Temp: −40 °C to +105 °C
Wire Strip Length: ~11–12 mm
Key Features:
Tool-free lever action – fast push‑in/push‑down wire insertion and release.
High-density layout – compact size allows multiple connectors in tight spaces.
Strong spring clamps hold wires securely against vibration.
Flame-retardant housing rated V‑2 for safety under fault conditions.
Reusable and maintenance-free – levers open & close for repeated use without degradation.
Applications:
Electrical distribution and junction boxes
Lighting, LED, and ceiling fixture installations
Appliance wiring and modular home systems
Control panels, industrial automation
DIY, prototyping, and maintenance tasks
