PCT-223-5P
- Category: Wiring Connectors
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 80

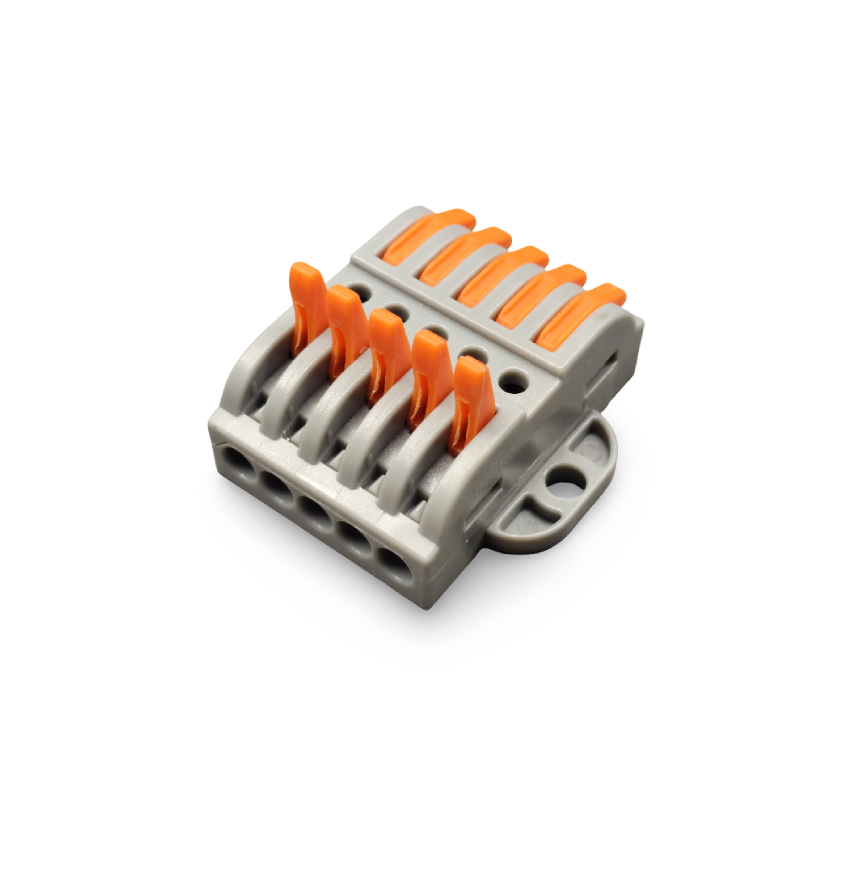

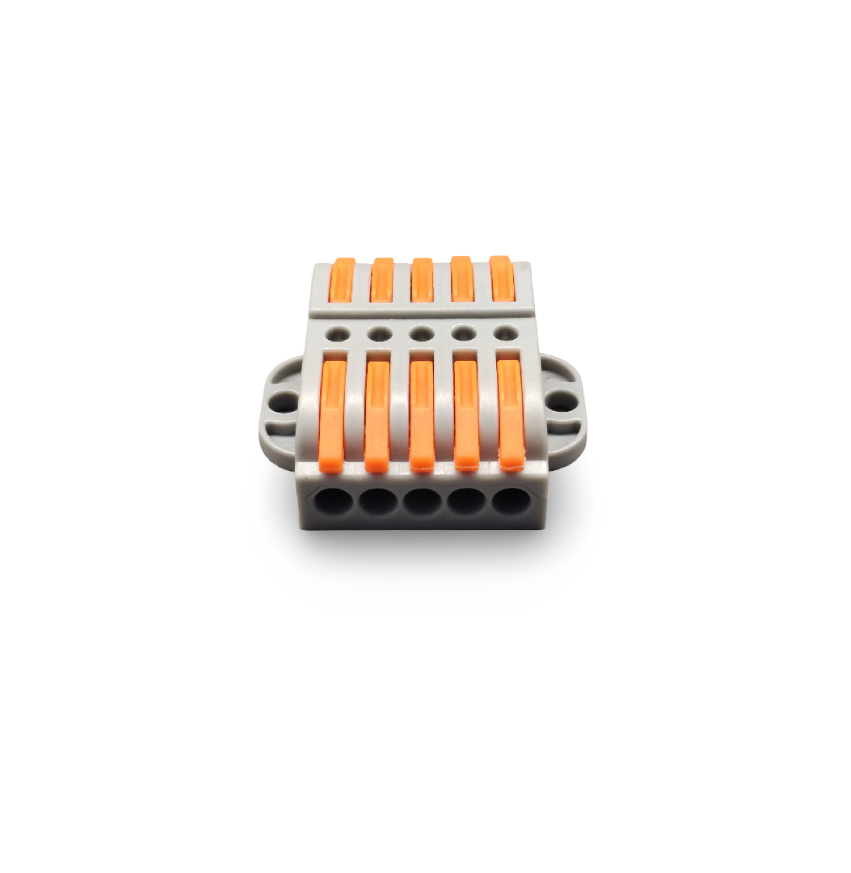

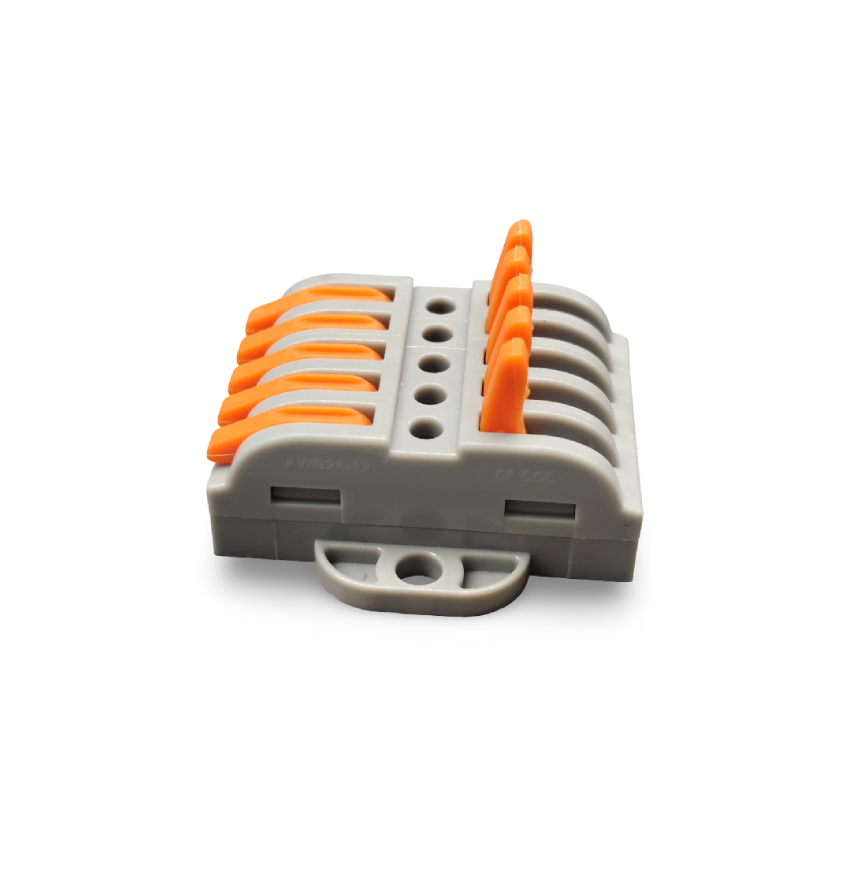

The PCT-223-5P is a 5-pole lever-type quick connector from JIGO, designed for fast, tool-free, and reusable wire connections. It's ideal for high-density, safe electrical wiring in home, industrial, and automation applications.
| Specification | Details |
|---|---|
| Model | PCT-223-5P |
| Type | 5-pole lever quick wiring connector |
| Voltage Rating | 450–600 V AC |
| Current Rating | 32 A |
| Wire Size Support | 0.08–4.0 mm² (28–12 AWG) |
| Number of Clamps | 10 (2 per pole) |
| Material | Flame-retardant PC housing, copper alloy contacts |
| Spring Type | Steel spring clamp |
| Temperature Range | –40°C to +105°C |
| Wire Strip Length | 9–12 mm |
| Reusable | Yes |
| Dimensions (approx.) | ~39.3 × 45.5 × 14.5 mm |
Key Features
Tool-Free Lever Operation – Insert and remove wires easily without tools.
Compact & Modular Design – Fits well in tight spaces and panel boxes.
Strong Spring Contacts – Vibration-resistant and ensures secure clamping.
Flame-Retardant Housing – High safety for residential and industrial use.
Reusable & Maintenance-Free – Levers can be opened and closed multiple times without wear.
Applications
Junction box connections
LED lighting and ceiling installations
Electrical panels and automation systems
Appliance repair and modifications
DIY and home improvement wiring tasks
Industrial machinery wiring
