PCT-223-6P
- Category: Wiring Connectors
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 220

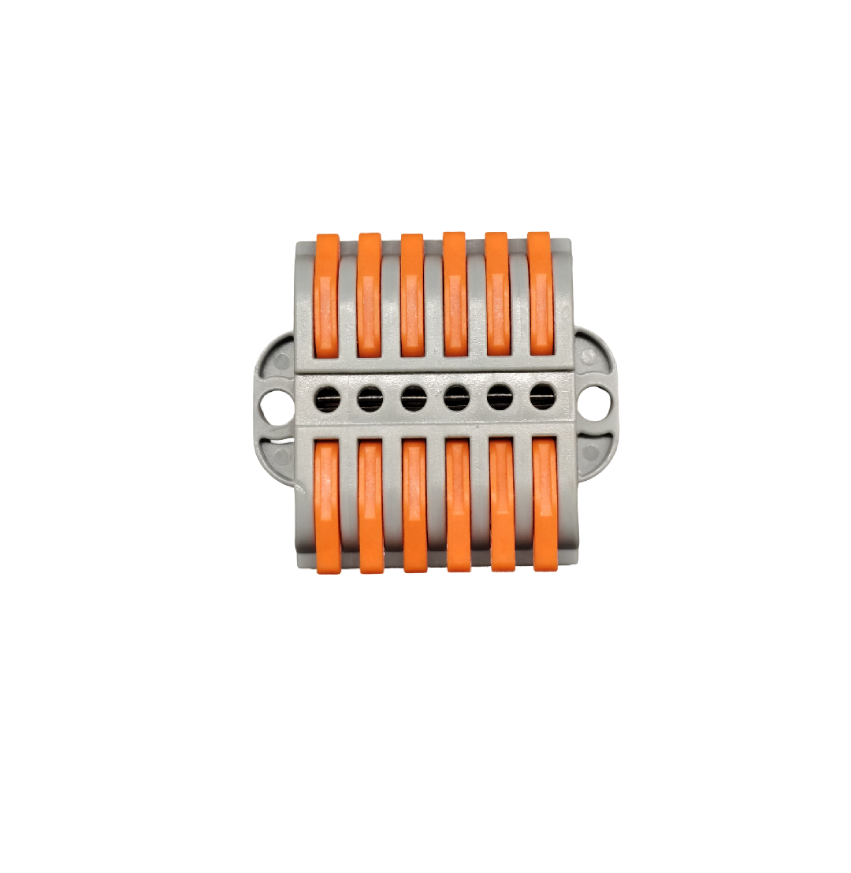

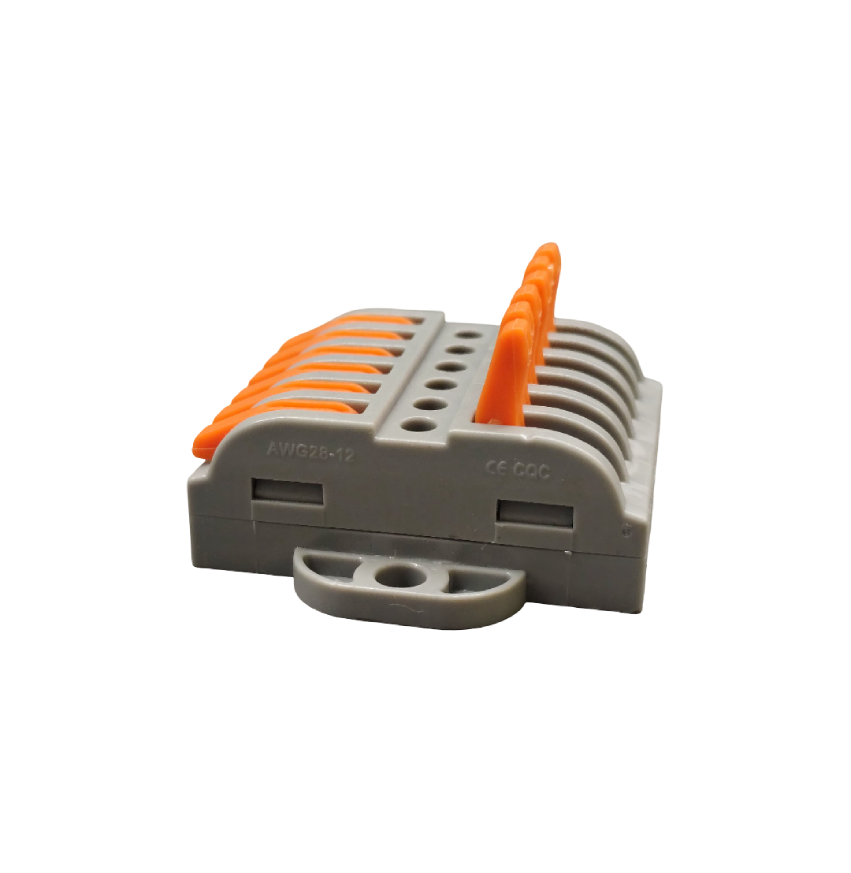

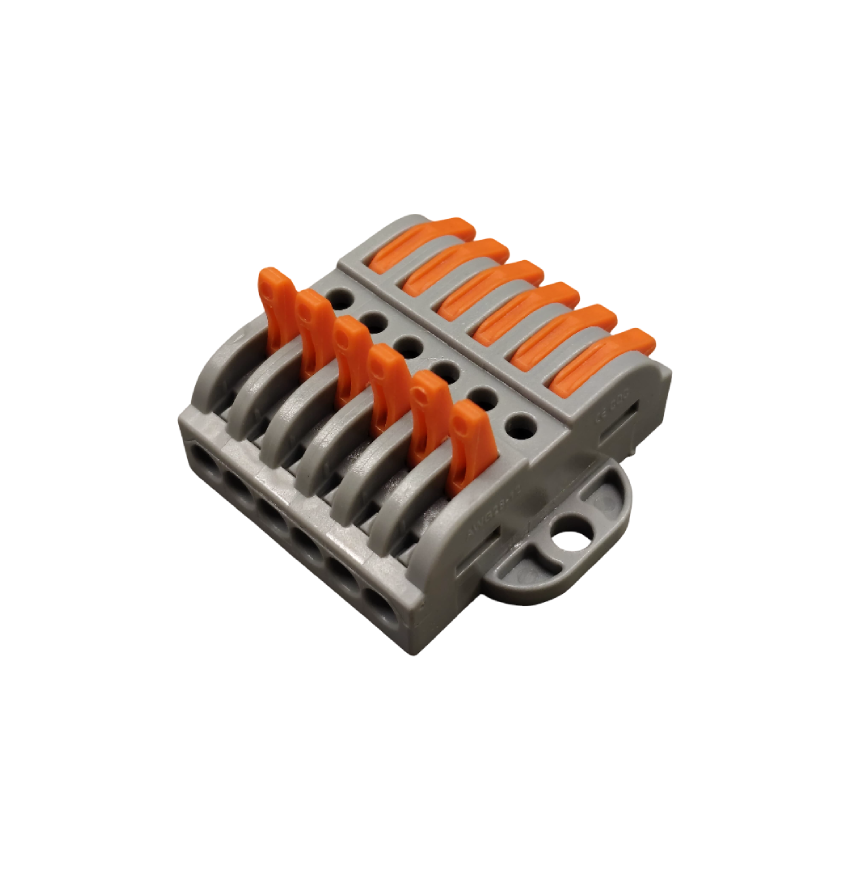

The PCT‑223‑6P is a compact, tool‑free, 6‑pole spring‑lever quick connector. It enables fast, reusable, and secure wire termination—perfect for residential, commercial, and industrial wiring applications.
Product Details
Model: PCT‑223‑6P (6‑pole)
Rated Voltage: 600 V AC (IEC rating up to 450 V; 600 V German standard)
Rated Current: 32 A
Wire Size: 0.08–4 mm² (28–12 AWG); some listings cite 0.08–2.5 mm²
Impulse Withstand: 4 kV
Operating Temp: –40 °C to +105 °C (some list –20–80 °C)
Strip Length: 11–12 mm
Dimensions: ~39.3 × 45.3 × 14.5 mm
Clamps: 12 (2 per pole)
Housing: Flame‑retardant PC/PA66 resin, UL94 V‑2
Contacts: Copper alloy (T2 or nickel‑plated steel)
Key Features
Tool-Free Spring-Lever Design
Easily insert and remove wires without tools—just flip the lever for quick, consistent connections
High-Density, Compact Form
Six poles in a compact 4×4 cm housing—ideal for tight junction boxes and panels .
Secure Vibration-Resistant Clamps
Dual spring presses ensure firm, reliable contact even in vibrating environments
Safety-Rated Materials
Flame-retardant PC/PA66 housing with UL94 V‑2 rating and high impulse withstand capacity
Reusable & Durable
Designed for multiple open-and-close cycles without degradation—no screw drivers or torque checks needed .
Applications
Panel and distribution box wiring
Home and industrial junction boxes
LED and lighting installations
Appliance connections & repairs
Automation and control wiring
DIY electrical setups and prototyping
