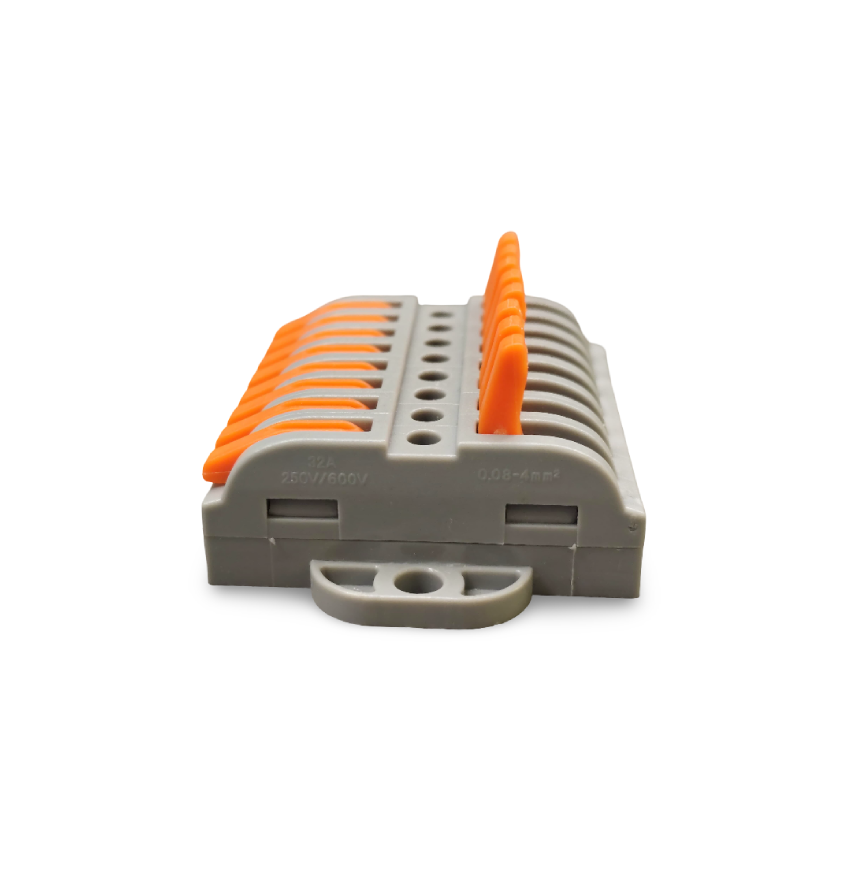

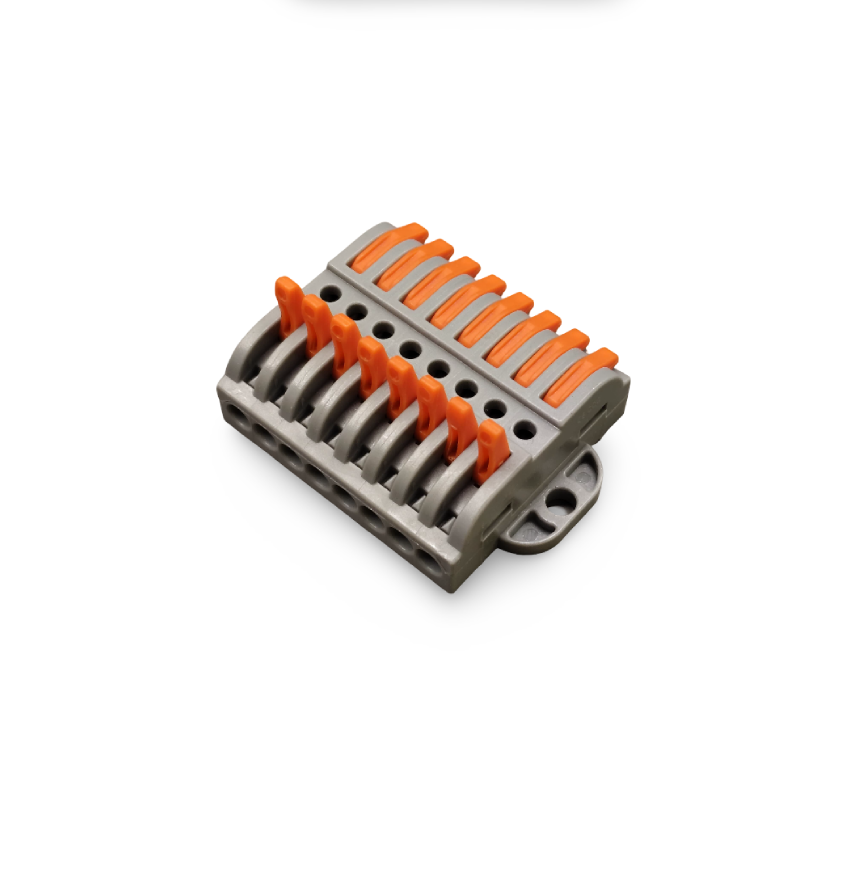

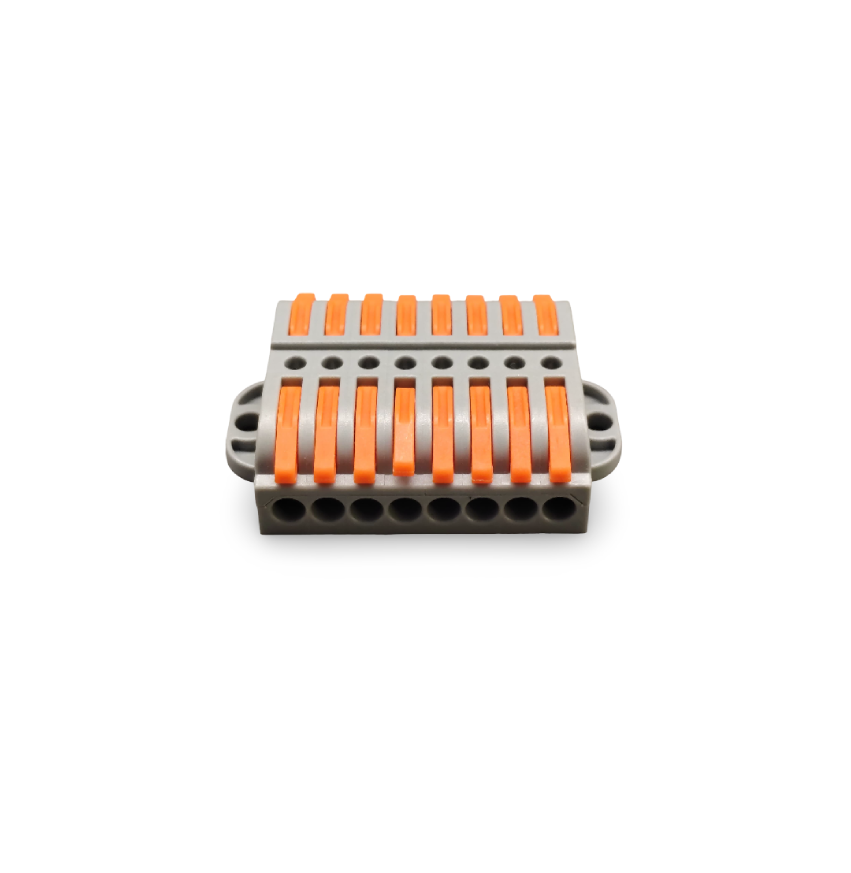

The PCT‑223‑8P is an 8‑pole spring‑lever quick‑connect terminal designed for fast, tool‑free, and secure wire connections. It is ideal for applications requiring multiple connections in a compact space, such as control panels, junction boxes, and industrial wiring systems.
Specification Details Model PCT‑223‑8P Rated Voltage 450–600 V AC Rated Current 32 A Wire Size 0.08–4.0 mm² (28–12 AWG) Impulse Withstand 4 kV Operating Temperature –40 °C to +105 °C Wire Strip Length 11–12 mm Dimensions ~39.3 × 55.3 × 14.5 mm Clamps 16 (2 per pole) Housing Material Flame‑retardant PC (UL94 V‑2) Contact Material Copper alloy (T2) Spring Material Steel (S301)
Tool-Free Lever Operation: Quickly insert and remove wires without tools—just flip the lever for quick, consistent connections.
High-Density, Compact Form: Eight poles in a compact housing—ideal for tight junction boxes and panels.
Secure Vibration-Resistant Clamps: Dual spring presses ensure firm, reliable contact even in vibrating environments.
Safety-Rated Materials: Flame-retardant PC housing with UL94 V‑2 rating and high impulse withstand capacity.
Reusable & Durable: Designed for multiple open-and-close cycles without degradation—no screwdrivers or torque checks needed.
Panel and distribution box wiring
Home and industrial junction boxes
LED and lighting installations
Appliance connections & repairs
Automation and control wiring
DIY electrical setups and prototyping
