TB-1503 Terminal Strip
- Category: TERMINAL STRIPS
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 30

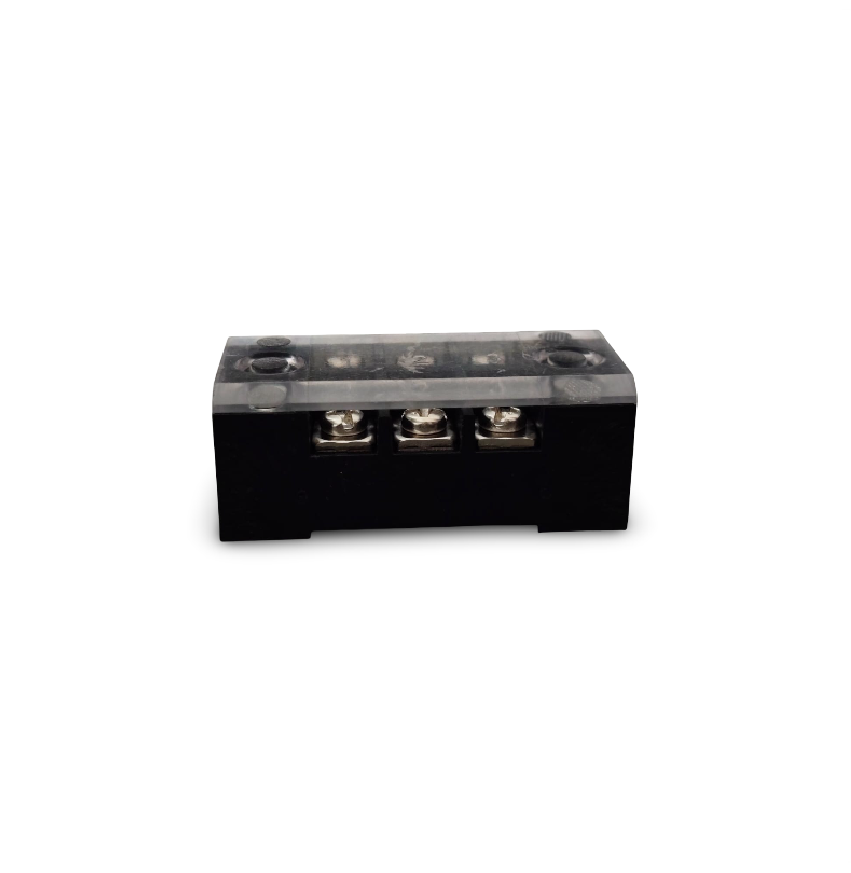

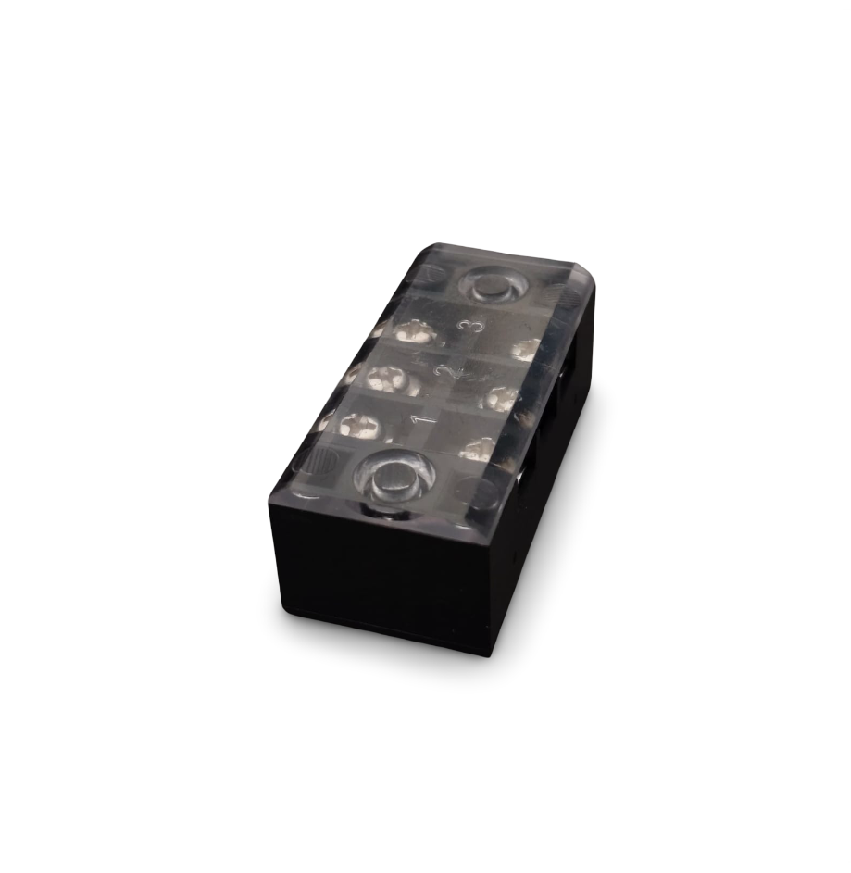

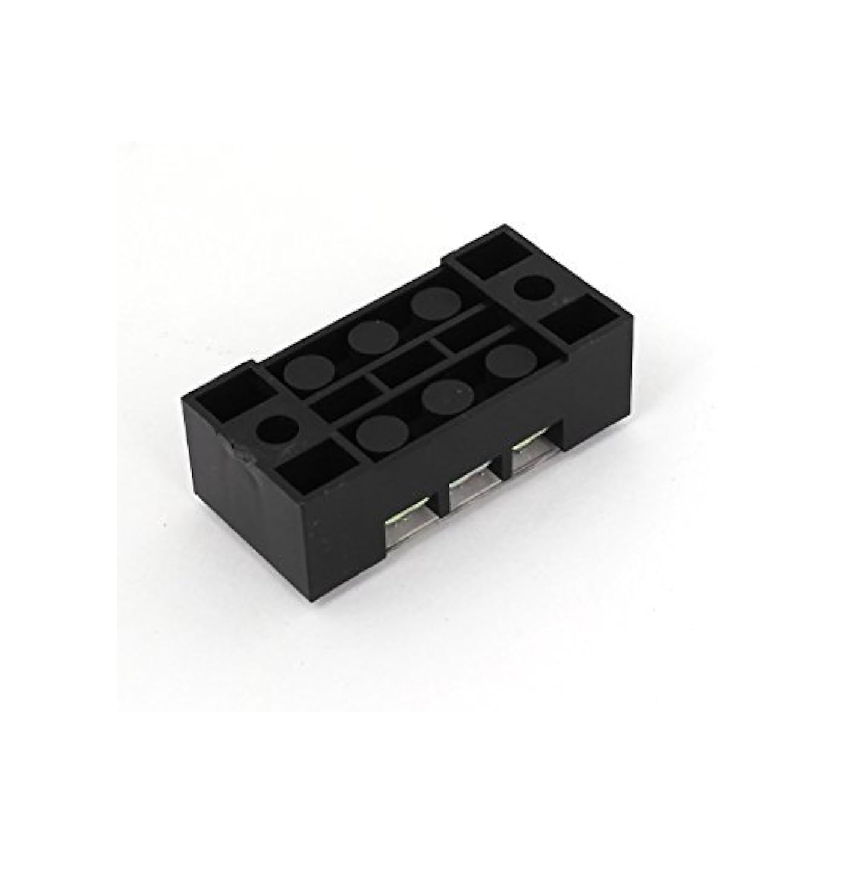

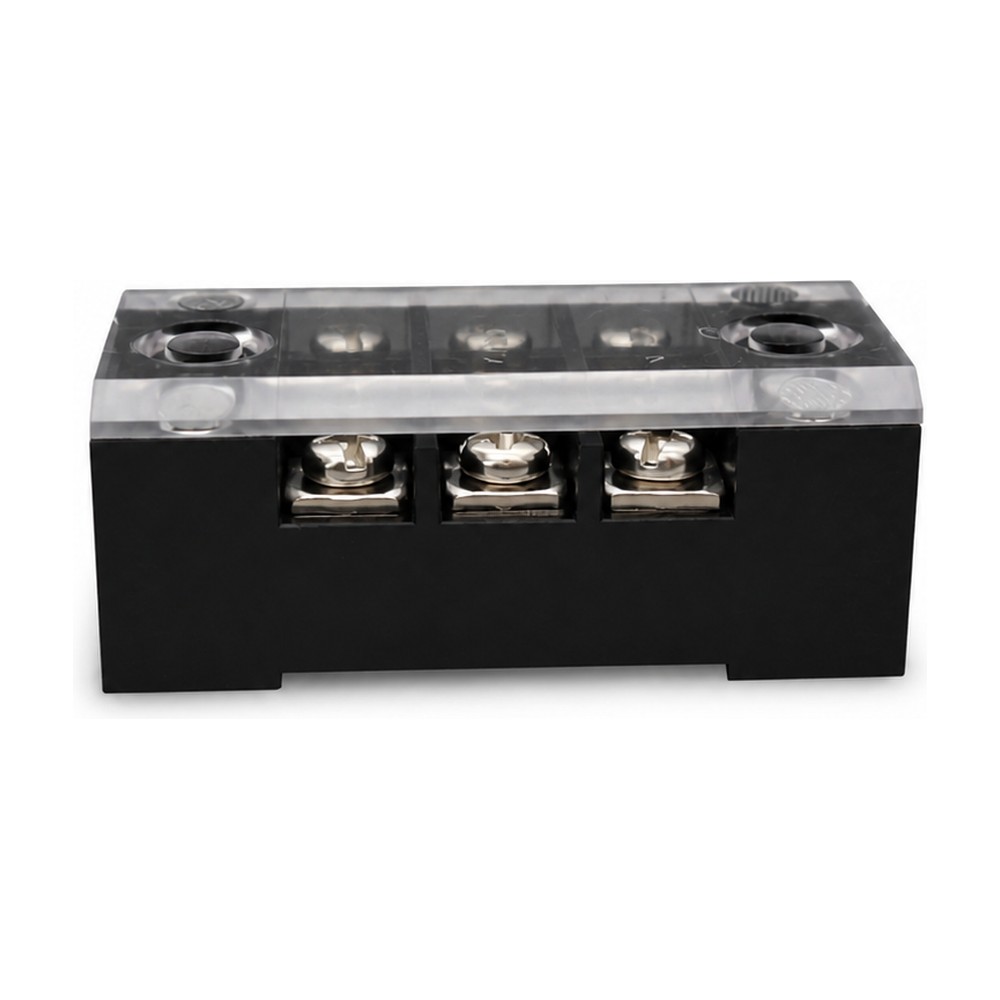

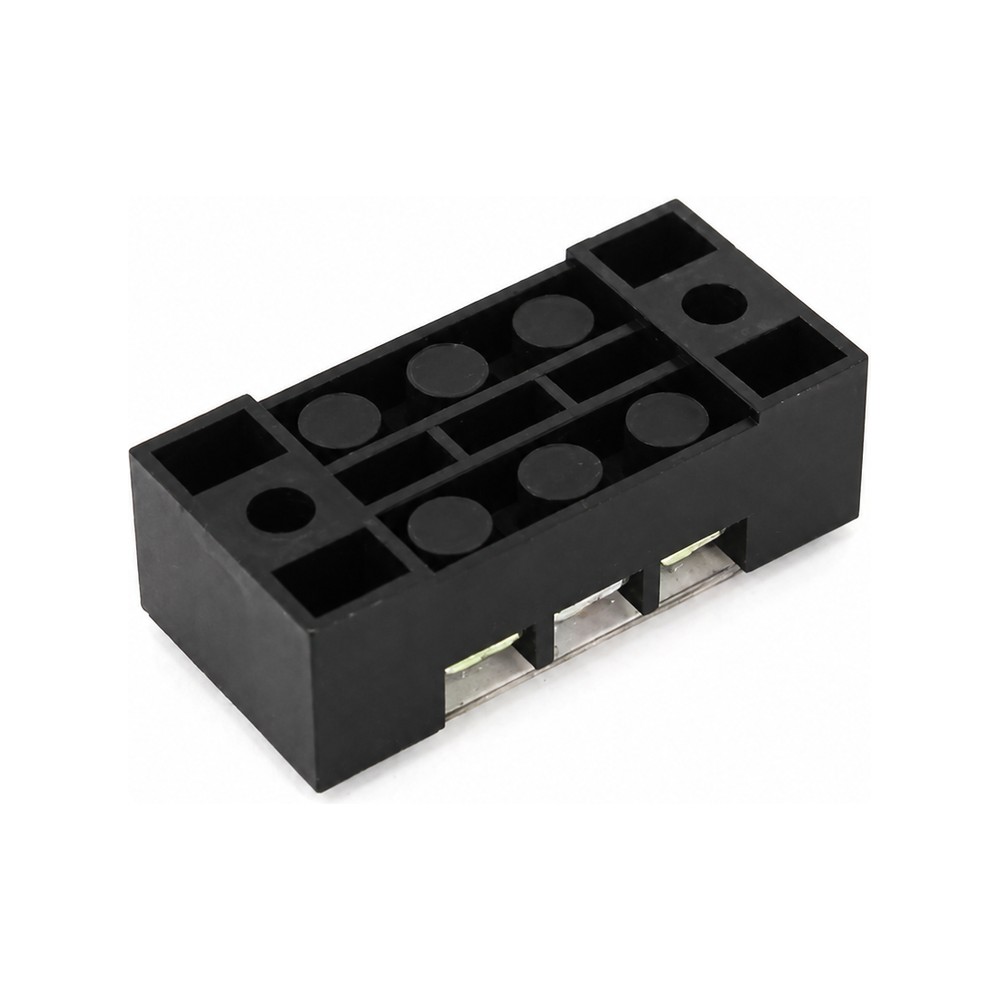

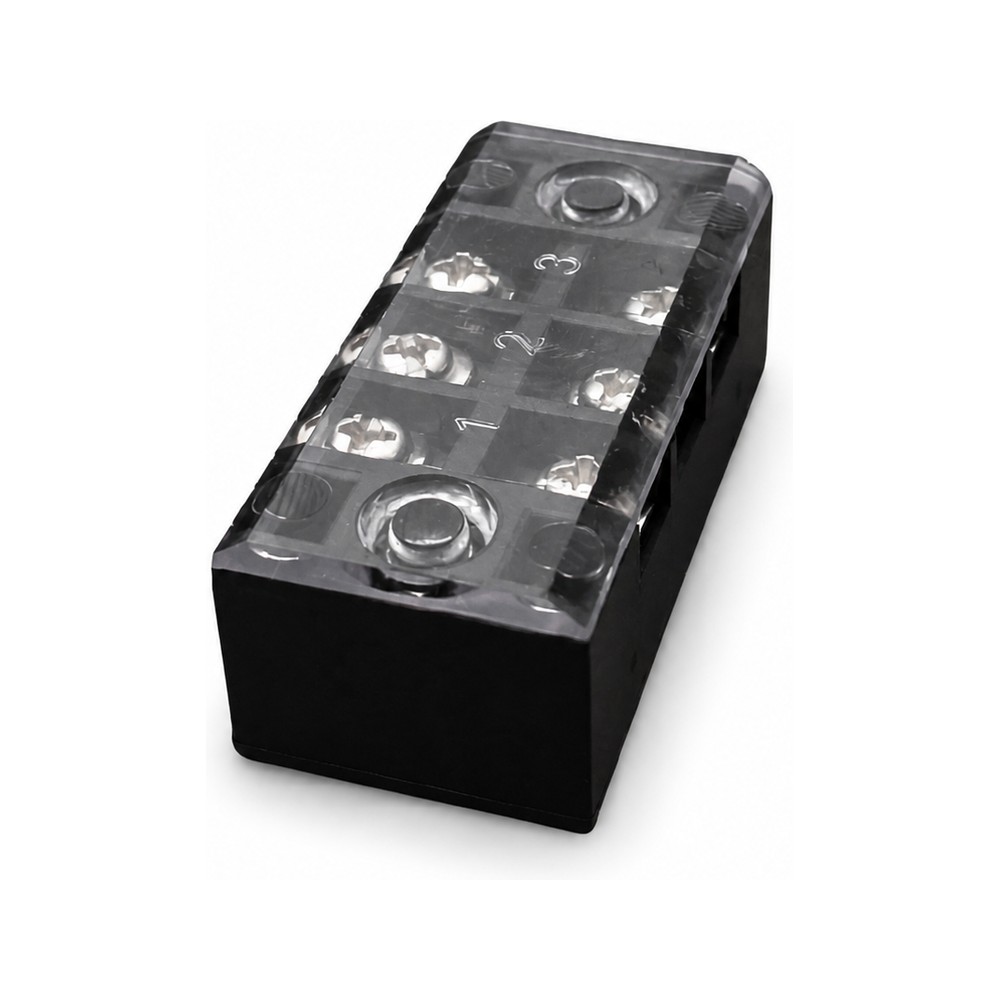

The TB-1503 is a 3-pole, panel-mounted fixed barrier terminal block manufactured by JIGO, widely used in electrical control panels, distribution boards, and industrial wiring systems.
Enquire on WhatsAppProduct Details
Model: TB-1503
Brand: JIGO
Type: Panel-Mounted Fixed Barrier Terminal Block
Material: Polycarbonate (PC) insulator; Brass, nickel-plated conductors
Mounting: Panel mount; DIN rail not required
Protective Cover: Included; molded printed (no marker strip needed)
Key Features
Voltage Rating: 600V
Current Rating: 15A
Number of Poles: 3
Wire Size: 2.0 mm² / AWG 14
Screw Size: M3
Mounting Hole Diameter: M5
Flame Retardant Grade: UL94V-2
Operating Temperature Range: -40°C to +110°C (up to +220°C max)
Dimensions: 46.5 × 22.0 × 17.5 mm (L × W × H)
Screw Torque: 0.5 N·m (4.4 in-lb)
Applications
The TB-1503 terminal block is suitable for various electrical applications, including:
Power Distribution Panels: Organizing and connecting multiple circuits.
Control Consoles: Facilitating connections in control systems.
Switchboards: Providing secure wire terminations.
Small Motors and Transformers: Ensuring reliable electrical connections.
Air Conditioners: Managing electrical connections in HVAC systems.
Industrial Electrical Systems: Serving as a junction point for wiring in various industrial setups.
