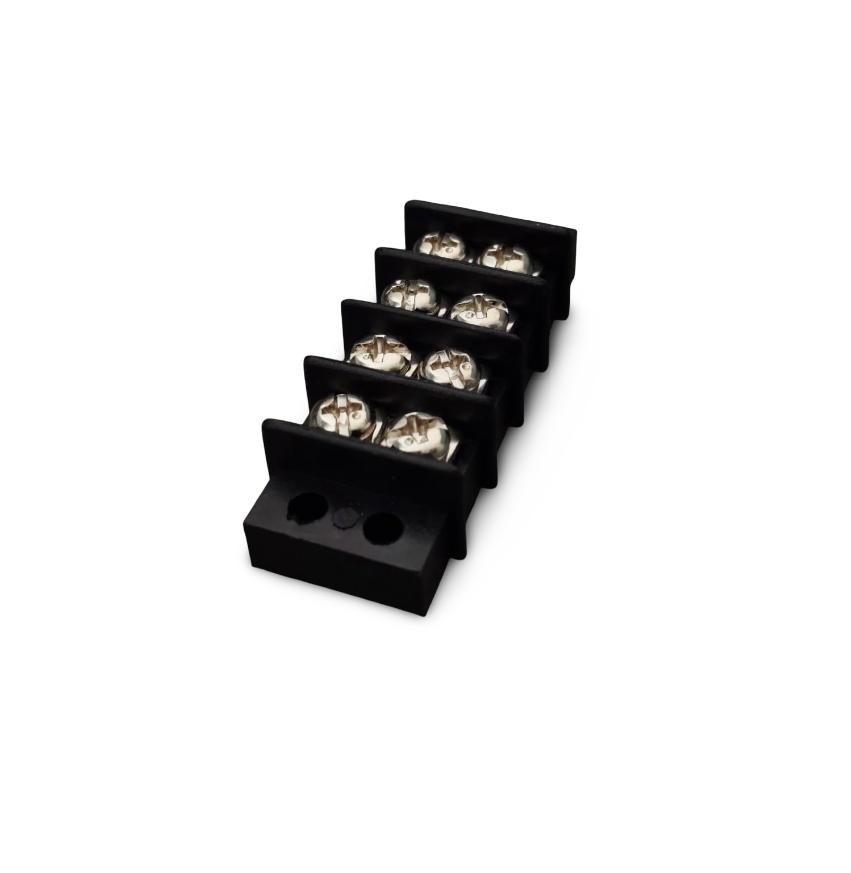

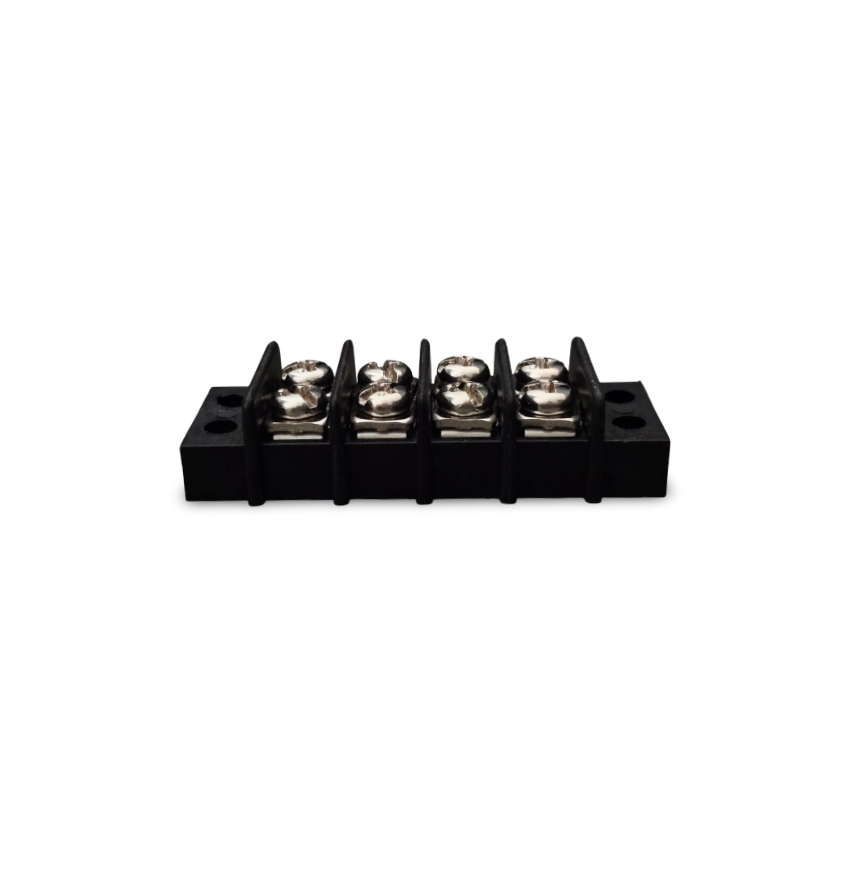

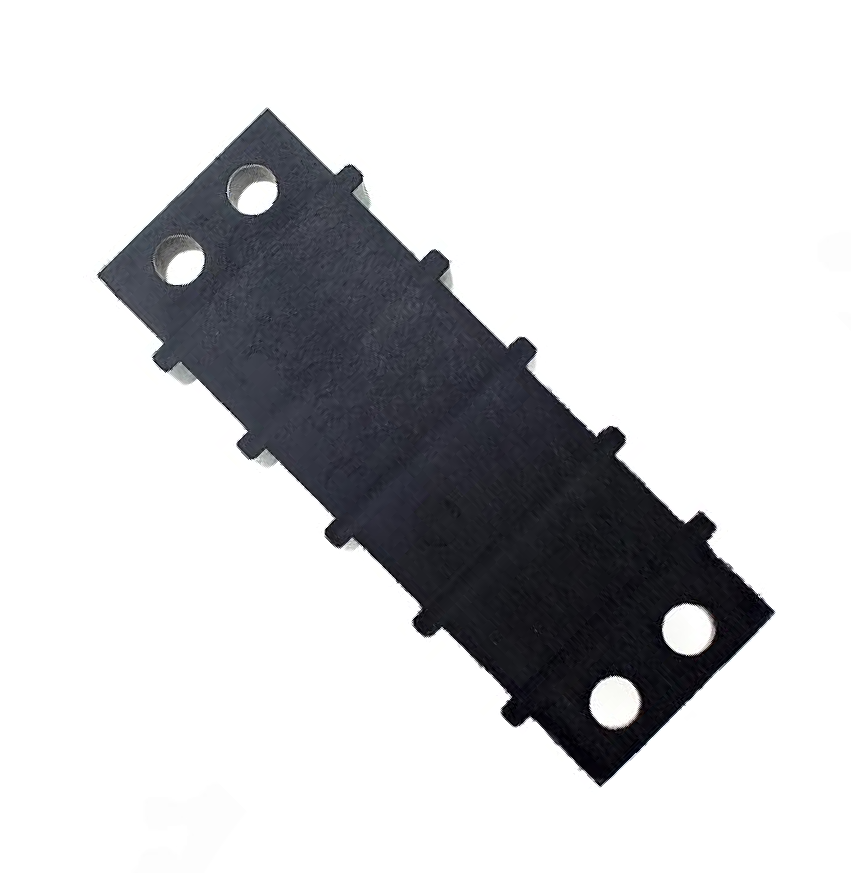

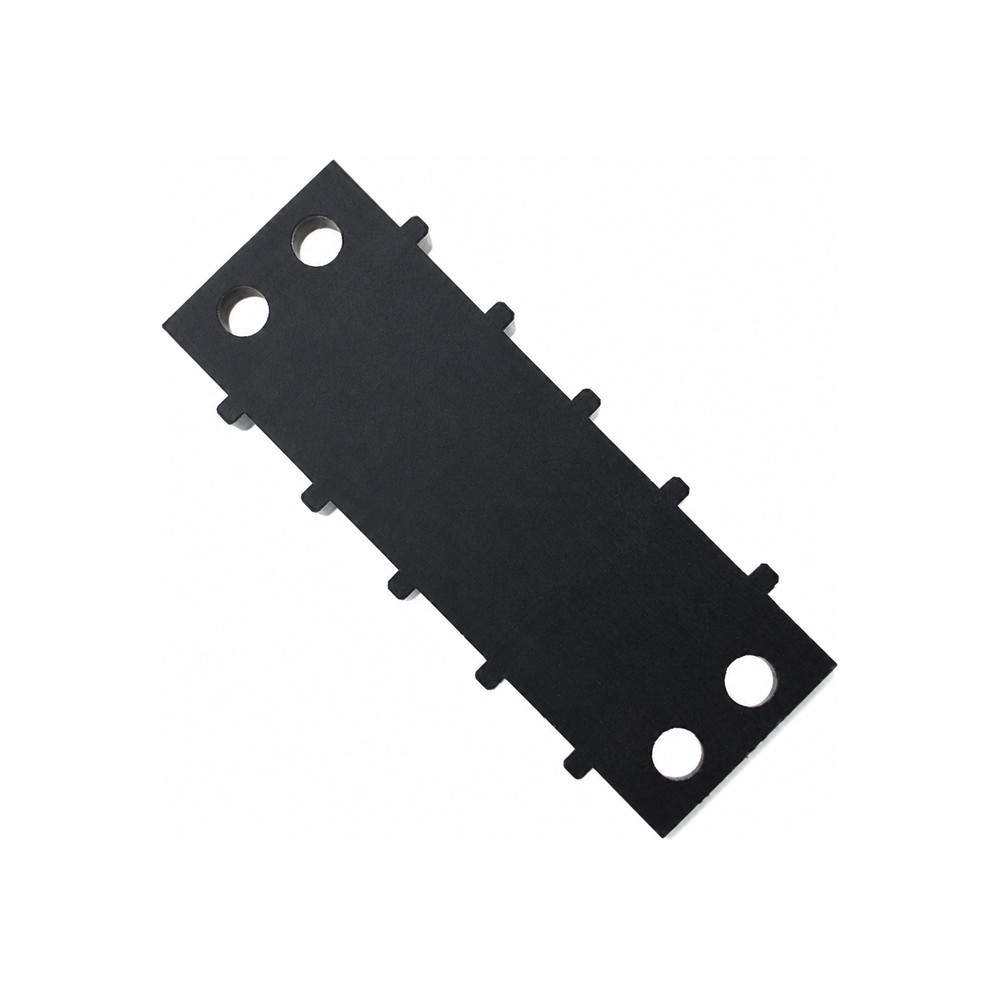

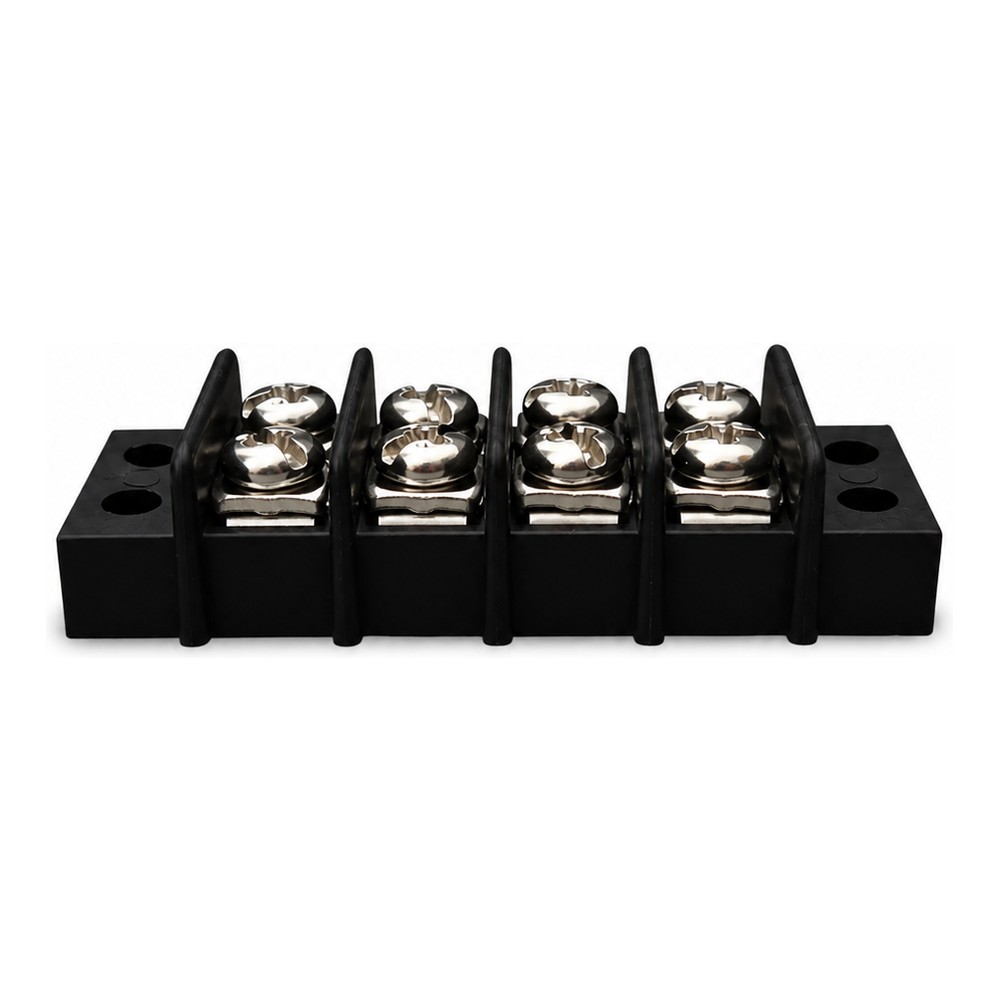

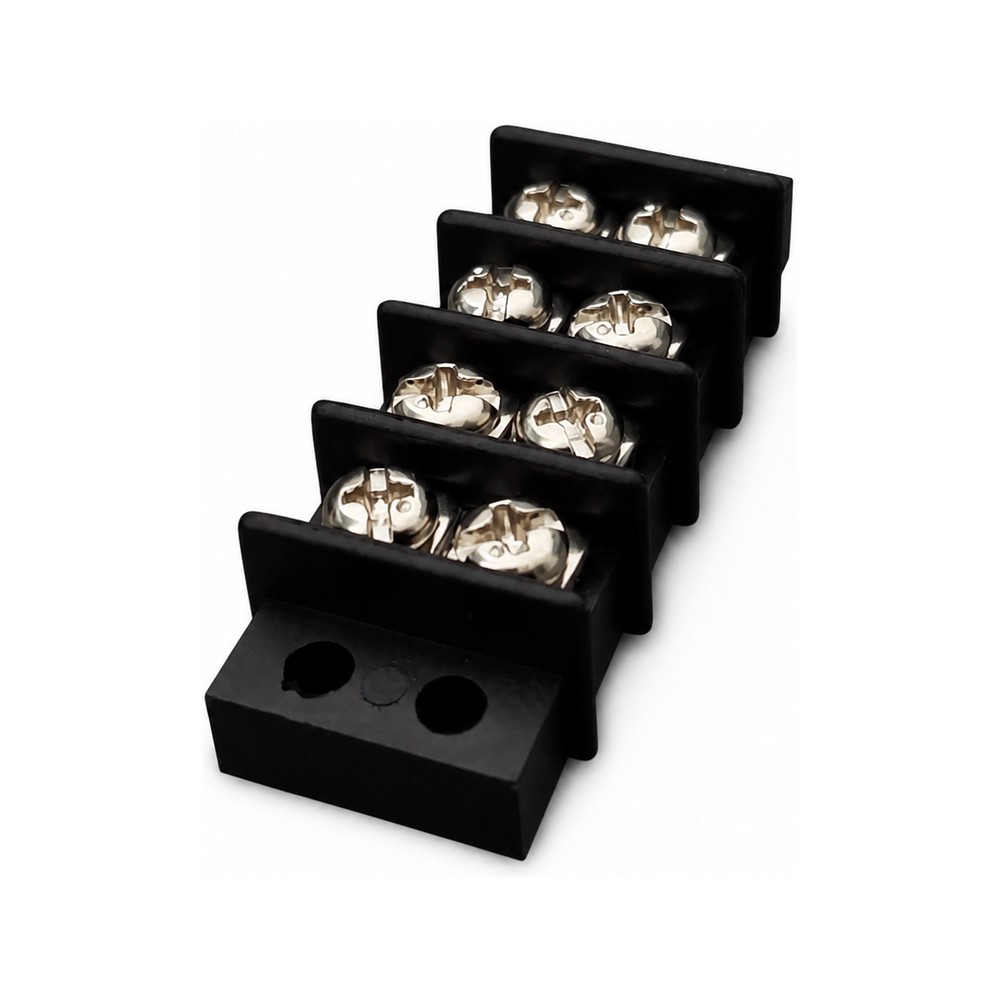

TB-30X4 Terminal Strip
- Category: TERMINAL STRIPS
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 38
The JIGO TB-30X4 Terminal Block is a 4-pole, screw-type terminal connector designed for secure, efficient, and space-saving electrical wire termination. With a 30A current rating, it is well-suited for use in distribution boards, control panels, and automation systems.
Enquire on WhatsAppProduct Details:
Model: TB-30X4
Type: Screw-type terminal block
Number of Terminals: 4-way (4 poles)
Current Rating: Up to 30A
Voltage Rating: Up to 600V AC
Wire Size Compatibility: 22–12 AWG (typical)
Contact Material: Brass or copper alloy with tin plating
Housing Material: Flame-retardant thermoplastic
Mounting Type: Panel-mounted
Protective Cover: Transparent or clear plastic cover for safety
Color: Black base with metallic terminals and cover
Key Features:
4-pole design supports multiple circuit connections
30A capacity ideal for low to medium current applications
High-conductivity contacts for reliable power flow
Secure screw terminals prevent wire loosening
Flame-retardant and insulated body for safety
Clear protective cover guards against dust and accidental contact
Compact and modular for space-constrained panels
Applications:
Electrical control and distribution panels
HVAC and building automation systems
Machinery and process control panels
MCC (Motor Control Center) and PCC panels
Power supply terminals and general wiring systems
