AG-280X280X130
- Category: AG SERIES BOX
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 2000

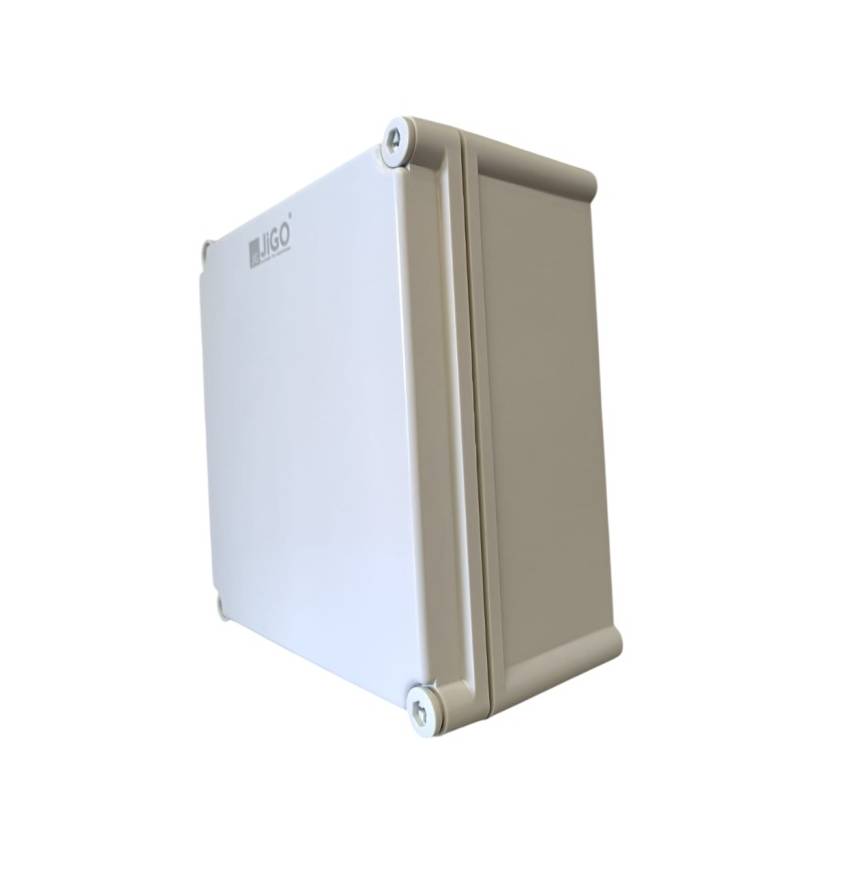

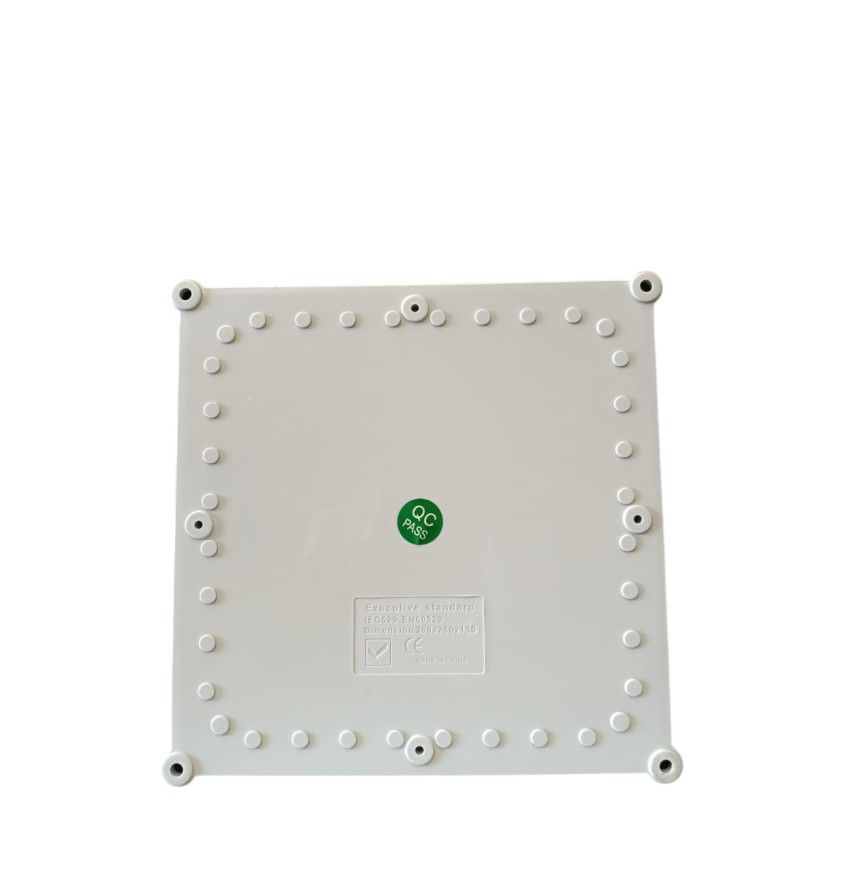

The AG-280X280X130 Junction Box is a large, square-format electrical enclosure designed for advanced wiring systems, control units, or multi-terminal connections. With generous internal space and a solid 130mm depth, it accommodates more complex setups while ensuring excellent protection from environmental elements. Ideal for both indoor and outdoor use, this junction box is built to last in tough industrial, commercial, or infrastructure settings.
Product Details:
External Dimensions: 280mm (L) x 280mm (W) x 130mm (H)
Material Options:
Plastic: UV-resistant ABS or polycarbonate
Metal: Powder-coated mild steel or stainless steel (optional)
Color: Standard light grey (RAL 7035); custom colors available on request
Ingress Protection: IP65 / IP66 – fully dust-tight and resistant to powerful water jets
Impact Resistance: IK08 or IK10 depending on material

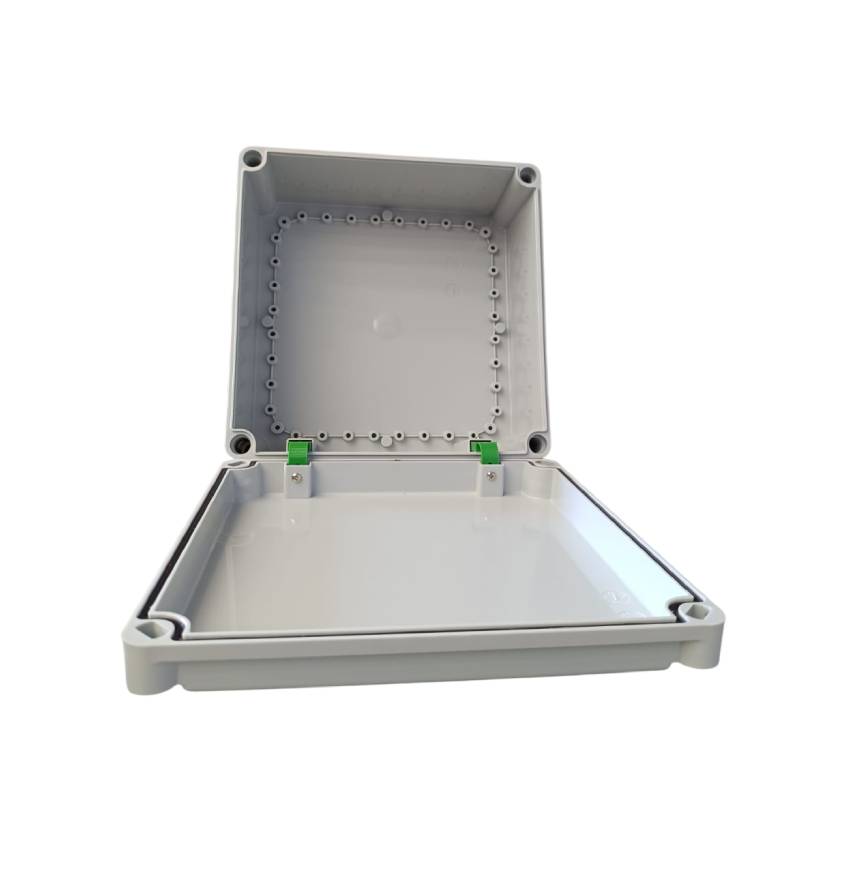

Cover: Screw-down lid with neoprene or silicone gasket Optional transparent or hinged cover
Mounting: Wall mounting with integrated lugs or internal brackets Compatible with DIN rails and back mounting plates
Cable Entry: Pre-marked knockouts or customizable entries for cable glands
Temperature Range: -25°C to +60°C (standard enclosure)
Flame Rating: UL94 V-0 for self-extinguishing plastic enclosures
Certifications: CE, RoHS, UL-listed (manufacturer-dependent)
Key Features:
Generous Internal Volume: The 280x280mm square base and 130mm depth provide ample space for organizing terminals, cable trays, control units, and wiring.
IP65/IP66 Protection: Weatherproof and dustproof – perfect for outdoor environments and industrial applications.
Impact-Resistant Housing: Built to endure mechanical stress, making it suitable for demanding settings.
Easy Installation: Multiple mounting options, plus internal supports for DIN rails or mounting plates.
Customizable Layout: Cable gland entries and internal configurations can be tailored to fit specific application needs.
Secure Closure: Gasketed cover and reinforced screw points ensure a tight, tamper-resistant seal.
Applications:
Power Distribution Boxes: Great for housing circuit breakers, terminal blocks, or surge protectors.
Industrial Automation: Used in control systems, PLCs, sensor hubs, and actuator connections.
Renewable Energy: Ideal for solar inverter connections, PV combiner boxes, or battery management.
Security Systems: Encloses complex wiring for surveillance, access control, or alarm systems.
Infrastructure Projects: Suitable for smart city applications, traffic signal controls, and utility enclosures.
HVAC & Building Services: Protects control panels and electrical interfaces in heating, ventilation, and air-conditioning systems.
