AG-310X230X145
- Category: AG SERIES BOX
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 2000

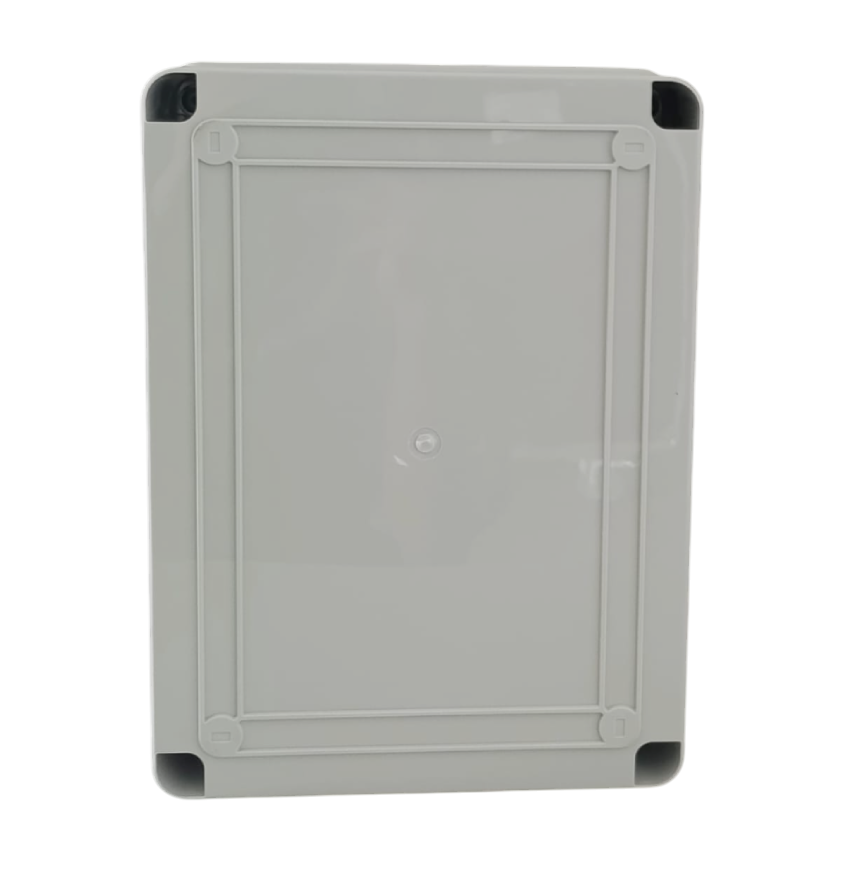

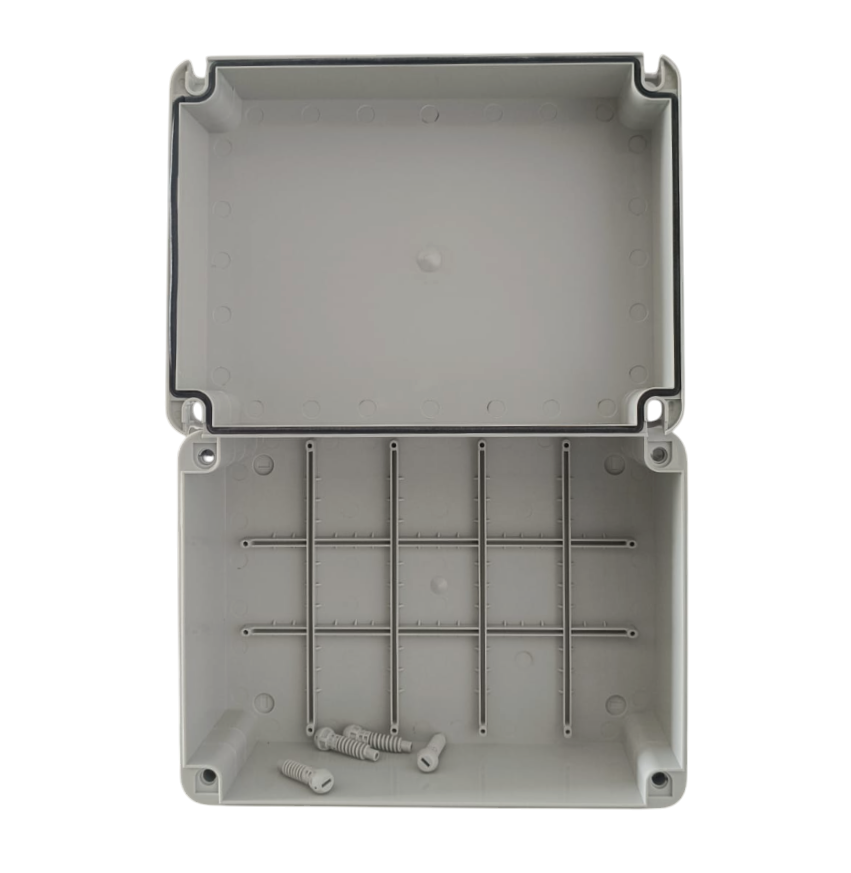

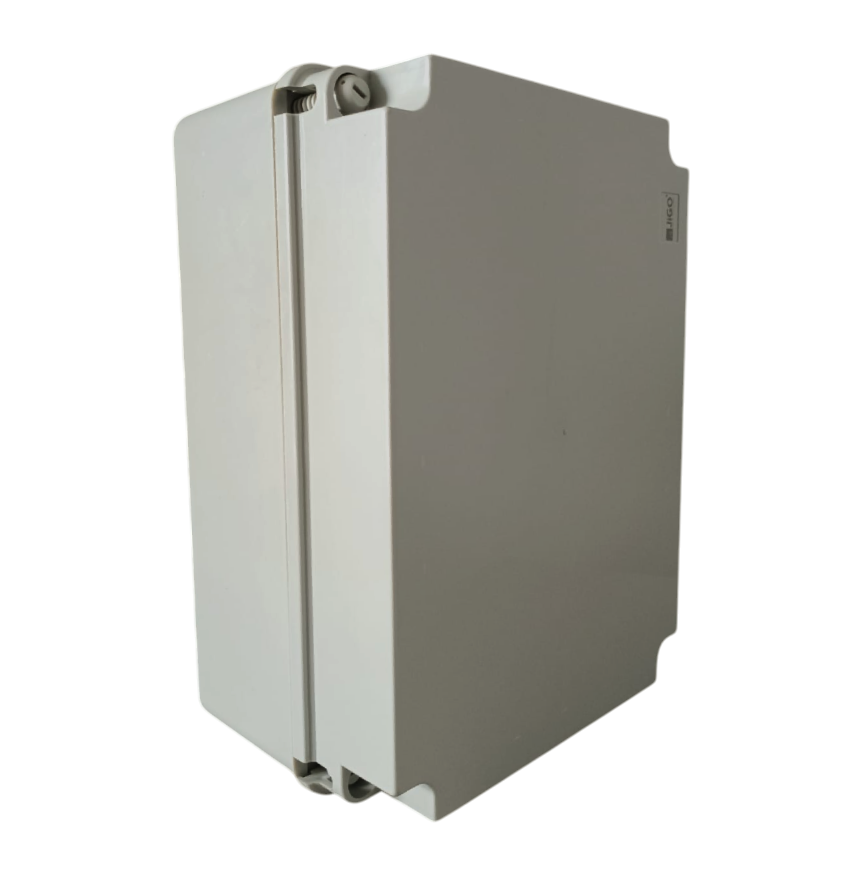

The AG-310X230X145 Junction Box is a high-capacity, industrial-grade enclosure designed to safely house electrical and electronic components. Engineered for reliability in harsh environments, it offers excellent protection against dust, moisture, and mechanical impacts.
Product Details
Model: AG-310X230X145
Dimensions: 310mm (L) x 230mm (W) x 145mm (H)
Material: Durable ABS or UV-stabilized polycarbonate
Color: Standard light grey (RAL 7035)
Ingress Protection: IP65/IP66 – waterproof and dust-tight
Mounting Options: Internal fixing points and wall-mount brackets
Cover: Screw-fastened lid with rubber/silicone gasket for a secure seal
Cable Entries: Multiple pre-scored knockouts or customizable entry points
Temperature Resistance: -25°C to +85°C
Certifications: CE, RoHS compliant, IEC standard compatible
Key Features
Large enclosure size for complex wiring systems or multiple components
Excellent environmental protection (IP65/IP66)
UV-resistant and flame-retardant material for indoor/outdoor use
High-impact resistance for industrial settings
Easy customization: drillable surface for cable glands, switches, etc.
Compatible with DIN rails and internal mounting plates
Secure and weatherproof screw-locked cover design
Applications
Power distribution and control panels
Industrial automation and machine wiring
Renewable energy systems (solar, wind, battery enclosures)
Communication and signal junctions
Building and smart infrastructure wiring
Marine, agricultural, and outdoor installations
Network and sensor integration for IoT systems
