IP-67 ATC - DS - 2
- Category: DOMESTIC SERIES
- Brand: ATC INDIA
- Minimum quantity: 1
- Price: ₹ 1100

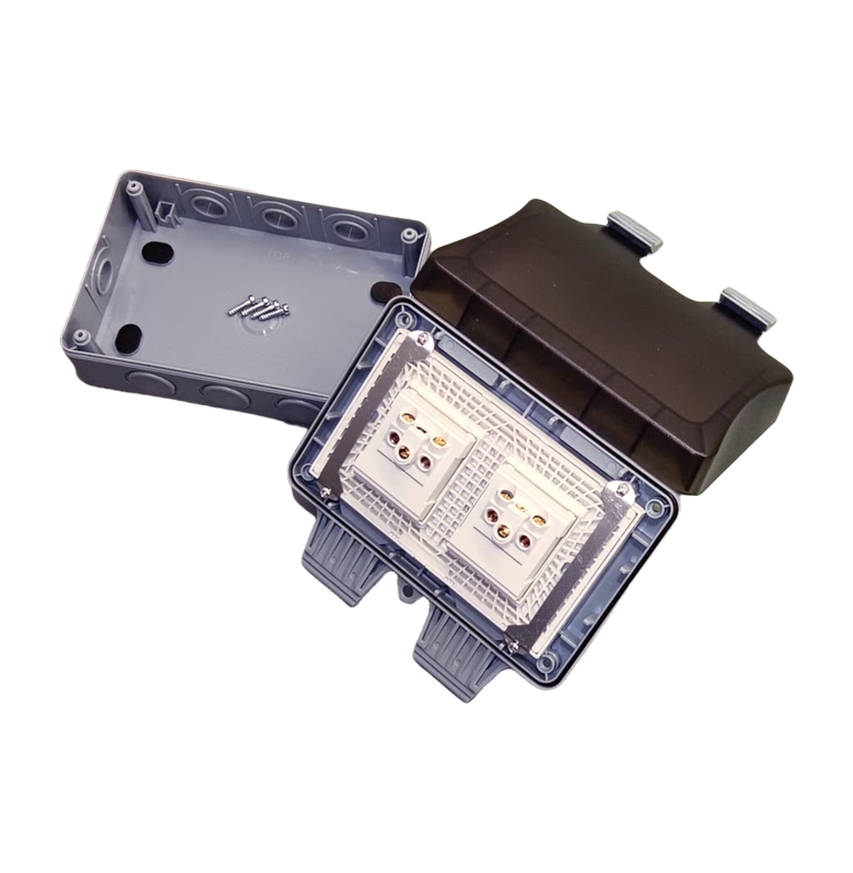

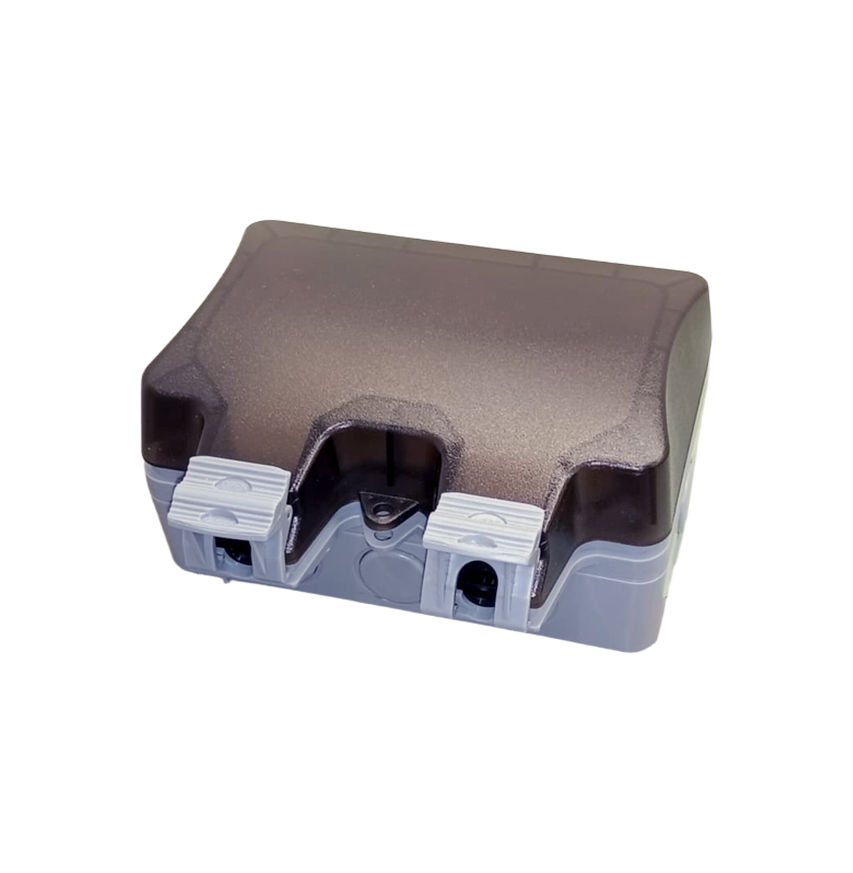

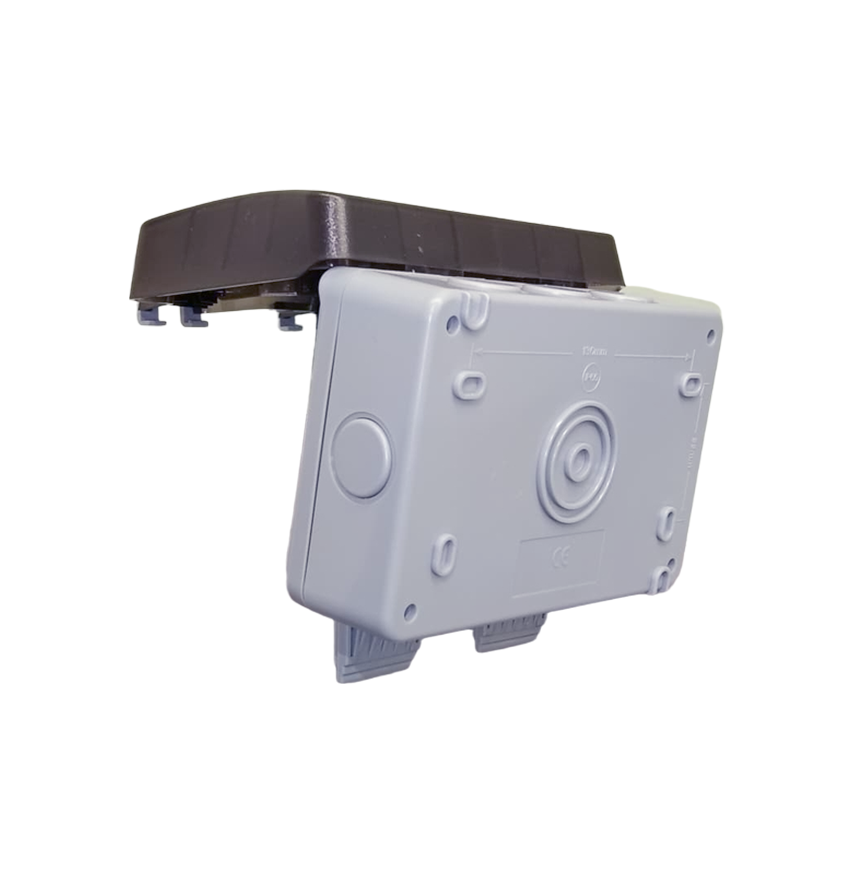

The IP-67 ATC-DS-2 is a heavy-duty, dual-gang outdoor weatherproof electrical enclosure designed to house two high-capacity multi-functional sockets. Rated at 16A and 250V, this premium enclosure features a robust, impact-resistant protective cover with secure keyhole buckle clips and an advanced sealing gasket to ensure complete protection against harsh weather, high-pressure water jets, and heavy dust infiltration.
Product Details
- Model Designation: ATC-DS-2 (Dual-Gang / 2-Outlet Variant)
- Ingress Protection Rating: IP-67 (Dust-tight and protected against temporary water submersion up to 1 meter)
- Current Rating: 16 Amperes (Max)
- Voltage Rating: 250 Volts AC (Standard high-voltage configuration)
- Material Composition: High-grade, UV-stabilized Polycarbonate (PC) shell with an anti-aging silicone sealing gasket
- Outlet Configuration: 2 x Multi-functional 3-hole/universal receptical sockets
- Color Scheme: Industrial grey base housing with a smoke-tinted transparent flip cover
Key Features
- IP-67 Submersion Protection: Offers an upgraded level of sealing compared to standard IP-66 boxes, rendering it highly resistant to torrential rain, flooding, and temporary submersion.
- Integrated Keyhole Buckle: Dual heavy-duty snap latches click firmly to maintain pressure on the rubber seal. Includes a dedicated padlocking eyelet to prevent unauthorized tampering or power theft.
- Hinged Clear-View Cover: The spring-loaded transparent lid allows you to visually inspect the state of the sockets, indicator lights, or connections without opening the box.
- Deep-Pocket Base & Drop Channels: Features extra depth inside the enclosure so bulky, rubberized industrial plugs can remain plugged in while the lid is fully latched shut. Molded rubber wire-exit entry points keep moisture from creeping upward.
- Pre-punched Knockouts: Multiple directional conduit entry points (bottom, sides, back) allow for flexible surface wiring or concealed in-wall feeds.
Applications
- High-Moisture Domestic Areas: Safely supplies continuous power to pool filtration pumps, fountain motors, automated garden irrigation systems, and patio heaters.
- Heavy Commercial Establishments: Ideal for open-air car wash bays, restaurant outdoor kitchens, loading docks, and marine dockside boardwalks.
- Industrial & Agricultural Sites: Frequently deployed in greenhouses, livestock farms, manufacturing plants, and temporary outdoor construction junctions where equipment is frequently sprayed down or exposed to flying debris.
