IP-67 ATC - DS - 2+S
- Category: DOMESTIC SERIES
- Brand: ATC INDIA
- Minimum quantity: 1
- Price: ₹ 1100

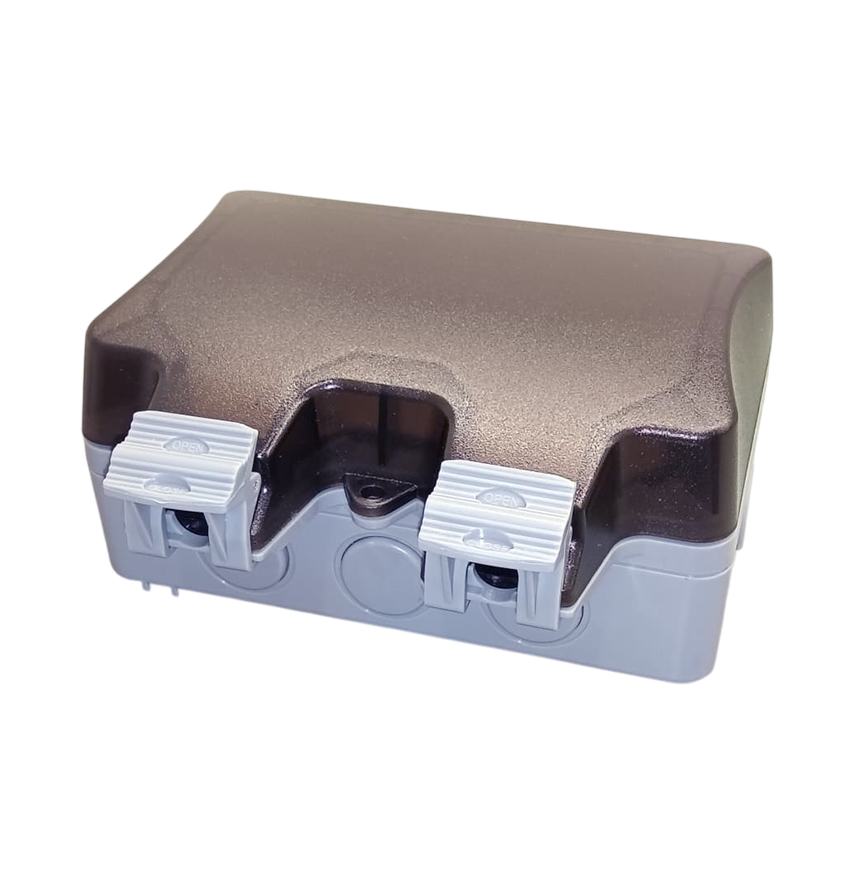

The IP-67 ATC-DS-2+S is a professional-grade, twin-socket outdoor electrical box rated at 16A and 250V. It features two universal outlets controlled or monitored by a single integrated master module (+S). Shielded by a rugged, UV-stabilized polycarbonate shell with a dual-clip keyhole buckle, it delivers reliable dust-tight and immersion-proof power management in areas exposed to heavy rain, flooding, or washdown procedures.
Product Details
- Model Designation: ATC-DS-2+S (2 Power Outlets + 1 Master Control Switch or Indicator Module)
- Ingress Protection Rating: IP-67 (Complete protection against fine dust ingress and safe against temporary water submersion up to 1 meter)
- Electrical Capacity: 16 Amperes Maximum line current
- Operating Voltage: 250 Volts AC, 50/60Hz
- Enclosure Materials: Heavy-impact Polycarbonate (PC) outer housing with a high-resilience silicone sealing ring
- Internal Contacts: Premium thick-gauge brass/copper terminals for minimal heat generation under high loads
Key Features
- Master Module Control (+S): Outfitted with either a master rocker switch to kill power to both outlets simultaneously for quick safety isolation, or a high-visibility neon indicator to safely check live line status through the window.
- Dual Keyhole Buckle System: Features heavy-duty snap latches that seal the lid firmly against the rubber gasket. Includes an integrated padlock slot to lock out unauthorized users and prevent power theft. [1]

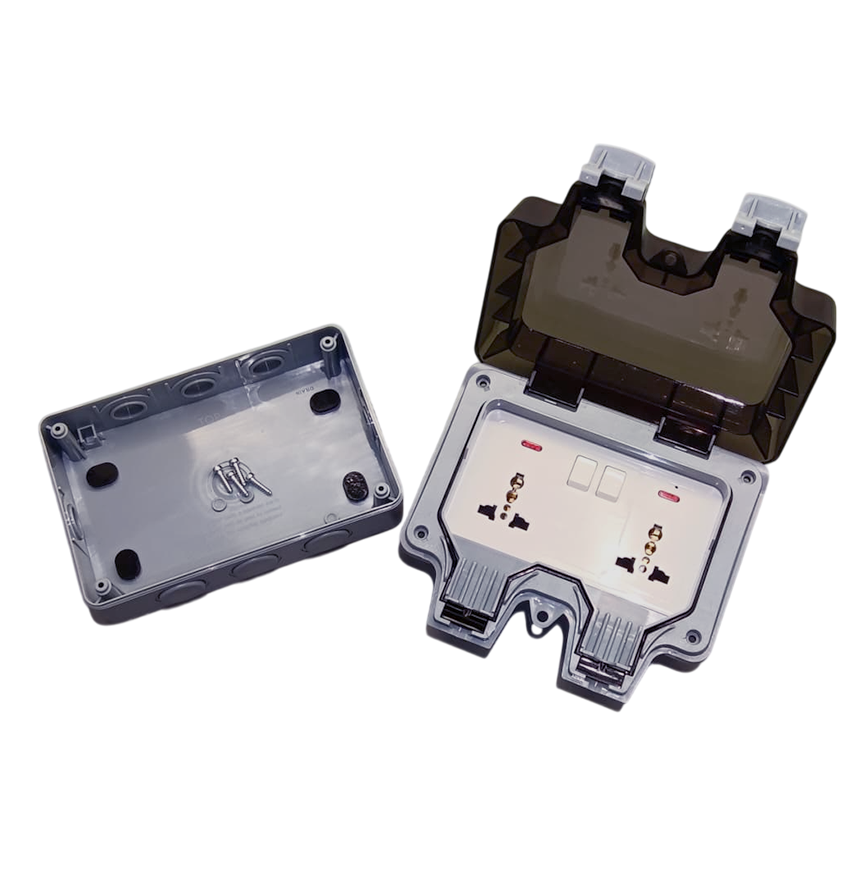

- Deep-Pocket Clear Lid: Designed with an extra-deep, impact-resistant transparent cover, allowing industrial-grade cords to remain plugged in and exit downwards through the rubber seals while keeping the enclosure entirely closed.
- Tough Weatherproof Shielding: The UV-treated casing resists cracking, fading, and brittleness caused by long-term exposure to scorching sunlight, freezing cold, or chemical washdowns.

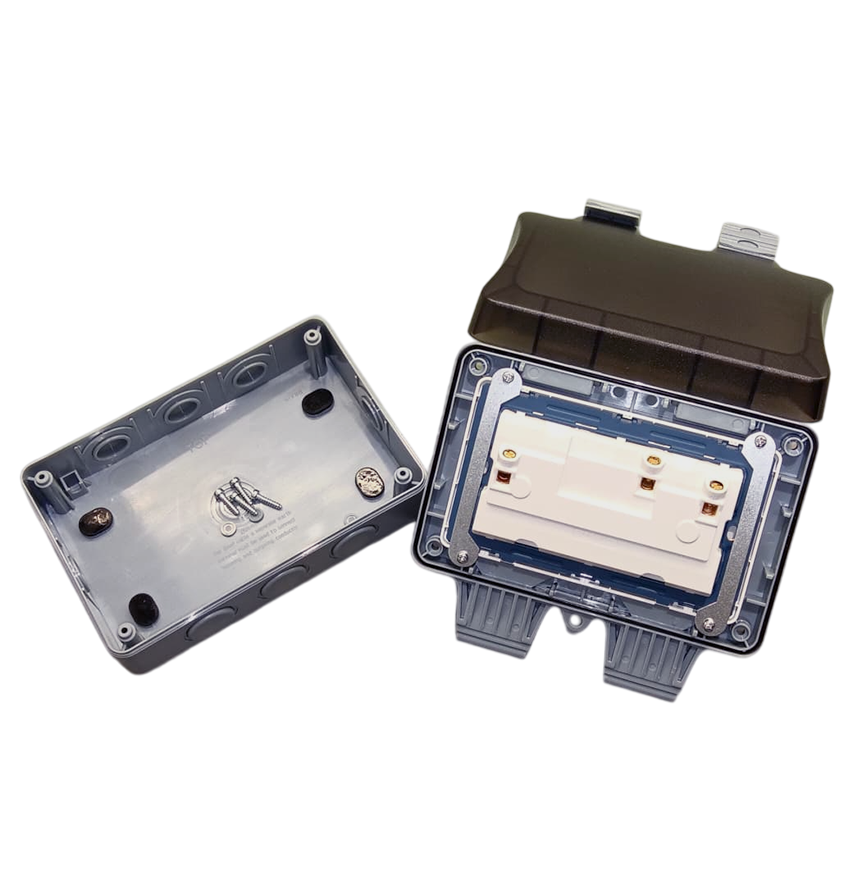

- Multi-Directional Knockouts: Multiple pre-molded threaded inlet ports on the top, bottom, and rear accommodate liquid-tight conduit or compression cable glands.
Applications
- Residential Outdoors: Perfect for safely operating high-draw equipment like EV charging cables, hot tub heating pumps, pond aeration filters, and extensive holiday lighting layouts.
- Marine and Waterside: Deployed on boat docks, marinas, and lakeside boardwalks where splashing water, heavy humidity, and temporary rising tides occur. [1]
- Commercial and Industrial Yards: Ideal for open-air restaurant patios, car wash bays, agricultural greenhouses, and construction sites where tools require a locally controlled, ruggedized power hookup.
