IP-67 ATC - DS - 2+2+S Waterproof Switch Socket Box
- Category: DOMESTIC SERIES
- Brand: ATC INDIA
- Minimum quantity: 1
- Price: ₹ 1100
The IP-67 ATC-DS-2+2+S is a comprehensive, heavy-duty outdoor power distribution unit rated at 16A and 250V. It features a multi-gang internal layout combining dual independent sockets, dual dedicated isolating switches, and a master module control under a heavily reinforced, clear-view protective cover. Equipped with a specialized keyhole buckle and continuous silicone sealing ring, it provides continuous power control in environments prone to high-pressure washing, extreme dust, or temporary submersion.
Enquire on WhatsAppProduct Details

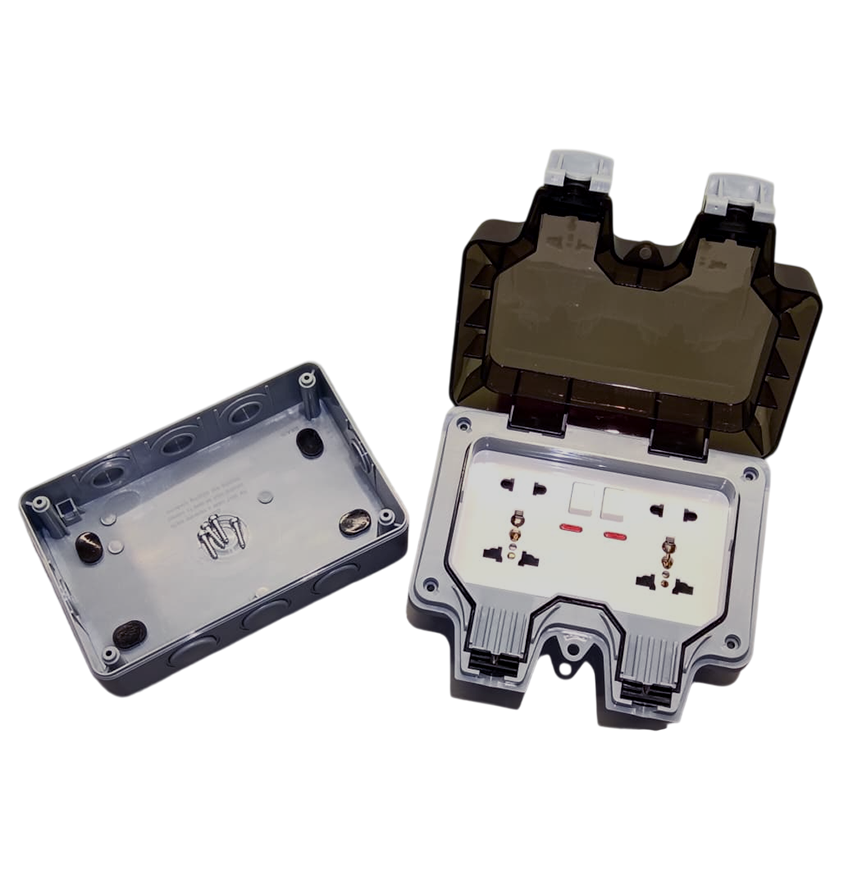

- Model Designation: ATC-DS-2+2+S (2 Outlets + 2 Isolation Switches + 1 Master System Switch/Indicator)
- Ingress Protection Rating: IP-67 Standard (100% dust-tight sealing and tested to withstand water immersion up to 1 meter depth for 30 minutes)
- Electrical Load Rating: 16 Amperes Maximum capacity per terminal node
- Operational Voltage: 250 Volts AC (50/60Hz high-load household/industrial wiring)
- Material Build: High-impact, UV-stabilized fireproof Polycarbonate (PC) shell combined with a high-flexibility rubber sealing matrix

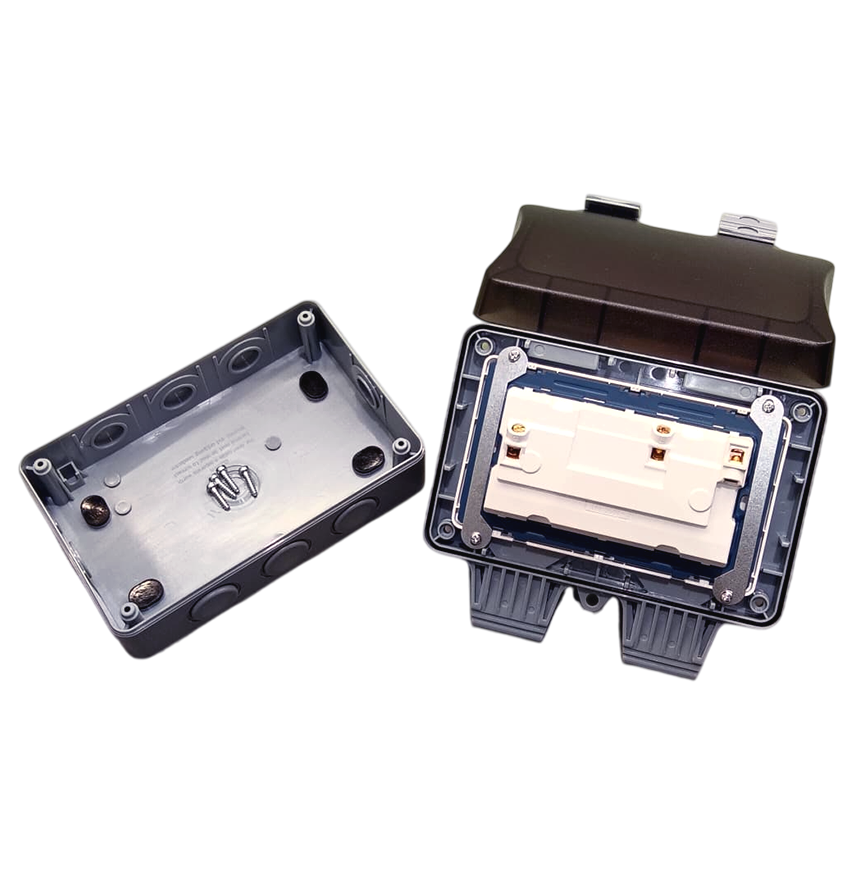

- Interior Hardware: Copper contact plates paired with independent terminal screw-clamp wiring blocks
Key Features
- Expanded Command Layout: Integrates isolation switches directly next to each receptacle. This allows you to cut the live circuit to specific outdoor equipment instantly without needing to yank out wet or tightly fit power cords.
- Master System Terminal (+S): Outfitted with either a master emergency breaker switch or a high-visibility neon status light to confirm lines are active before opening the protective lid.

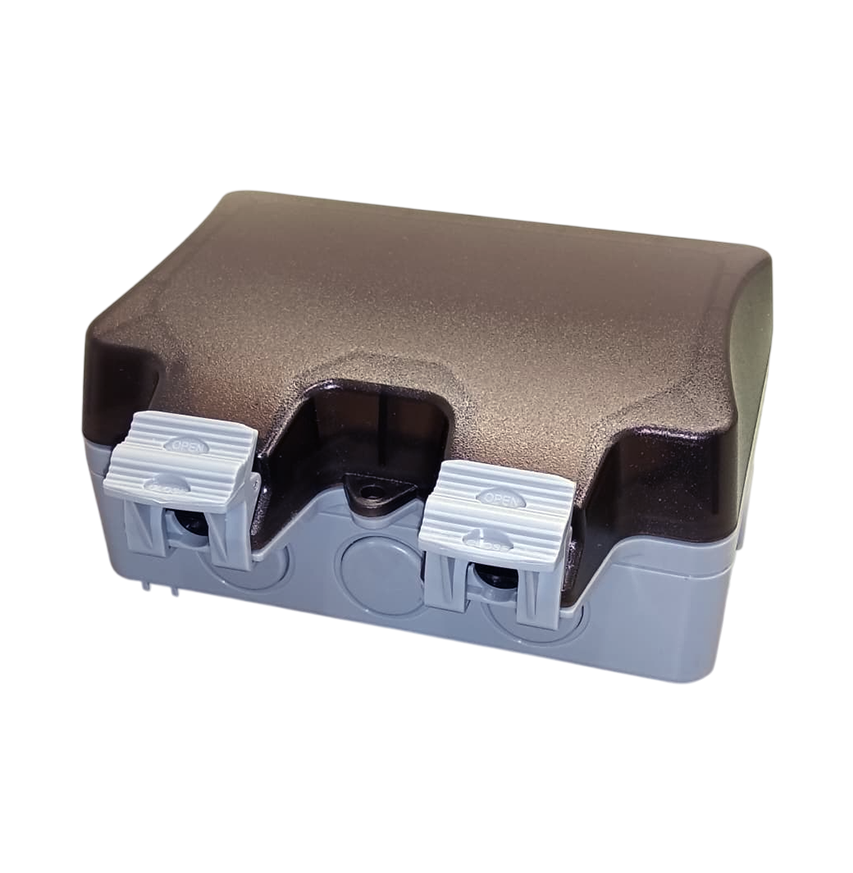

- Dual Keyhole Locking Latches: Heavy-action snap buckles clamp tightly onto the main base. It includes an integrated padlock eyelet to prevent power theft in public spots or accidental lid pop-ups during harsh weather.
- Deep Cable Clearances: Features an exaggerated internal pocket depth. This allows industrial rubber plugs and thick cables to exit downward cleanly through the bottom rubber drop-glands while keeping the main shield 100% locked down.
- Conduit Knockouts: Features modular, threaded punch-out ports on all sides to accommodate liquid-tight conduit or standard PG cable glands.
Applications
- Commercial Outdoor Venues: Powering complex courtyard electronics, outdoor commercial kitchens, pop-up market terminals, or patio light string arrays requiring dedicated local switches.
- Industrial Washdown Zones: Highly useful in car wash bays, dairy farm processing floors, and marine docks where high-pressure spray-downs occur regularly.
- High-Load Garden Utilities: Managing automated fountain filtration pumps, pond aerators, and heavy yard machinery where cutting power locally is vital for safety.
