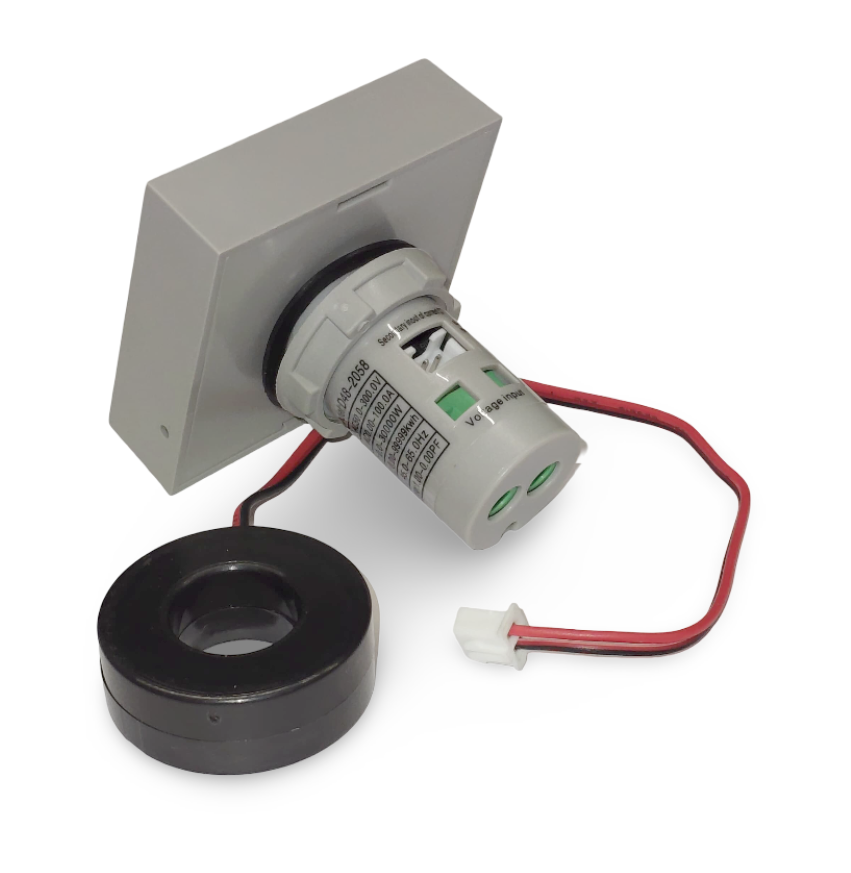

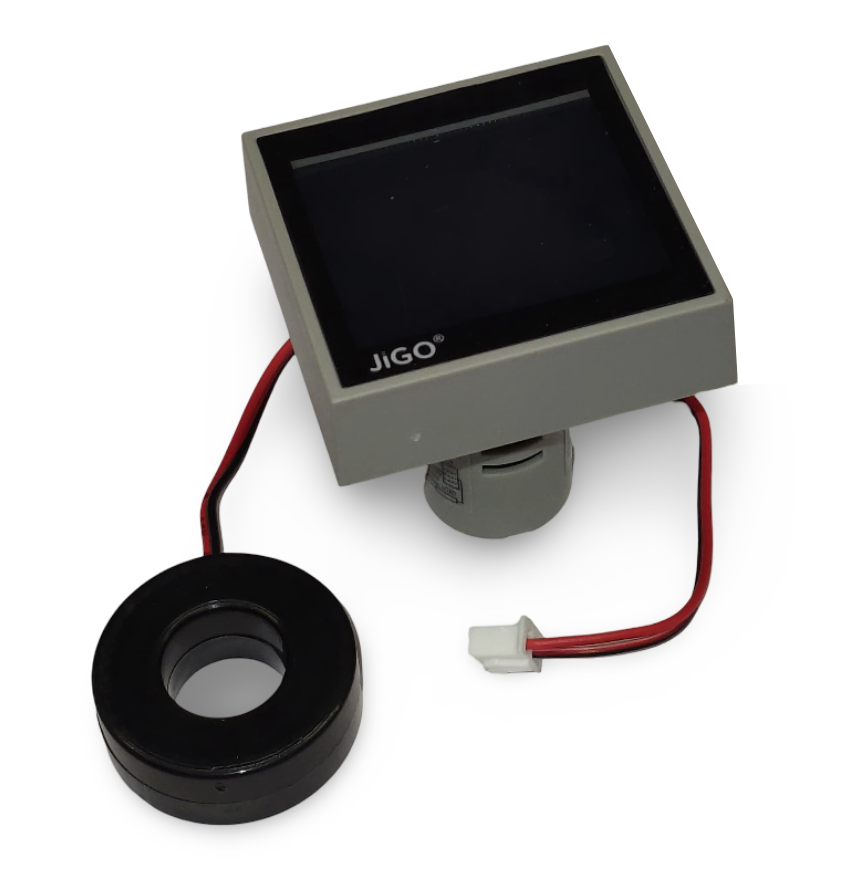

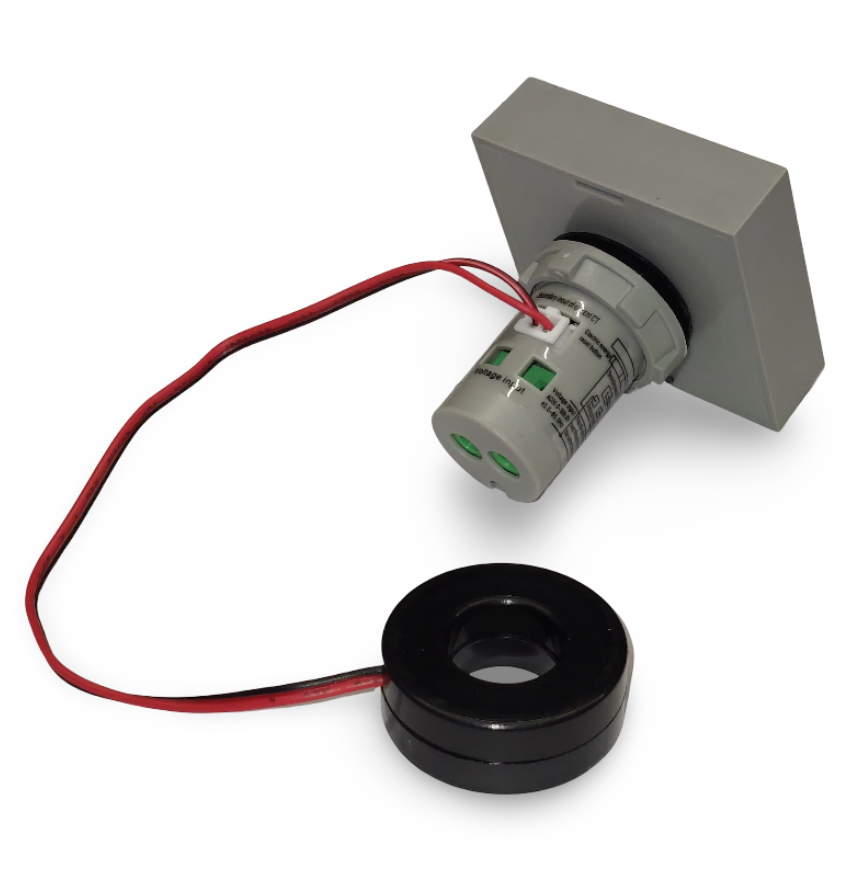

Compact DIN‑rail mounted D48‑2058 is a 6-in-1 multi-function digital panel meter, capable of measuring and displaying AC voltage, current, power, energy, frequency, power factor, and more. Perfect for real-time power monitoring in control panels.
Model: D48‑2058
Functions: Voltage (V), Current (A), Active Power (W), Energy (kWh), Frequency (Hz), Power Factor (cosφ)
Display: LCD digital, updates ~2 times/sec
Accuracy: Class 1.0 (± 1% ± 2 digits)
Voltage Range: AC 50–300 V (or up to 380 V/450 V variant)
Dimensions: 49 × 47 × 52 mm
Panel Cutout Size: Ø22 mm
Installation: Panel mount / DIN‑rail style mount
Update Speed: ~2 readings per second
Six-in-one measuring capabilities in one compact device
Real-time display with fast refresh rate
High accuracy and stable performance
Standard 22 mm panel cutout, fits DIN‑rail systems
Energy measurement with built‑in kWh function
Reliable for industrial control environments
Electrical control panels and switchgear
Power monitoring for industrial, commercial & residential use
Automation systems and energy management
Renewable energy installations (solar/Wind)
Machine tools and panel instrumentation
Backup power and generator monitoring
