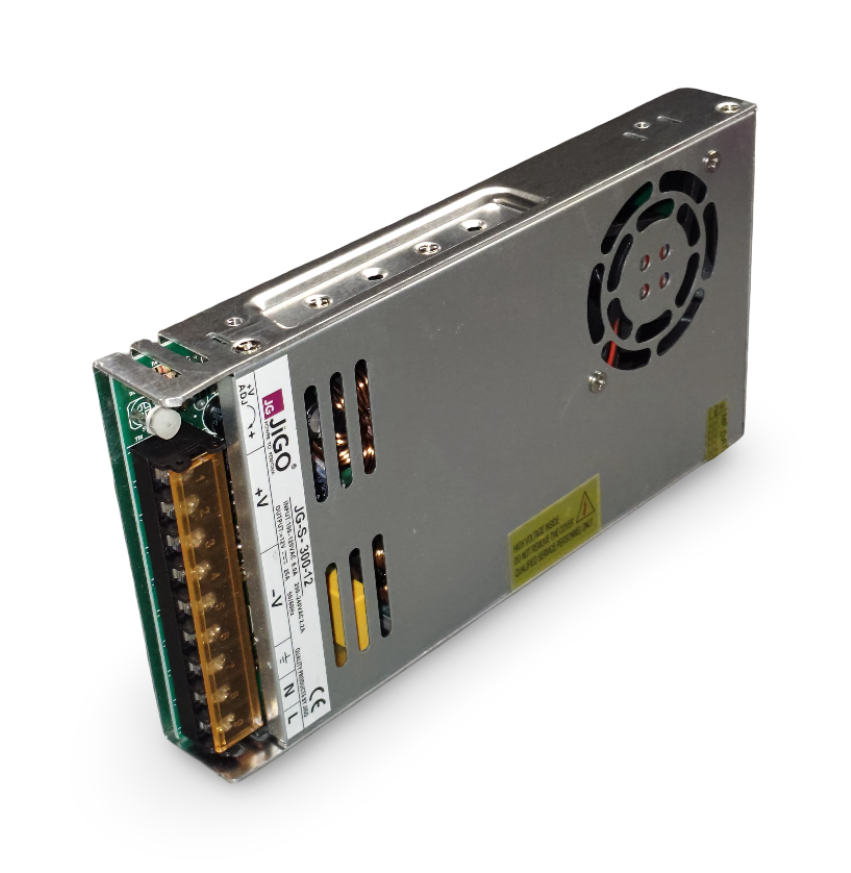

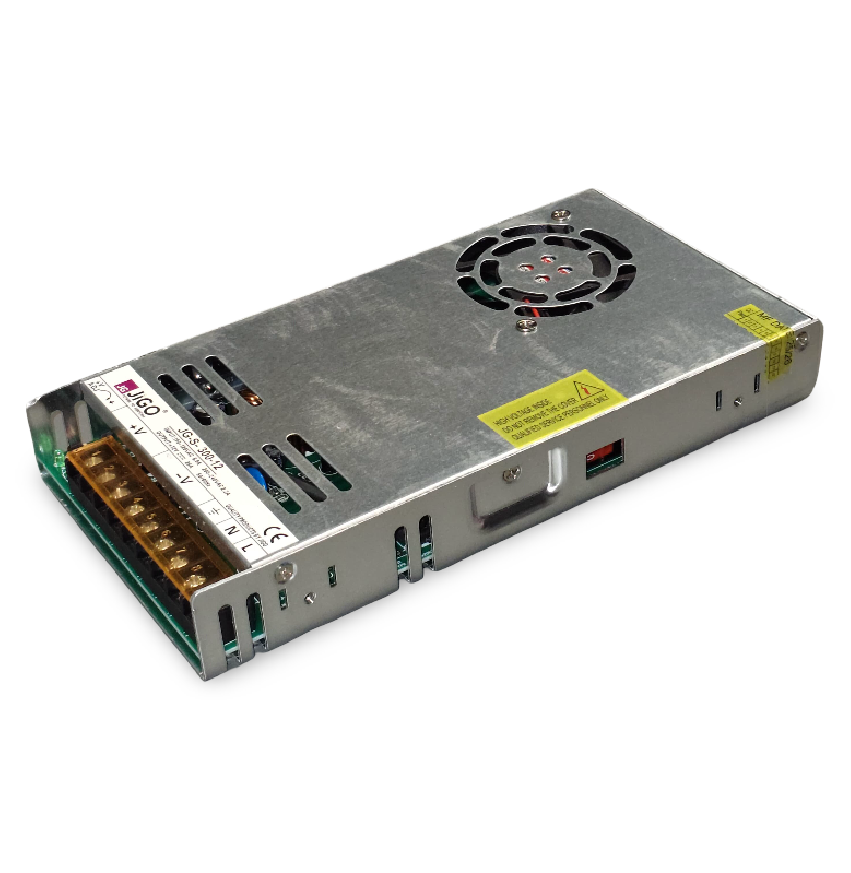

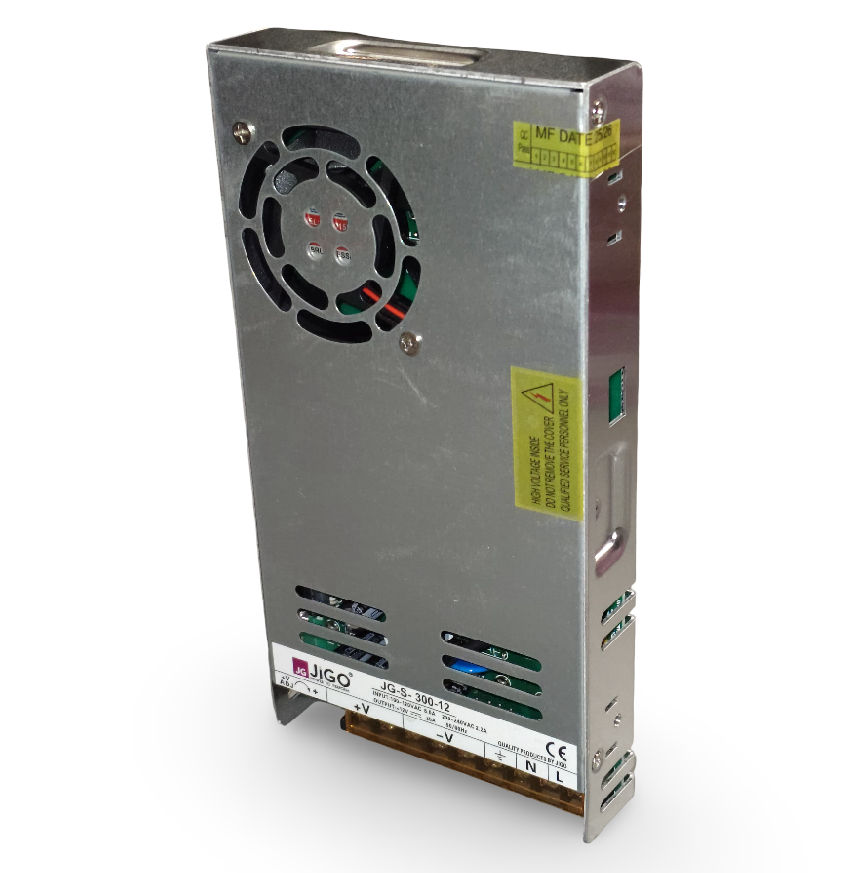

The JG-S-300-12 is a high-capacity 300W enclosed switching power supply, providing a stable 12V DC output at 25A. Ideal for medium to heavy-duty electronic loads, it features a rugged metal body, built-in fan cooling, and multiple protection circuits for reliable operation.
Model: JG-S-300-12
Input Voltage Range: 85–264V AC, 47–63Hz
Output Voltage: 12V DC
Output Current: 25A
Output Power: 300W
Enclosure Type: Metal case with built-in ventilation fan
Efficiency: ≥ 86%
Cooling Method: Forced air cooling (internal fan)
Mounting Type: Screw/chassis mount
Protection Features:
Overload Protection
Overvoltage Protection
Short-circuit Protection
Operating Temperature: -20°C to +60°C
Certifications: CE, RoHS
High-output 12V DC at 25A
Rugged and compact metal enclosure
Integrated cooling fan for thermal stability
Universal AC input with global compatibility
Full-range protection circuitry
Suitable for 24/7 industrial or commercial use
Industrial automation and factory equipment
High-power LED lighting systems
12V DC motors, pumps, relays, and actuators
CCTV, DVRs, and surveillance systems
Communication and data processing systems
Lab instruments, control boxes, and embedded systems
