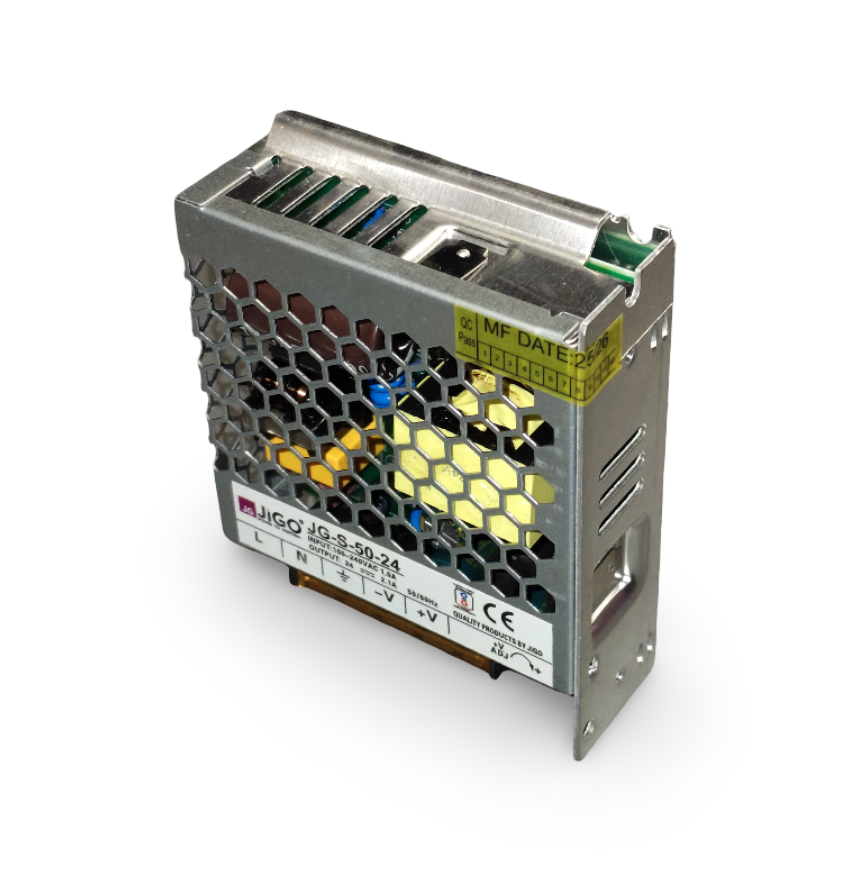

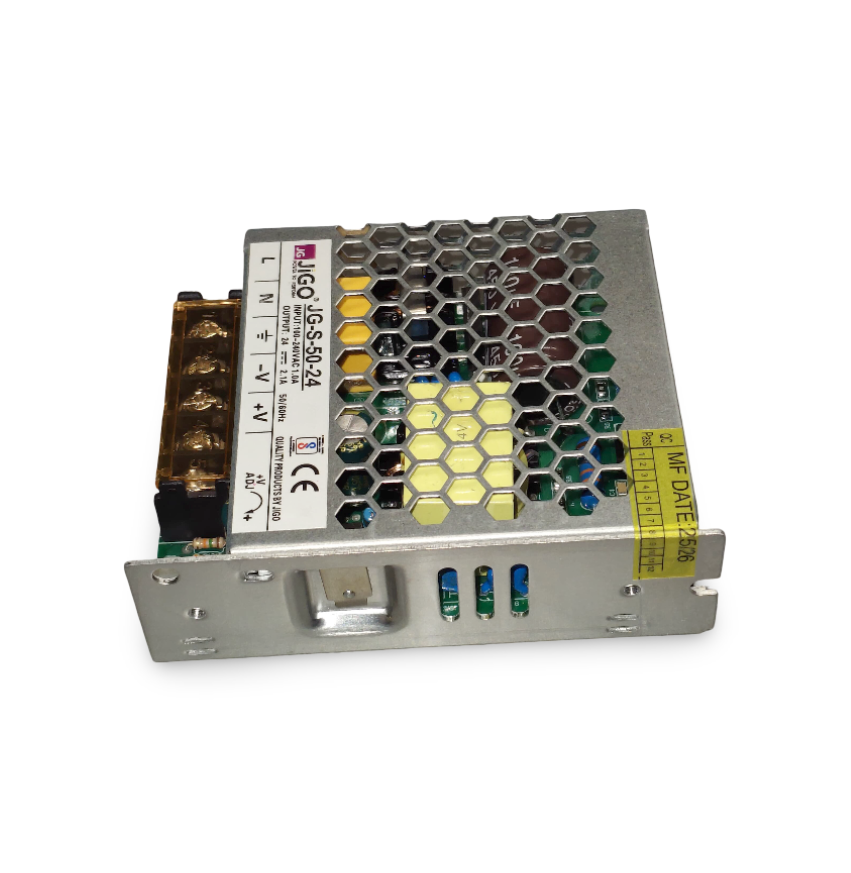

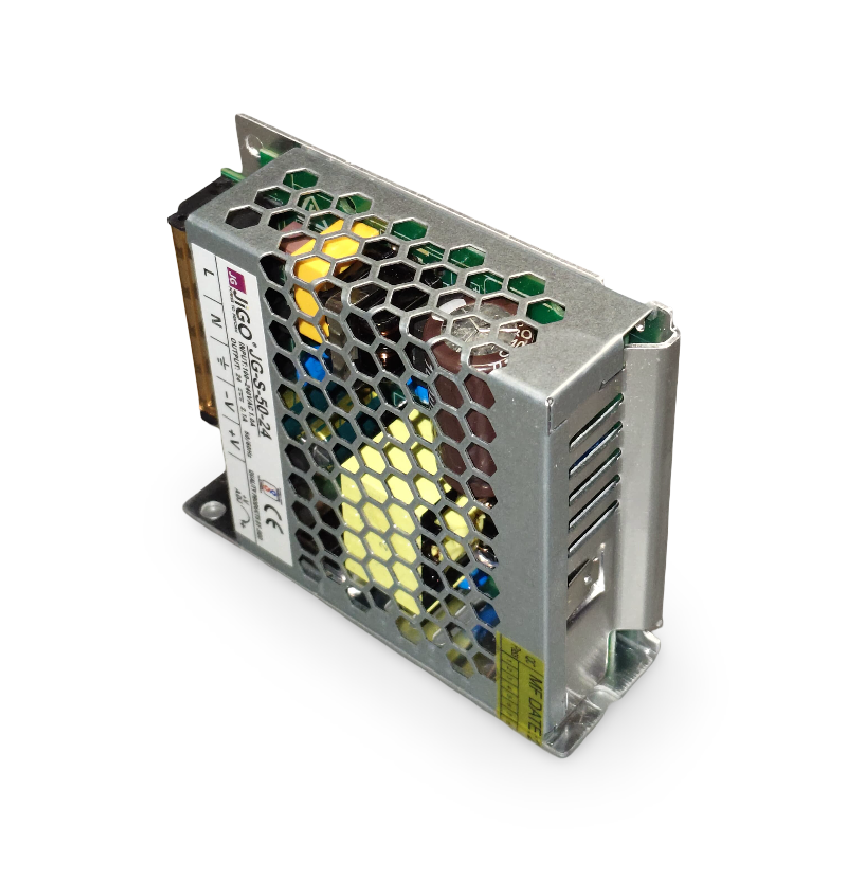

The JG-S-50-24 is a compact and efficient 50W enclosed switching power supply, delivering a regulated 24V DC output at 2.1A. Designed for reliable performance in industrial, automation, and general-purpose applications, it features robust protection and stable operation.
Model: JG-S-50-24
Input Voltage Range: 85–264V AC, 47–63Hz
Output Voltage: 24V DC
Output Current: 2.1A
Output Power: 50W
Enclosure Type: Metal case with ventilation slots
Efficiency: ≥ 85%
Cooling Method: Natural air convection
Protection Features:
Overload Protection
Overvoltage Protection
Short-circuit Protection
Mounting Type: Screw-mount (chassis/metal frame)
Operating Temperature: -20°C to +60°C
Certifications: CE, RoHS
Regulated 24V DC output with low ripple
Compact metal enclosure ideal for control boxes
High efficiency and energy-saving design
Universal input for flexible installation
Built-in safety protections for connected devices
Suitable for long-term, maintenance-free operation
Automation systems and control panels
LED displays, indicators, and signage
Communication equipment and routers
Security and surveillance devices
Embedded systems, sensors, and relays
Small industrial and commercial power needs
