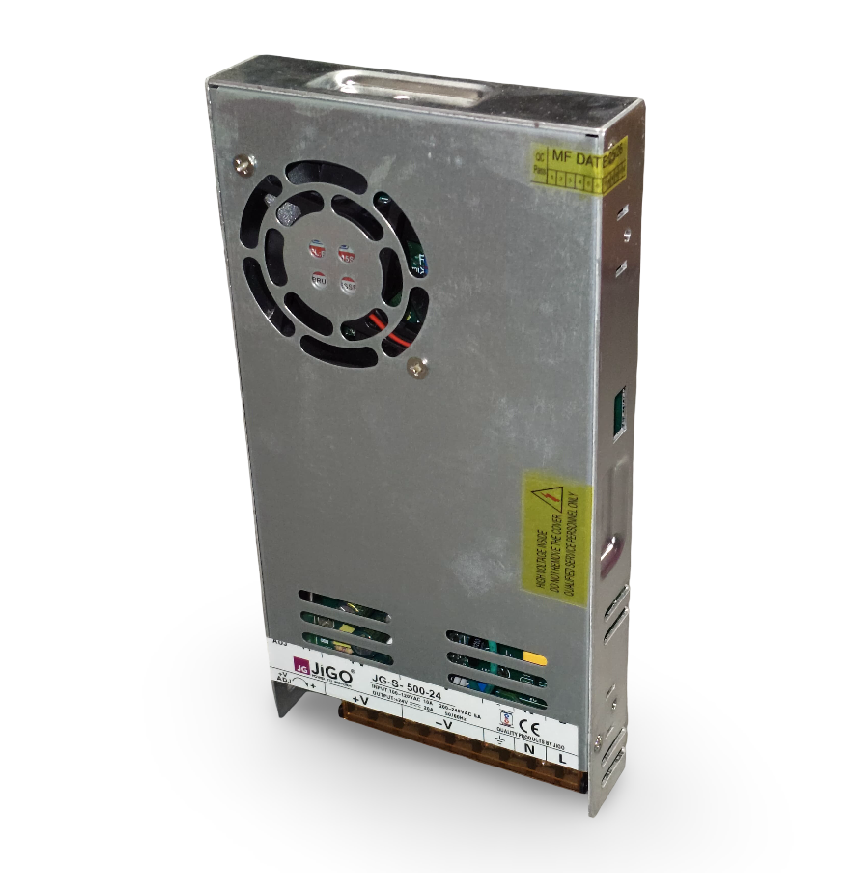

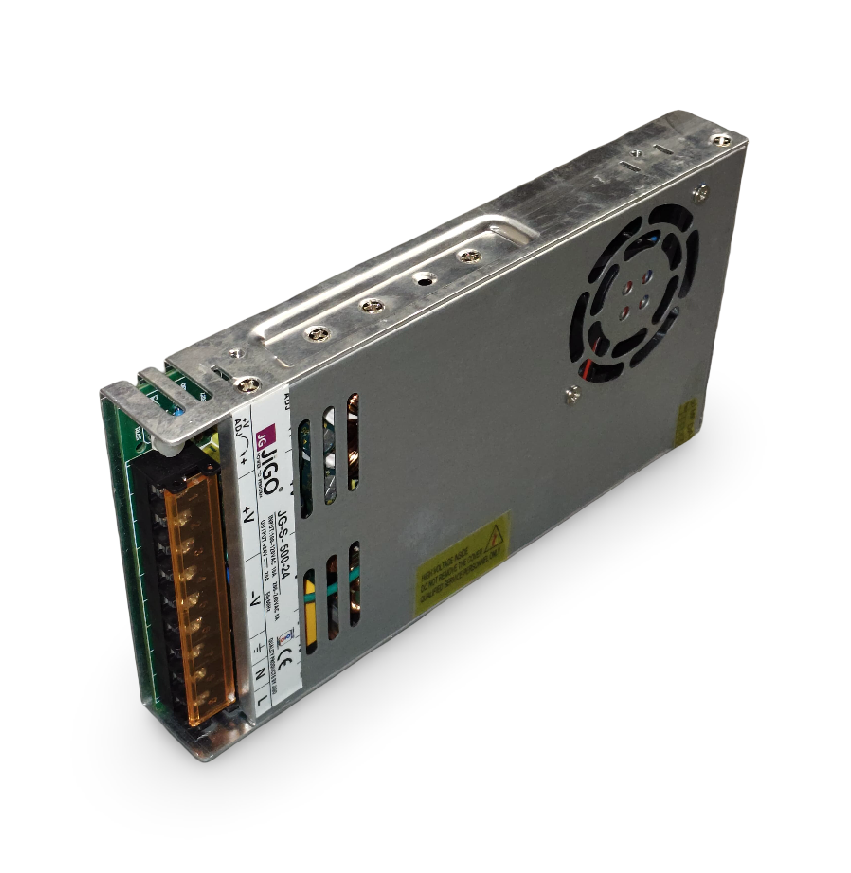

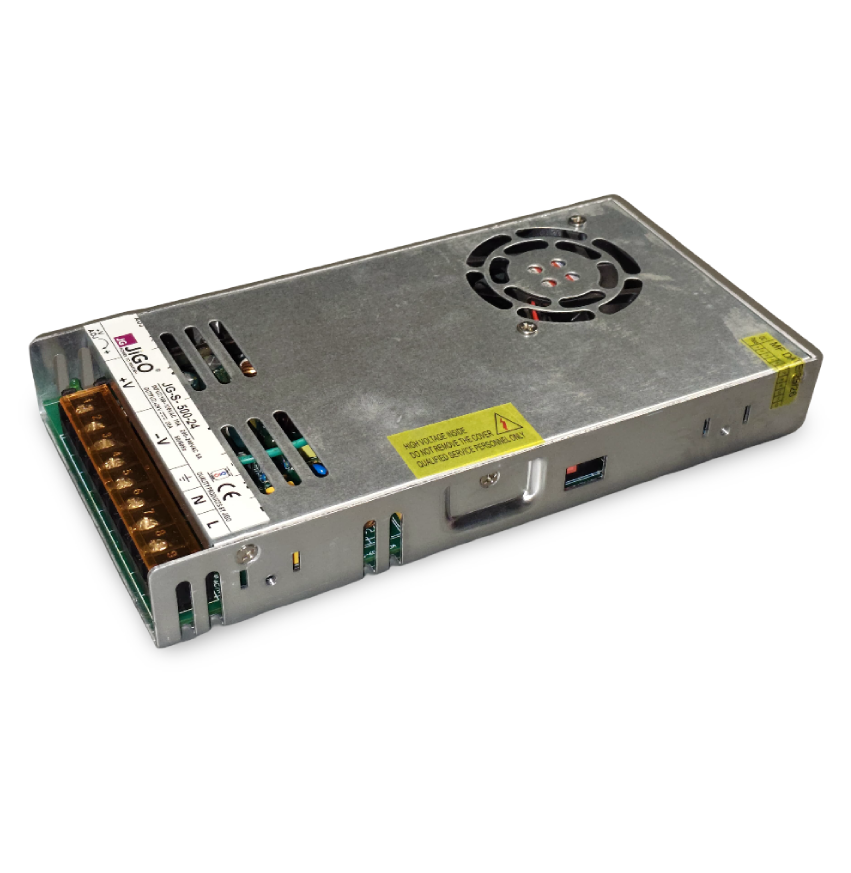

The JG-S-500-24 is a high-power 500W enclosed switching power supply, delivering a regulated 24V DC output at 21A. It is designed for industrial, automation, and commercial applications requiring stable, high-current 24V output with excellent efficiency and built-in protections.
Model: JG-S-500-24
Input Voltage Range: 85–264V AC, 47–63Hz
Output Voltage: 24V DC
Output Current: 21A
Output Power: 500W
Enclosure Type: Rugged metal casing with ventilation
Cooling Method: Built-in fan (forced air cooling)
Efficiency: ≥ 88%
Mounting Type: Chassis mount (screw installation)
Protection Features:
Overload Protection
Overvoltage Protection
Short-circuit Protection
Operating Temperature: -20°C to +60°C
Certifications: CE, RoHS
Powerful 24V DC output at 21A for heavy-duty applications
Durable metal enclosure with active cooling
High efficiency and low ripple for sensitive devices
Full protection features ensure long life and safety
Universal AC input for flexible deployment
Reliable for continuous operation in tough environments
Industrial machinery and automation panels
24V DC motors, actuators, and solenoids
High-power LED signage and lighting systems
Surveillance systems (CCTV, DVRs)
Communication and control equipment
Power supply for embedded systems and lab equipment
