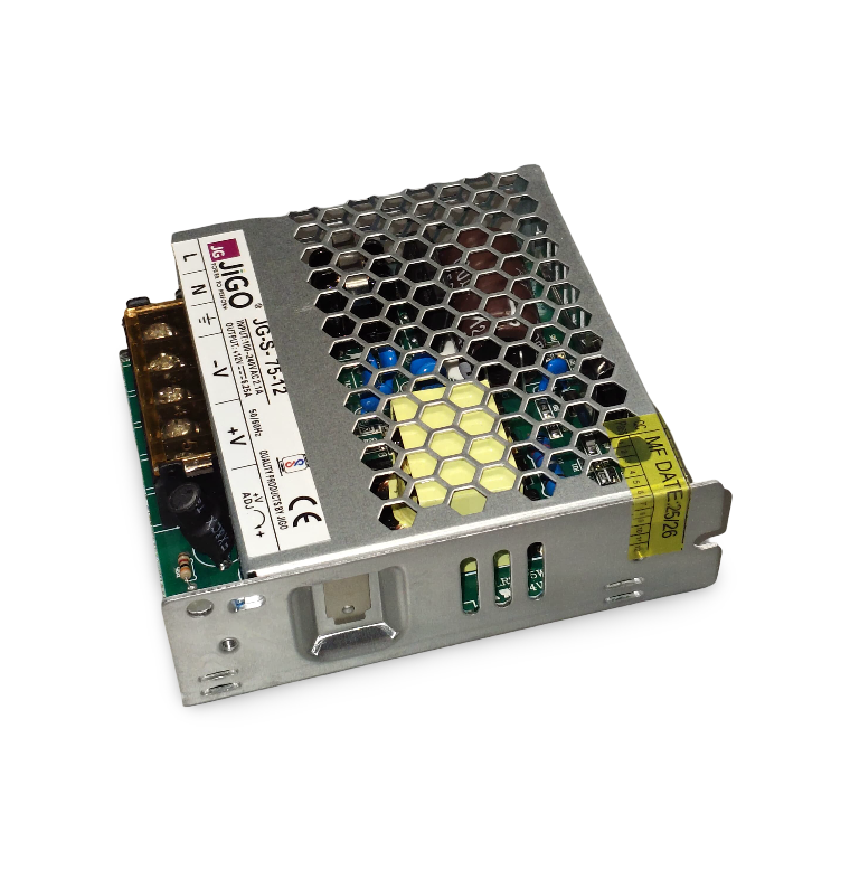

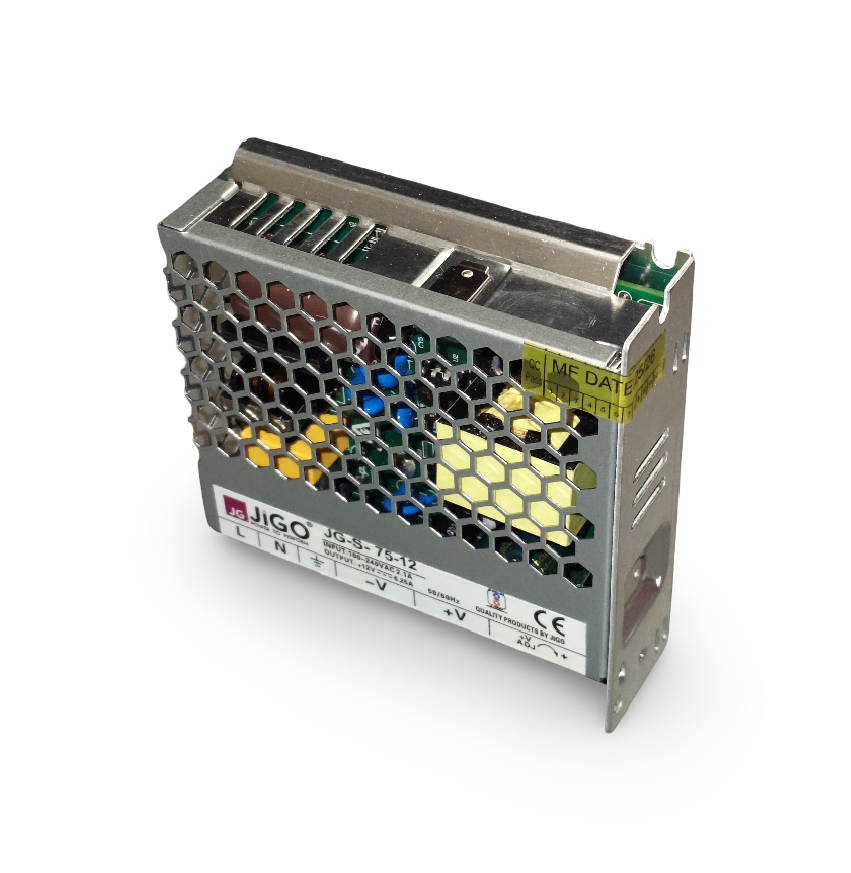

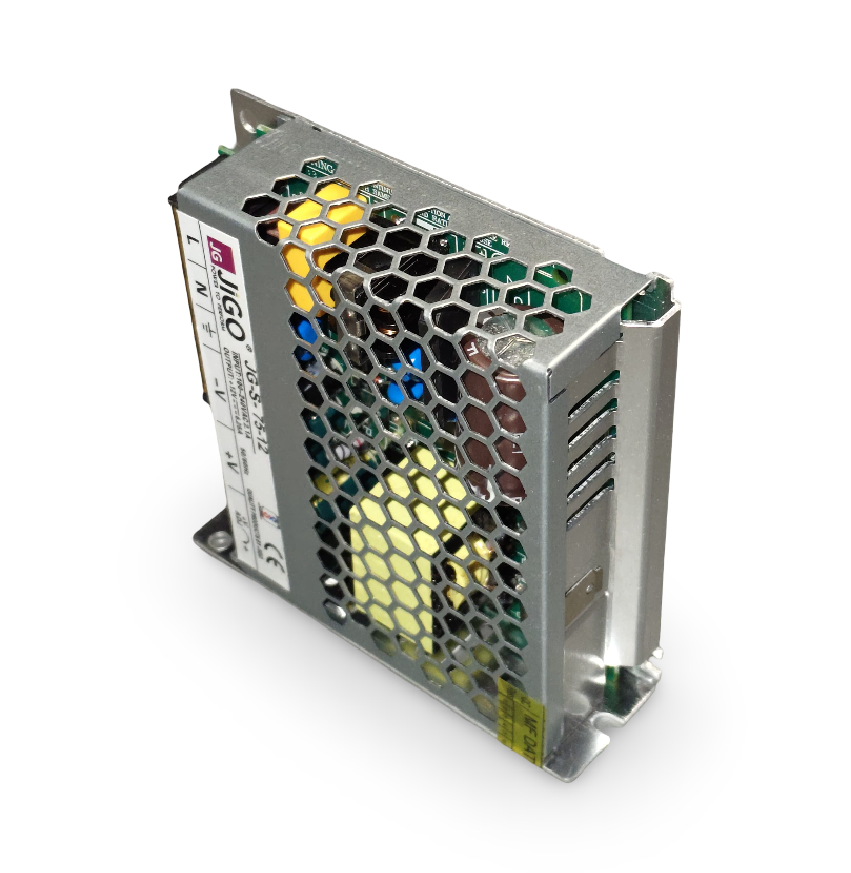

The JG-S-75-12 is a high-performance 75W enclosed switching power supply, delivering a regulated 12V DC output at 6.3A. Designed for use in industrial automation, LED systems, and control panels, it provides reliable power with integrated safety features in a compact metal enclosure.
Model: JG-S-75-12
Input Voltage Range: 85–264V AC, 47–63Hz
Output Voltage: 12V DC
Output Current: 6.3A
Output Power: 75W
Enclosure Type: Vented metal casing
Efficiency: ≥ 85%
Cooling Method: Natural air convection (fanless)
Protection Features:
Overload Protection
Overvoltage Protection
Short-circuit Protection
Mounting Type: Chassis mounting (screw mount)
Operating Temperature: -20°C to +60°C
Certifications: CE, RoHS
Regulated and stable 12V DC output
Compact and durable metal enclosure
High efficiency and low thermal output
Fanless design for quiet operation
Full protection circuitry for safe use
Wide input range for global installations
LED lighting and signage systems
Industrial automation and control panels
Security cameras and access control
Communication and networking equipment
Embedded systems and sensor power supply
Testing, instrumentation, and lab setups
