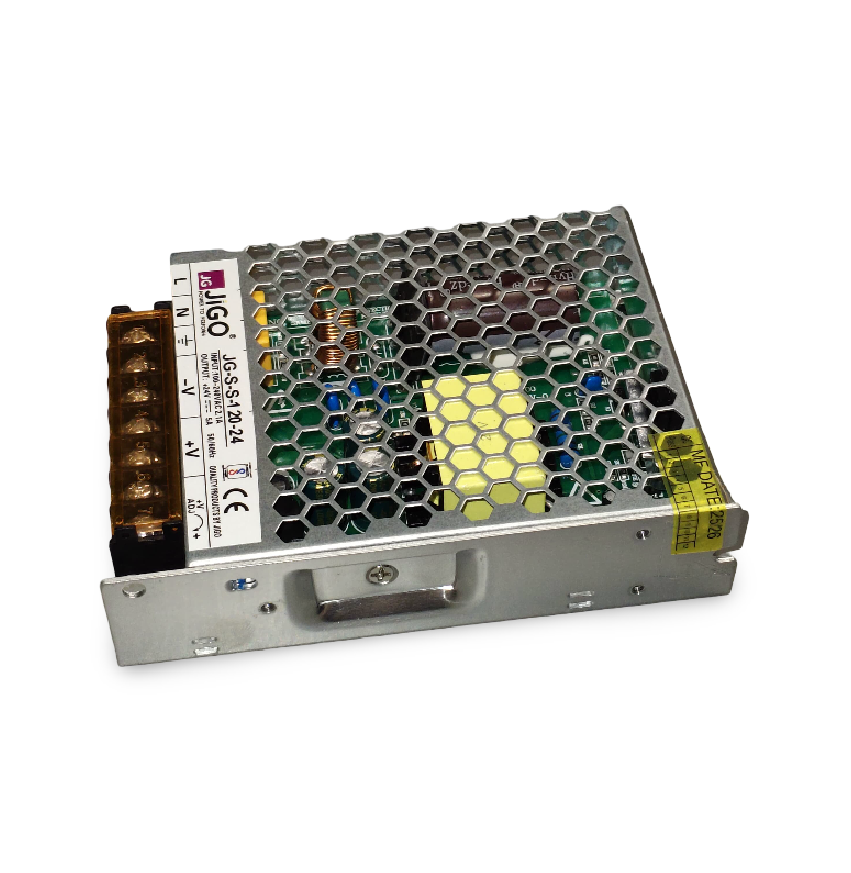

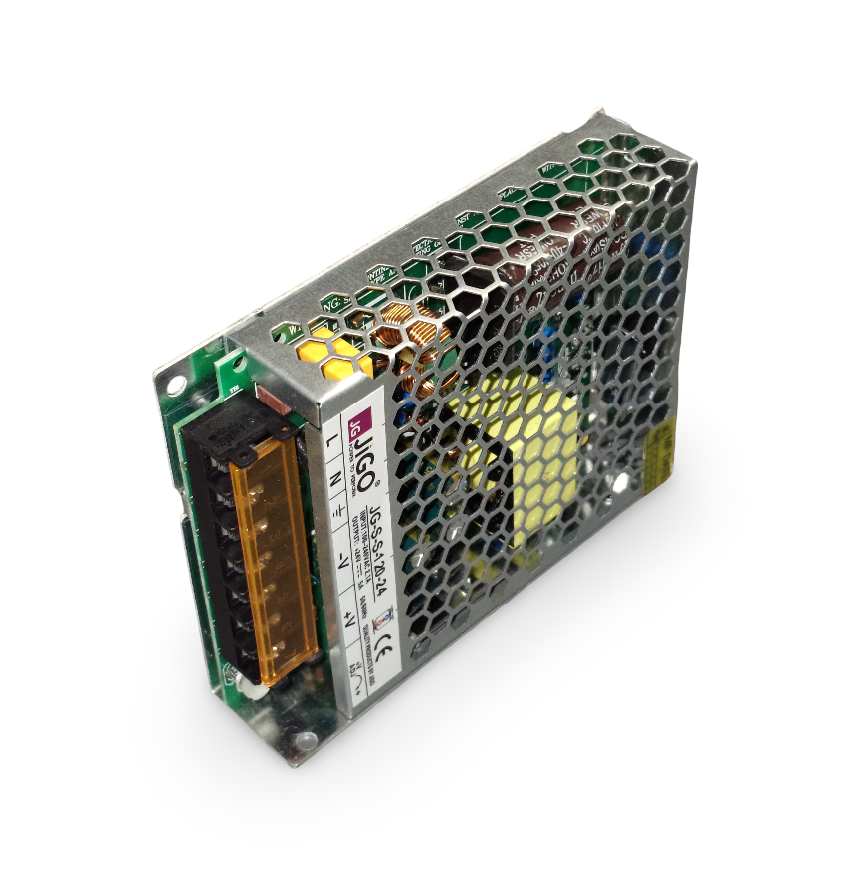

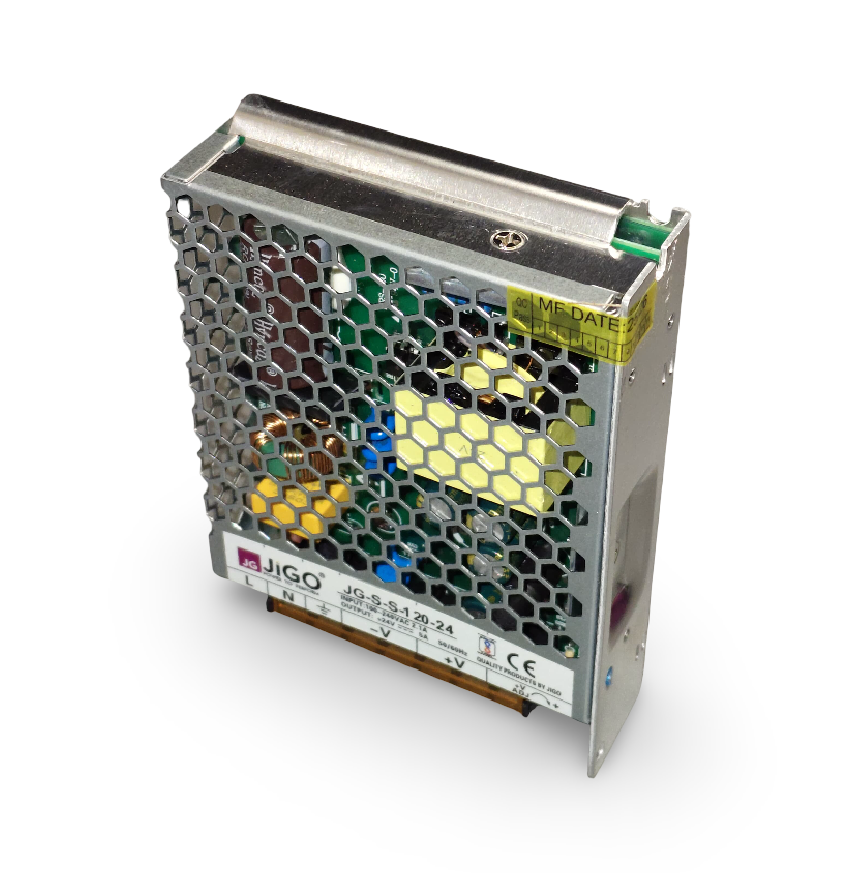

The JG-S-S-120-24 is a slim-design 120W enclosed switching power supply, delivering a regulated 24V DC output at 5A. It is ideal for applications where space-saving is essential, offering reliable power, high efficiency, and built-in protection in a compact metal enclosure.
Model: JG-S-S-120-24
Input Voltage Range: 85–264V AC, 47–63Hz
Output Voltage: 24V DC
Output Current: 5A
Output Power: 120W
Design: Ultra-slim metal casing
Cooling Method: Natural air convection (fanless)
Efficiency: ≥ 88%
Mounting Type: Chassis/screw mount
Protection Features:
Overload Protection
Overvoltage Protection
Short-circuit Protection
Operating Temperature: -20°C to +60°C
Certifications: CE, RoHS compliant
Slim and compact design for tight spaces
Stable 24V DC output at 5A
High efficiency with low heat generation
Maintenance-free fanless operation
Full protection against electrical faults
Easy to install in control cabinets and panels
Compact industrial automation setups
LED strip lighting and signage
Communication devices and network systems
CCTV and access control panels
Test equipment and embedded systems
Building automation and control panels
