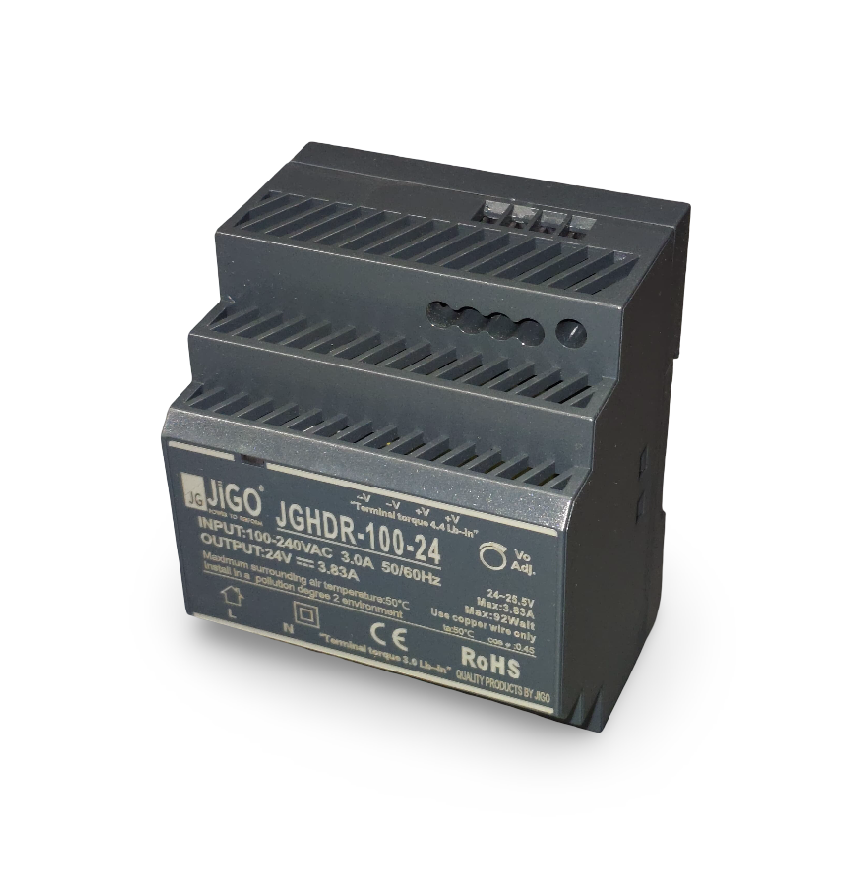

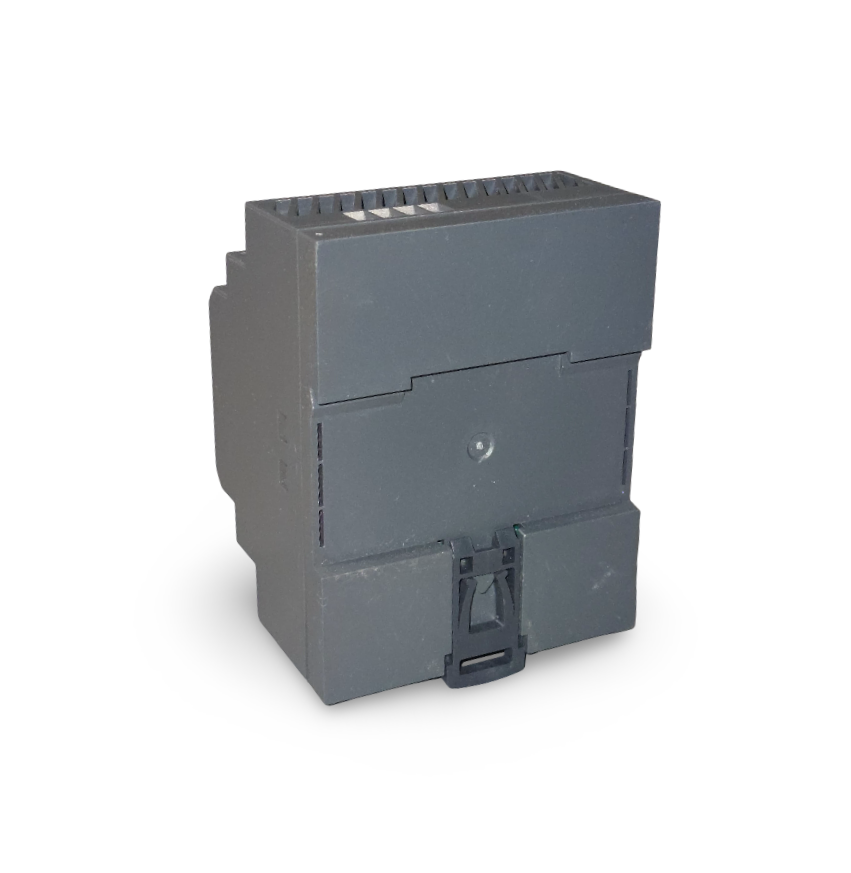

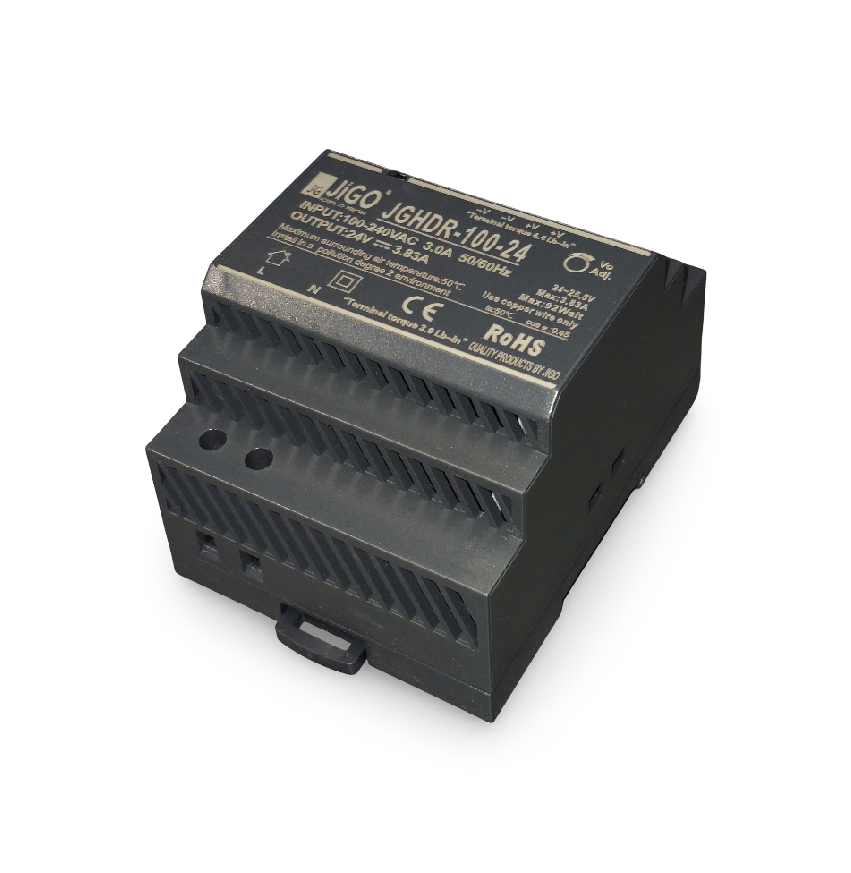

The JGHDR-100-24 is a compact, high-efficiency 100W DIN rail-mounted power supply that provides a stable 24V DC output at 4.2A. Designed for industrial automation, control panels, and commercial systems, it offers superior performance, reliability, and protection in a space-saving design.
Model: JGHDR-100-24
Input Voltage: 85–264V AC, 47–63Hz
Output Voltage: 24V DC
Output Current: 4.2A
Rated Power: 100W
Mounting Type: Standard 35mm DIN Rail
Efficiency: ≥ 89%
Cooling Method: Natural air convection (fanless)
Protection: Overload, Overvoltage, Short-circuit, Over-temperature
Housing Material: Flame-retardant plastic
Operating Temperature: -20°C to +70°C
Certifications: CE, RoHS
Indicator: LED for power status
Stable and regulated 24V DC output
High efficiency with energy-saving operation
Built-in protection for overload, short-circuit, and overheating
Compact, slim design—ideal for limited panel space
Maintenance-free and long-lasting performance
Easy installation via DIN rail mounting
Silent fanless cooling for industrial reliability
Industrial automation and control systems
Programmable Logic Controllers (PLCs)
Building automation and BMS systems
Alarm, access control & CCTV systems
Power supply for sensors, actuators, and relays
Communication & instrumentation panels
Commercial and residential electrical panels
