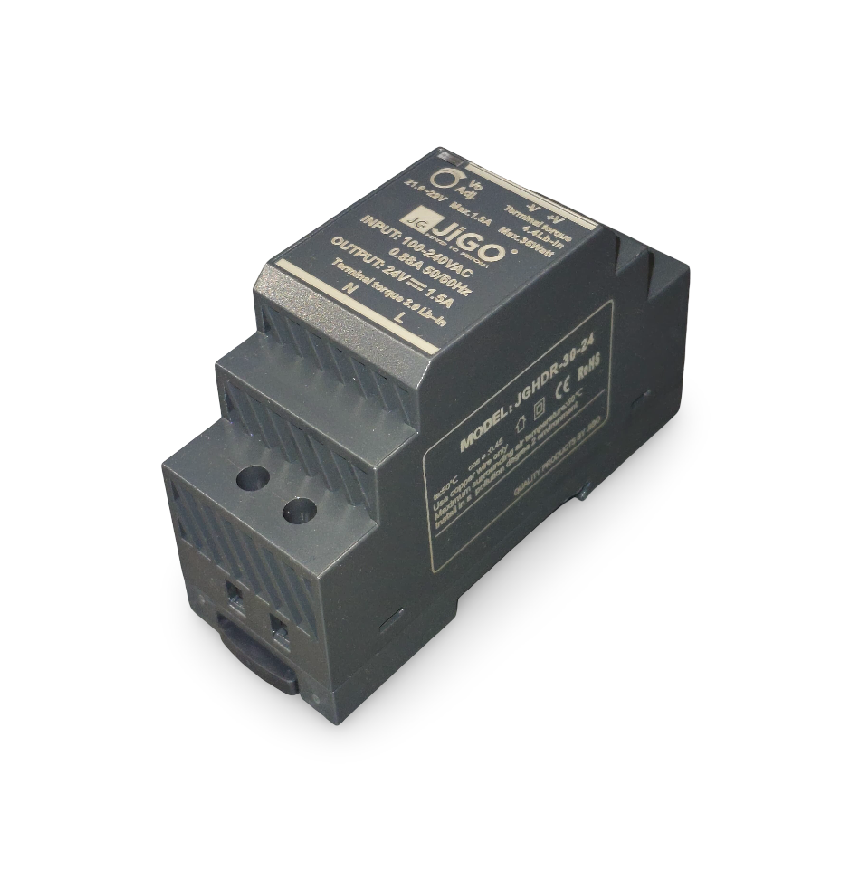

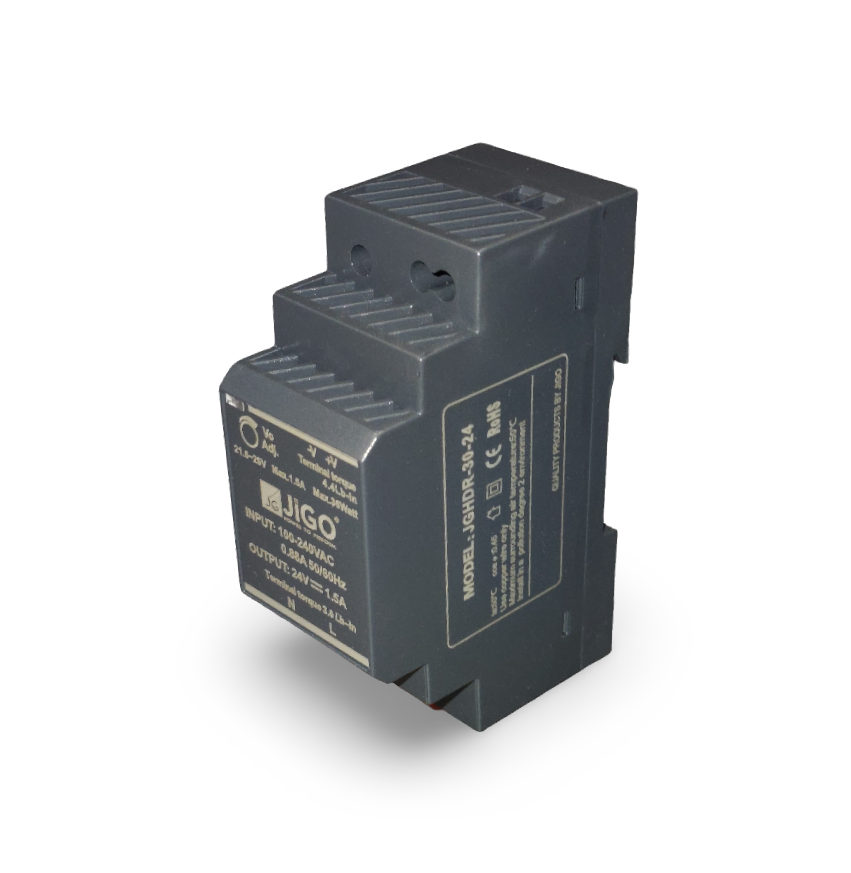

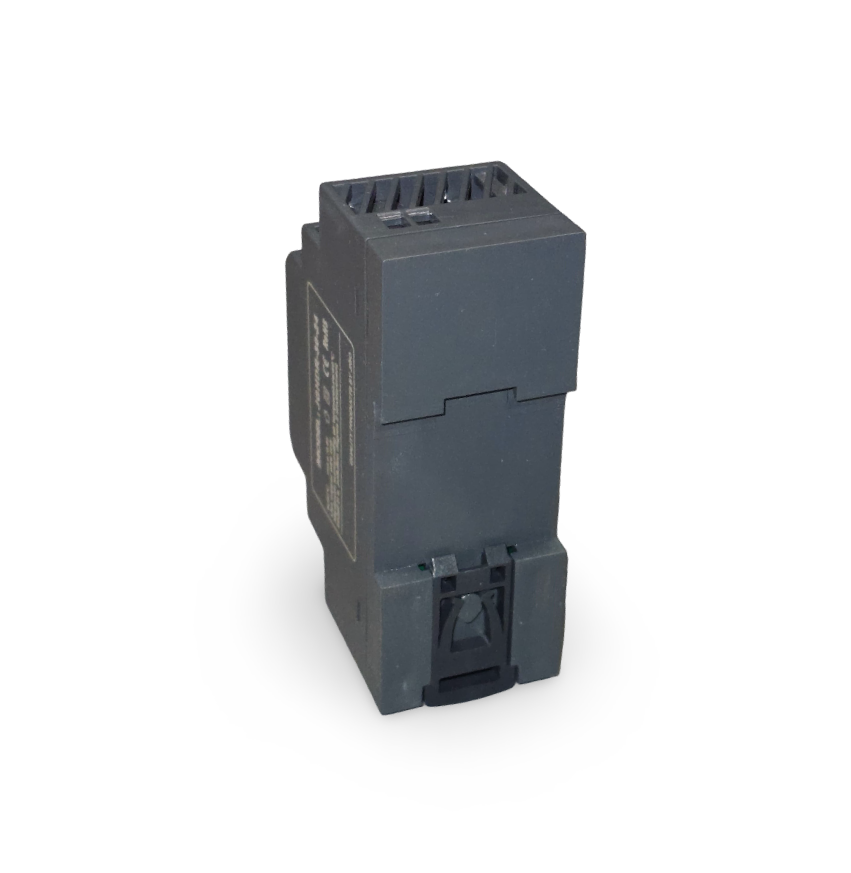

The JGHDR-30-24 is a compact and efficient 30W DIN rail-mounted power supply that provides a stable 24V DC output. Designed for low-power industrial and commercial applications, it offers high reliability and ease of installation in tight control panels.
Model: JGHDR-30-24
Input Voltage Range: 85–264V AC, 50/60Hz
Output Voltage: 24V DC
Output Current: 1.25A
Output Power: 30W
Mounting Type: DIN Rail (35mm standard)
Efficiency: ≥ 85%
Cooling Method: Natural air convection
Protection: Overload, Overvoltage, Short-circuit
Housing Material: Flame-retardant and compact plastic body
Operating Temperature: -20°C to +70°C
Certifications: CE, RoHS compliant
LED Indicator: Power status display
Regulated 24V DC output with low ripple
Slim design for space-constrained enclosures
Safe and reliable with built-in protections
Maintenance-free and long operational life
Quick installation via DIN rail mounting
Ideal for continuous 24/7 operation
Cost-effective solution for low-power control circuits
Control panels and switchboards
Building automation systems
Small-scale industrial machinery
Sensor and relay power supplies
Access control and alarm systems
Communication and data acquisition devices
LED lighting and other 24V devices
