JGLRS-35-5 SMPS Power Supply
- Category: POWER SUPPLY
- Brand: Jigo
- Minimum quantity: 1
- Price: ₹ 1300

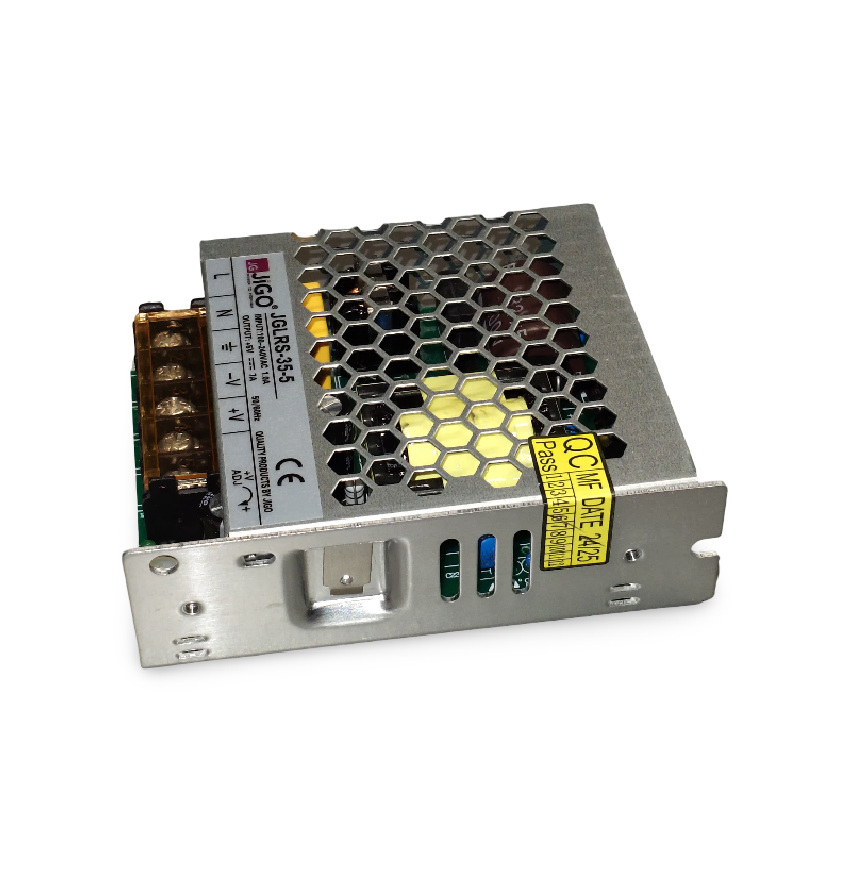

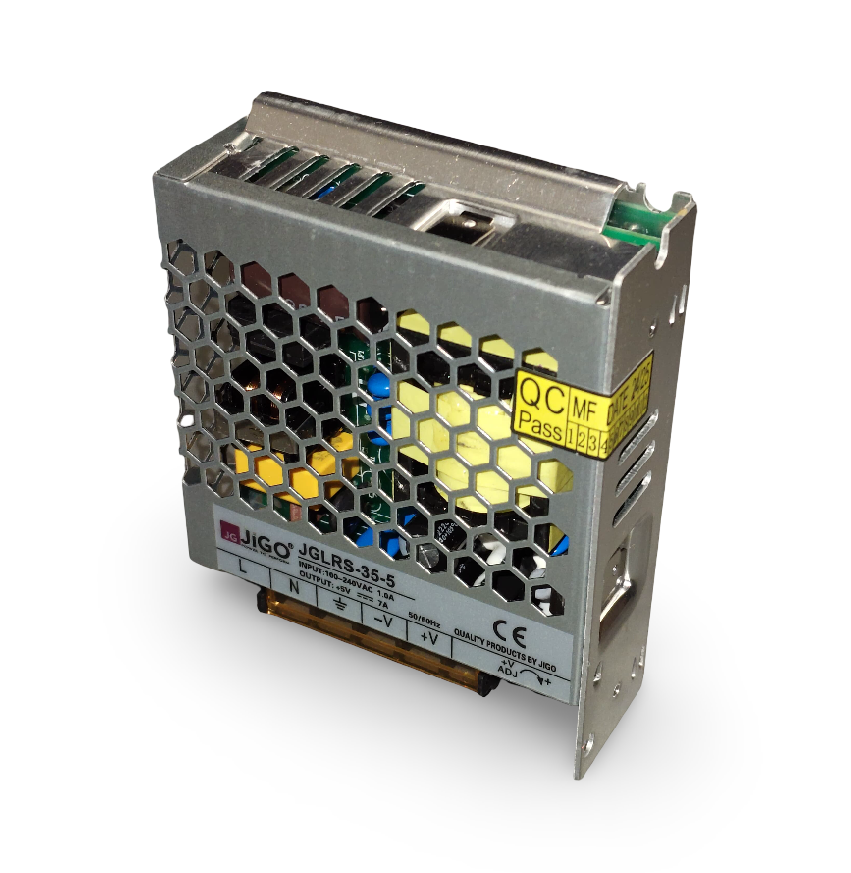

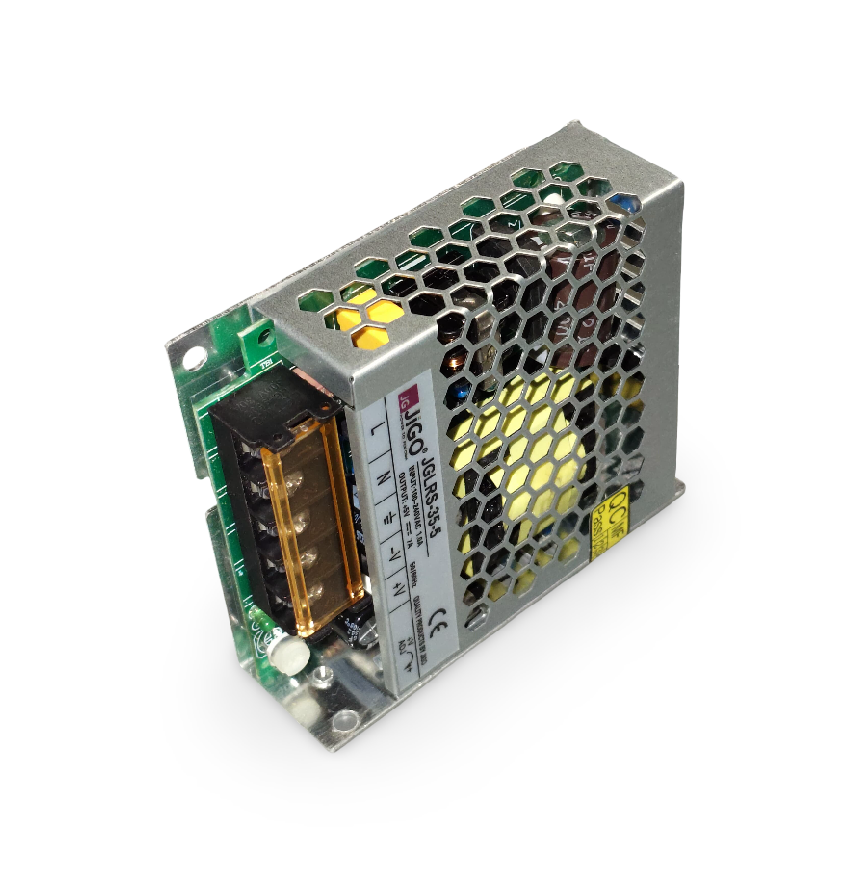

The JGLRS-35-5 is a compact and efficient 35W DIN rail-mounted power supply that delivers a stable 5V DC output at 7A. Ideal for industrial and commercial use, it offers reliable performance, built-in protections, and easy installation in control panels and automation systems.
Enquire on WhatsAppProduct Details:
Model: JGLRS-35-5
Input Voltage Range: 85–264V AC, 47–63Hz
Output Voltage: 5V DC
Output Current: 7A
Rated Power: 35W
Mounting Type: DIN Rail (35mm)
Efficiency: ≥ 80%
Cooling Method: Natural air convection (fanless)
Protection Features:
Overload
Overvoltage
Short-circuit
Material: Flame-retardant plastic housing
Operating Temperature: -20°C to +70°C
Certifications: CE, RoHS
Indicator: LED power status light
Key Features:
Regulated 5V DC output with low ripple and noise
High output current (7A) in compact form factor
Built-in protection ensures safe and long-term operation
Slim, DIN rail-compatible body for panel space efficiency
Fanless design for silent and maintenance-free use
Easy terminal access for quick wiring
Applications:
PLCs and control system peripherals
Communication and networking equipment
Sensors and 5V logic devices
Industrial automation panels
Embedded and IoT device power supply
CCTV, access control, and security systems
