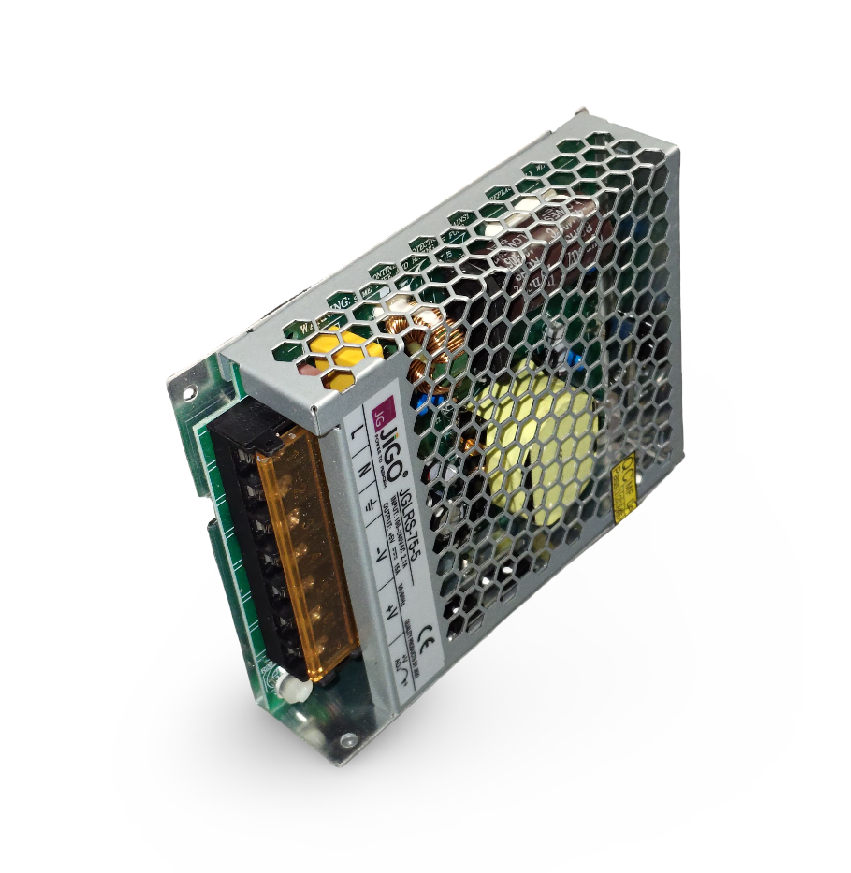

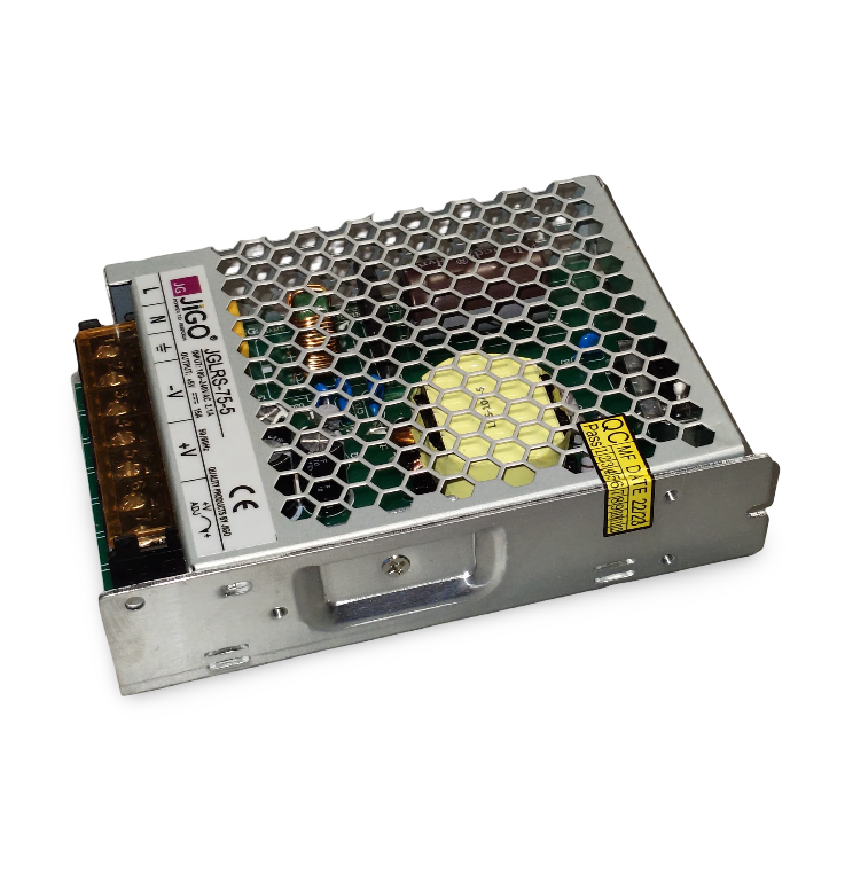

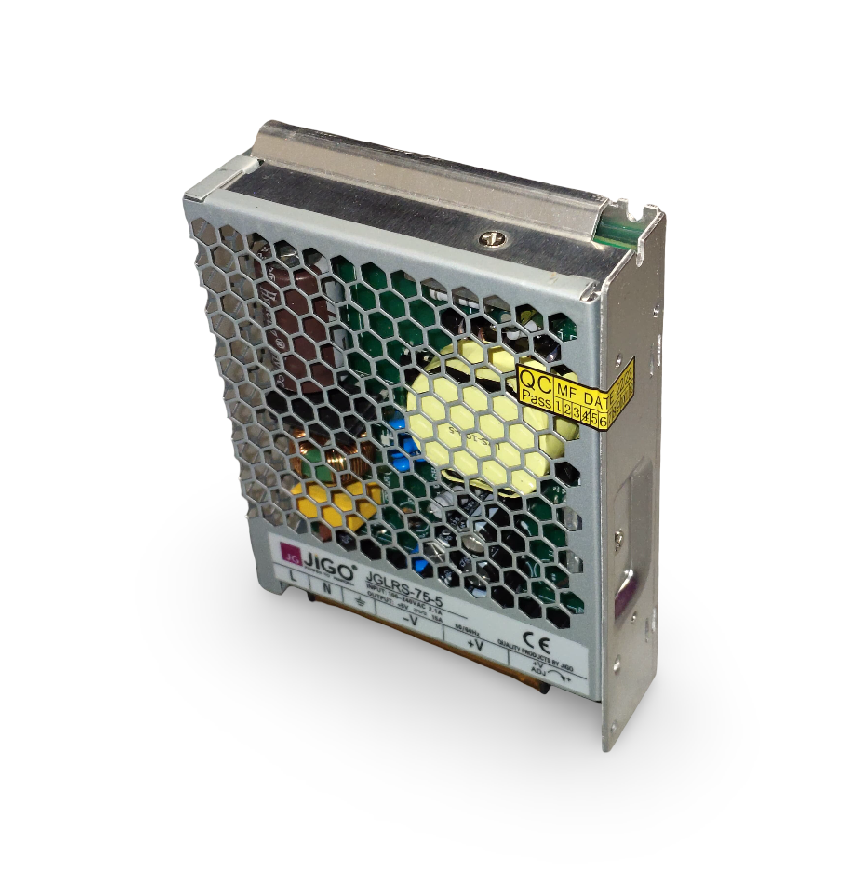

The JGLRS-75-5 is a powerful and compact 75W DIN rail-mounted power supply, providing a stable 5V DC output at 15A. Built for industrial and commercial electronics, it ensures efficient performance, robust protection, and reliable 24/7 operation.
Model: JGLRS-75-5
Input Voltage Range: 85–264V AC, 47–63Hz
Output Voltage: 5V DC
Output Current: 15A
Output Power: 75W
Mounting Type: 35mm DIN Rail
Efficiency: ≥ 82%
Cooling Method: Natural air convection (fanless)
Protection Features:
Overload Protection
Overvoltage Protection
Short-circuit Protection
Material: Flame-retardant plastic housing
Operating Temperature: -20°C to +70°C
Certifications: CE, RoHS compliant
Indicator: LED power status light
High-current 15A output for demanding 5V DC applications
Reliable performance with regulated low-noise output
Full protection for safe and uninterrupted operation
Compact, DIN rail-friendly design for easy panel integration
Fanless design for silent, dust-free cooling
Suitable for harsh industrial and continuous-use environments
Industrial automation and machine control systems
5V logic devices, microcontrollers, and sensor networks
Communication hubs and data terminals
CCTV, biometric, and access control systems
Powering embedded systems and test equipment
Networking and telecom support systems
