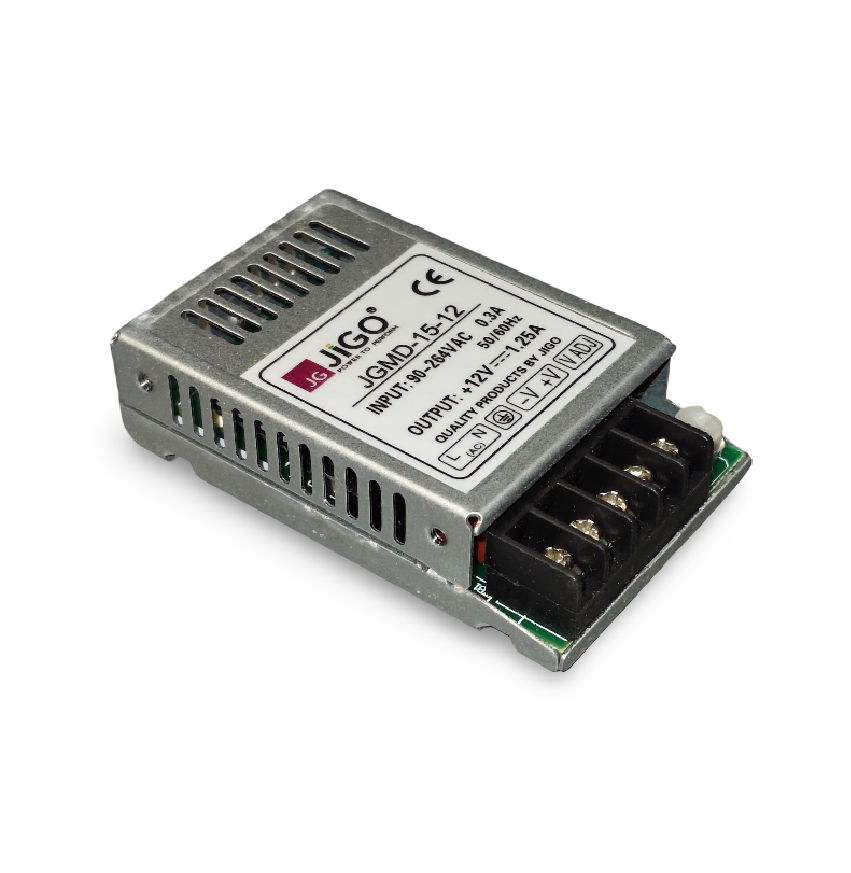

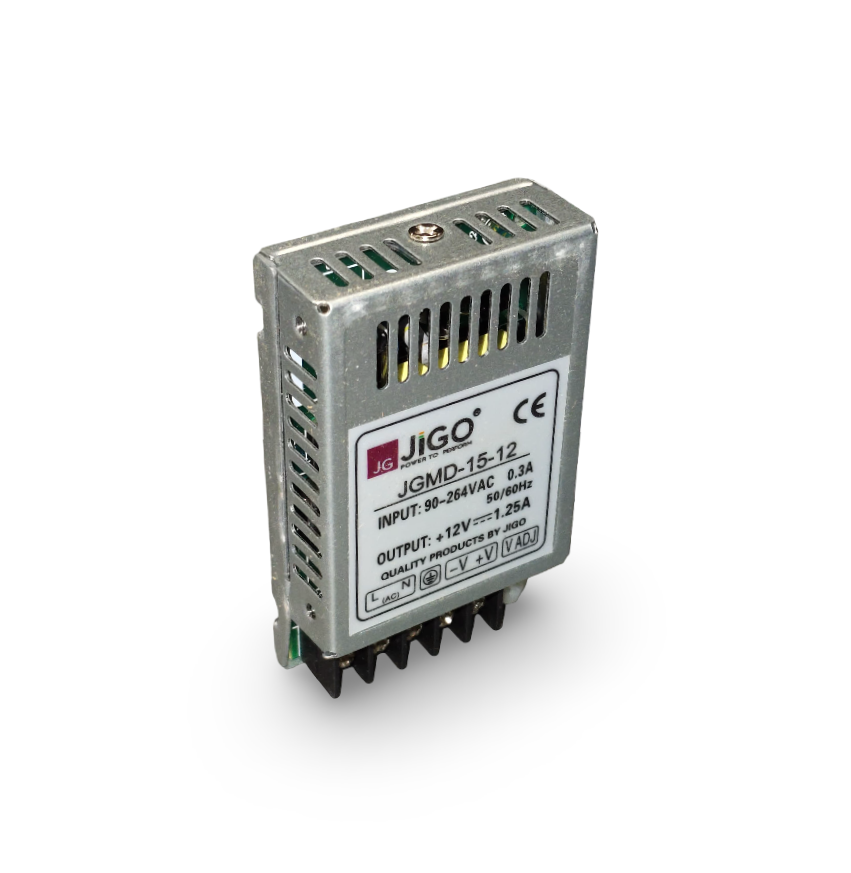

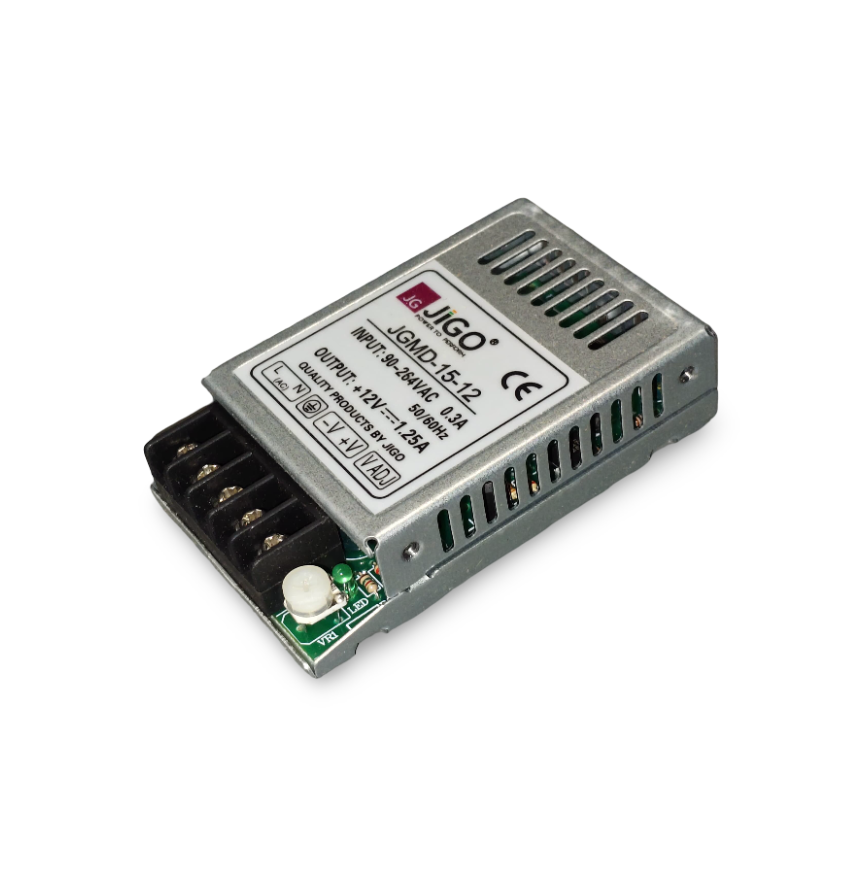

The JGMD-15-12 is a compact and reliable 15W modular DIN rail power supply that provides a stable 12V DC output at 1.25A. Ideal for low-voltage automation and control systems, it offers high performance, built-in safety protections, and easy integration into space-constrained enclosures.
Model: JGMD-15-12
Input Voltage Range: 100–240V AC, 50/60Hz
Output Voltage: 12V DC
Output Current: 1.25A
Output Power: 15W
Mounting Type: 35mm DIN Rail (modular housing)
Efficiency: ≥ 81%
Cooling Method: Natural air convection (fanless)
Protection Features:
Overload Protection
Overvoltage Protection
Short-circuit Protection
Material: Flame-retardant plastic enclosure
Operating Temperature: -20°C to +60°C
Certifications: CE, RoHS compliant
LED Indicator: Power status light
Regulated 12V DC output at 1.25A
Modular design perfect for compact control panels
High efficiency and low power loss
Fanless, quiet operation for extended service life
Full range protection for equipment safety
Easy and quick DIN rail mounting
Industrial control and automation panels
12V relays, sensors, and communication devices
Building management and access control systems
Security and CCTV low-voltage supply
Smart home and IoT controller boards
Small instrumentation and monitoring systems
