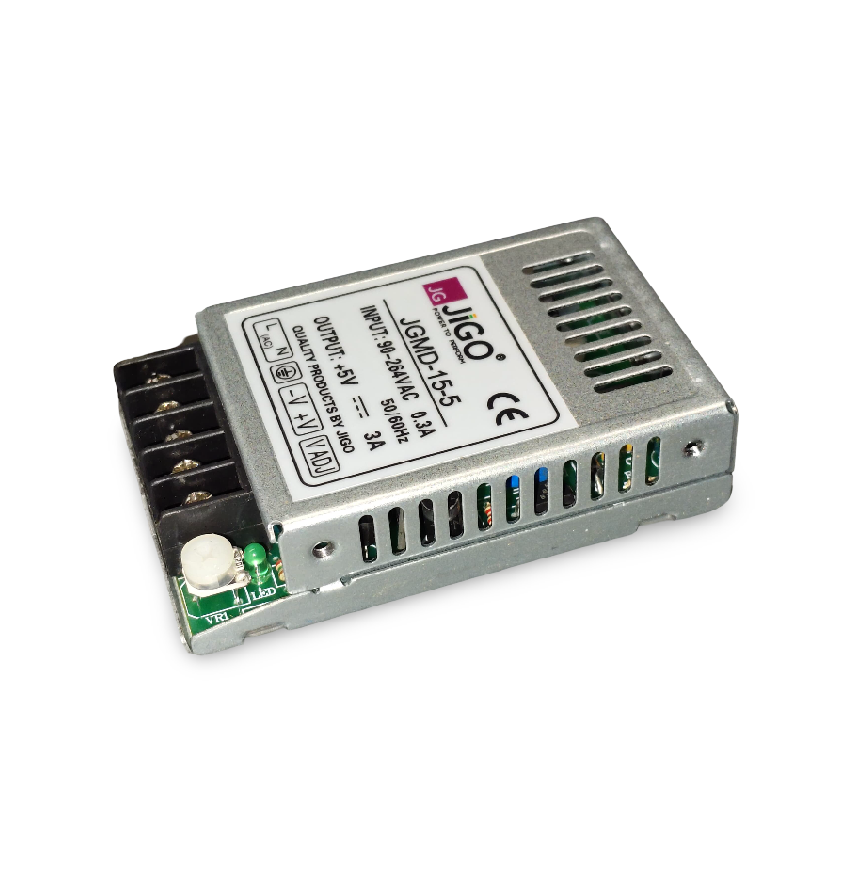

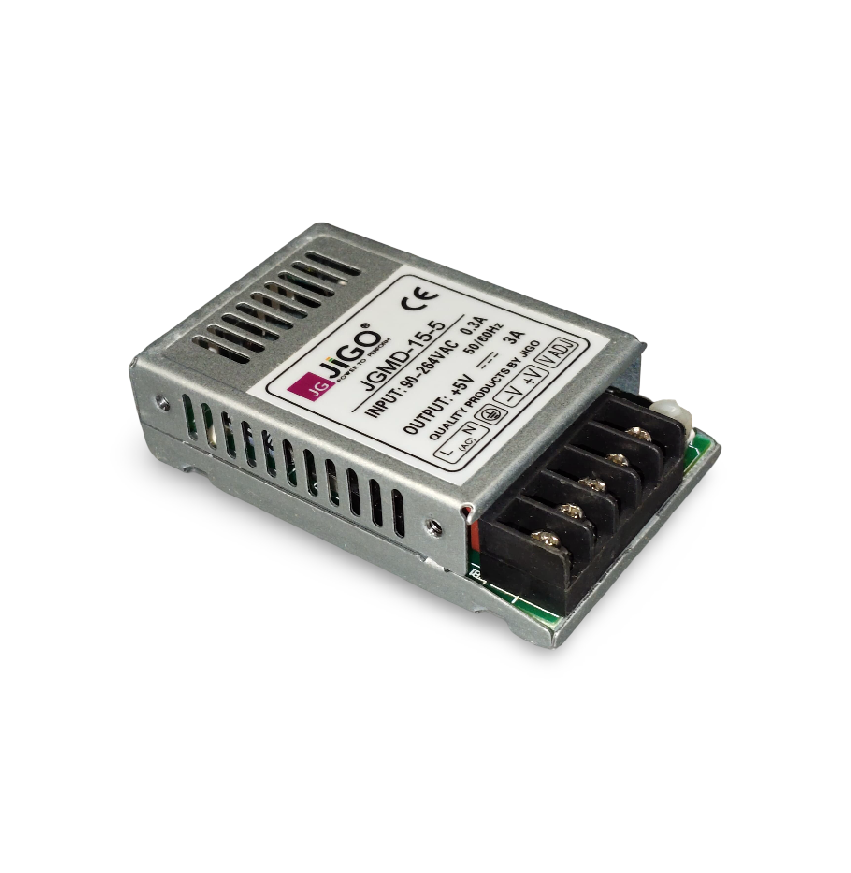

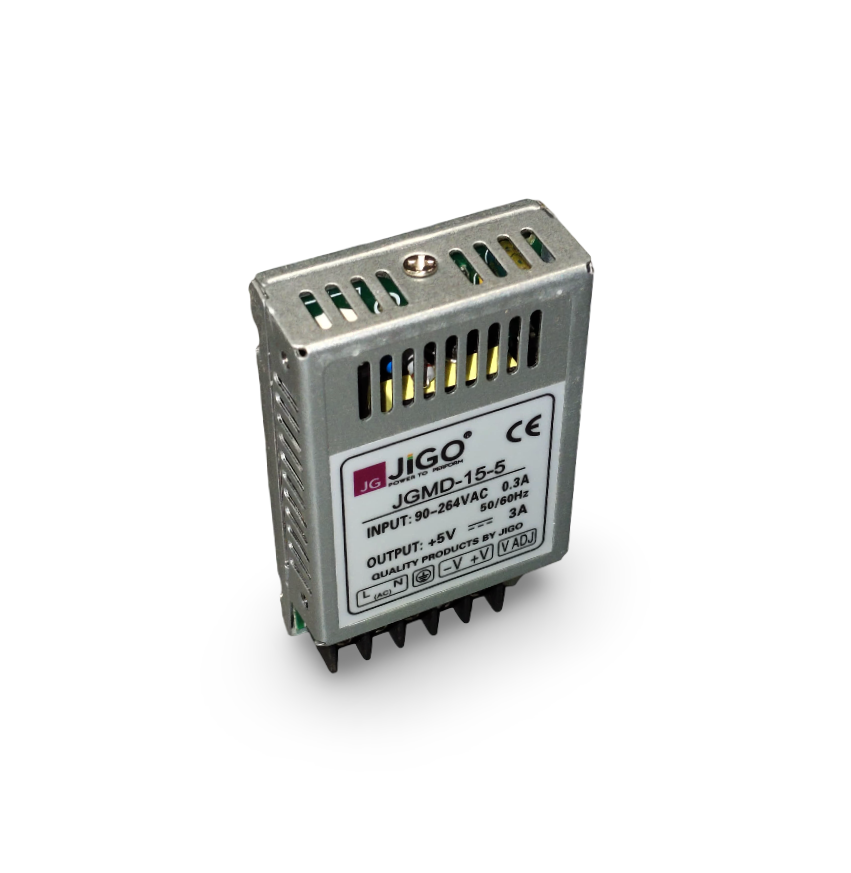

The JGMD-15-5 is a reliable and compact 15W DIN rail-mounted modular power supply, delivering a regulated 5V DC output at 3A. It is designed for powering low-voltage electronics, sensors, and automation components with safety, efficiency, and ease of installation.
Model: JGMD-15-5
Input Voltage Range: 100–240V AC, 50/60Hz
Output Voltage: 5V DC
Output Current: 3A
Output Power: 15W
Mounting Type: 35mm DIN Rail (Modular enclosure)
Efficiency: ≥ 80%
Cooling Method: Natural air convection (fanless)
Protection Features:
Overload Protection
Overvoltage Protection
Short-circuit Protection
Housing Material: Flame-retardant plastic (compact modular body)
Operating Temperature: -20°C to +60°C
Certifications: CE, RoHS
LED Indicator: Yes (Power ON status)
Clean, regulated 5V DC output with low ripple
Compact modular design for easy DIN rail mounting
Ideal for control cabinets with limited space
Safe operation with full protection circuitry
Fanless cooling system for silent and dust-free performance
Quick wiring terminals for fast installation
Industrial control panels and PLC accessories
Sensors, embedded systems, and logic circuits
IoT devices and smart controllers
Communication modules and access control
Low-power electronics and automation components
Building automation and home control systems
