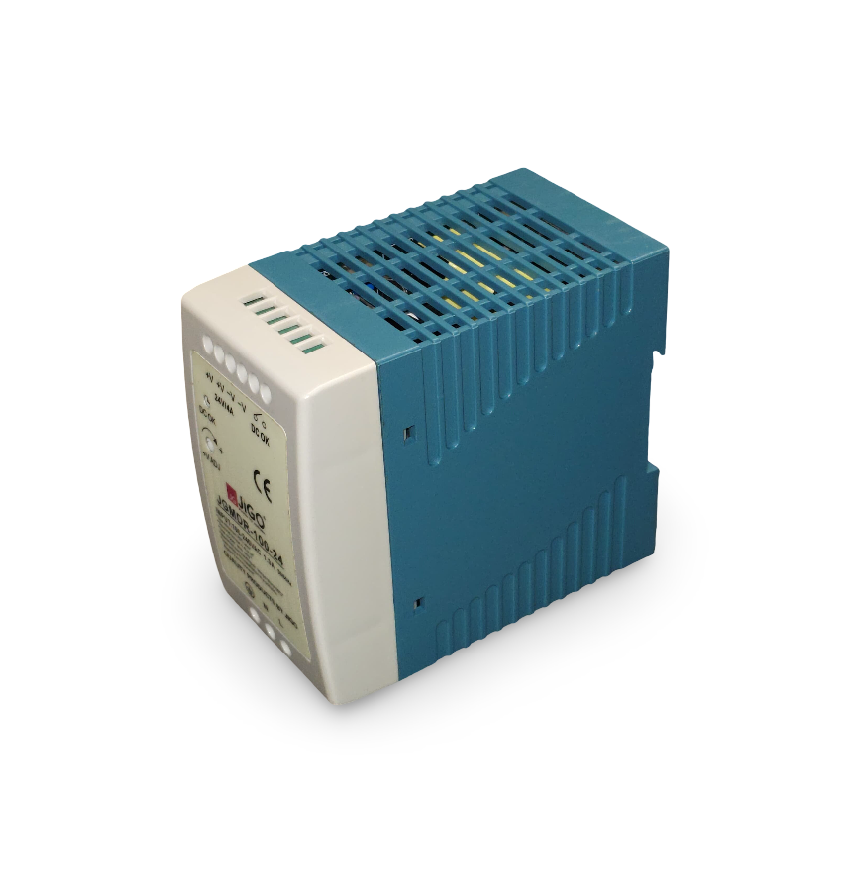

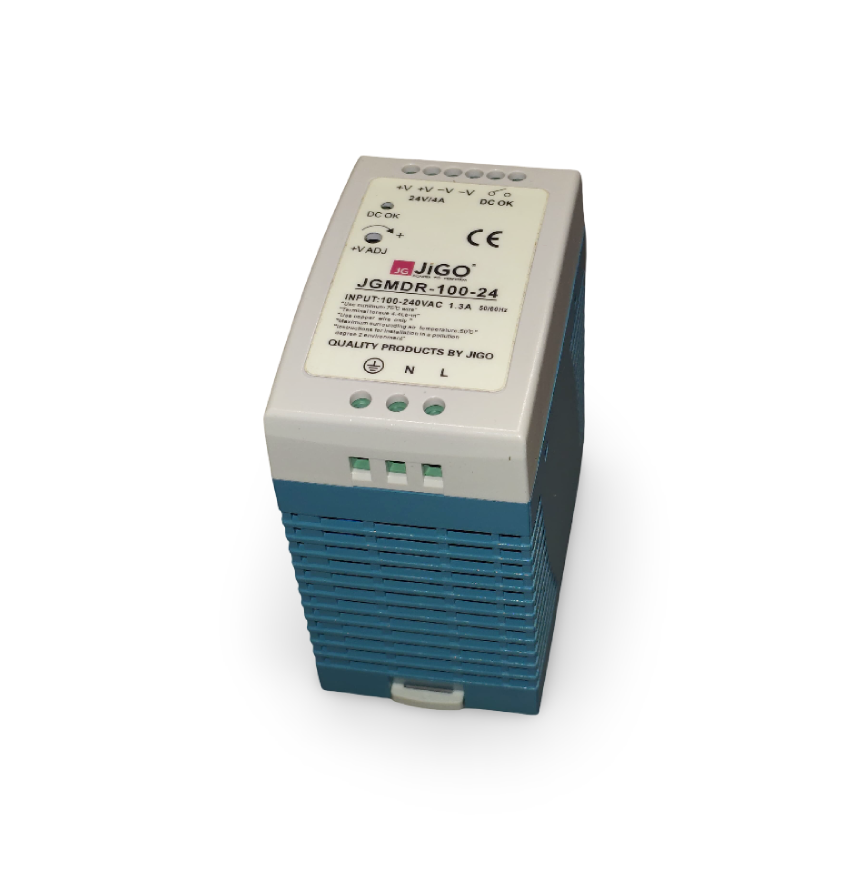

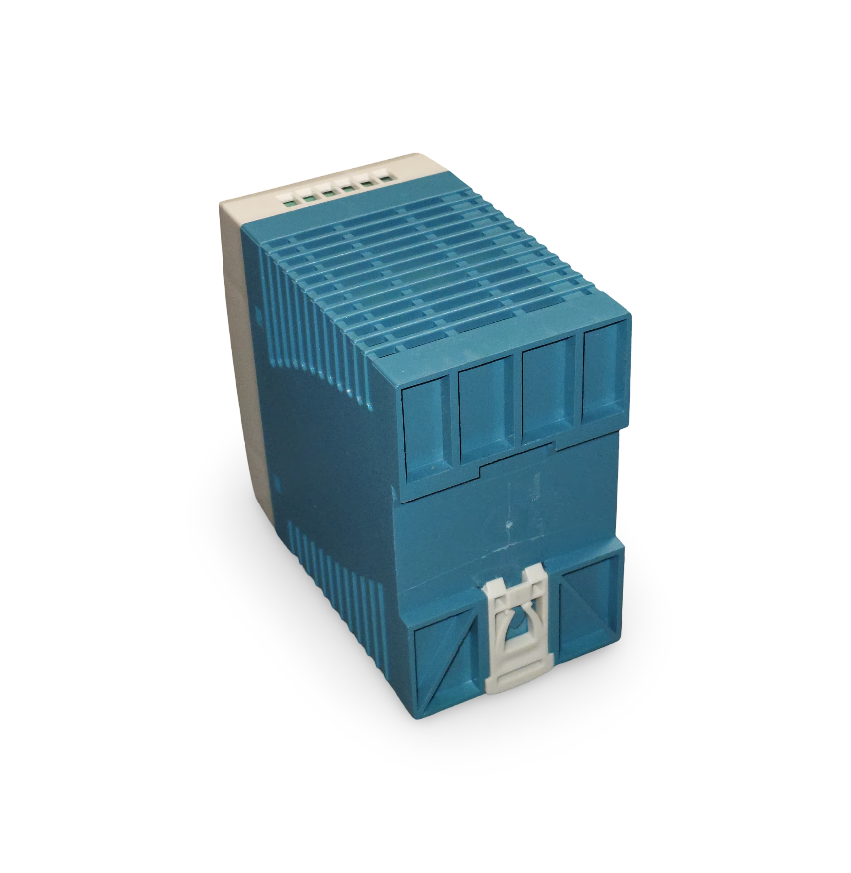

The JGMDR-100-24 is a high-performance 100W DIN rail-mounted power supply, delivering a stable 24V DC output at 4.2A. Designed for industrial control panels and automation systems, it combines high efficiency, compact design, and complete protection features to ensure reliable power delivery.
Model: JGMDR-100-24
Input Voltage Range: 85–264V AC, 50/60Hz
Output Voltage: 24V DC
Output Current: 4.2A
Output Power: 100W
Mounting Type: 35mm DIN Rail
Efficiency: ≥ 89%
Cooling Method: Natural air convection (fanless)
Protection Features:
Overload Protection
Overvoltage Protection
Short-circuit Protection
Housing Material: Flame-retardant plastic
Operating Temperature: -20°C to +70°C
Certifications: CE, RoHS compliant
LED Indicator: Yes (Power ON status)
Regulated 24V DC output at 4.2A for medium to high loads
High energy efficiency and low heat generation
Universal AC input for global compatibility
Fanless design ensures quiet, maintenance-free operation
Slim DIN rail housing saves panel space
Full protection circuitry for safe, reliable use
Industrial automation and PLC control panels
24V actuators, sensors, and instrumentation
Security systems, access control, and surveillance
Communication and building management systems (BMS)
Test benches, R&D labs, and embedded electronics
Powering relays, alarms, and low-voltage DC equipment
