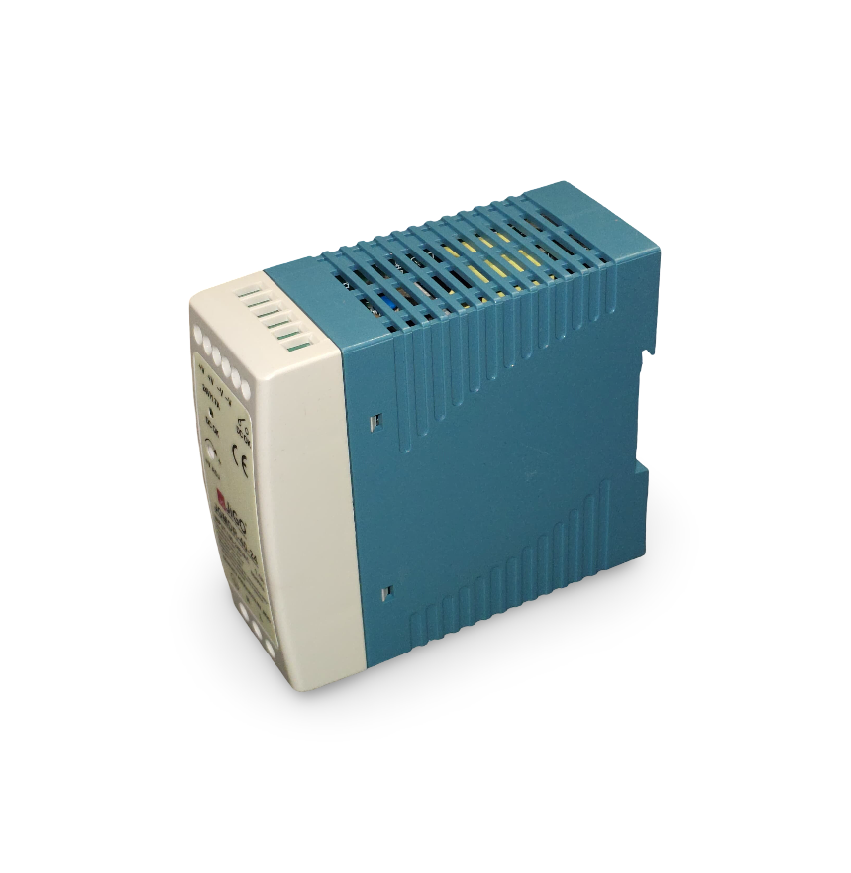

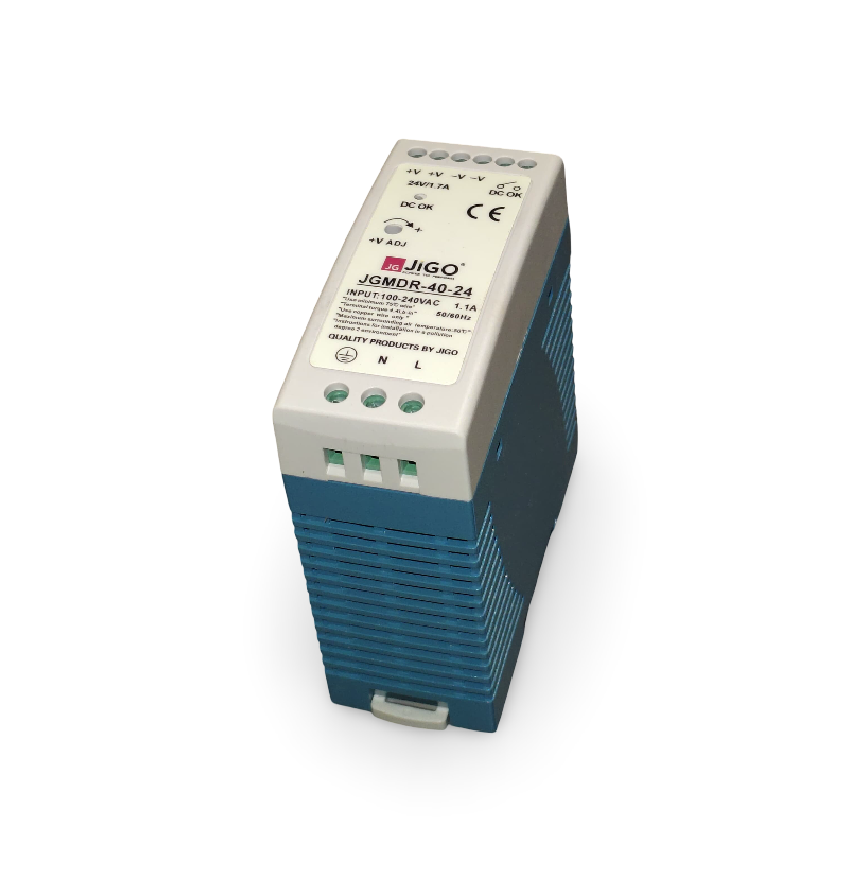

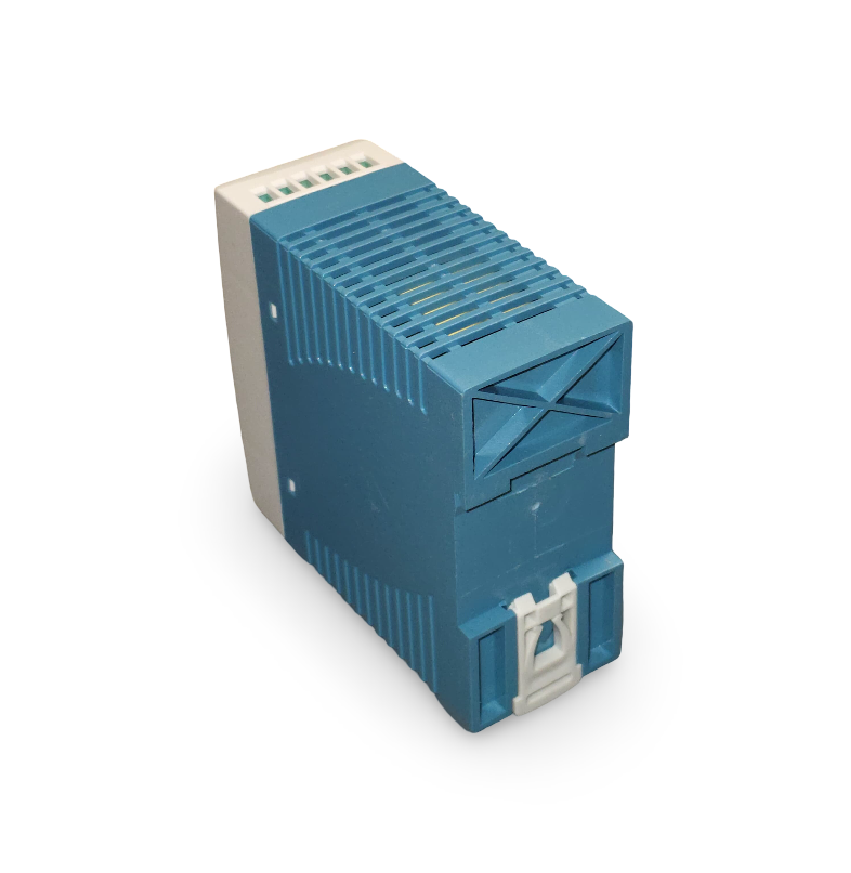

The JGMDR-40-24 is a compact and efficient 40W DIN rail-mounted power supply, delivering a reliable 24V DC output at 1.7A. Ideal for industrial automation and low-power control applications, it combines safety, durability, and easy DIN rail installation in a slim design.
Model: JGMDR-40-24
Input Voltage Range: 85–264V AC, 50/60Hz
Output Voltage: 24V DC
Output Current: 1.7A
Output Power: 40W
Mounting Type: 35mm DIN Rail
Efficiency: ≥ 86%
Cooling Method: Natural air convection (fanless)
Protection Features:
Overload Protection
Overvoltage Protection
Short-circuit Protection
Housing Material: Flame-retardant plastic
Operating Temperature: -20°C to +70°C
Certifications: CE, RoHS compliant
LED Indicator: Yes (Power ON status)
Stable and regulated 24V DC output at 1.7A
High efficiency with minimal power loss
Universal input voltage for global use
Fanless design for silent, long-life operation
DIN rail mounting for easy panel integration
Comprehensive protections ensure equipment safety
Industrial control panels and PLC systems
Sensors, actuators, and 24V control devices
Building automation and BMS systems
Security systems and CCTV
Communication and data logging modules
Compact power solutions for testing setups
