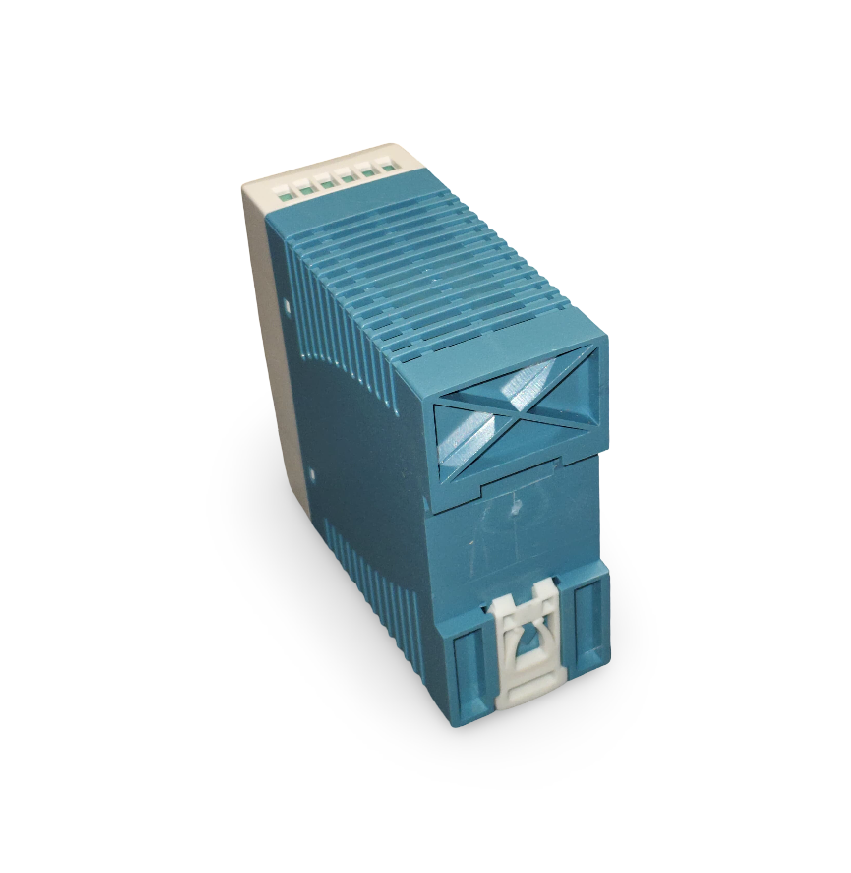

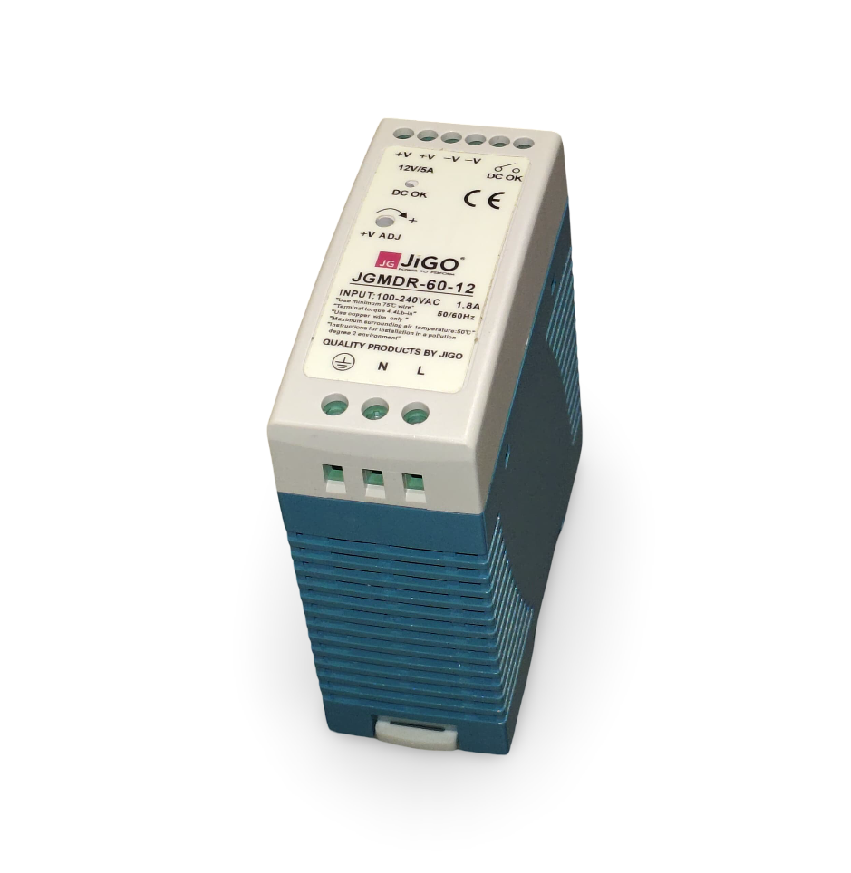

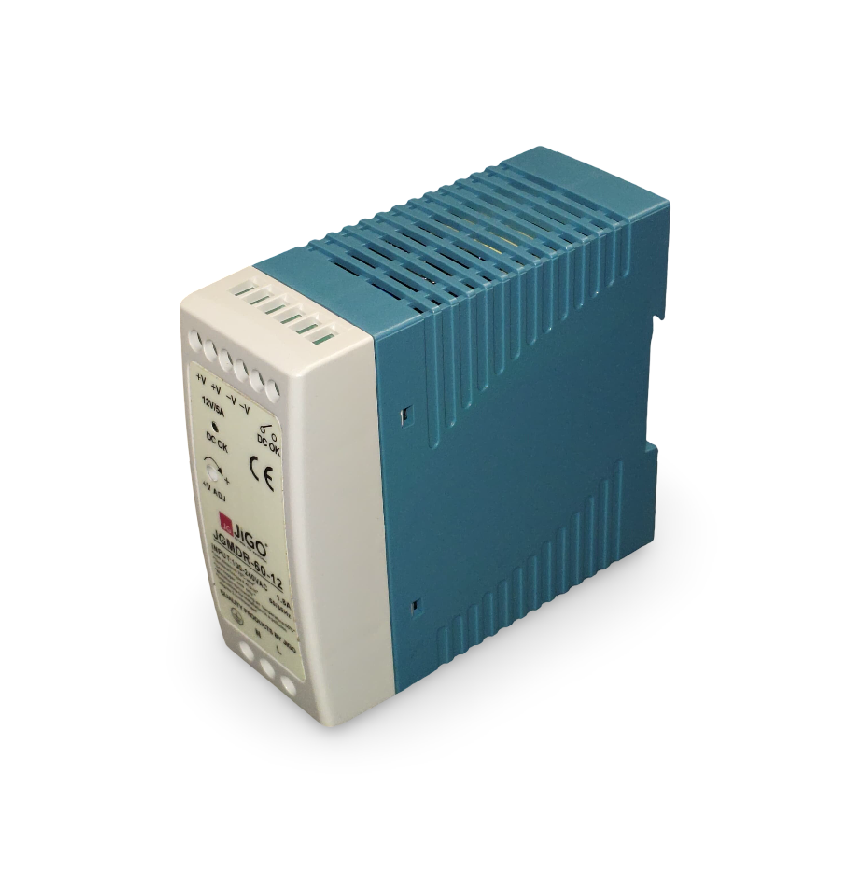

The JGMDR-60-12 is a high-performance 60W DIN rail-mounted power supply, delivering a regulated 12V DC output at 5A. Built for industrial automation, control systems, and embedded electronics, it offers reliable output, compact design, and full safety protections.
Model: JGMDR-60-12
Input Voltage Range: 85–264V AC, 50/60Hz
Output Voltage: 12V DC
Output Current: 5A
Output Power: 60W
Mounting Type: 35mm DIN Rail
Efficiency: ≥ 87%
Cooling Method: Natural air convection (fanless)
Protection Features:
Overload Protection
Overvoltage Protection
Short-circuit Protection
Housing Material: Flame-retardant plastic
Operating Temperature: -20°C to +70°C
Certifications: CE, RoHS compliant
LED Indicator: Yes (Power ON status)
Regulated 12V DC output with 5A high current
Universal AC input for flexible installation
Compact and lightweight for control cabinets
Fanless cooling design for silent operation
Advanced protection features for safe use
Easy DIN rail mounting and maintenance-free
Industrial control systems and automation panels
Powering 12V relays, sensors, and field devices
PLC modules and embedded controllers
Access control, security, and surveillance systems
Instrumentation and data acquisition devices
LED lighting and communication systems
