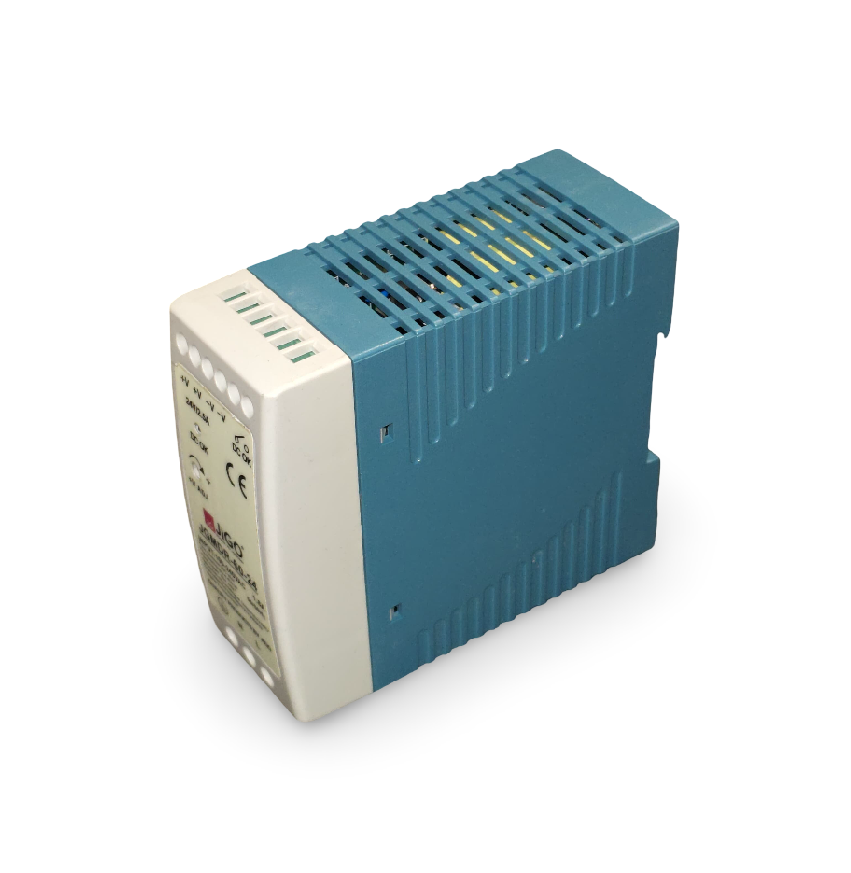

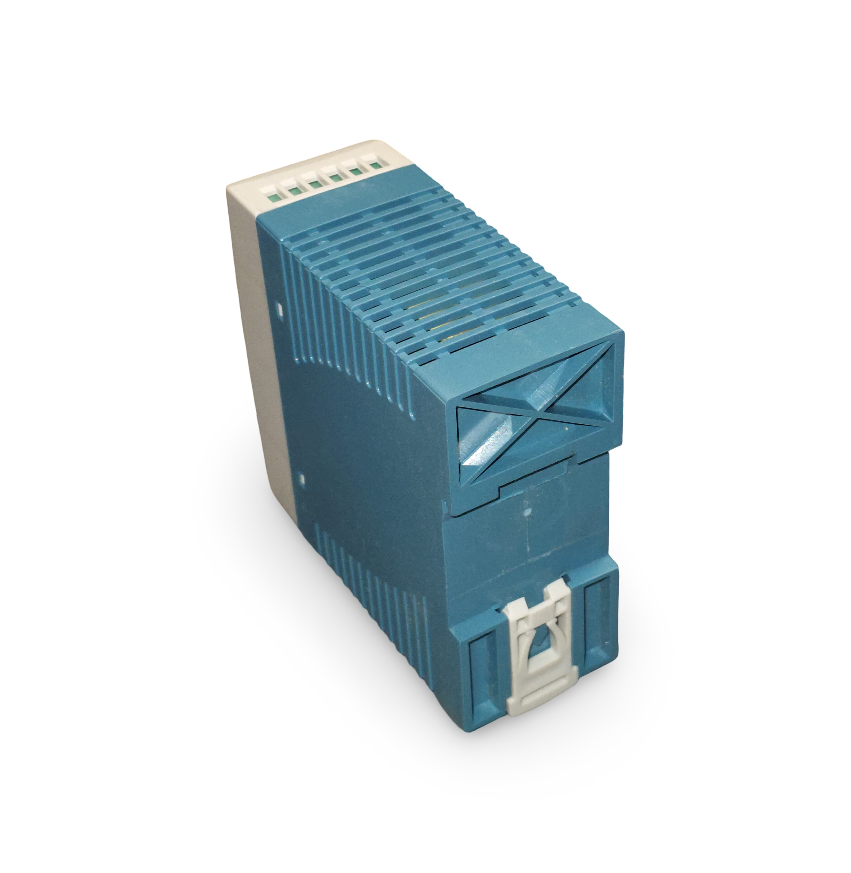

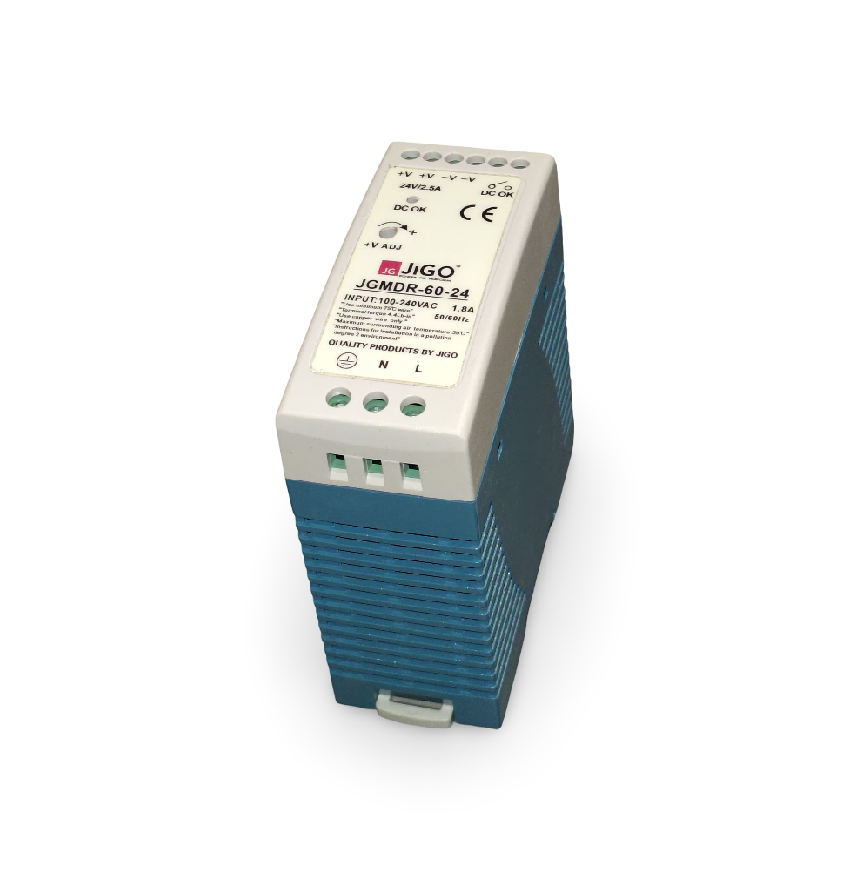

The JGMDR-60-24 is a robust and efficient 60W DIN rail-mounted power supply, delivering a reliable 24V DC output at 2.5A. Designed for industrial and commercial automation systems, it ensures stable performance, compact installation, and full protection for connected equipment.
Model: JGMDR-60-24
Input Voltage Range: 85–264V AC, 50/60Hz
Output Voltage: 24V DC
Output Current: 2.5A
Output Power: 60W
Mounting Type: Standard 35mm DIN Rail
Efficiency: ≥ 88%
Cooling Method: Natural air convection (fanless)
Protection Features:
Overload Protection
Overvoltage Protection
Short-circuit Protection
Housing Material: Flame-retardant plastic
Operating Temperature: -20°C to +70°C
Certifications: CE, RoHS compliant
LED Indicator: Yes (Power ON status)
Regulated 24V DC output with 2.5A current
Compact, DIN rail-mountable form factor
Silent, fanless operation ensures long service life
Built-in protections enhance system safety
Universal AC input compatibility
Ideal for control panels with limited space
Industrial automation and control systems
PLCs, relays, and instrumentation devices
Building management systems (BMS)
Access control and CCTV power
Communication and signaling systems
Test and measurement equipment
