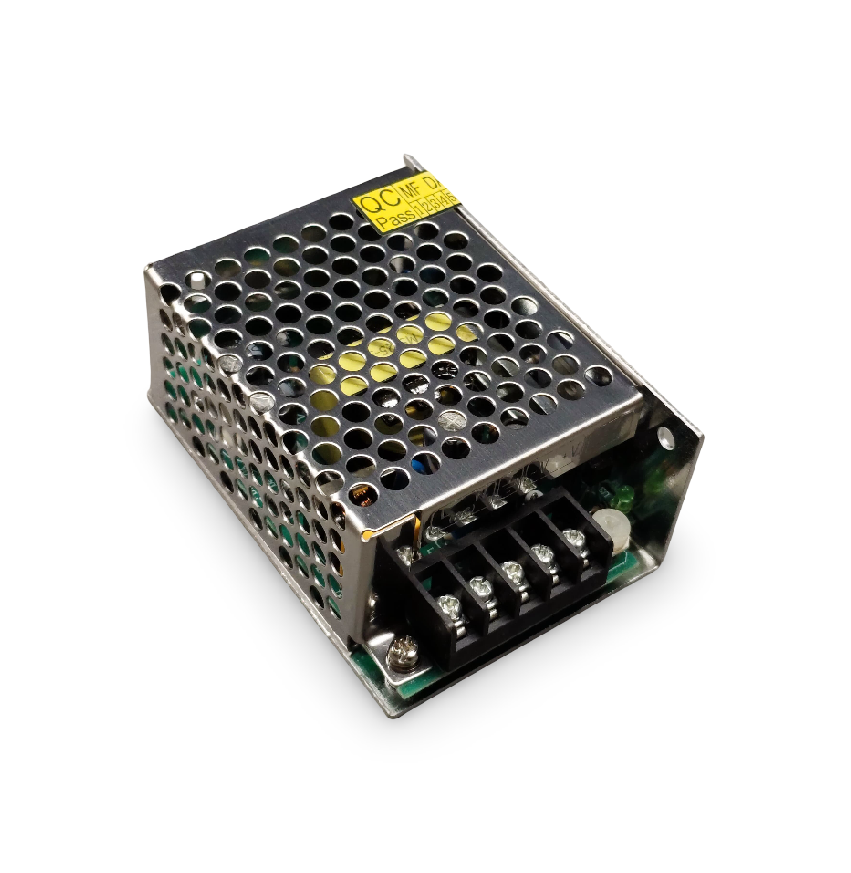

The JGMS-25-5 is a compact 25W enclosed switching power supply that delivers a regulated 5V DC output at 5A. Engineered for general-purpose applications, it provides safe, efficient, and cost-effective power for electronics, automation, and embedded systems.

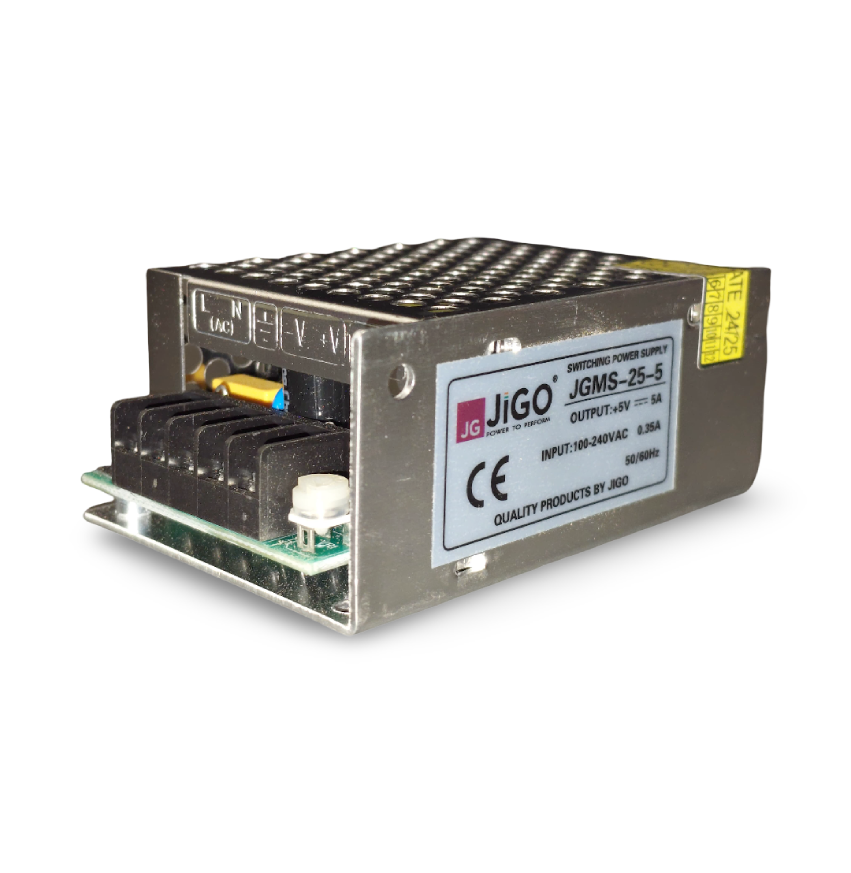

Model: JGMS-25-5
Input Voltage Range: 85–264V AC, 47–63Hz
Output Voltage: 5V DC
Output Current: 5A
Output Power: 25W
Enclosure Type: Metal casing (ventilated)
Efficiency: ≥ 80%
Cooling Method: Natural air convection
Protection Features:
Overload Protection
Overvoltage Protection
Short-circuit Protection
Operating Temperature: -20°C to +60°C
Certifications: CE, RoHS
Mounting: Screw-mount base (open frame for enclosures)
Stable 5V DC output at 5A

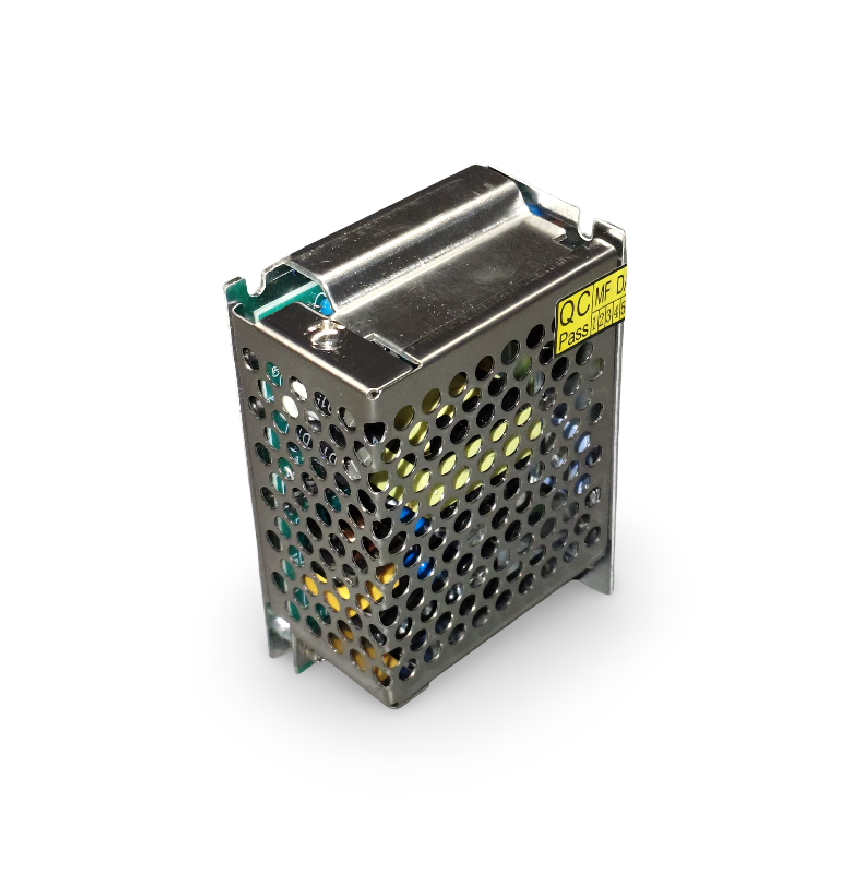

Compact metal case with ventilation slots
High reliability for continuous operation
Built-in safety protections for connected devices
Compatible with wide AC input range
Cost-effective solution for low-power electronics
Embedded control systems
5V sensors, modules, and IoT devices
General-purpose electronics projects
Test benches and prototyping labs
Low-voltage automation panels
LED modules, displays, and alarms
