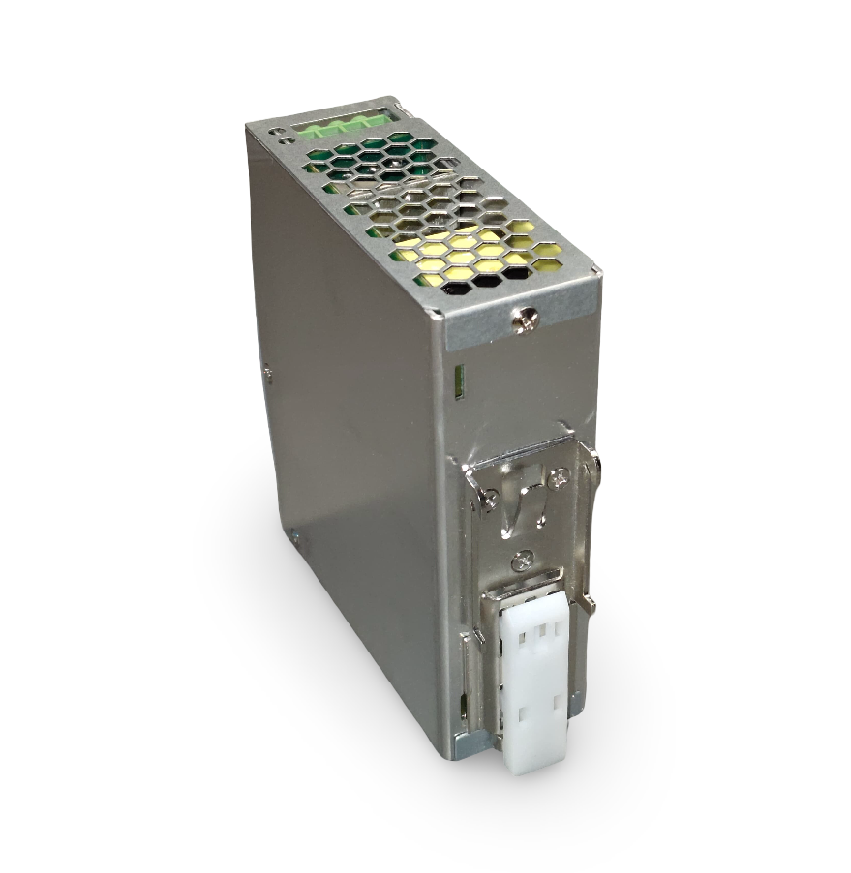

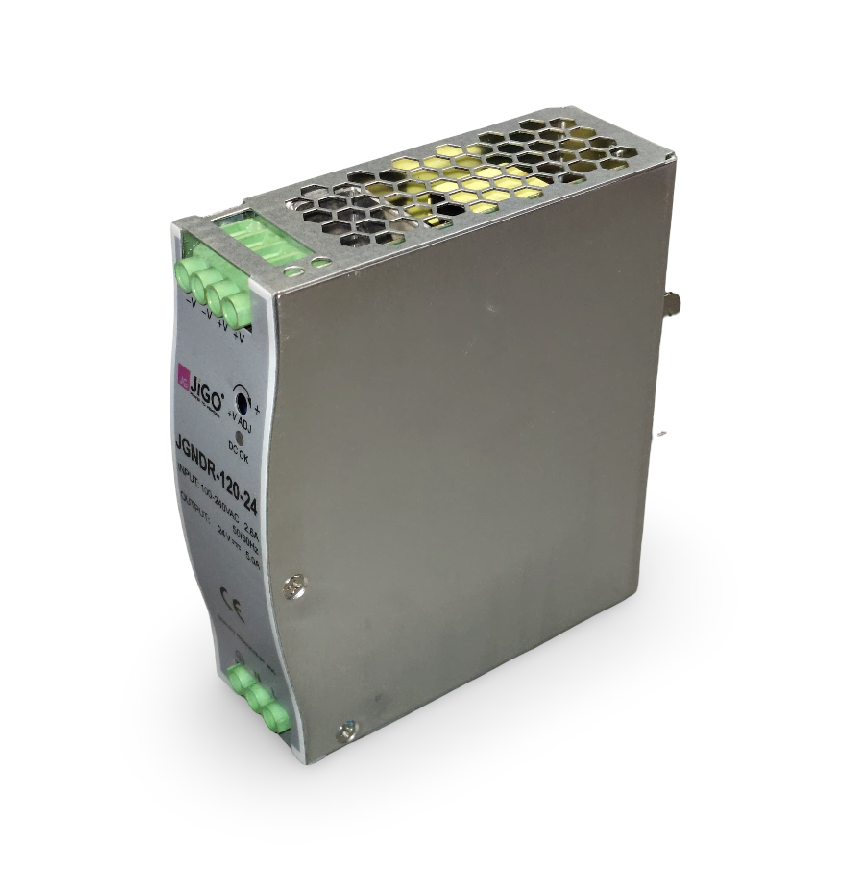

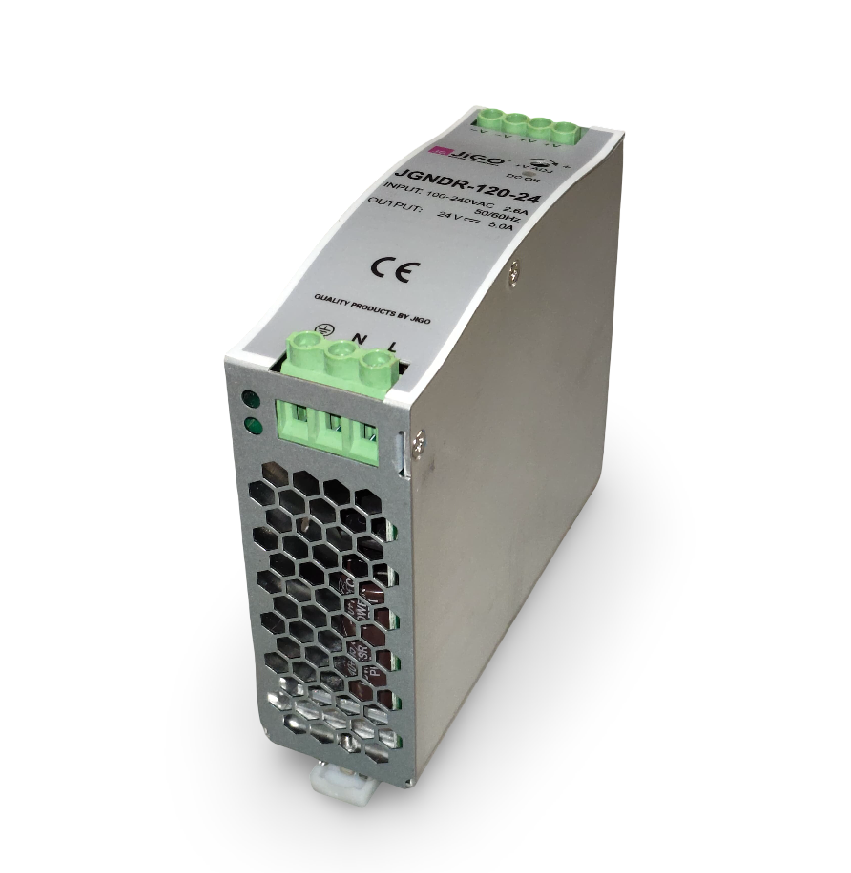

The JGNDR-120-24 is a high-efficiency 120W DIN rail-mounted power supply, delivering a stable 24V DC output at 5A. Designed for industrial-grade reliability, it ensures consistent power, safety, and long life in automation, control, and instrumentation applications.
Model: JGNDR-120-24
Input Voltage Range: 85–264V AC, 47–63Hz
Output Voltage: 24V DC
Output Current: 5A
Output Power: 120W
Mounting Type: 35mm DIN Rail
Efficiency: ≥ 89%
Cooling Method: Natural air convection (fanless)
Protection Features:
Overload Protection
Overvoltage Protection
Short-circuit Protection
Housing Material: Flame-retardant plastic or metal (depending on model)
Operating Temperature: -20°C to +70°C
Certifications: CE, RoHS
LED Indicator: Yes (Power ON status)
Regulated 24V DC output at 5A
Universal AC input compatibility
Compact and efficient DIN rail installation
Built-in overload, short-circuit, and overvoltage protection
Fanless design for silent, maintenance-free operation
High reliability for 24/7 industrial use
Industrial automation and machine control panels
PLCs, sensors, and actuators
Access control and surveillance systems
Communication and networking equipment
24V relays, solenoids, and signaling devices
Test benches and instrumentation systems
