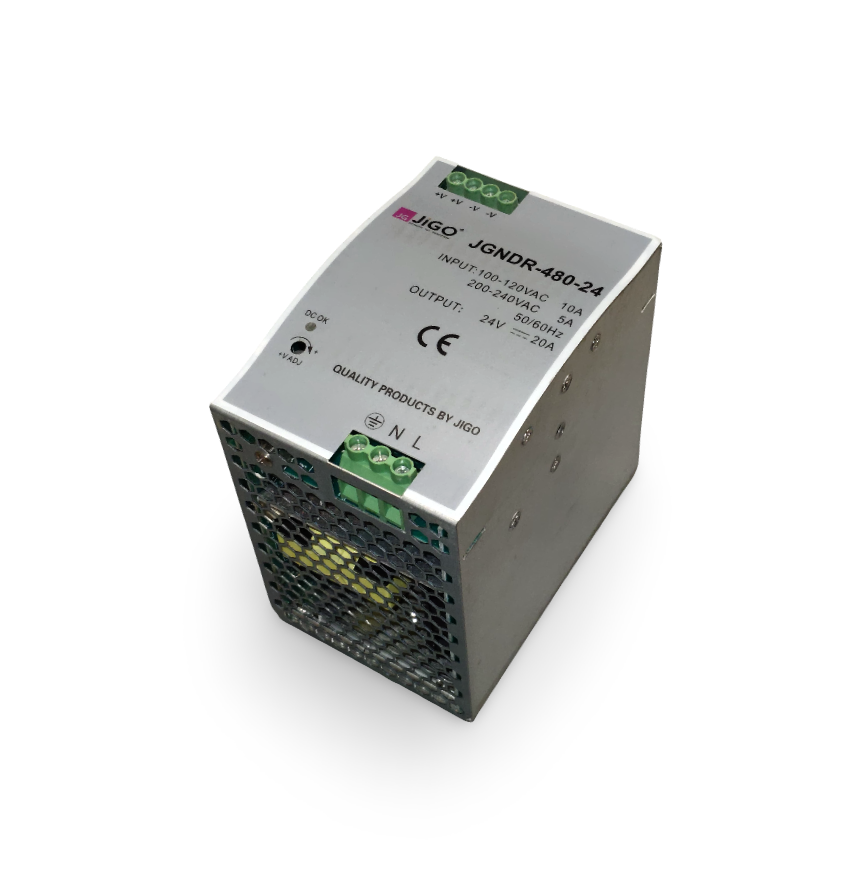

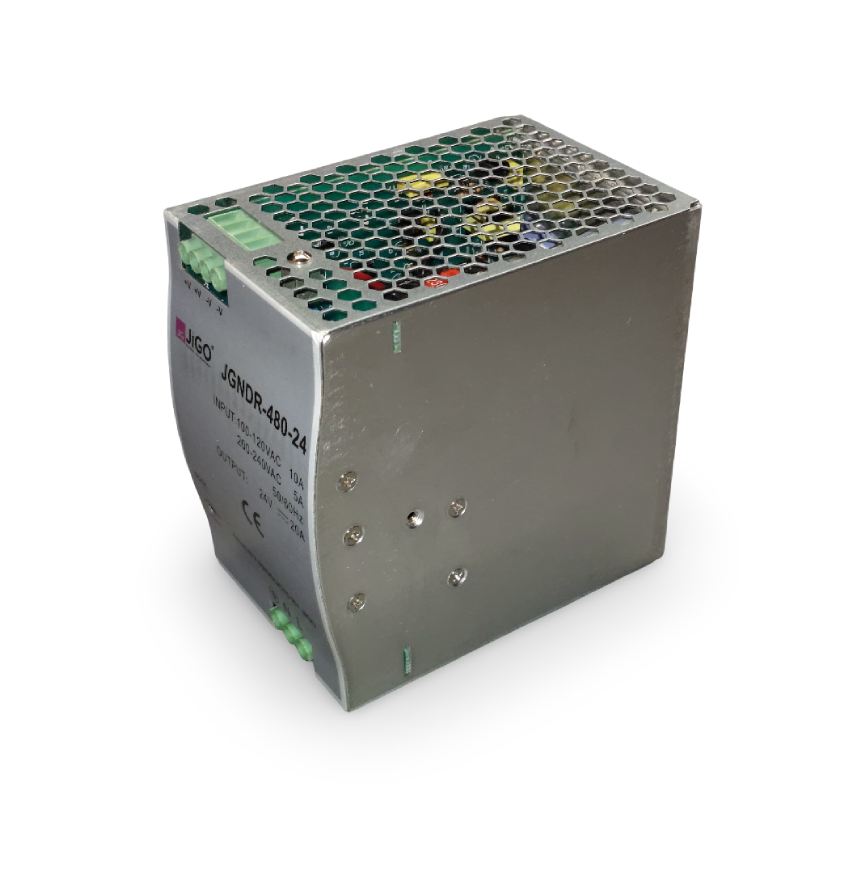

The JGNDR-480-24 is a heavy-duty, high-efficiency 480W DIN rail-mounted power supply, providing a stable 24V DC output at 20A. Engineered for demanding industrial environments, it ensures consistent performance, full protection, and long operational life for automation and power systems.
Model: JGNDR-480-24
Input Voltage Range: 85–264V AC, 47–63Hz
Output Voltage: 24V DC
Output Current: 20A
Output Power: 480W

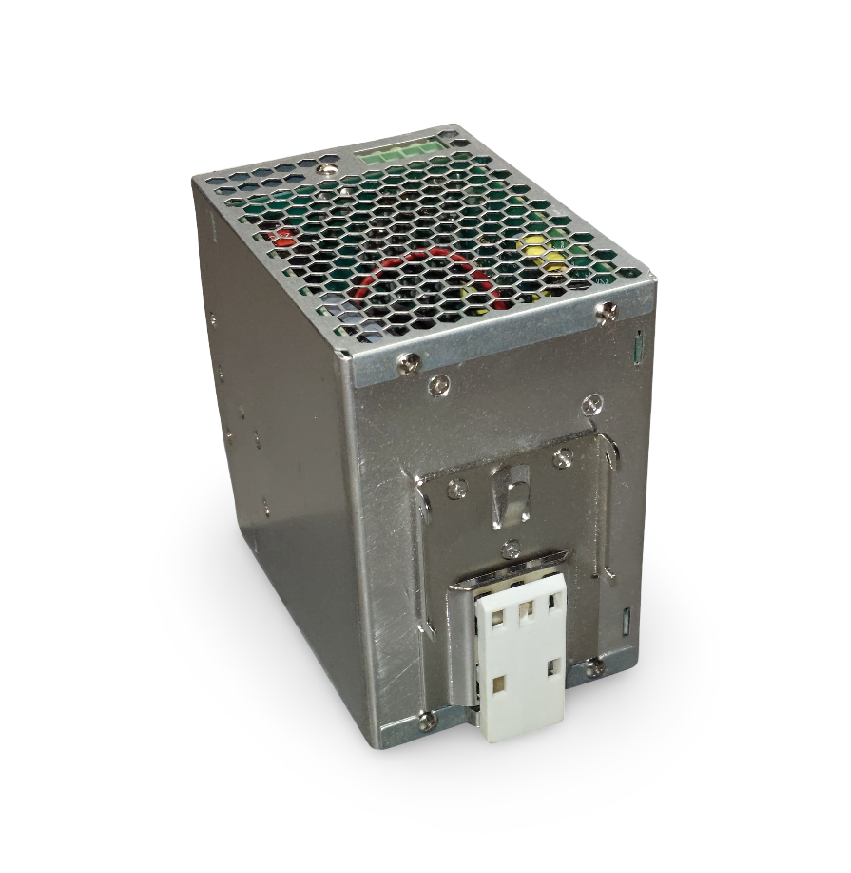

Mounting Type: Standard 35mm DIN Rail
Efficiency: ≥ 91%
Cooling Method: Built-in cooling fan (temperature-controlled)
Protection Features:
Overload Protection
Overvoltage Protection
Short-circuit Protection
Over-temperature Protection
Housing Material: Metal (ventilated design for high power)
Operating Temperature: -20°C to +70°C
Certifications: CE, RoHS compliant
LED Indicator: Yes (Power ON & Status)
High-power 24V DC output at 20A for industrial loads
Exceptional efficiency and thermal management
Wide AC input range for global use
Built-in fan ensures optimal cooling under full load
Comprehensive protections ensure equipment and operator safety
Ideal for heavy-duty and continuous-use systems
Large industrial automation and control systems
Motion controllers, drives, and motors
SCADA systems, PLCs, and distributed control networks
24V relay banks, solenoids, and high-current devices
CCTV, surveillance systems, and security infrastructure
Industrial machinery and production lines
